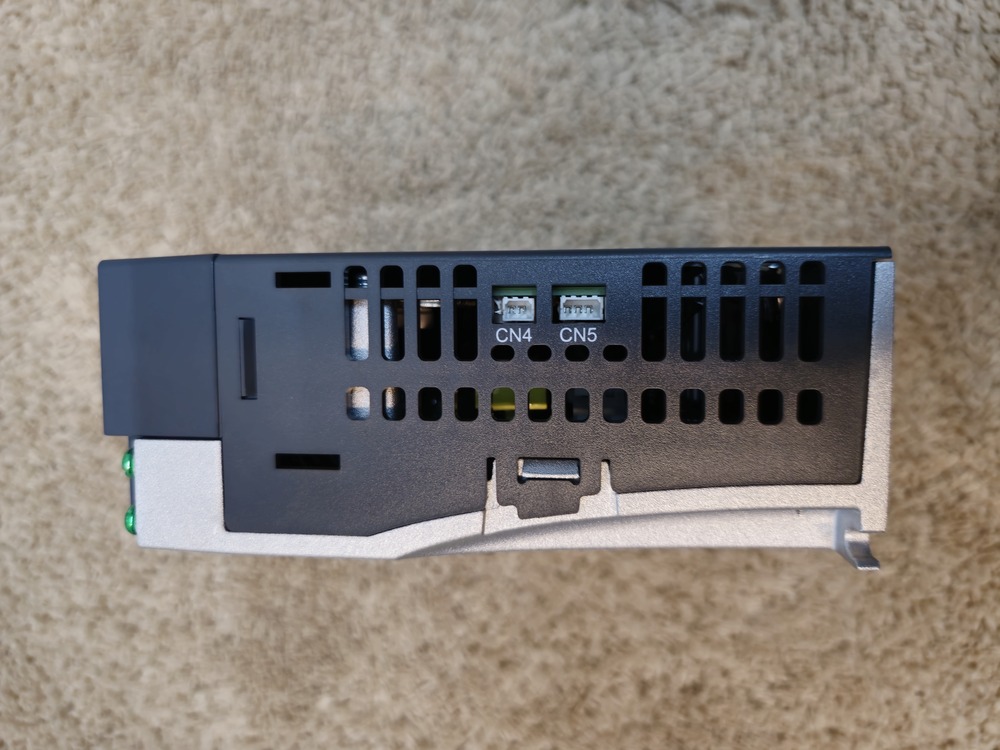

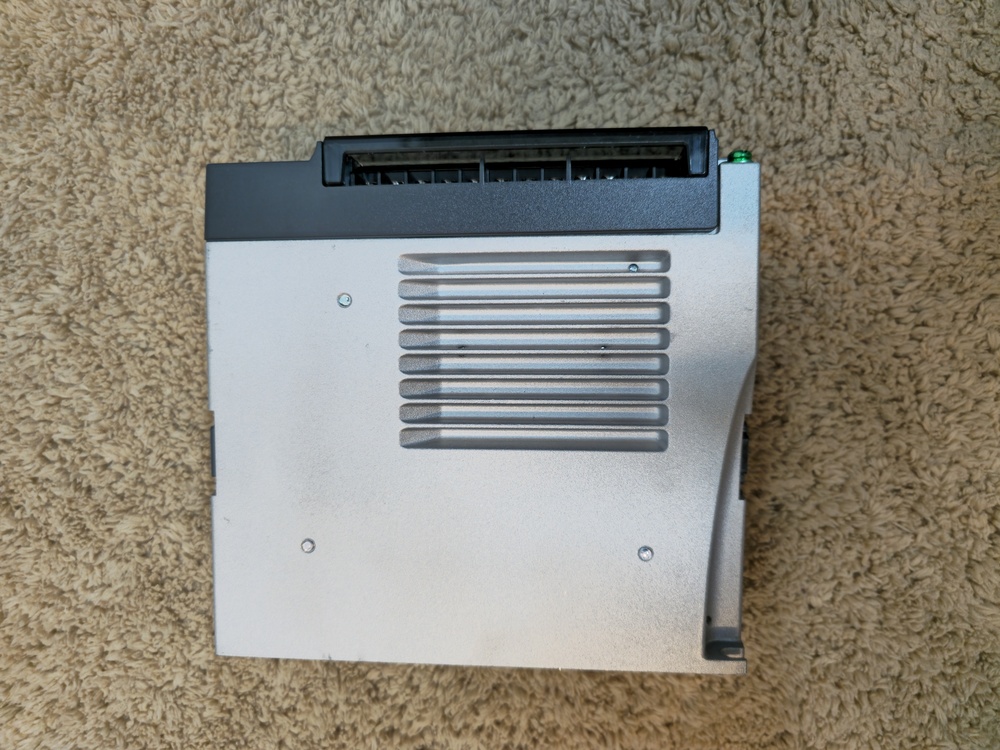

ASD-E3-2023-L Delta B2 Series Driver - 2000W

Name: ASD-E3-2023-L Delta B2 Series Driver - 2000W
Brand: Corbital Enterprise
Price: 41000.0 INR
Availability: InStock

Price 41000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-E3-2023-L Delta B2 Series Driver - 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-E3-2023-L Delta B2 Series Driver - 2000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-E3-2023-L Delta B2 Series Driver - 2000W

The ASD-E3-2023-L is a 2000W (2kW) high-performance servo drive from Deltas advanced ASDA-E3 series. While you mentioned the B2 series, the E3 is its modern, high-bandwidth successor, offering a 25% size reduction and significantly faster response times. [1]

Core Function

The drive acts as the power and logic controller for your ECM-E3M-E21320SSE motor:

Precision Actuation: Translates PLC commands into high-power electrical output with a 2.5 kHz response bandwidth, providing smooth, sub-micron positioning.
Control Modes (-L Model): Supports Pulse Train (PT) for traditional position control, Analog Voltage for speed/torque, and RS-485 Modbus for digital monitoring.
Vibration Suppression: Automatically detects and filters out mechanical "shaking" at frequencies up to 5,000 Hz, which is critical for moving large 2kW mechanical loads.
Smart Tuning: Features advanced Auto-Tuning that automatically calculates the machine's mechanical inertia to optimize performance. [1, 2, 4]

Specifications

Rated Power: 2000W (2.0 kW)
Input Voltage: 220V AC, 3-phase (Standard) or 1-phase
Output Current: Rated at 13.4 Arms with an instantaneous max of 24.30 Arms
Resolution: Supports the motors 24-bit resolution encoder (16.7M pulses/rev)
Protection: IP20 rating; intended for installation inside a shielded control cabinet [1, 2, 3, 4, 5, 6]

Physical Dimensions & Weight

The "book-style" design is optimized to save space on your control panel. [1, 2]

Dimension [1, 3, 4]	Metric (mm)	Imperial (Inches)
Width	80.2 mm	3.16 in
Height	162 mm	6.38 in
Depth	194.15 mm	7.64 in
Weight	2.8 kg	6.17 lbs

The Delta ASD-E3-2023-L is the high-power control hub for a 2.0kW servo system. Its primary function is to convert low-voltage signals from your controller (like a PLC) into the high-current electrical pulses required to move a 2000W motor with absolute precision.

As an E3 Series "Basic" Type (-L) driver, its specific functions include:

1. High-Bandwidth Motion Control

Closed-Loop Processing: It continuously analyzes the 24-bit feedback from the motors encoder. If the motor is even a fraction of a degree off its path due to load resistance, the drive corrects it 2,500 times per second (2.5 kHz bandwidth).
Pulse Train (PT) Mode: Functions as a high-speed follower, moving the motor a specific distance and speed based on pulses received from a PLC.
Analog Control: Uses a -10V to +10V signal to function as a variable speed or torque regulator, common in tension-control systems.

2. Mechanical Optimization

Smart Auto-Tuning: The drive functions as its own technician. It can perform a test move to calculate the mechanical weight (inertia) of your machine and automatically set the "Gains" for the smoothest possible motion.
Advanced Vibration Suppression: Large 2kW systems often "shake" or hum. This drive scans for mechanical resonances (up to 5000Hz) and applies notch filters to cancel out the shaking, much like noise-canceling headphones.

3. System Protection & Monitoring

Electronic Gear Ratio: It can mathematically scale the incoming pulses so that your PLC can command simple units (like 10.0mm) without complex external math.
Holding Brake Management: It manages the timing for your motor's SSE (Brake) mechanism, ensuring the brake is released before the motor tries to move and engaged after it stops.
Safe Torque Off (STO): A dedicated hardware safety function that immediately cuts power to the motor's transistors during an emergency without needing to cut the main power to the drive.

Functional Comparison: E3 vs. B2 Series

While you noted it as "B2 Series," this E3 driver is a significant functional upgrade:

Accuracy: Supports 24-bit encoders (16.7M pulses/rev) vs. B2's 17-bit (160k pulses/rev).
Response: Reacts 2.5x faster, which is critical for the heavy momentum of a 2kW load.
Size: It is roughly 25% slimmer, allowing more drives to fit in the same control panel.
