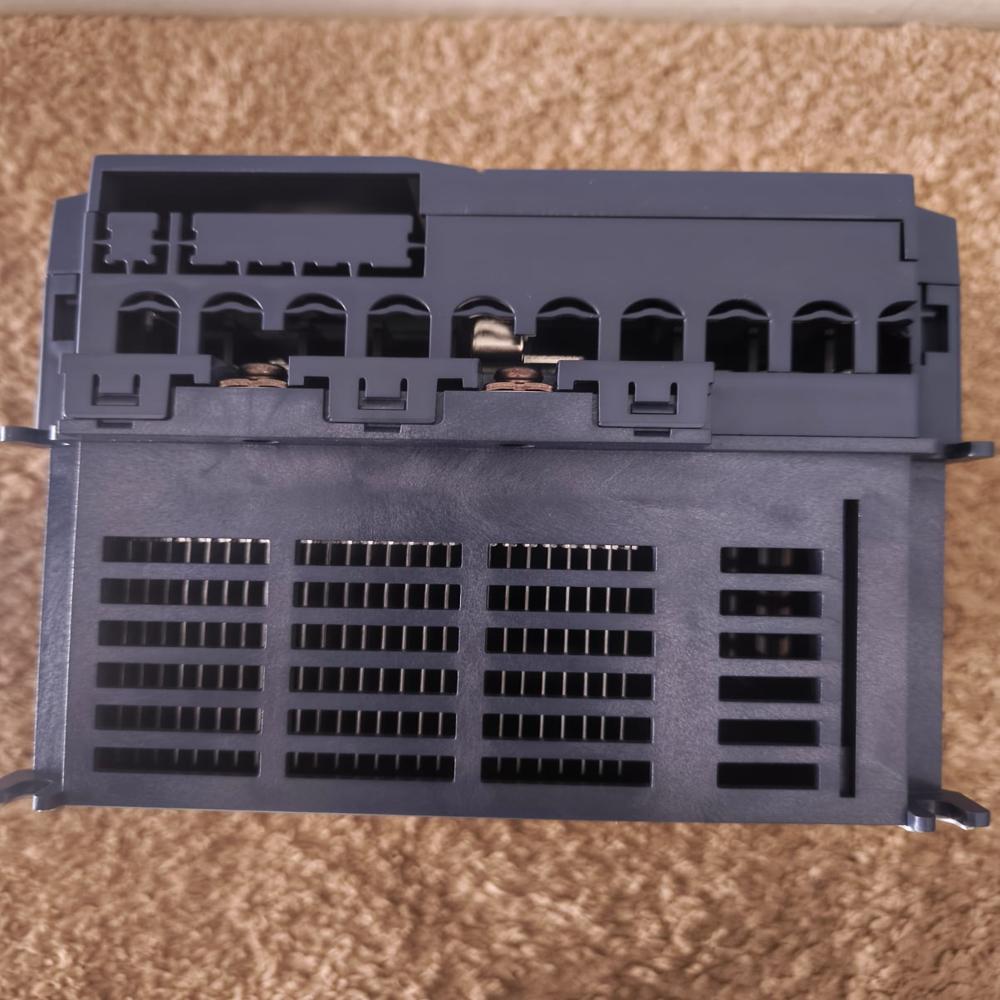

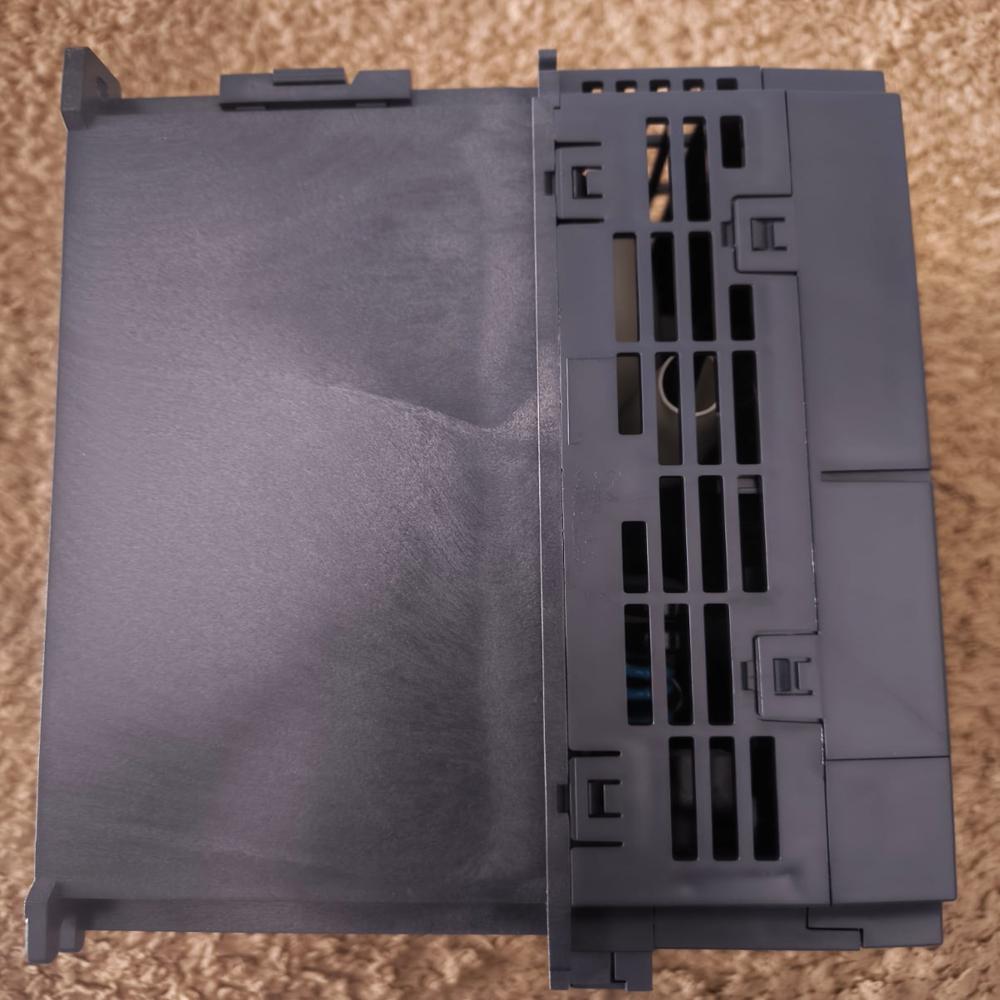

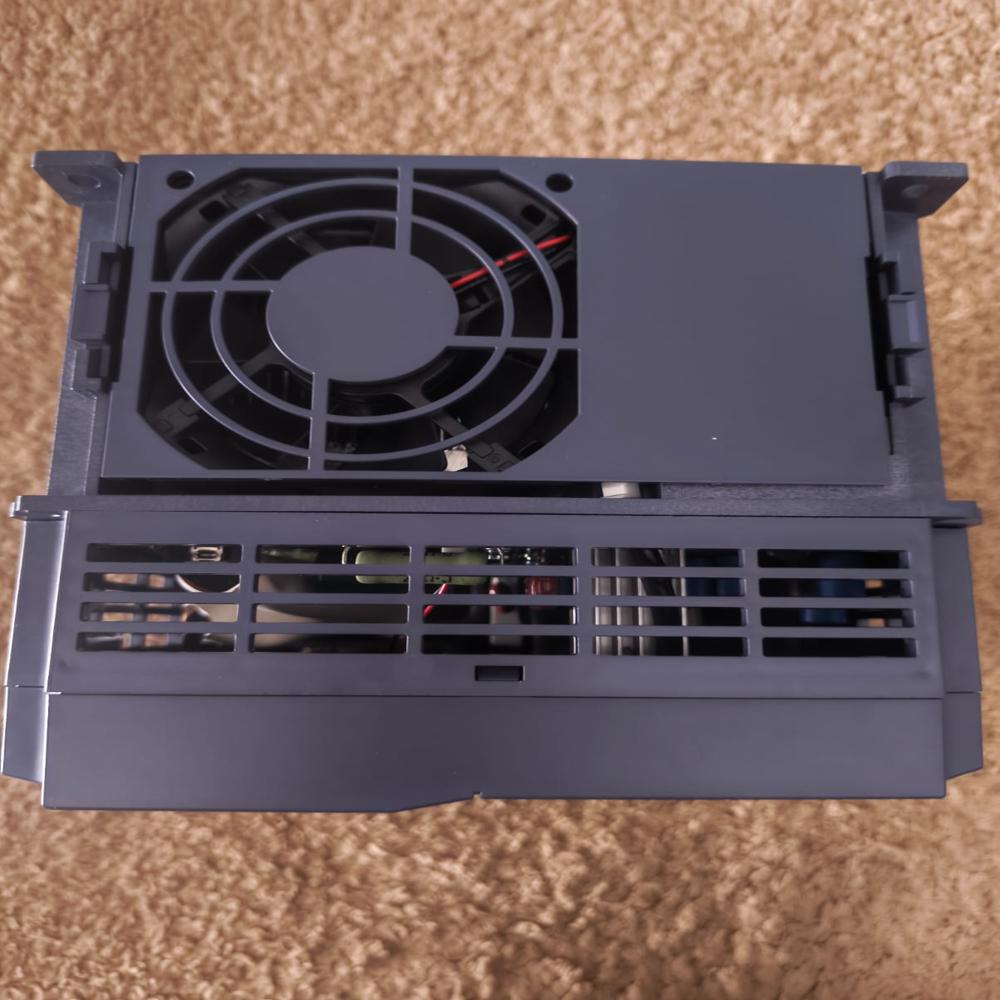

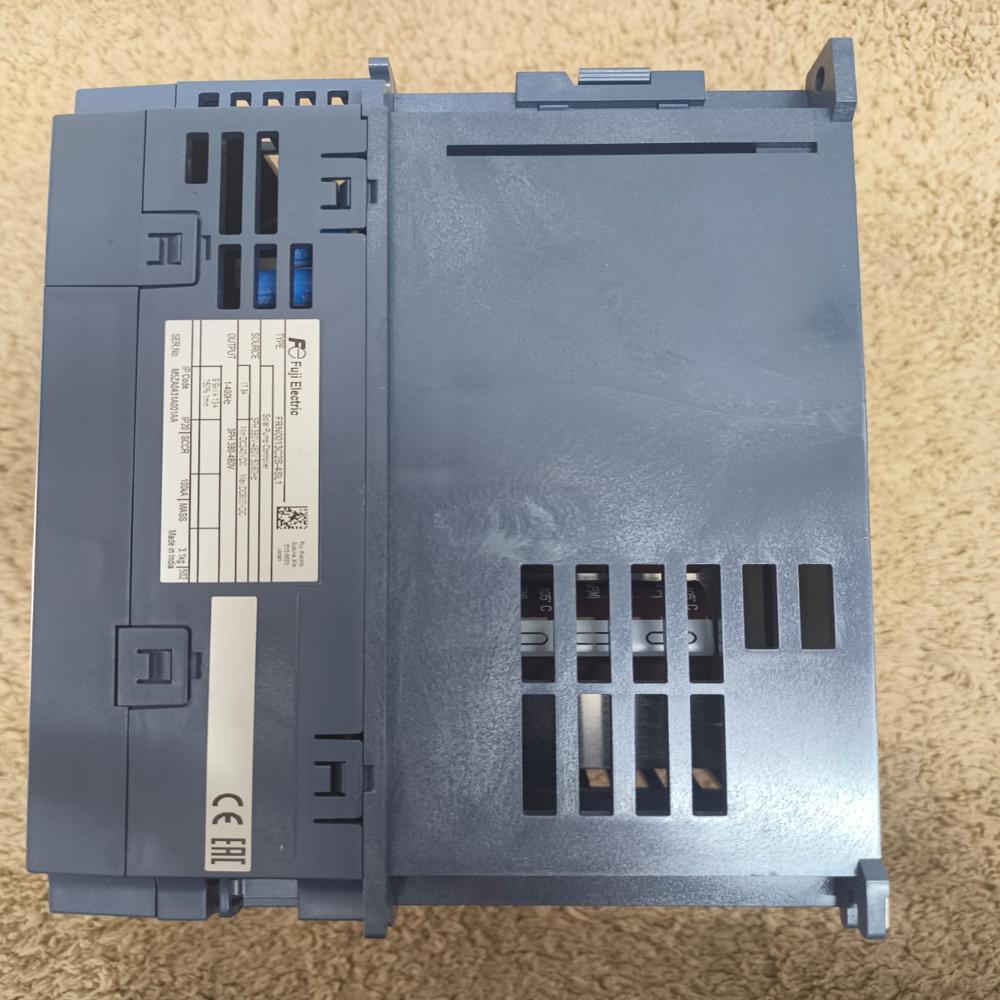

FRN0004C2S-7A - Fuji Mini 0.4kw 0.5hp 220V

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0004C2S-7A - Fuji Mini 0.4kw 0.5hp 220V Specification

IP Rating
20

Humidity %
5% to 95%

Mounting Type
Panel mounting

Product Type
VFD

Power Rating
200V to 240V

Application
Industrial Machinery

Color
Blue

Weight
600 Grams (g)

Usage & Applications
Industrial Machinery

Rated Voltage
200V to 240V Volt (V)

Warranty
1 Year

Input Voltage
200V to 240V Volt (V)

Phase
1 Phase

Rated Current
200V to 240V Volt (v)

Material
Plastic

FRN0004C2S-7A - Fuji Mini 0.4kw 0.5hp 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0004C2S-7A - Fuji Mini 0.4kw 0.5hp 220V

The

Fuji Electric FRN0004C2S-7A

is a compact variable frequency drive (VFD) from the FRENIC-Mini (C2) series. Designed for simple, high-performance motor control, it supports 0.4 kW (0.5 HP) motors and is frequently used in industrial applications such as conveyors, fans, and pumps.

Manufacturer:	Fuji Electric
Series:	Frenic Mini (FRN-C2)
Model:	FRN0004C2S-7E
Application:	pumps / fans / general purpose
Capacity, kW:	0.4
Current, :	3.5
Main power supply, V:	200-240
Phase:	1
Output frequency, Hz:	25-400
Enclosure:	IP 20
Overload capacity, % per 1 min.:	150
Acceleration time, sec:	0-3600
Deceleration time, sec:	0-3600
EMC filter:	-
Braking unit:	+
Analog input:	2
Digital input:	5
Analog output:	1
Digital output:	1
Relay output:	3
RS485 (Modbus RTU):	RS485, Modbus
Starting torque:	150%
PID:	PID - regulation
V/f control mode:	+
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+50
Storage temperature, :	-25......+70
Dimensions (W x H x D), mm:	80x120x70
Weight, kg:	0,7

Physical Dimensions in Inches

This micro-drive is built for tight panel spaces.

Width: 3.15 inches (80 mm)
Height: 4.72 inches (120 mm)
Depth: 3.74 inches (95 mm)
Weight: ~1.5 lbs (0.7 kg)

Key Functions & Features

The FRENIC-Mini C2 series incorporates advanced motor control logic typically reserved for larger units.

Dynamic Torque Vector Control: Delivers stable torque output even at low speeds, ideal for high-inertia loads.
Energy Optimizer: A specialized control system that monitors the load to minimize overall power consumption.
PID Control: Enables automated regulation of variables like pressure or flow in pumping systems.
RS-485 Communication: Includes a standard RJ45 port for Modbus RTU, allowing for remote diagnostics and PLC integration.
Ease of Use: Features a built-in potentiometer on the keypad for quick manual speed adjustments.
