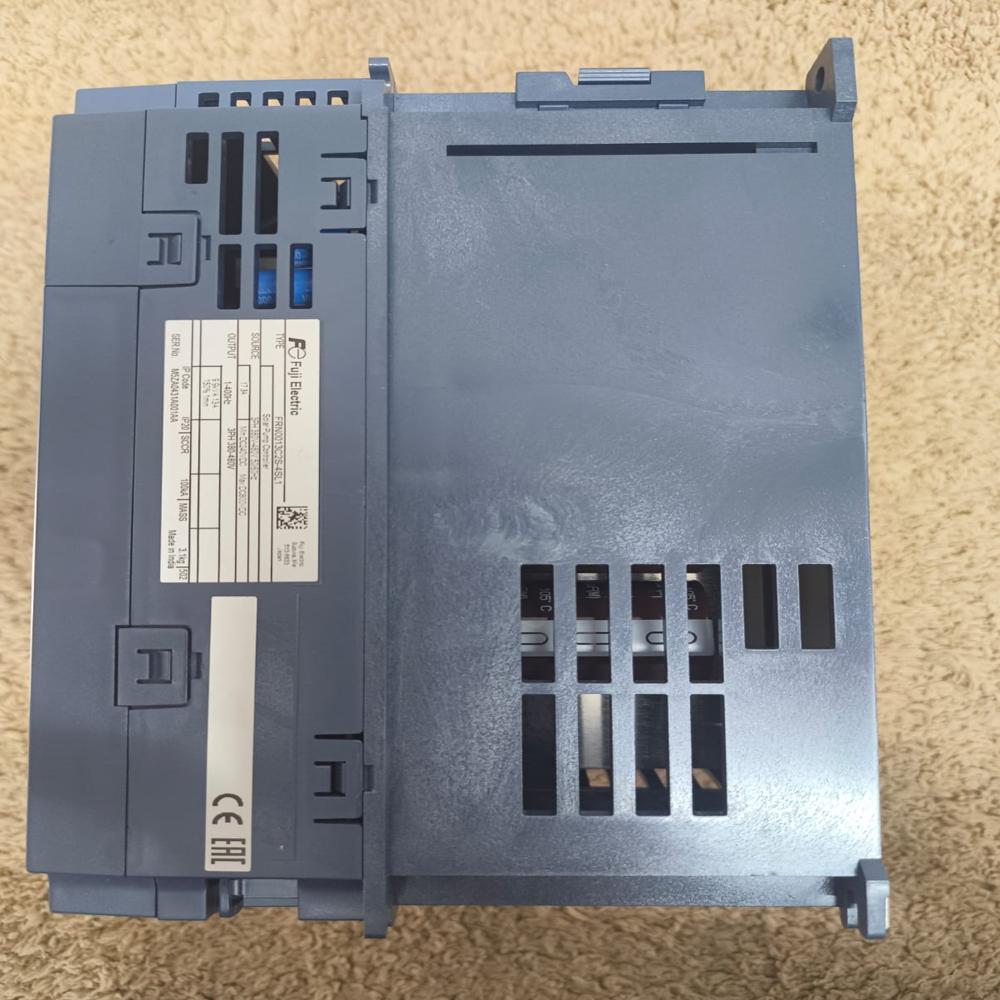

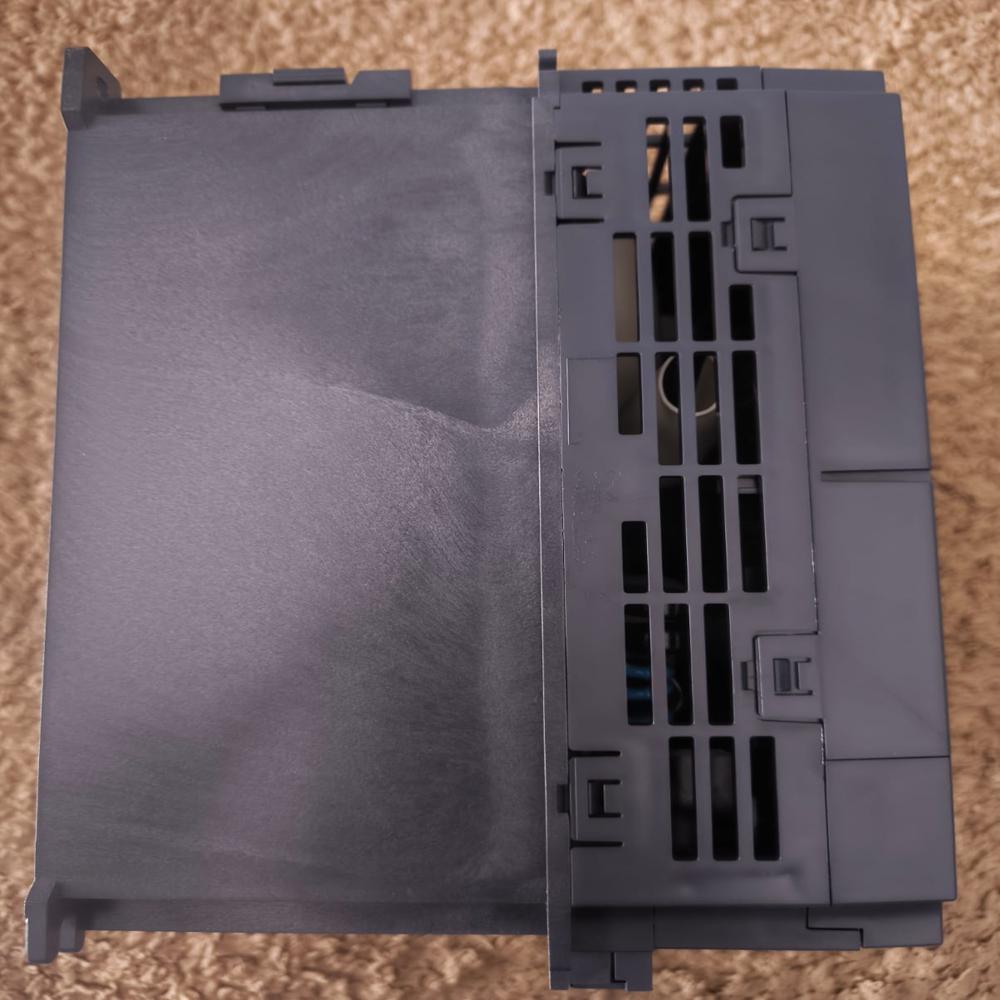

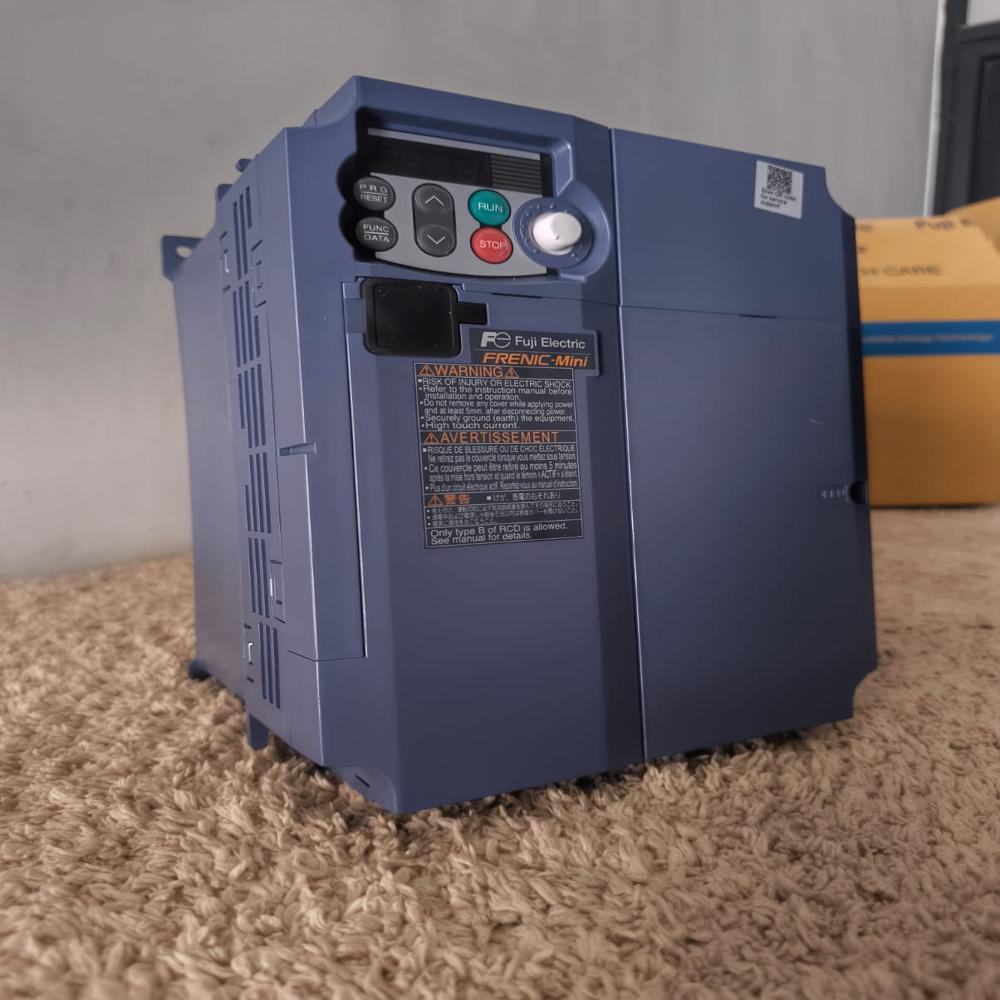

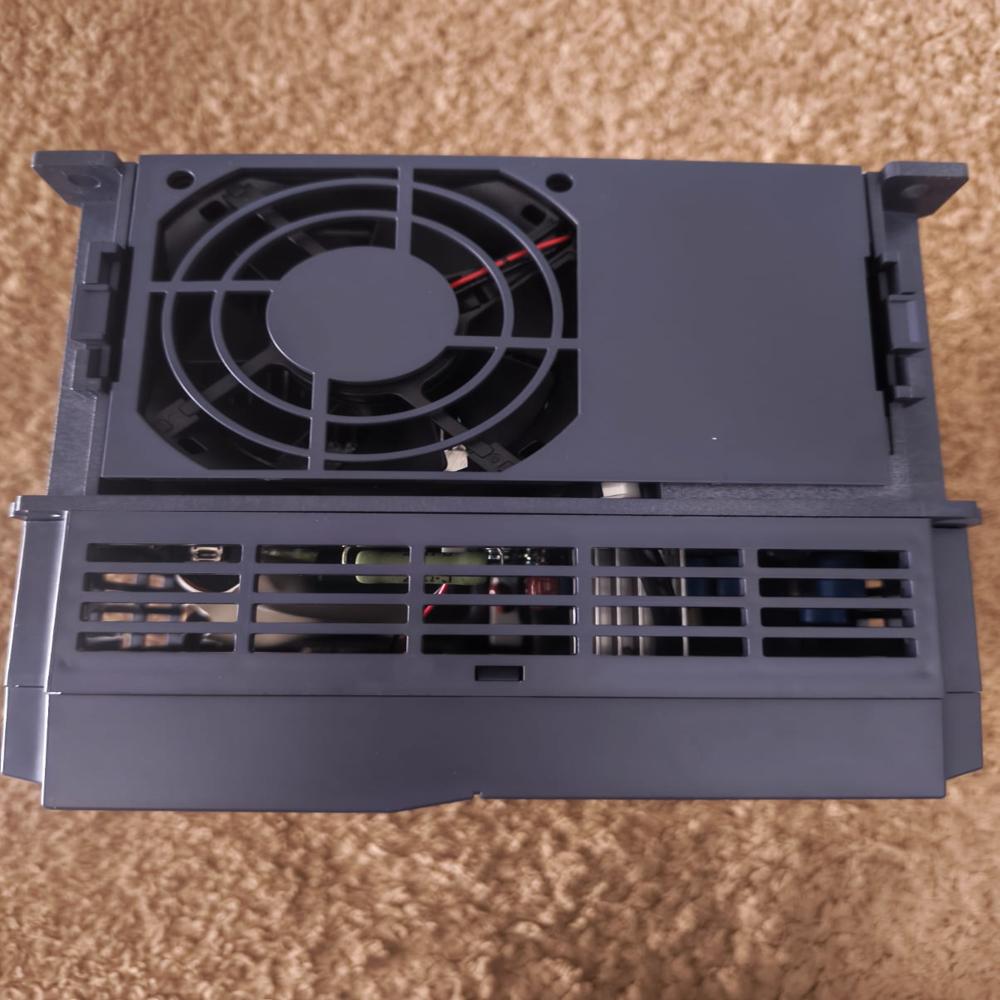

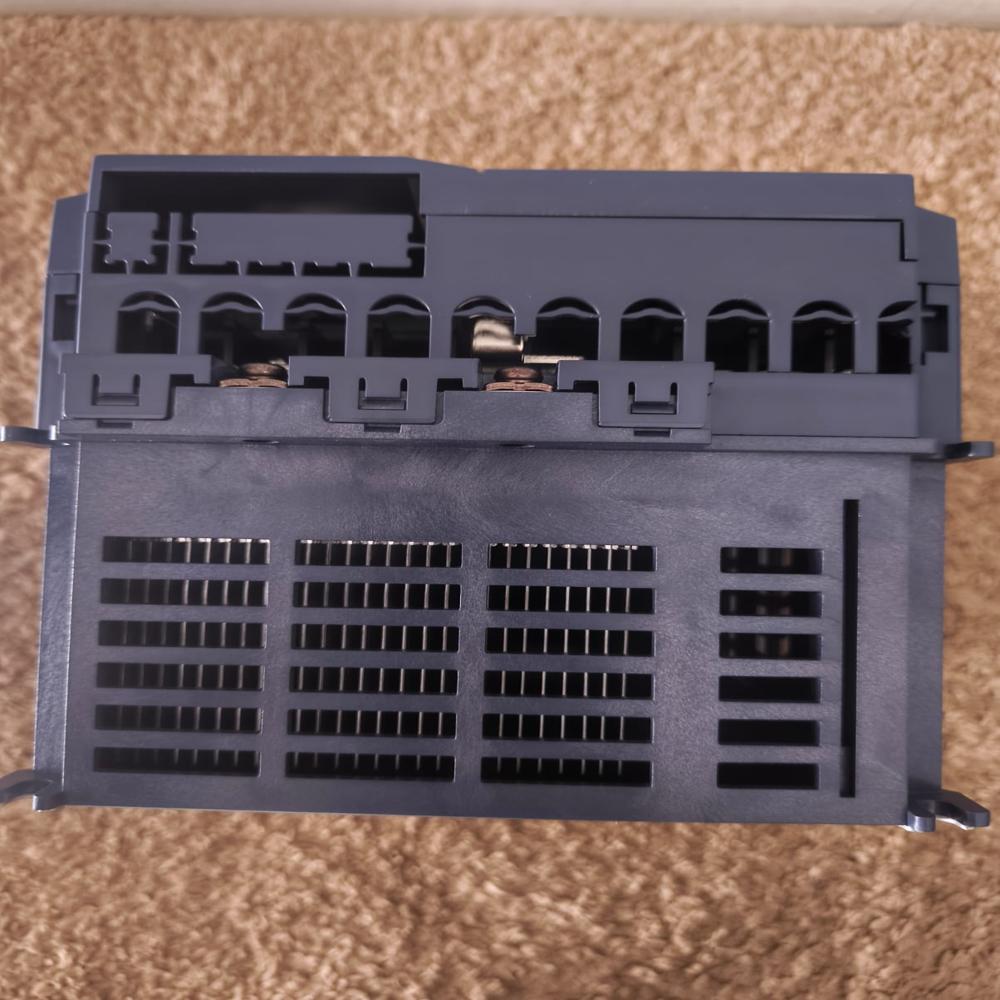

FVR0.4AS1S-7E - Fuji Micro 0.4kw 0.5hp 220V

Price 9000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FVR0.4AS1S-7E - Fuji Micro 0.4kw 0.5hp 220V Specification

Humidity %
5% to 95%

IP Rating
20

Mounting Type
Panel mounting

Product Type
VFD

Power Rating
200V to 240V

Application
Industrial Machinery

Color
Blue

Usage & Applications
Industrial Machinery

Weight
900 Kilograms (kg)

Rated Voltage
200V to 240V Volt (V)

Warranty
1 Year

Input Voltage
200V to 240V Volt (V)

Phase
1 Phase

Rated Current
200V to 240V Volt (v)

Material
Plastic

FVR0.4AS1S-7E - Fuji Micro 0.4kw 0.5hp 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FVR0.4AS1S-7E - Fuji Micro 0.4kw 0.5hp 220V

FVR0.4AS1S-7E

The

Fuji Electric FVR0.4AS1S-7E

is a micro-compact variable frequency drive (VFD) from the FVR-Micro (AS1S) series. It is designed for small-capacity, general-purpose industrial applications like pumps, fans, and conveyor systems.

Physical Dimensions in Inch

The drive features an extremely compact, space-saving design suitable for small electrical panels.

Width: 2.68 inches (68 mm)
Height: 5.04 inches (128 mm)
Depth: 4.57 inches (116 mm)
Net Weight: Approximately 1.32 lbs (0.6 kg)

Key Technical Specifications

Motor Power: 0.4 kW (approx. 0.5 HP)
Input Voltage: Single-phase 200V240V AC
Output Current: 2.5 Amps
Output Frequency: 0.1 to 400 Hz
Overload Capacity: 150% for 1 minute
Enclosure: IP20-rated plastic housing

Functions & Features

Speed Regulation: Uses V/f control to regulate motor speed proportionally by varying voltage and frequency.
Energy Efficiency: Includes automatic energy-saving functions to optimize performance under varying loads.
Integrated Protection: Features multilayer protection against thermal overload, overvoltage, and short circuits.
Auto Restart: Capable of automatically resuming operation after minor faults or power interruptions.
Communication: Equipped with an RS485 port (Modbus RTU) for remote monitoring and control integration.

The

Fuji Electric FVR0.4AS1S-7E

functions as a highly efficient motor controller that uses V/f (Volts per Hertz) control to manage the speed and torque of small 3-phase induction motors. Despite its micro-compact size, it is equipped with software features typically found in high-end drives to support varied industrial automation needs.

Core Control Functions

V/f Control Regulation: Regulates motor speed by varying voltage and frequency proportionally, ensuring smooth acceleration and precise control.
Adjustable Ramping: Acceleration and deceleration times can be set from 0.1 to 3,600 seconds, allowing for gentle ramping in pump systems (to prevent water hammer) or quick starts in conveyors.
Slip Compensation: Helps maintain a constant motor speed even when the load changes by adjusting the output frequency based on current consumption.
Motor Loss Minimization: Adopts a specialized control system to minimize motor losses during operation.

Advanced Operational Features

PID Control: Enables the drive to maintain a constant process variable (like pressure or flow rate) by automatically adjusting motor speed.
Pattern Operation: Supports automatic operation and stopping based on predefined patterns.
Multi-Stage Frequency: Allows switching between different set frequencies using external digital signals.
Jogging Operation: Provides a dedicated mode for small, manual movements of the motor during setup or maintenance.

Protection & Reliability

Auto Restart: Automatically resumes operation after minor faults or momentary power interruptions to minimize downtime.
Overload Capacity: Capable of handling current surges up to 150% of the rated current for 1 minute.
Multilayer Protection: Includes built-in safeguards against thermal overload, overvoltage, and external alarms.

Integration & Monitoring

Embedded Communication: Equipped with an RS485 port (Modbus RTU) as standard for remote monitoring and integration with PLC or SCADA systems.
Digital Diagnostics: Features a digital LED interface on the keypad for real-time monitoring and parameter configuration.
