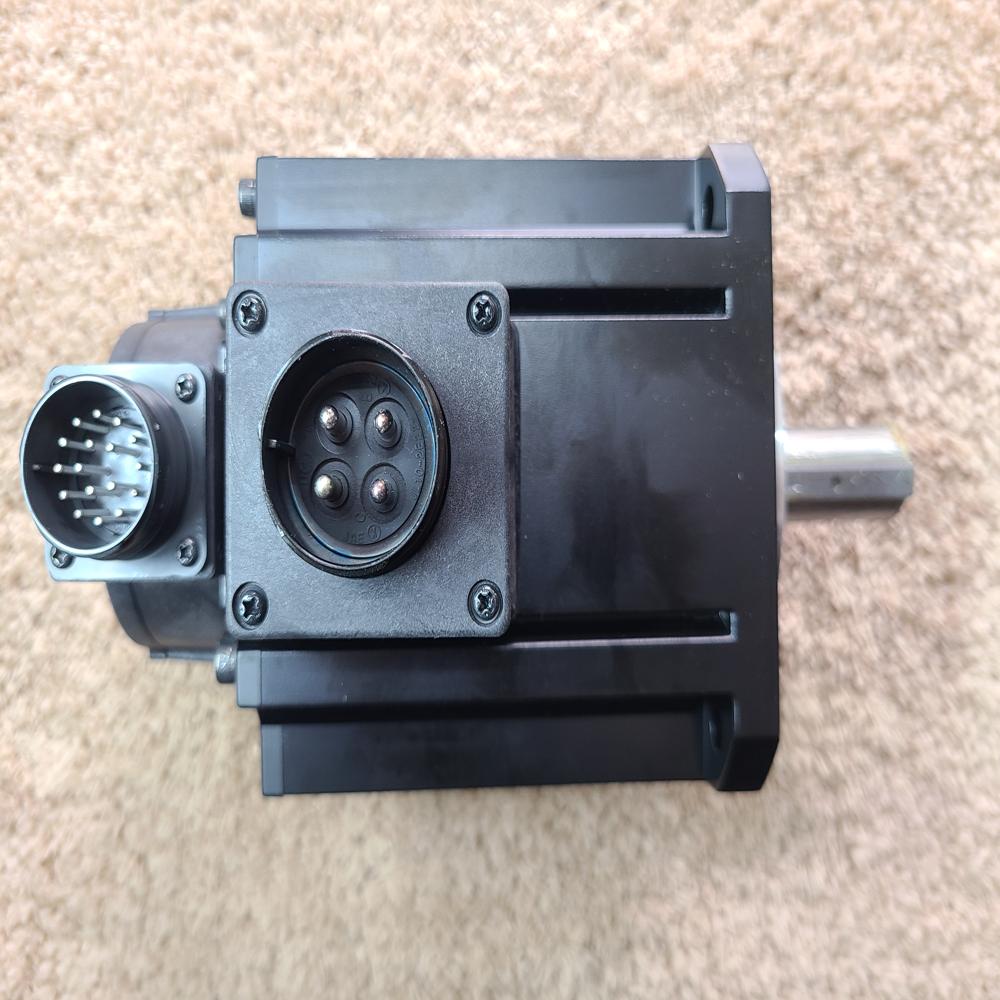

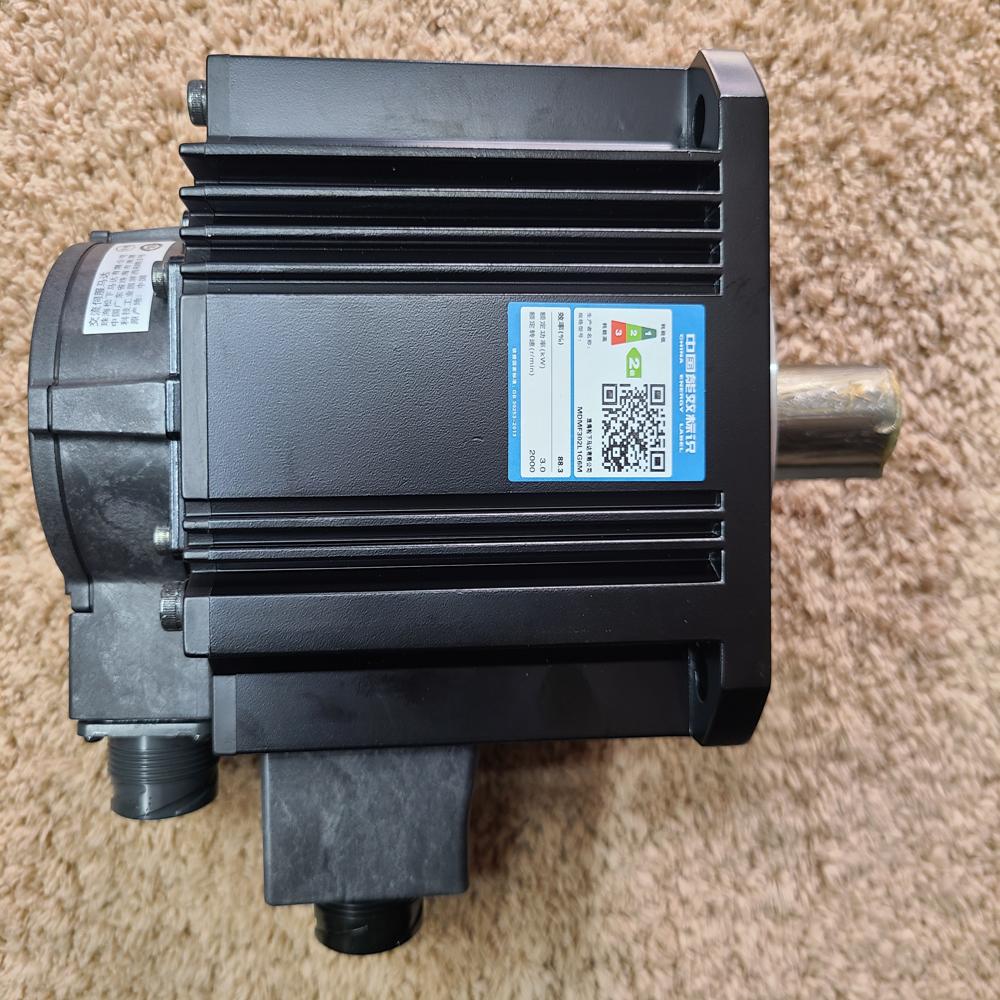

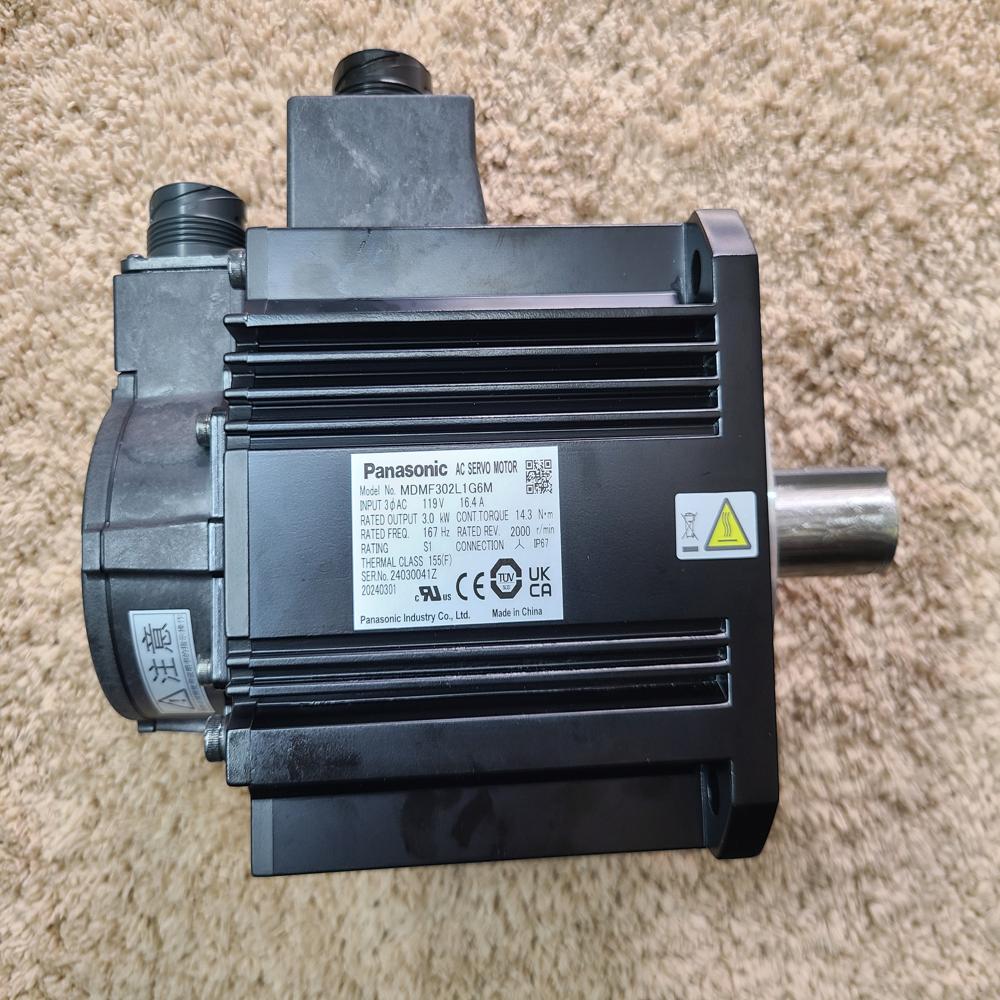

MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000
MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000

MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000

Price 113100.0 INR/ Number

MOQ : 1 Number

MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Usage & Applications
  • Industrial Machinery
  • Color
  • Black and Silver
  • Weight
  • 13.8 Kilograms (kg)
  • Phase
  • Three Phase
  • Warranty
  • 1 Year
  • Material
  • Aluminum


MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About MHMF302L1H6M Panasonic A6 3000W Motor + BRK , Torque Nm - 14.3, RPM - 2000

The Panasonic MHMF302L1H6M is a 3000W (3.0 kW) High-Inertia AC servo motor equipped with an integrated holding brake. It is the most stable and robust motor in the 3.0 kW A6 category, designed for massive vertical loads.
Function
  • Fail-Safe Vertical Security: The integrated electromagnetic brake's primary function is to lock the shaft when power is removed. This prevents heavy machine components from falling due to gravity during an emergency stop or power failure.
  • Maximum Load Stability: As a High-Inertia motor, its heavy internal rotor provides the best "inertia matching" for large mechanical loads, eliminating the vibration and resonance that occur with lighter motors.
  • High-Torque Precision: It combines a massive 14.3 Nm of torque with 23-bit encoder precision for surgical accuracy on the heaviest industrial machinery.
Technical Specifications
Feature Specification
Rated Output 3000 W (3.0 kW)
Rated Torque 14.3 Nm (Peak: 43.0 Nm)
Rated Speed 2000 RPM (Max: 3000 RPM)
Brake Torque 16.1 Nm or more (Static friction)
Brake Voltage 24 V DC (Power-off engaged)
IP Rating IP67 (Dust-tight and waterproof)
Physical Dimensions & Weight (Inches & Lbs)
This motor is a "heavyweight" due to the high-inertia rotor, 3kW stator, and the brake assembly.
  • Weight: Approximately 35.71 lbs (16.2 kg).

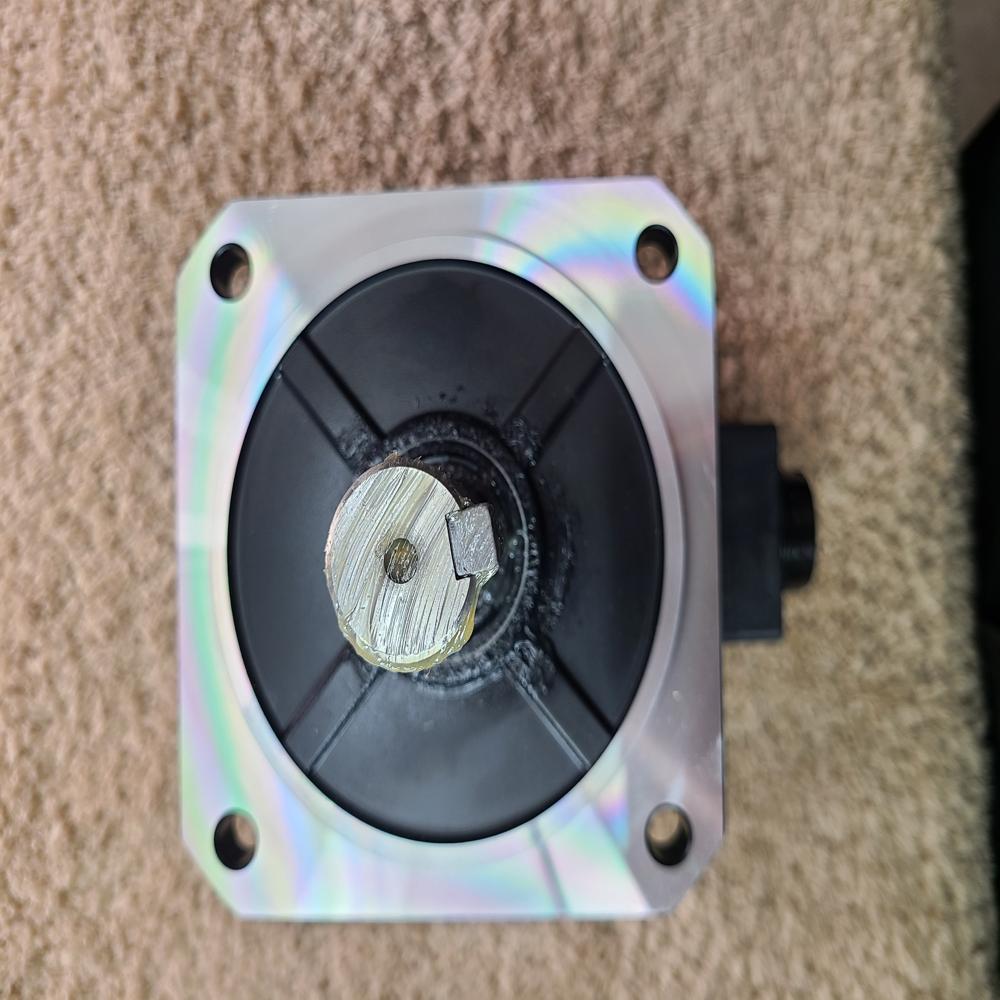

  • Width & Height (Flange): 6.93 inches (176 mm square).
  • Length (Total Body): Approximately 8.82 inches (224 mm).
  • Shaft Diameter: 1.378 inches (35 mm).
Compatible Drivers
This motor requires the 3.0 kW "F-Frame" A6 drivers:
  • Multifunction: MFDLTA3SF
  • Basic / Position: MFDLNA3SE
