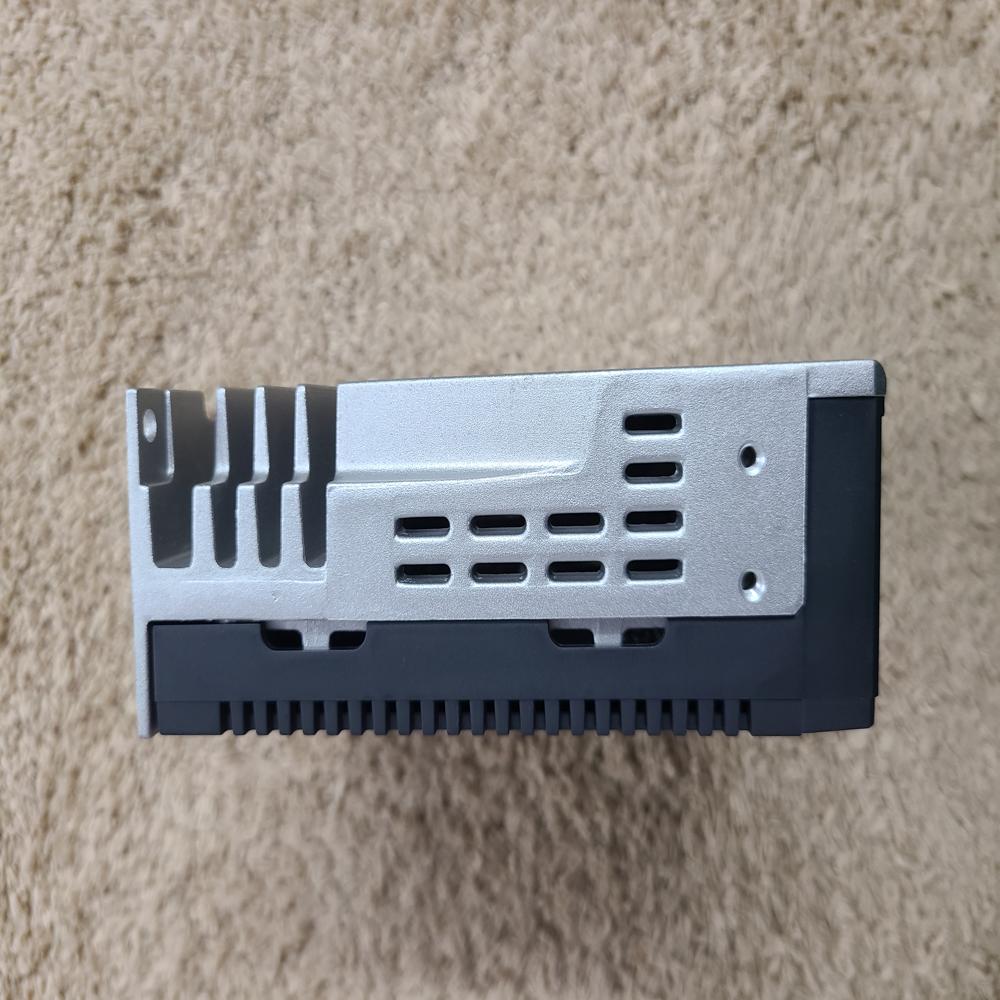

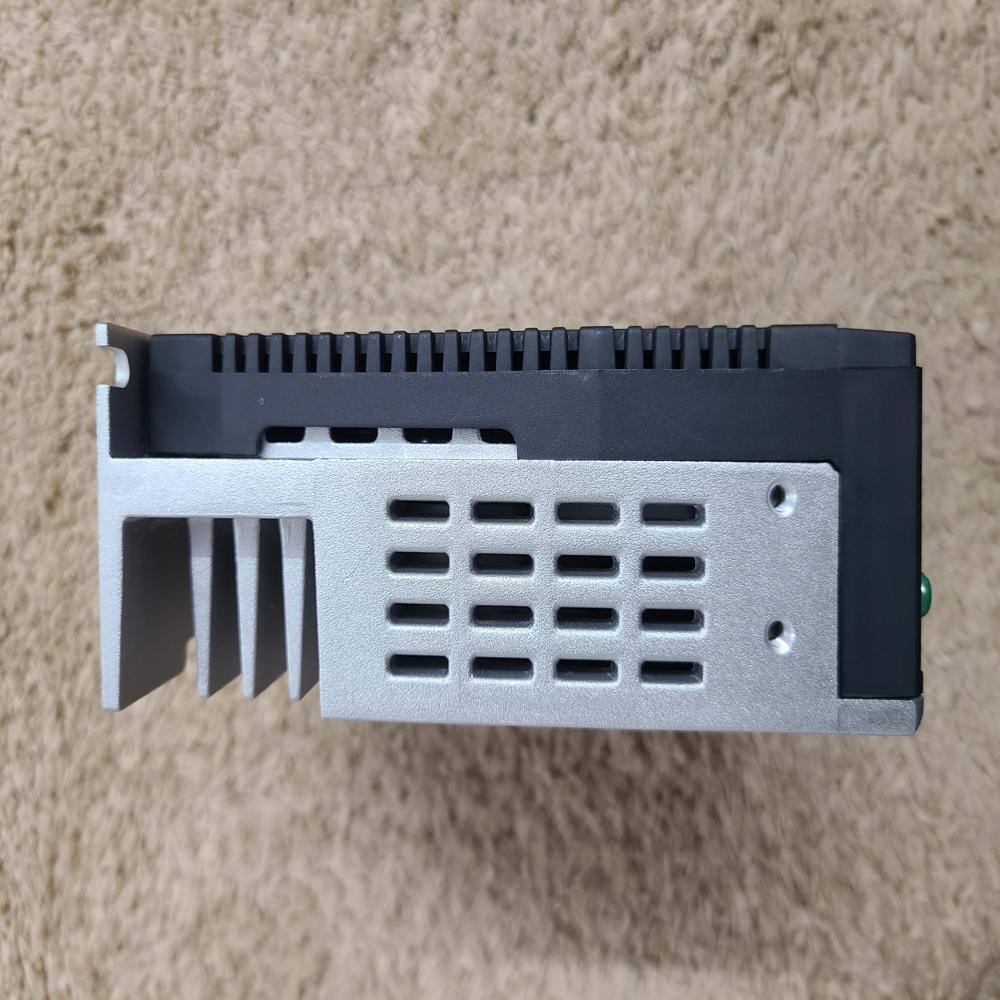

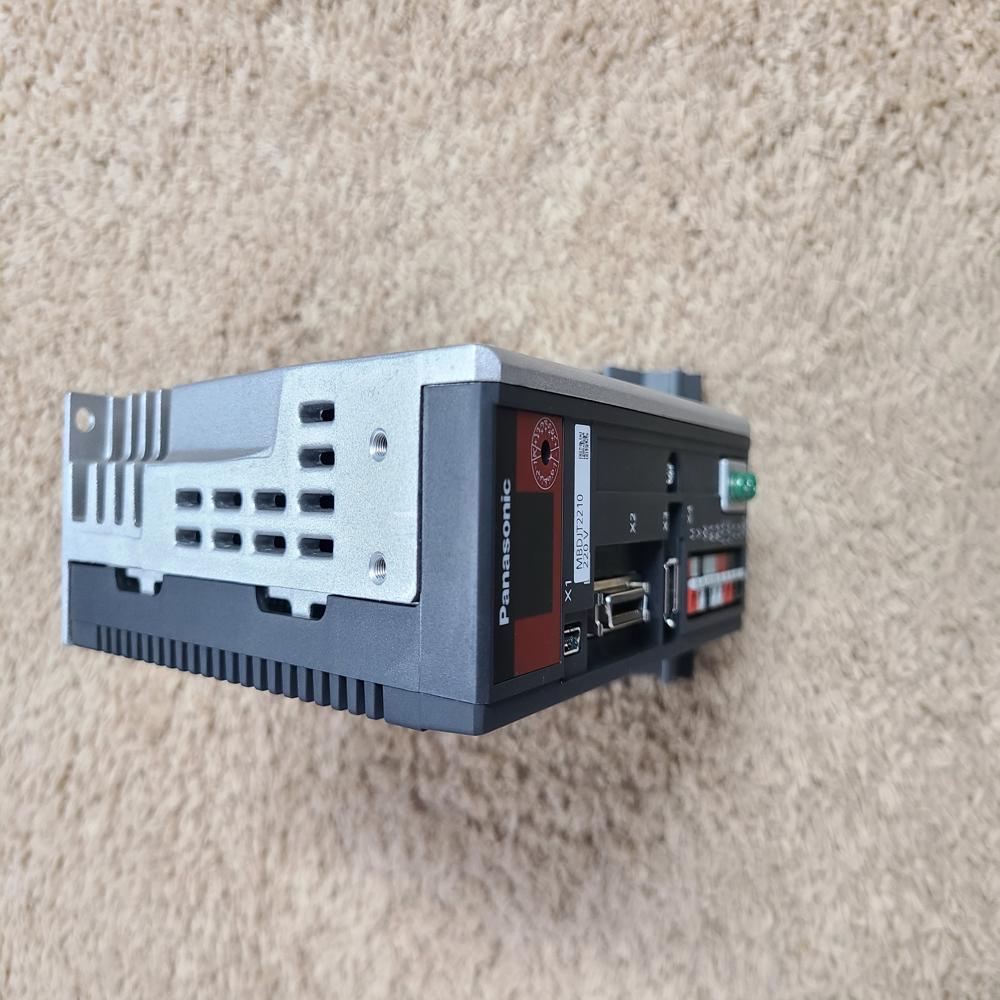

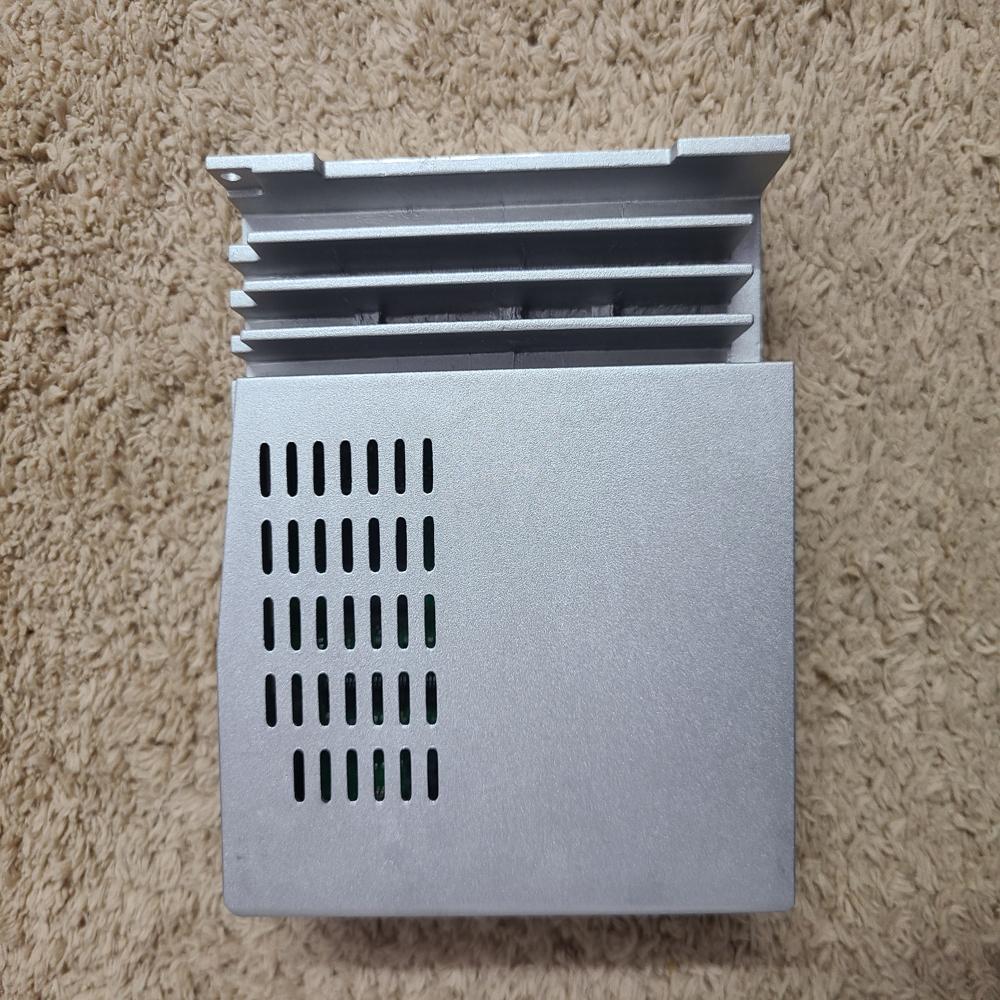

MBDJT2207 -Panasonic Liqi 200W Driver

Price 13570.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

MBDJT2207 -Panasonic Liqi 200W Driver Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MBDJT2207 -Panasonic Liqi 200W Driver

The MBDJT2207 is a 200W AC Servo Driver from the Panasonic MINAS LIQI series, specifically designed to pair with the MHMD022J1A motor we discussed earlier. It is the "brain" of the system, converting low-voltage signals from your controller into the high-power electricity needed to move the motor precisely.

MBDJT2207

Simple and Cost-effective Servo Drive

Support Position Control Mode only

1.0 kHz Velocity response frequency

500 kHz Input pulse frequency

Product category
AC Servo Systems
Partner name
Panasonic
Series name
MINAS LIQI

Attributes

Product
Driver
Watts
200
Communication
W/O Communication

Dimensions and Weight (in Inches)

Feature	Inches (approx.)	Millimeters
Height	5.91"	150 mm
Width	1.57"	40 mm
Depth	5.12"	130 mm
Net Weight	~1.76 lbs	0.8 kg

Core Function

The MBDJT2207 provides closed-loop position control for 200-watt systems.

Pulse Train Control: It receives high-speed pulse signals (up to 500 kpps) from a PLC. Each pulse tells the driver to move the motor a tiny, exact fraction of a turn.
Real-Time Auto-Gain Tuning: Its most helpful function is automatically calculating the mechanical "stiffness" of your machine, ensuring the motor doesn't vibrate or shake even if the weight of your load changes.
Safety & Protection: It monitors the system for over-current, over-voltage, and overheating, shutting down immediately if a mechanical jam or electrical spike occurs to protect the motor.

Technical Specs

Rated Output: 200 Watts.
Voltage: Single-phase 200V to 240V AC.
Encoder Support: 2500 pulses/revolution incremental.
Configuration: Uses a mini-USB port to connect to a PC for setup via PANATERM software.

The primary function of the MBDJT2207 is to act as the control "brain" for a 200W servo system, converting low-power command signals into high-power motion. It provides precise control over the motor's position and speed by constantly monitoring feedback to ensure the motor is exactly where it needs to be.

Key Functional Roles

Closed-Loop Positioning: It receives pulse commands from a PLC or controller and compares them against the data from the motor's encoder. If there is a discrepancy (due to load or friction), the driver instantly adjusts the current to correct the position.
Power Conversion: It takes single-phase AC power (200V240V) and converts it into the specific variable-frequency power required to drive the MHMD022J1A motor at speeds up to 3000 RPM.
Real-Time Auto-Gain Tuning: This is its most advanced feature. It automatically senses the mechanical load's "stiffness" and adjusts its own internal control parameters. This ensures the machine stays stable and doesn't vibrate, even if the weight being moved changes during operation.
Vibration Suppression: It functions to protect your machinery by using built-in filters (notch and damping filters) to remove mechanical resonancethe "humming" or "shaking" that occurs in high-speed automation.
System Protection: It acts as a safety supervisor, monitoring for faults like over-voltage, over-current, or motor stalls, and will trip an alarm to prevent mechanical damage or electrical fires.

Common Use Cases

Indexing Tables: Moving a part exactly 90 degrees and stopping instantly.
Labeling Machines: Synchronizing the speed of a label dispenser with a moving conveyor.
Simple Pick-and-Place: Moving a small suction cup or gripper between two fixed points with high repeatability.
