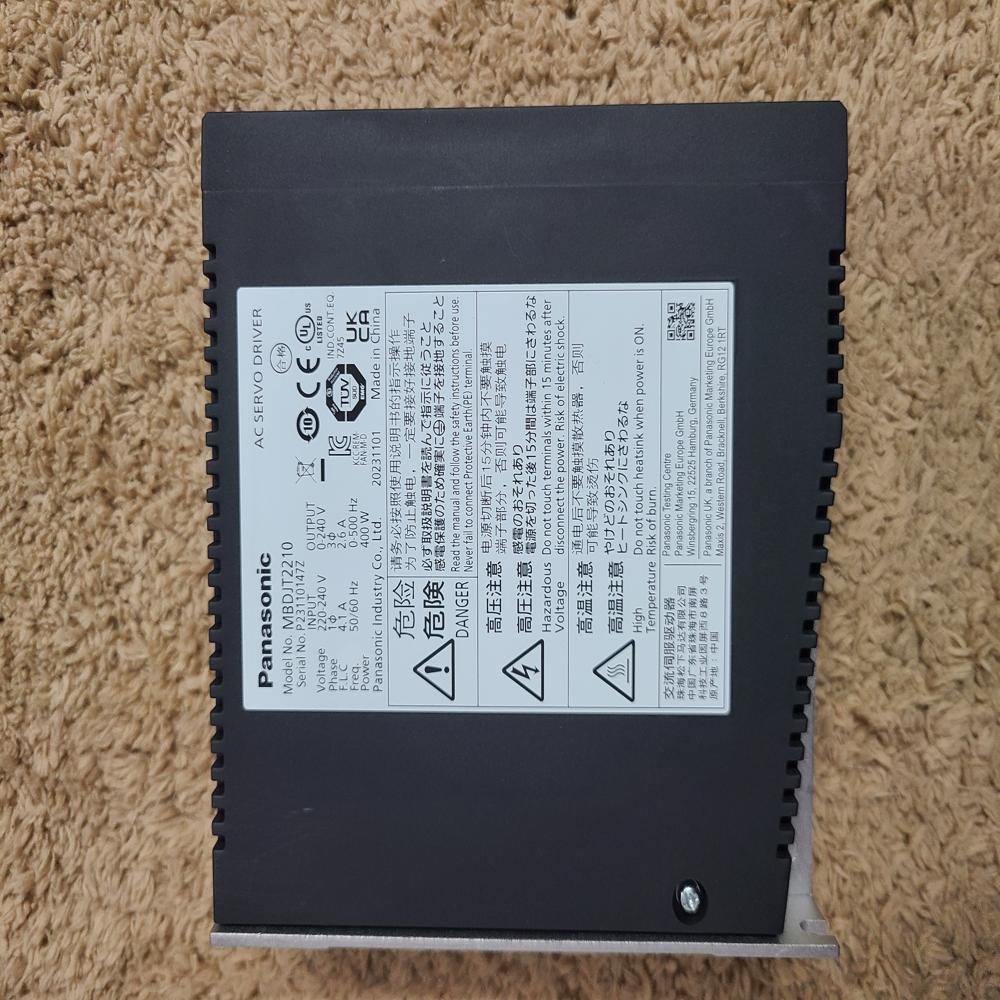

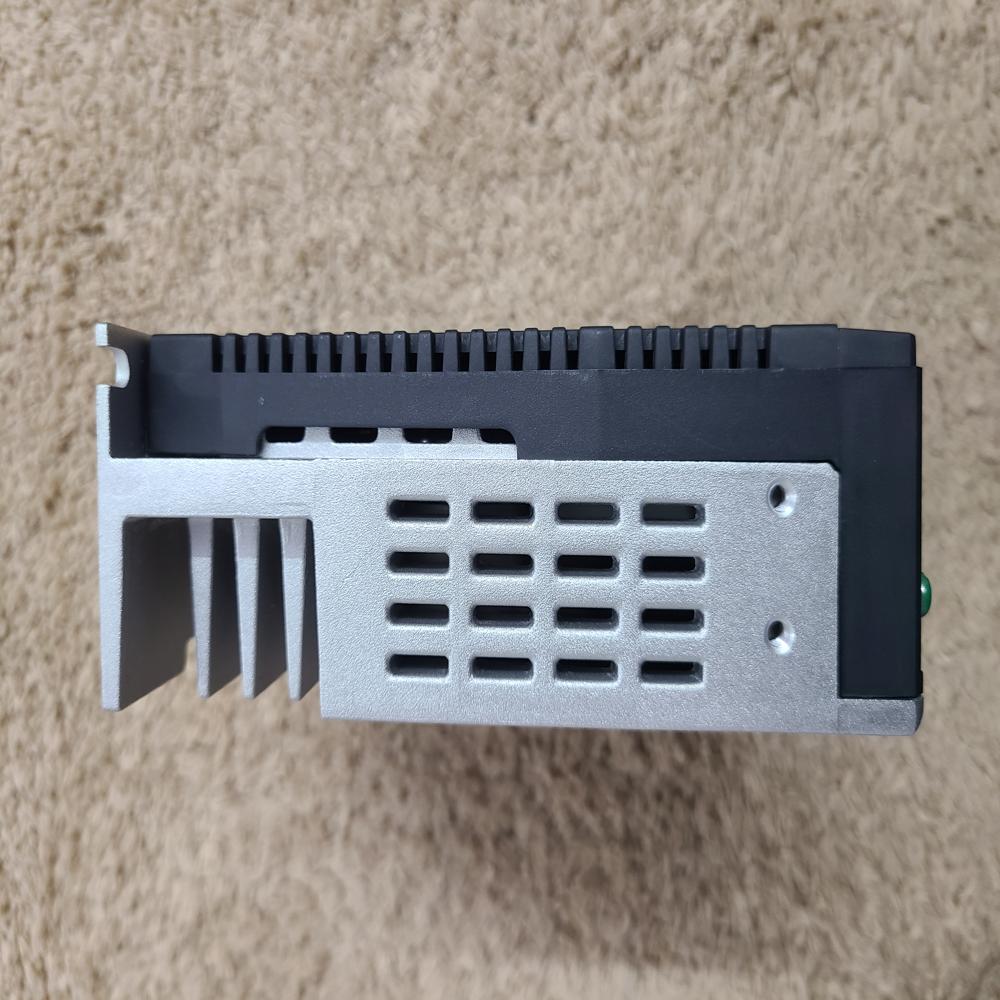

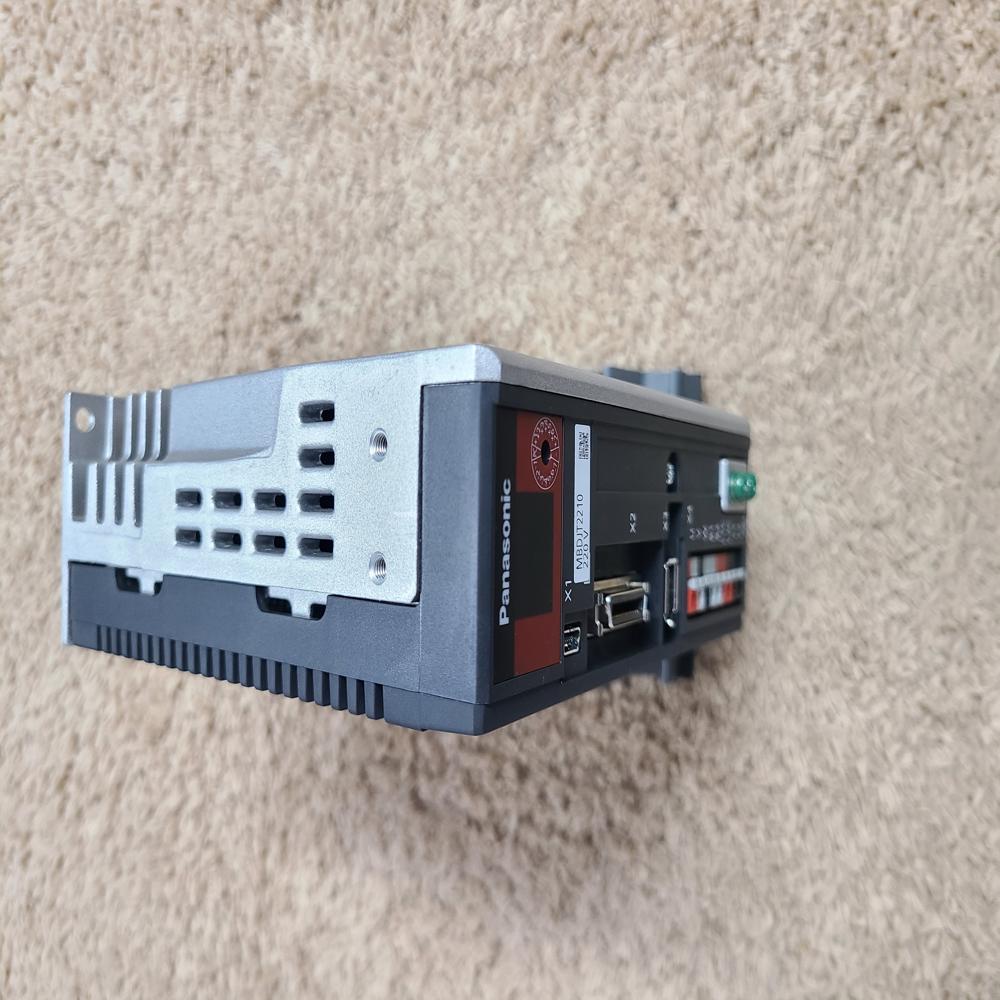

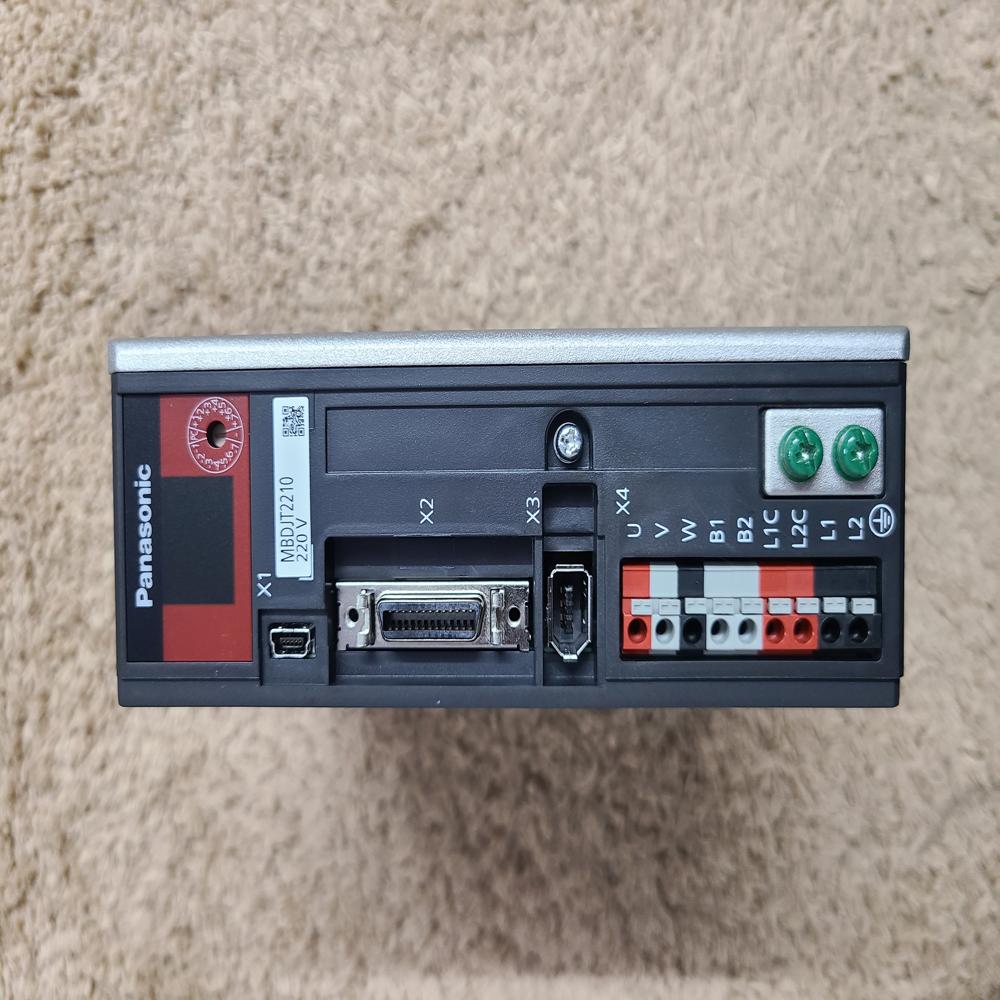

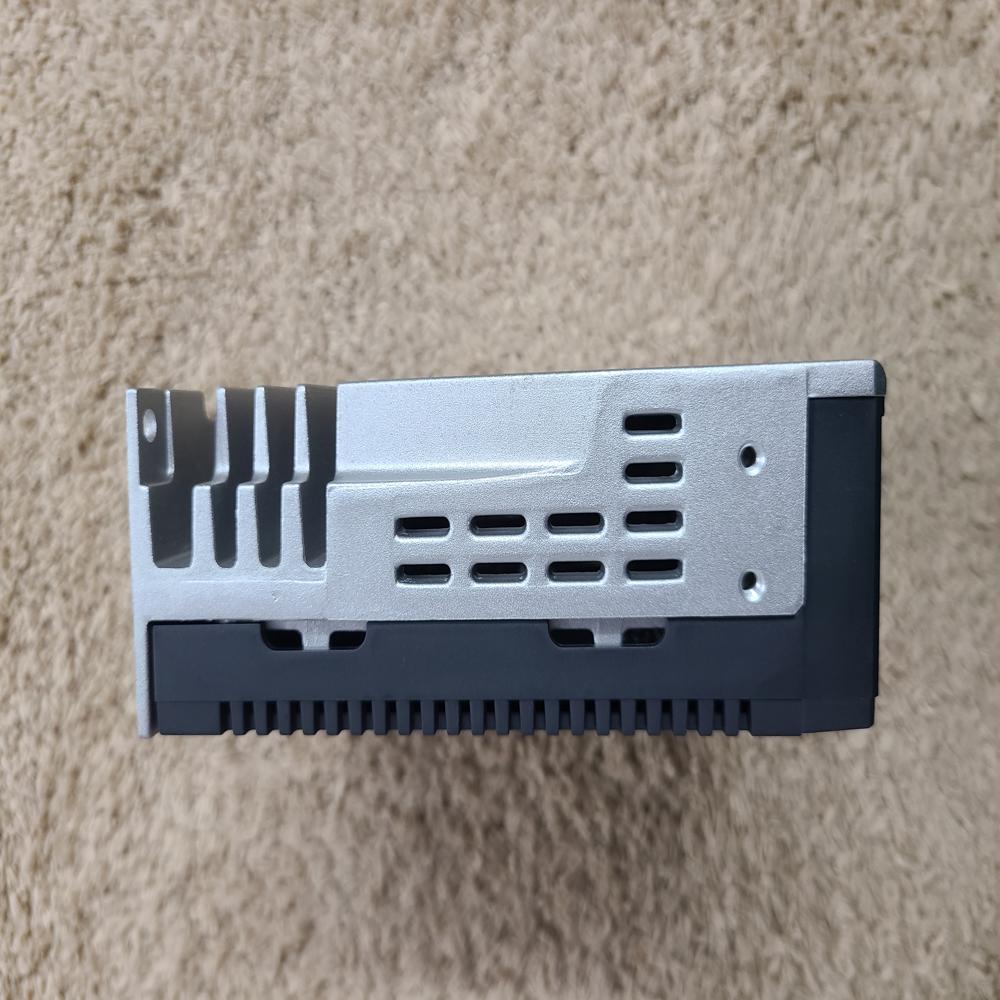

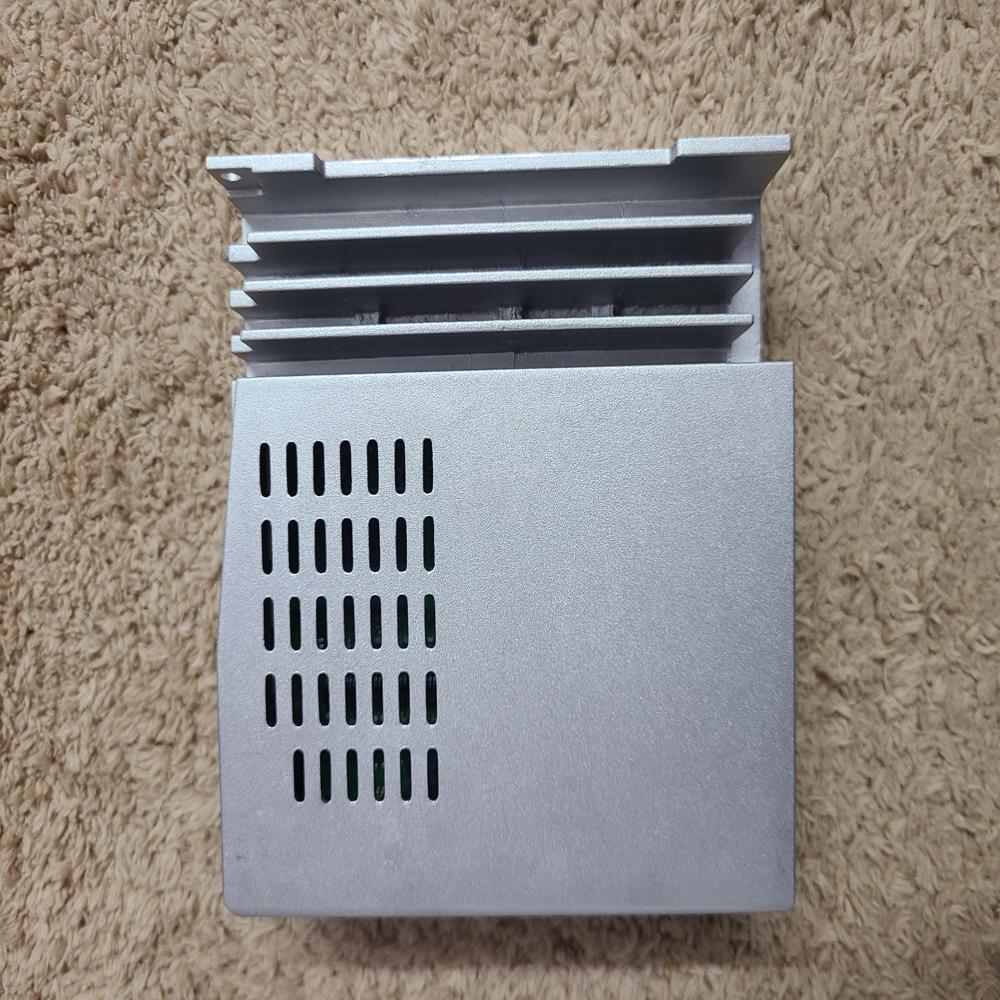

MBDJT2210 - Panasonic MINAS LIQI Servo Drive

Name: MBDJT2210 - Panasonic MINAS LIQI Servo Drive
Brand: Corbital Enterprise
Price: 11000.0 INR
Availability: InStock

Price 11000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MBDJT2210 - Panasonic MINAS LIQI Servo Drive Specification

Protect Feature
Other

Usage & Applications
Industrial Machinerry

Color
Black

Weight
1.44 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Plastic

IP Rating
ip55

MBDJT2210 - Panasonic MINAS LIQI Servo Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MBDJT2210 - Panasonic MINAS LIQI Servo Drive

The

MBDJT2210

is a 400W Panasonic MINAS LIQI series AC servo driver. It is the companion driver for the MHMJ042P1U motor you just asked about, serving as the "brain" that processes pulse commands to control the motor's position.

MBDJT2210

Simple and Cost-effective Servo Drive

Support Position Control Mode only

1.0 kHz Velocity response frequency

500 kHz Input pulse frequency

Product category
AC Servo Systems
Partner name
Panasonic
Series name
MINAS LIQI

Attributes

Product
Driver
Watts
400
Communication
W/O Communication

Panasonic Minas LIQI

The servo drives of the MINAS LIQI series are the most inexpensive servo drive solution from Panasonic the optimal choice with an unbeatable price when reliability and performance are of great importance.

The proven and inexpensive servo drive

Cost effective

Reliable

Powerful

Simple

Excellent price-performance ratio

Specifications:

Features: -

Supply voltage: 200V AC

Rated power: 501000W

Other features: -

Pulse train interface: 500kpps

Control mode: -

Position control

Driver: -

MBDJT2207

MBDJT2210

MCDJT3220

MCDJT3230

Motor: -

MHMD022J1A

MHMJ042P1U

MHMJ082P1U

MHMJ102P1G

Additional Information:

Delivery Time: Always Ready Stock

Dimensions and Weight (Driver)

The

MBDJT2210

is a Frame B size unit designed for compact panel mounting.

Metric	Inches (approx.)	Millimeters
Height	5.91"	150 mm
Width	1.57" to 2.17"	40 mm to 55 mm
Depth	5.12" to 5.91"	130 mm to 150 mm
Net Weight	2.2 lbs to 3.2 lbs	1.0 kg to 1.44 kg

Core Function

The primary function of the

MBDJT2210

is high-speed position control.

Command Interface: It accepts pulse train signals (up to 500kpps) from a controller like a PLC to move the motor to specific coordinates.
Auto-Tuning: It features Real-Time Auto-Gain Tuning, which automatically calculates the best settings for machine stiffness and stability without requiring manual calibration.
Vibration Suppression: It includes built-in damping and notch filters (range: 50Hz to 5000Hz) to eliminate mechanical resonance and noise.

Technical Specifications

Power Output: 400W (0.4 kW).
Input Power: Single-phase 200V to 240V AC.
Response Frequency: 1kHz.
Encoder Support: Specifically for 2500 pulses/rev incremental encoders.

Reliable Servo Drive for Industrial Automation

The Panasonic MINAS LIQI Servo Drive is engineered to meet the rigorous demands of modern industrial machinery. With its IP55 rating and durable plastic construction, it resists dust and moisture, ensuring long-lasting performance in challenging production environments. Sized for seamless installation and backed by a one-year warranty, it's a dependable choice for enhancing motion control systems.

Versatile Applications and Easy Integration

Designed for three-phase systems, the MBDJT2210 integrates smoothly into a wide variety of industrial machinery setups. Its compact build and lightweight nature facilitate installation with minimal space requirements. Whether used by suppliers, traders, or wholesalers, this servo drive broadens your automation capabilities while delivering consistent and efficient results.

FAQ's of MBDJT2210 - Panasonic MINAS LIQI Servo Drive:

Q: How does the Panasonic MINAS LIQI Servo Drive support industrial machinery operations?

A: This servo drive provides precise motion control for industrial machines, improving automation efficiency and execution accuracy. Its three-phase operation and reliable build make it suitable for continual, demanding use in factory environments.

Q: What are the main benefits of its IP55 protection rating?

A: The IP55 rating guarantees that the servo drive is safeguarded against dust ingress and low-pressure water jets. This makes the device suitable for use in areas where exposure to such elements is possible, enhancing longevity and reliability.

Q: Where is the MBDJT2210 typically installed?

A: It is typically installed within the control panels or drives cabinets of industrial automation systems, especially where conditions may involve dust and moisture, thanks to its robust construction and protection rating.

Q: When should this servo drive be used in a system?

A: The MBDJT2210 should be used when your machinery requires reliable, three-phase motion control in moderately challenging environments-such as in automated assembly lines or manufacturing equipment.

Q: What is the process for integrating the servo drive into existing systems?

A: Integration involves mounting the unit securely, connecting it to the appropriate three-phase power supply, and configuring it via the machine's central controller. Due to its lightweight and compact design, the installation process is typically straightforward.

Q: What is included in the product warranty coverage?

A: The servo drive comes with a one-year warranty that covers defects in materials or manufacturing, providing after-sales support and peace of mind for users.
