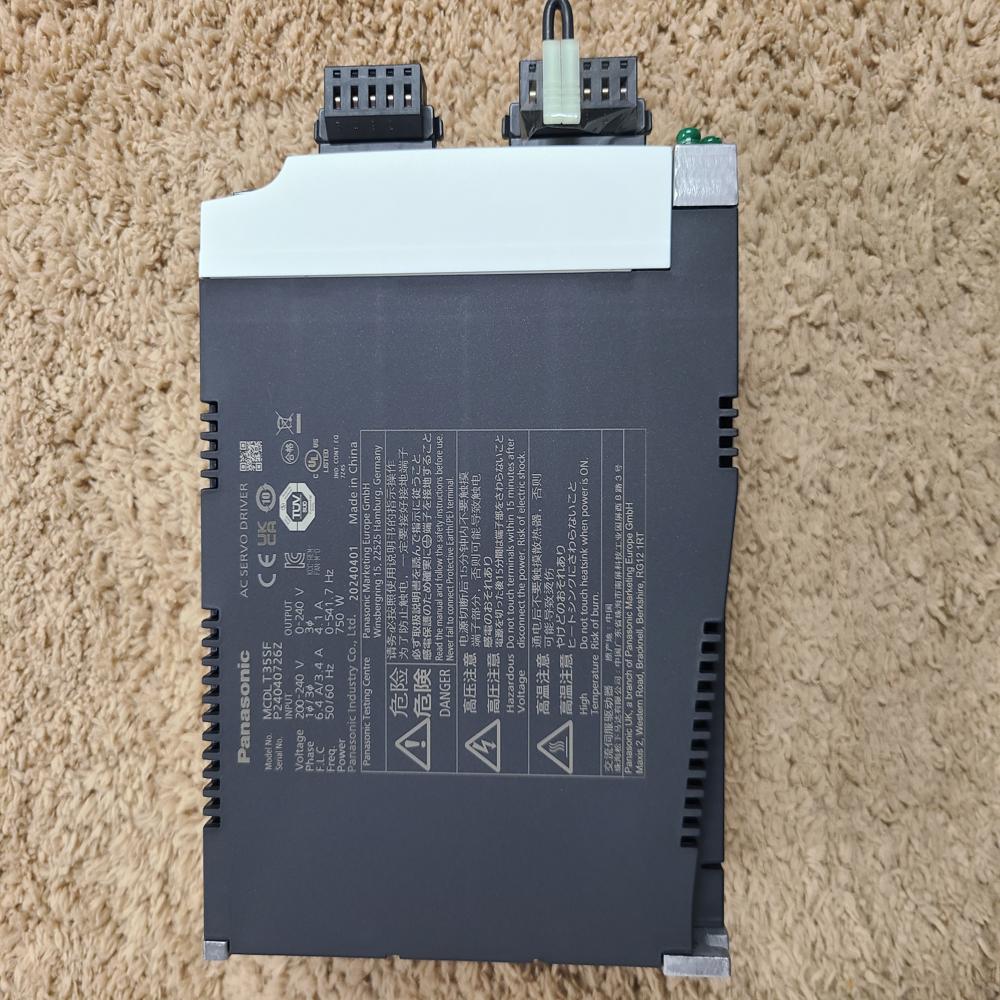

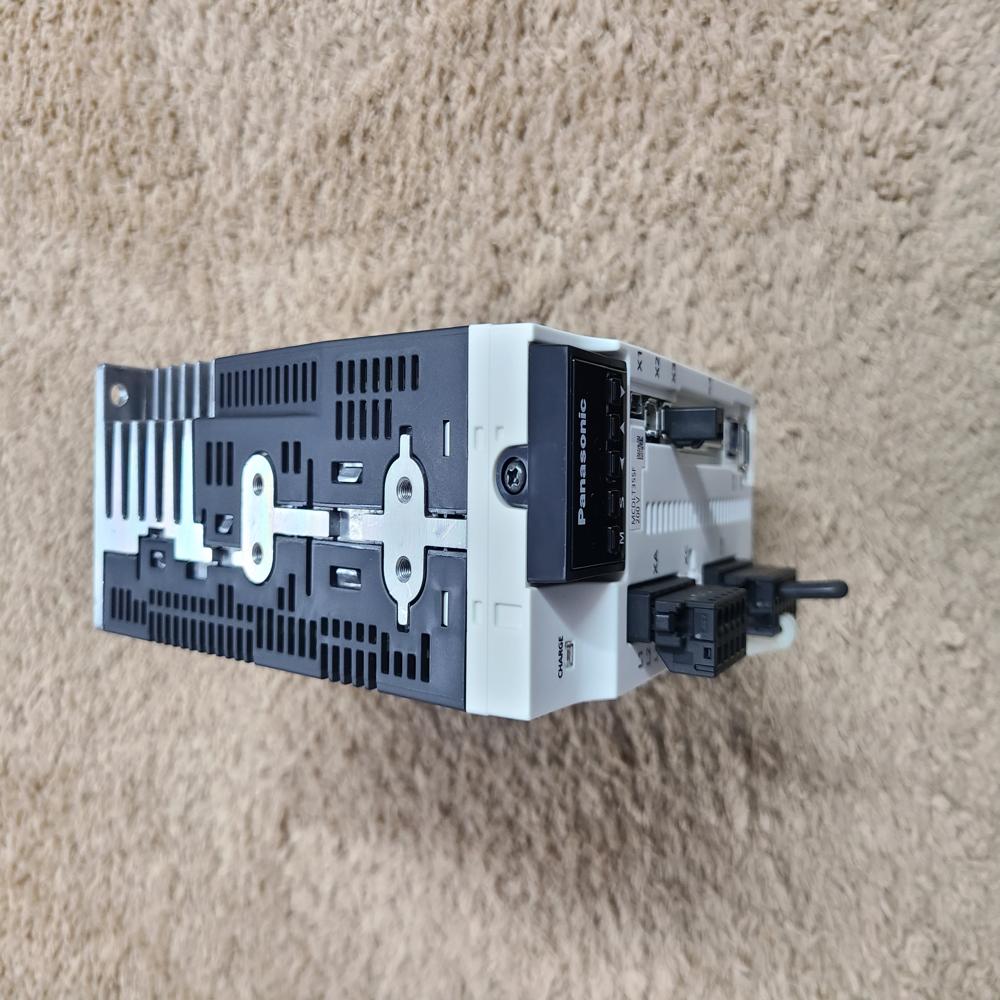

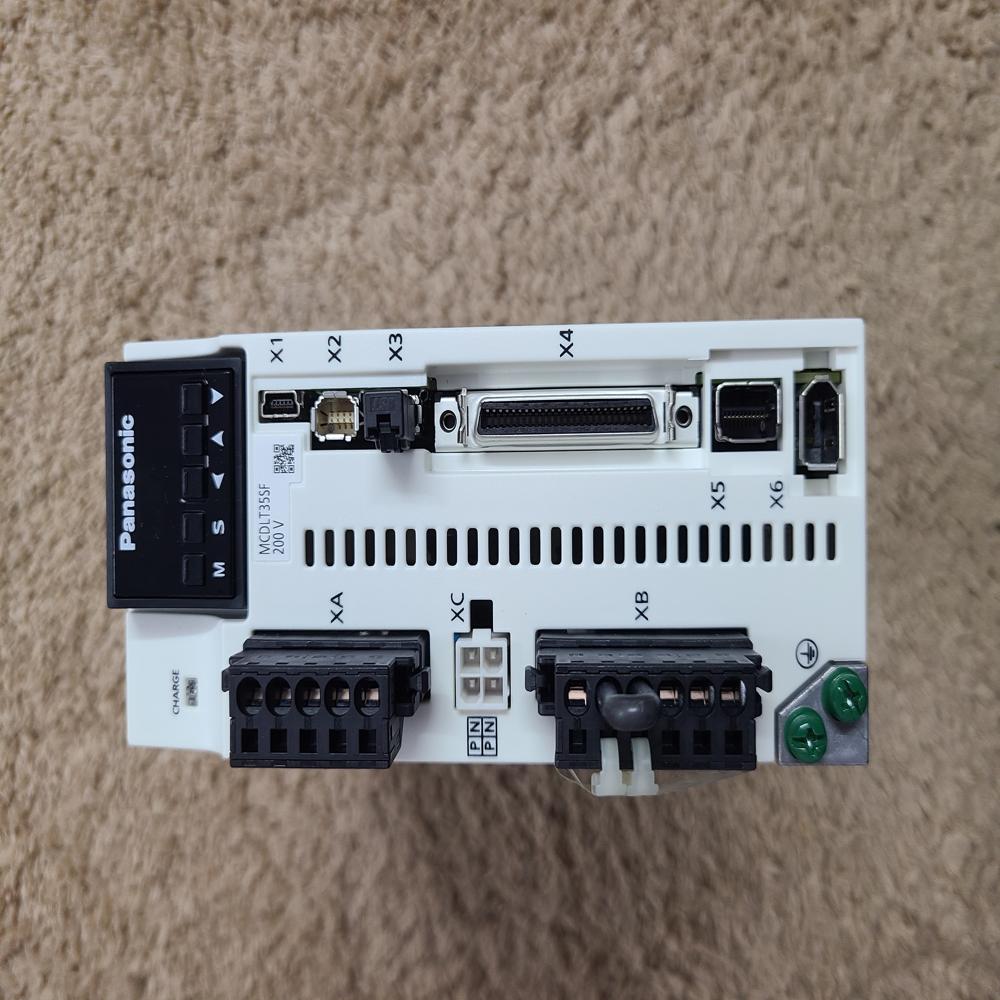

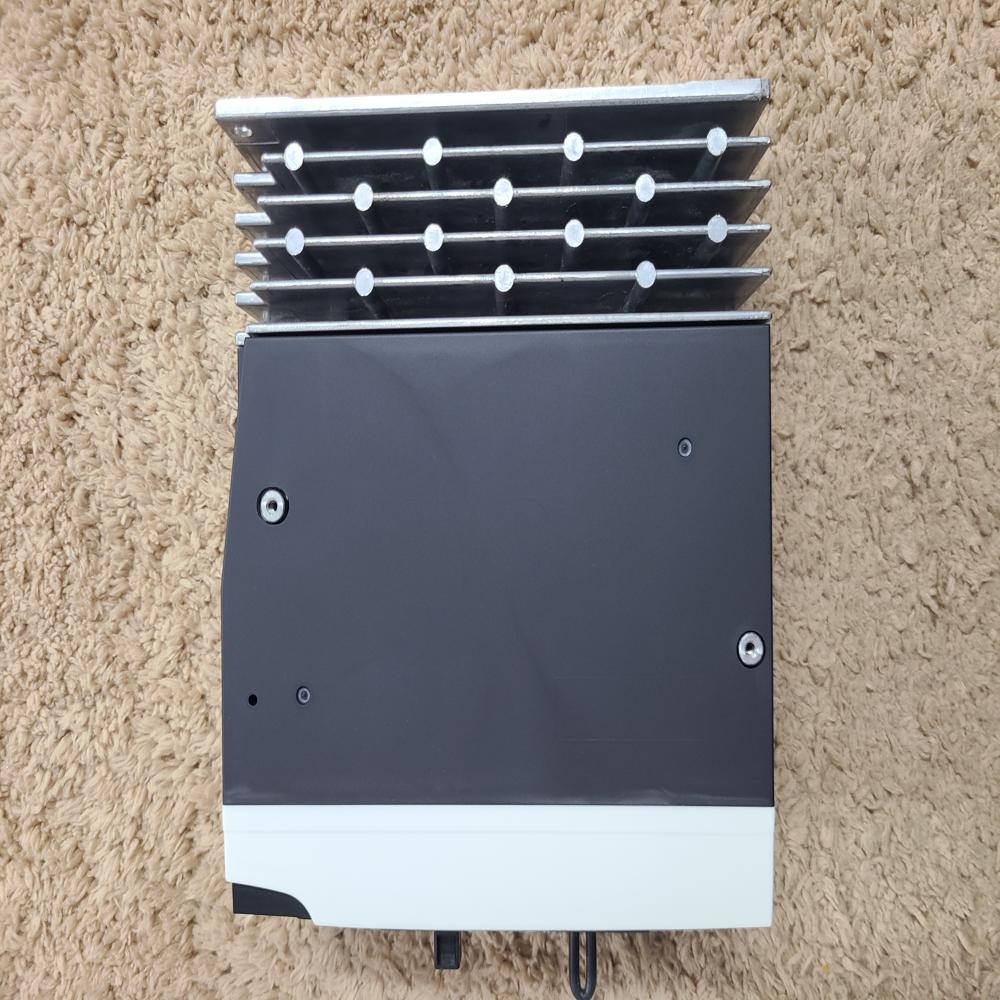

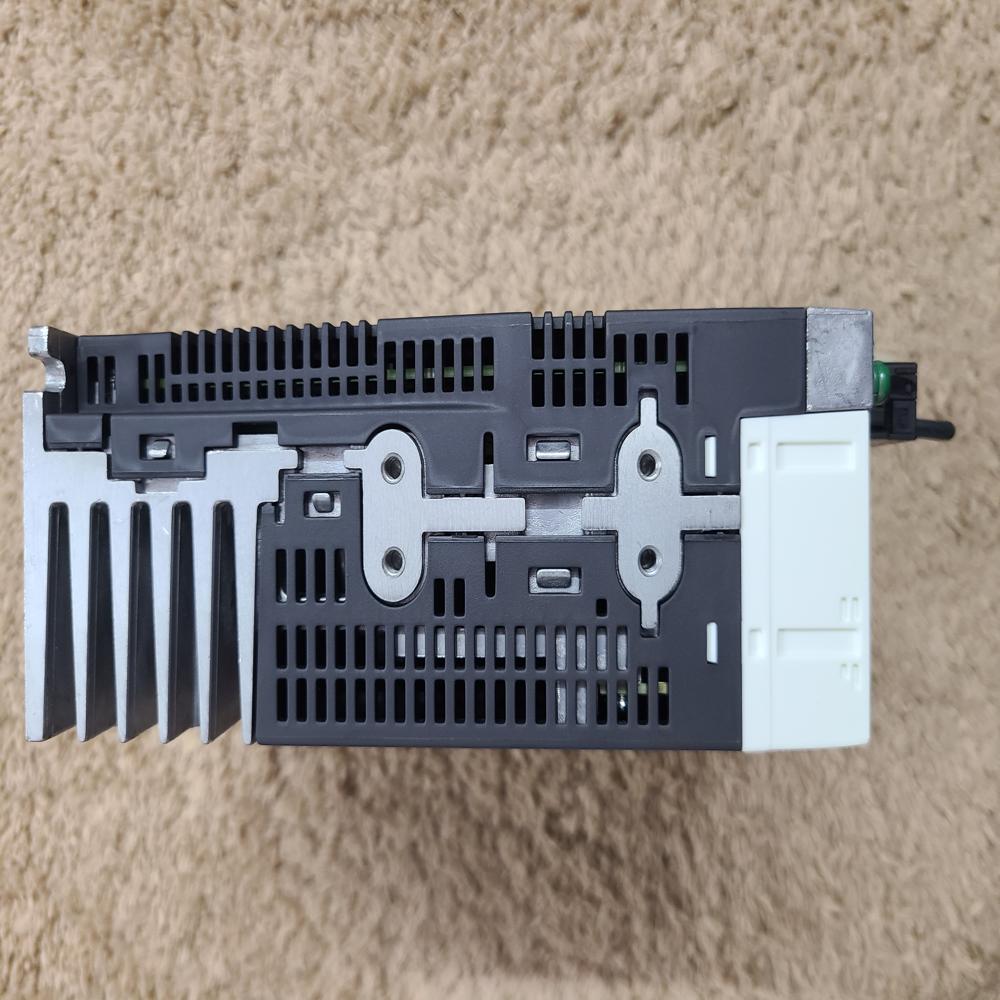

MCDLN35NE - A6N Panasonic A6 750W Driver

About MCDLN35NE - A6N Panasonic A6 750W Driver

Electrical Specifications

• Series: MINAS A6NE
• Rated Motor Power: 750 W
• Supply Voltage: 200 V AC (single/3-phase)
• Output Current: ~22 A class
• Control Modes: Position / Speed / Torque control
• Frequency Response: 3.2 kHz

Communication & Control

• RTEX ultra-high-speed network control system
• Real-time synchronized motion control (multi-axis ready)
• USB parameter setup (PANATERM software)
• 23-bit absolute encoder support (very high precision)

Key Functions

1. Position Control

• Executes precise motion commands from PLC/CNC
• Supports high-speed synchronized positioning

2. Speed Control

• Maintains smooth rotation under varying load
• High stability due to real-time feedback

3. Torque Control

• Controls motor force output accurately
• Prevents mechanical overload

4. Real-Time Network Control (RTEX)

• Synchronizes multiple servo axes
• Very fast communication (industrial robotics level)

Safety & Features

• No built-in STO safety circuit (NE = basic network type)
• Ultra-fast response (3.2 kHz)
• Multi-axis synchronization support
• Built-in regenerative control
• High-precision closed-loop feedback system

Physical Size (In Inches)

From official specs:

• Height: 150 mm 5.91 in
• Width: 65 mm 2.56 in
• Depth: 170 mm 6.69 in
• Weight: ~1.6 kg ~3.5 lb

Function (Simple Explanation)

This driver works as the brain of a 750W servo system, but with advanced networking:

• Receives motion commands via RTEX high-speed network
• Controls motor current precisely
• Reads encoder feedback in real time
• Coordinates multiple axes together
• Ensures very smooth, synchronized industrial motion

Typical Applications

• CNC machines (multi-axis systems)
• Industrial robotics
• Packaging & automation lines
• High-speed pick-and-place machines
• Synchronized conveyor systems

Simple One-Line Meaning

MCDLN35NE is a 750W RTEX network servo driver that provides ultra-fast, synchronized, and highly precise motion control for advanced industrial automation systems..

Core Function

It converts RTEX network commands from a controller into precise electrical power for the servo motor, enabling accurate motion control.

What it actually does

1. Position Control

• Moves motor to exact positions
• Supports high-speed, synchronized multi-axis movement
• Used in CNC and robotics systems

2. Speed Control

• Maintains stable speed under changing load
• Smooth acceleration and deceleration
• Ensures vibration-free motion

3. Torque Control

• Controls motor force output precisely
• Protects machine from overload or shock loads

4. Real-Time Network Control (RTEX)

• Communicates with controller at very high speed
• Synchronizes multiple servo axes together
• Enables coordinated motion in complex machines

System Role

In a servo system:

• Motor = muscle
• Driver (MCDLN35NE) = brain + power control + network node
• Controller (PLC/CNC) = master command system
• Encoder = feedback sensor (accuracy control)

Additional Functions

• High-speed response (3.2 kHz)
• Closed-loop correction using encoder feedback
• Multi-axis synchronization capability
• Auto tuning for smooth motion
• Regenerative braking support

Where it is used

• CNC machines (multi-axis systems)
• Industrial robots
• Semiconductor equipment
• Packaging automation lines
• High-speed synchronized machinery

Simple One-Line Meaning

MCDLN35NE is a 750W servo driver that uses real-time network communication to precisely control and synchronize motor motion in advanced industrial automation systems.
