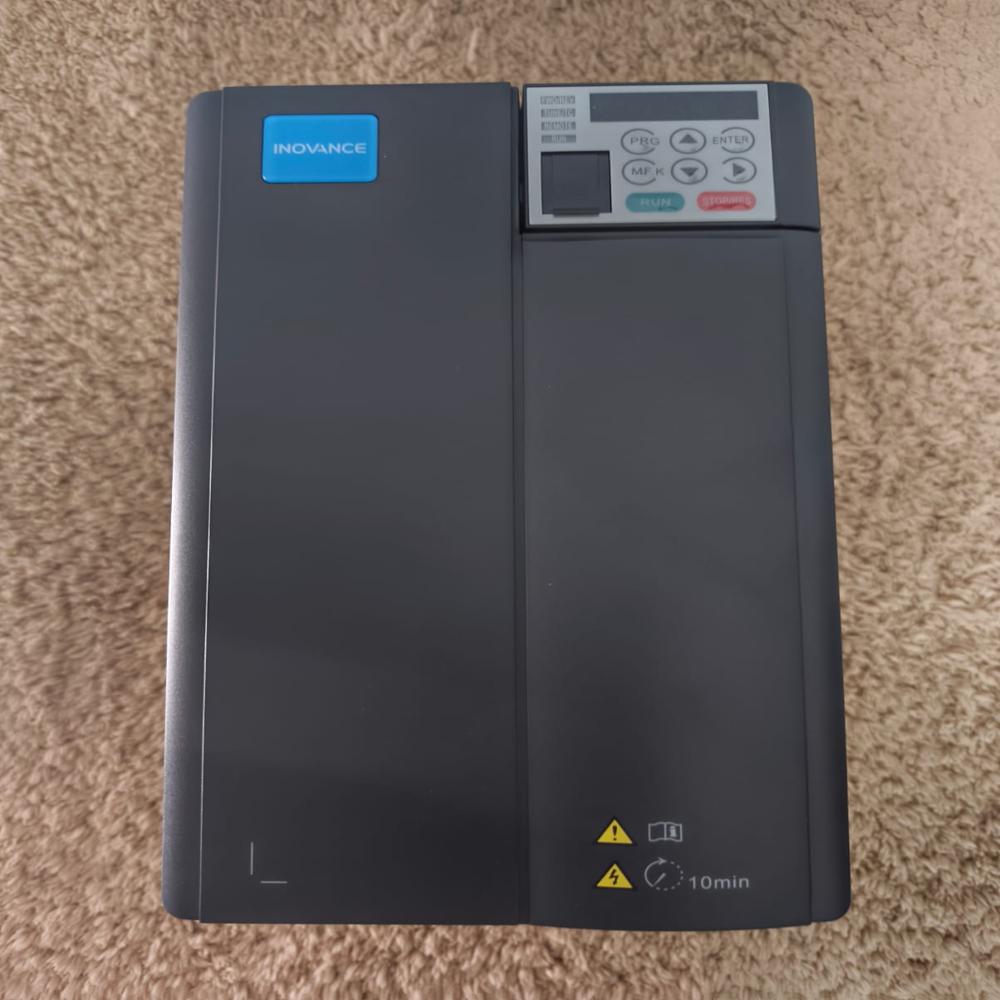

MD200T0.4B - 0.5 hp - MD200 - 3 Phase - Inovance Ac Drive

Name: MD200T0.4B - 0.5 hp - MD200 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD200T0.4B - 0.5 hp - MD200 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
1.1 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD200T0.4B - 0.5 hp - MD200 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD200T0.4B - 0.5 hp - MD200 - 3 Phase - Inovance Ac Drive

The Inovance MD200T0.4B is a compact 3-phase AC drive designed for low-power applications up to 0.5 HP (0.4 kW). It uses a small, uniform frame size consistent with the rest of the MD200 series for easy integration into control panels.

Dimensions & Weight

Specification [1, 2, 3]	Metric Value	Inch Value (Approx.)
Height	180 mm	7.09 in
Width	75 mm	2.95 in
Depth	145 mm	5.71 in
Weight	1.1 kg	2.43 lbs

Key Technical Data

Rated Power: 0.4 kW (0.5 HP).
Input Voltage: Three-phase 380 V to 480 VAC.
Rated Output Current: 1.8 A.
Control Method: V/F control and Sensorless Vector Control (SVC).
Cooling: This unit is typically fan-cooled despite its low power rating.
Enclosure Rating: IP20. [1, 2, 3, 5]

Core Operational Functions

Motor Control: Employs Sensorless Vector Control (SVC) and V/F control to ensure efficient operation without needing a feedback sensor.
Starting Performance: Delivers a high starting torque of 150% at 3 Hz in SVC mode, allowing it to start heavy loads smoothly.
Automation Logic: Includes a built-in Simple PLC (time-based multi-step frequency function) for basic automated sequences without an external controller.
PID Control: Features built-in PID control for maintaining constant pressure or flow in applications like pumps and fans. [1, 2, 3, 4, 5, 6, 7]

Advanced Features

Energy Efficiency: Optimizes motor performance to reduce energy consumption during operation.
Braking: Equipped with a built-in dynamic braking unit (indicated by the "B" in the model name) and variable DC-injection braking for fast and controlled stops.
Protective Systems: Provides robust overload protection (150% for 60 seconds) and comprehensive diagnostics for identifying system faults.
Reliability: The internal boards have a Class 2 conformal coating, protecting them from humidity and dust in harsh industrial environments. [1, 2, 4, 6]
