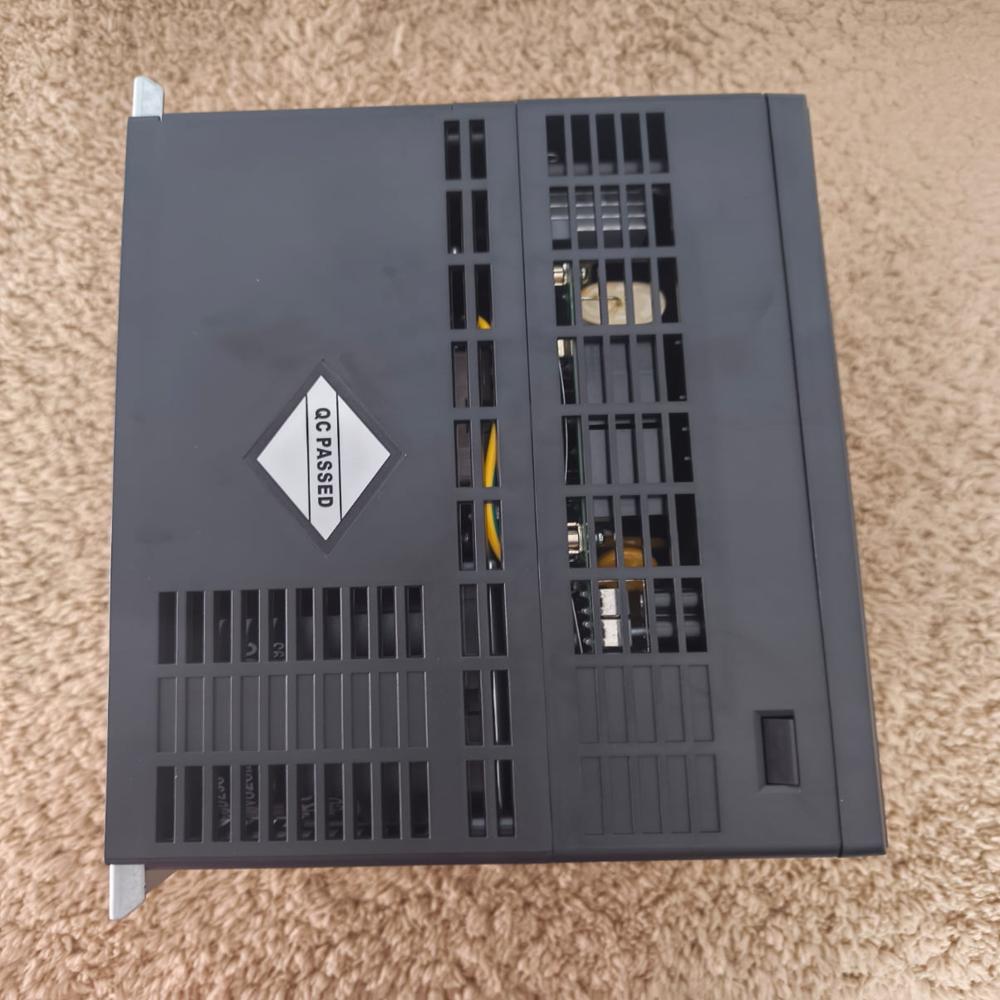

MD2902T37G/45PB-INT AC Drive, Three Phase, 200V to 240kw, 37/45kw - Inovance Ac Drive

About MD2902T37G/45PB-INT AC Drive, Three Phase, 200V to 240kw, 37/45kw - Inovance Ac Drive

• Low-Voltage Specialization: Configured to operate exclusively on Three-Phase 200V to 240V AC networks, matching infrastructure limits typical in specific chemical plants, paper mills, or heavy processing environments.
• Dual-Rating Performance: Automatically shifts its electrical overload protection profiles based on the attached machinery load type.
• Heavy Duty Rating (G): Drives continuous, constant-torque machinery up to 37 kW (50 HP) with a 150% overload capacity for 60 seconds.
• Normal Duty Rating (P): Powers variable-torque applications (such as large industrial ventilation fans or centrifugal pumps) up to 45 kW (60 HP) with a 110% overload threshold for 60 seconds.
• Integrated Braking Unit (B): The B suffix explicitly marks the inclusion of a factory-installed, built-in dynamic braking transistor unit. This handles direct braking resistor termination without requiring extra external chopper modules.
• Electrical Safety: Standardized with a built-in DC reactor to suppress power grid line harmonics and shield internal electronics from mains fluctuations. [1, 2, 4, 5, 6, 7, 8]

• Height: 14.96 inches (380 mm)
• Width: 9.06 inches (230 mm)
• Depth (Length): 8.66 inches (220 mm)
• Total Operational Weight: 38.58 lbs (17.5 kg
