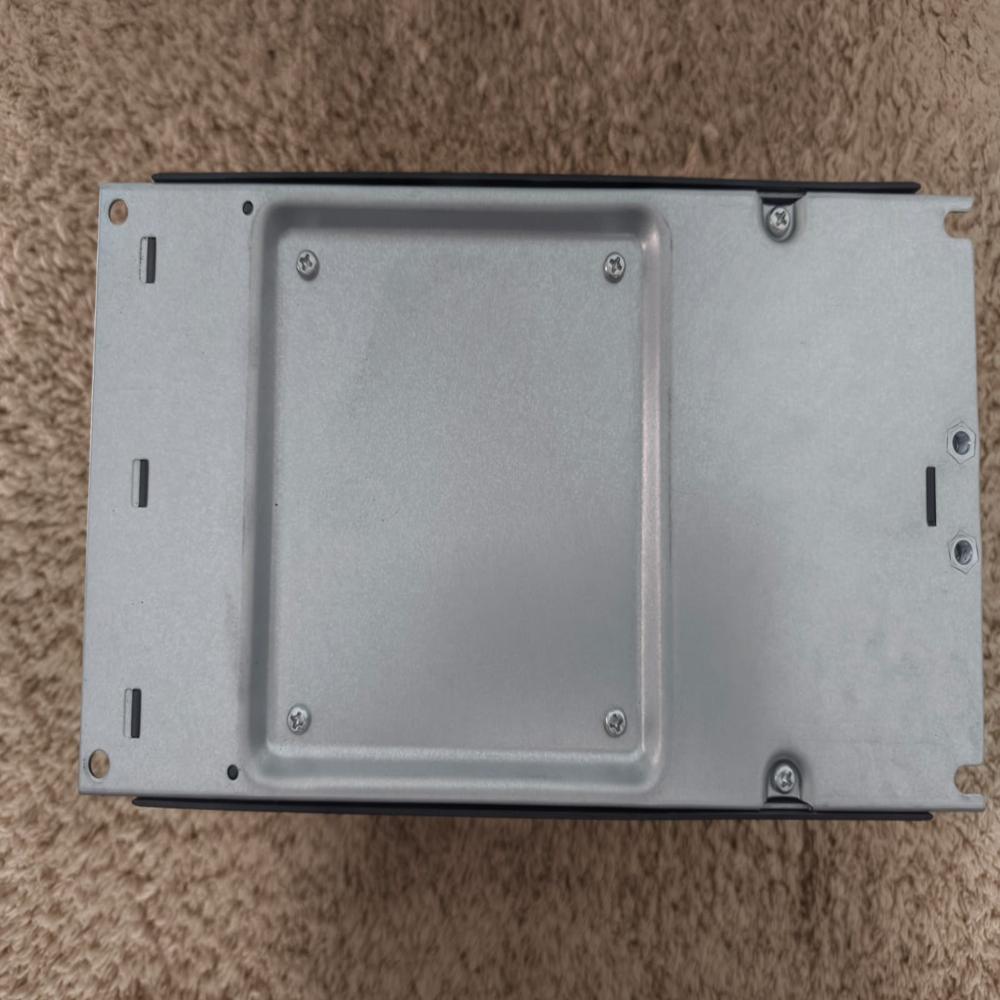

MD310T18.5B - 25Hp - MD310 - 3 Phase - Inovance Ac Drive

Name: MD310T18.5B - 25Hp - MD310 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 41200.0 INR
Availability: InStock

Price 41200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD310T18.5B - 25Hp - MD310 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
6 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD310T18.5B - 25Hp - MD310 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD310T18.5B - 25Hp - MD310 - 3 Phase - Inovance Ac Drive

The Inovance MD310T18.5B is a high-torque 25 HP (18.5 kW) 3-phase AC drive. This model moves into the Frame Size 5 chassis to accommodate the higher heat dissipation and current requirements of a 25 HP motor. [1, 2, 3, 4]

Dimensions & Weight

As a Frame Size 5 unit, it is significantly larger than the 20 HP model to ensure industrial-grade cooling.

Specification	Metric Value	Inch Value (Approx.)
Height (H)	350 mm	13.78 in
Width (W)	210 mm	8.27 in
Depth (D)	192 mm	7.56 in
Weight	6.0 kg	13.23 lbs

Key Technical Specifications

Rated Power: 18.5 kW (25 HP).
Rated Output Current: 37.0 A.
Input Voltage: 3-Phase 380 V to 480 VAC.
Overload Capacity: 150% for 60 seconds; 180% for 2 seconds.
Braking: Includes a built-in dynamic braking unit (Chopper) as standard. [1, 2, 3, 4, 5]

Core Functions

Advanced Vector Control: Sensorless Vector Control (SVC) provides 150% torque at 0.25 Hz, making it ideal for high-inertia starts like industrial fans and heavy conveyors.
Robust Protection: Features 3C3 and 3S2 conformal coating to protect against humidity and corrosive gases common in textile or chemical plants.
Communication: Dual standard communication ports (Modbus-RTU and CANlink) with expansion slots for specialized industrial networks.
Efficient Cooling: Uses high-volume forced-air cooling with easy-to-replace fans for simplified maintenance.
