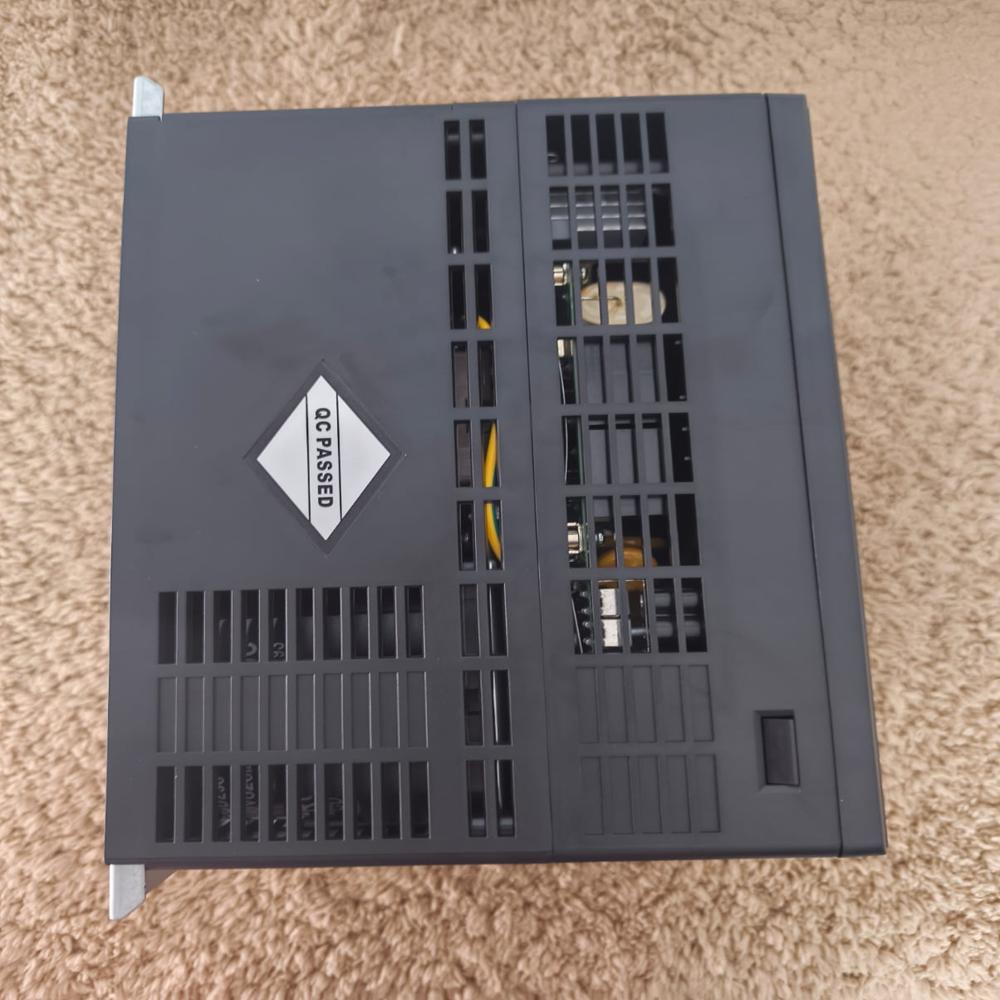

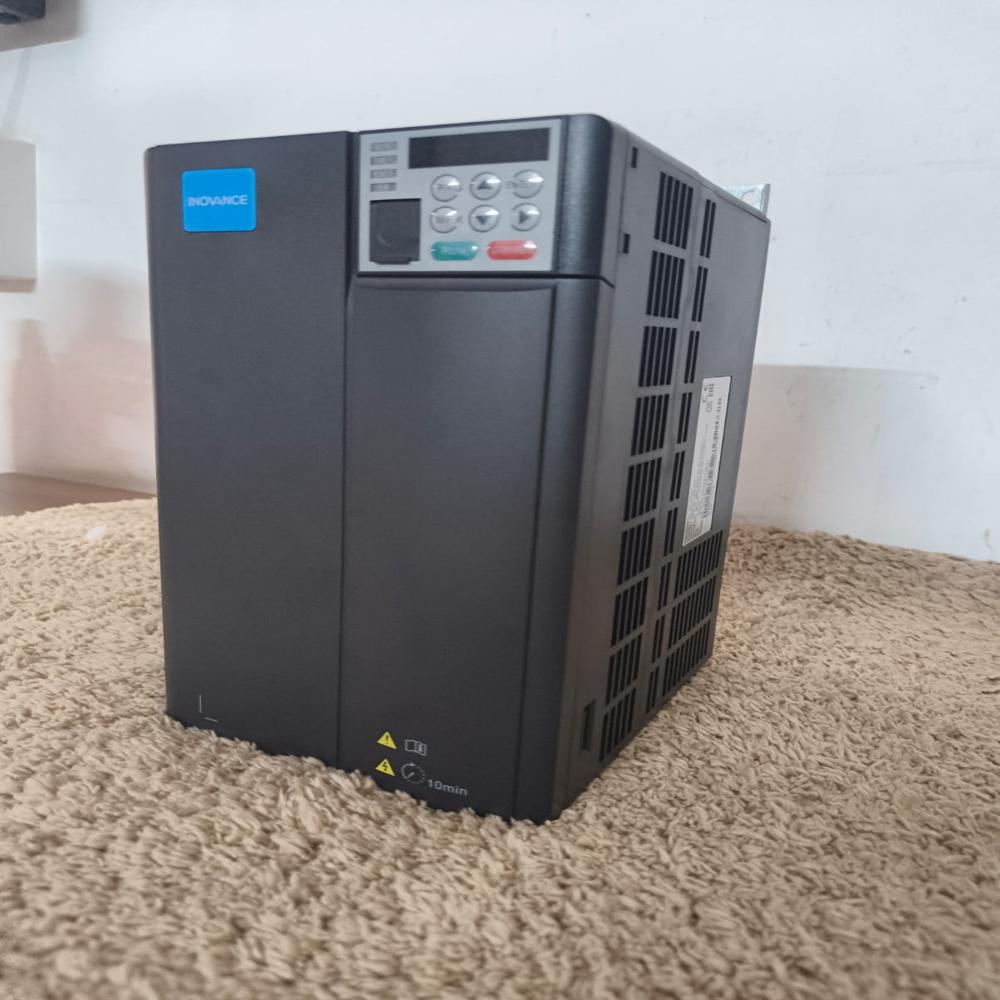

MD310T3.7B - 5HP - MD310 - 3 Phase - Inovance Ac Drive

Name: MD310T3.7B - 5HP - MD310 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD310T3.7B - 5HP - MD310 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
2.35 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD310T3.7B - 5HP - MD310 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD310T3.7B - 5HP - MD310 - 3 Phase - Inovance Ac Drive

The Inovance MD310T3.7B is a high-performance, compact 3-phase AC drive designed for 5 HP (3.7 kW) industrial applications. As part of the MD310 series, it offers more robust control capabilities than the MD200, including enhanced starting torque and expanded I/O for complex machinery. [1, 2, 3, 4, 5]

Dimensions & Weight

The 5 HP model moves to a larger frame size (Size 2) compared to the smaller MD310 units to accommodate higher power loads. [1, 2]

Specification [1, 2, 3, 4]	Metric Value	Imperial Value (Approx.)
Height	185 mm	7.28 in
Width	130 mm	5.12 in
Depth	164 mm	6.46 in
Weight	2.35 kg	5.18 lbs

Key Technical Data

Rated Power: 3.7 kW (5 HP).
Input Voltage: 3-Phase 380 V to 480 VAC.
Rated Output Current: 9.0 A.
Overload Capacity: 150% for 60 seconds and 180% for 2 seconds.
Braking: Includes a built-in dynamic braking unit (chopper) for high-inertia applications. [1, 2, 3, 4, 5, 6, 7, 8]

Functions & Features

Superior Control: Features Sensorless Vector Control (SVC), providing 150% starting torque at just 0.25 Hz.
Communications: Standard onboard Modbus-RTU and CANlink, with expansion slots for PROFIBUS-DP or CANopen.
Rugged Design: PCBs are protected with a conformal coating resistant to 3C3 and 3S2 environments, and it operates at over 98% efficiency.
I/O Flexibility: Includes 5 digital inputs, 2 analog inputs, and multiple output types for versatile system integration. [1, 2, 3]
