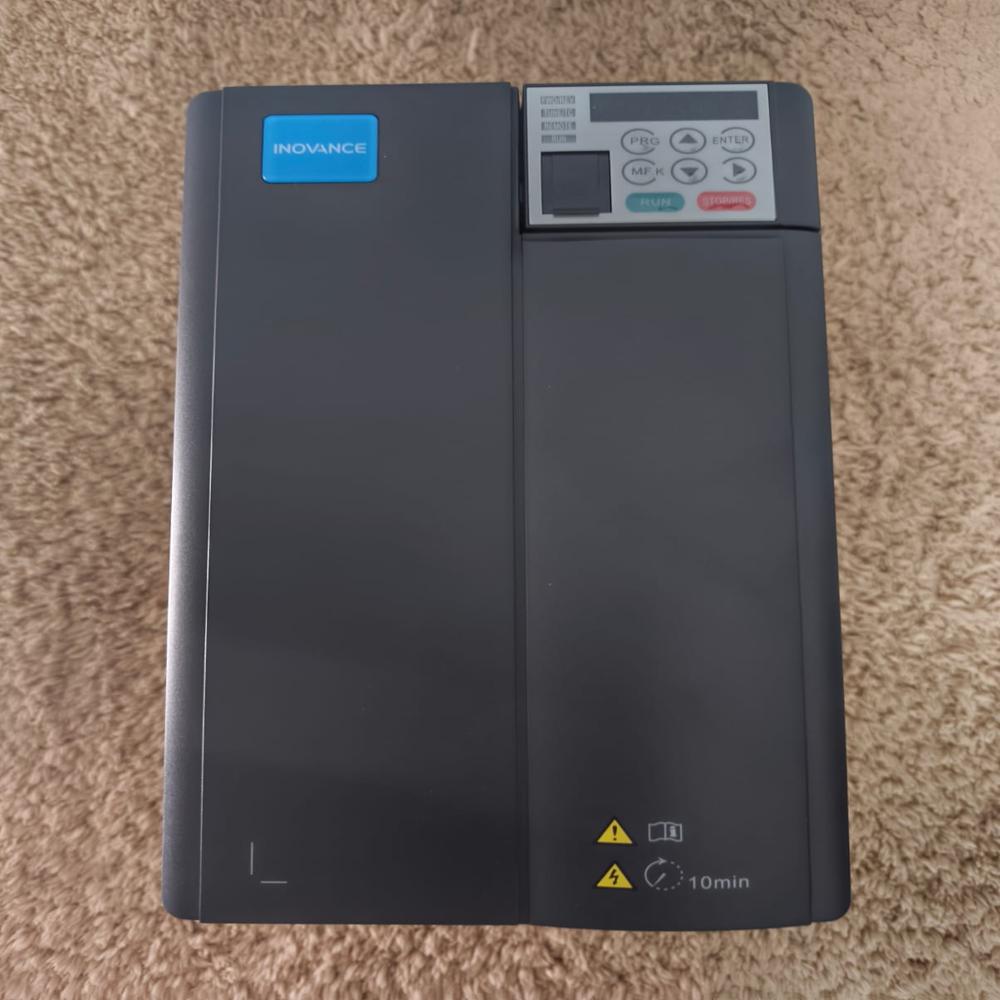

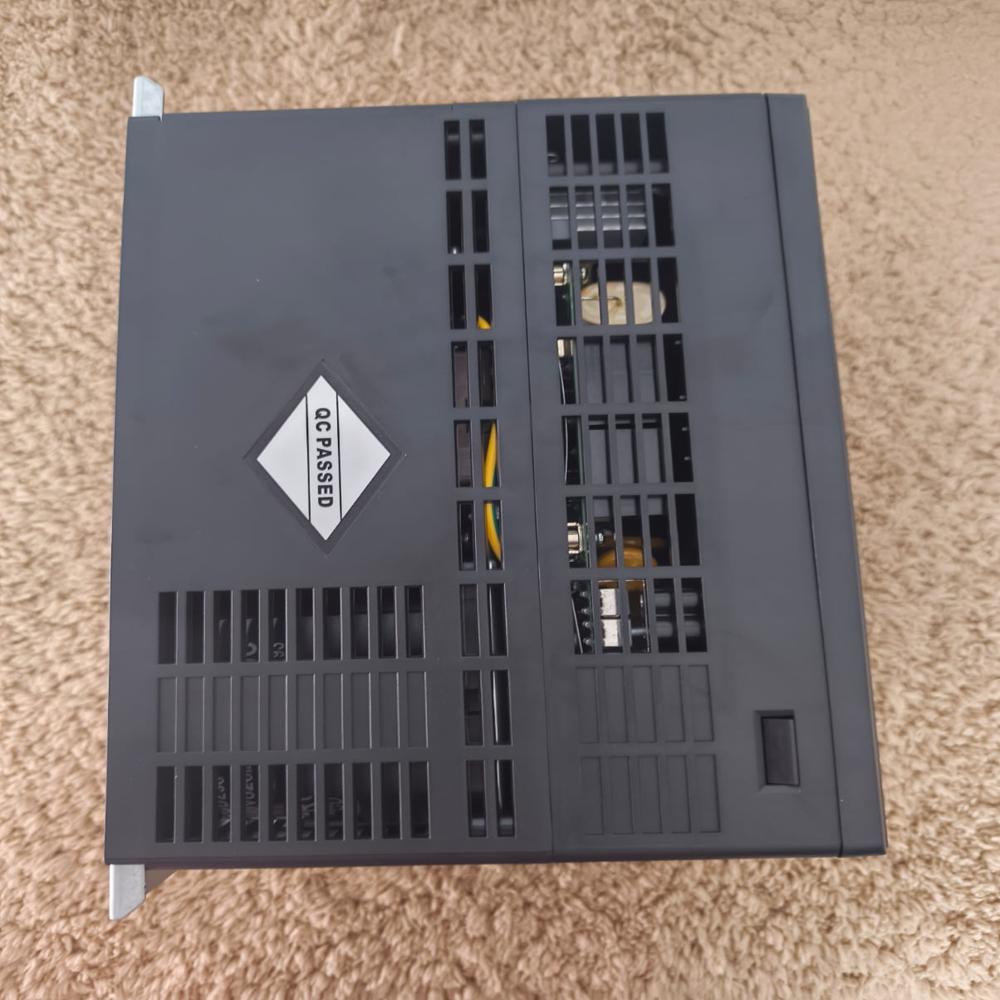

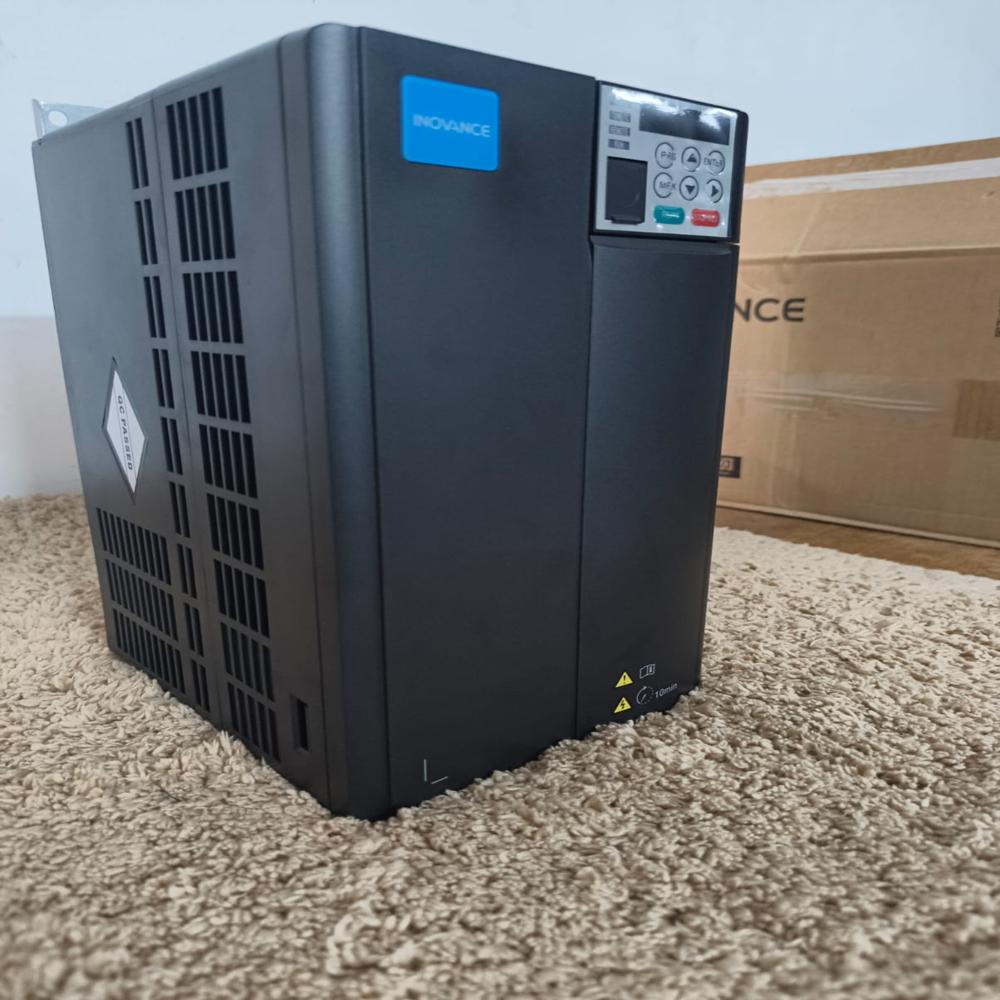

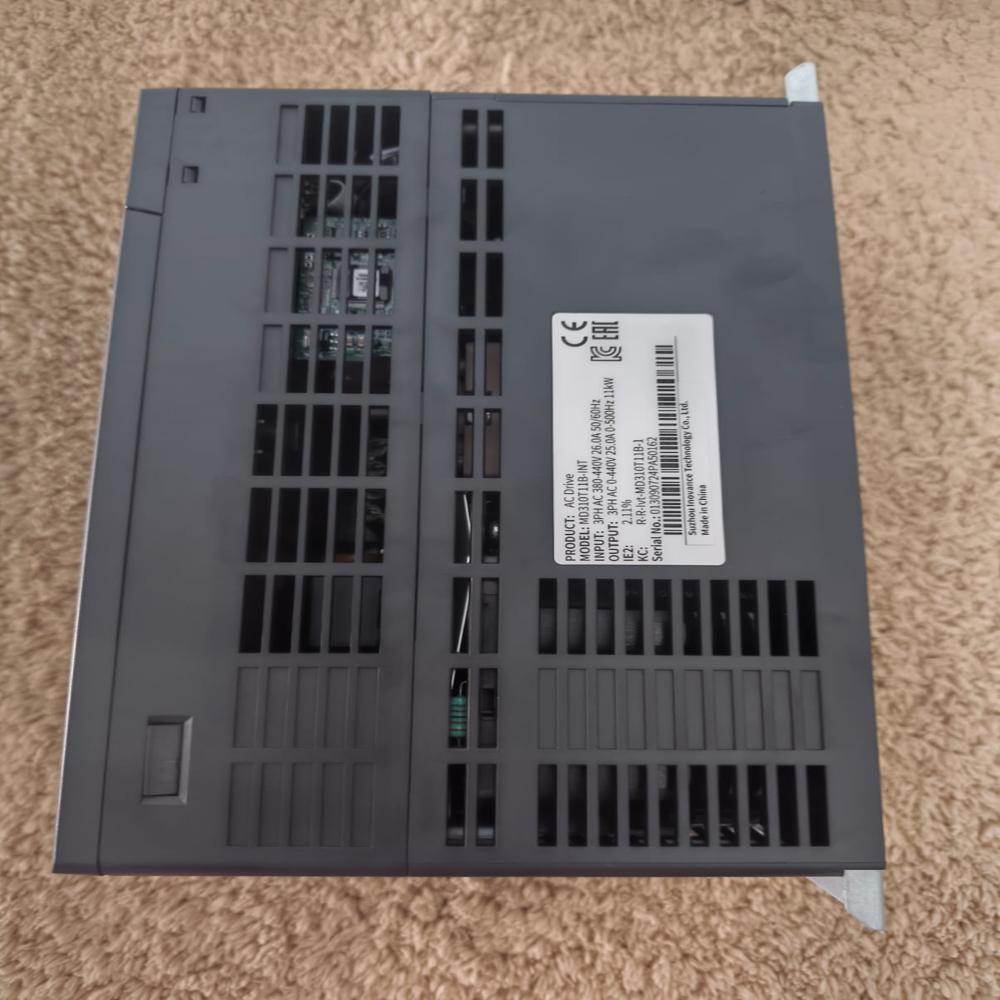

MD5204T160S-INT AC Drive, Three Phase, 380V to 480V,160kw - Inovance Ac Drive

Price 255600.0 INR/

Get a Price/Quote

MOQ : 1 Number

MD5204T160S-INT AC Drive, Three Phase, 380V to 480V,160kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Weight
85 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T160S-INT AC Drive, Three Phase, 380V to 480V,160kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
23 Hours

About MD5204T160S-INT AC Drive, Three Phase, 380V to 480V,160kw - Inovance Ac Drive

The Inovance MD520 160 kW AC Drive (Model: MD5204T160S-INT) is a heavy-duty industrial variable frequency drive (VFD) optimized for large automation machinery. This continuous-duty power model occupies the T9 frame size enclosure system, sharing its external footprint with the 132 kW variant. [1, 2, 3]

Device Measurements (T9 Frame Size)

The absolute layout measurements and weight converted from the official Inovance Technical Catalog are:

Height (Total Length): 36.02 inches (\(915\text{ mm}\))
Width: 15.75 inches (\(400\text{ mm}\))
Depth (Thickness): 12.60 inches (\(320\text{ mm}\))
Net Weight: 187.39 lbs (\(85.0\text{ kg}\)) [1, 2]

Cabinet Backplate Hole Layout

For installing the chassis inside custom electrical panel backplates, use these specific drilling dimensions:

Horizontal Pitch Spacing: 11.81 inches (\(300\text{ mm}\))
Vertical Pitch Spacing: 35.04 inches (\(890\text{ mm}\))
Fixing Bolt Diameter: 0.39 inches (Accepts standard M10 heavy fixing screws) [1]

Electrical & Capacity Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Input Phase / Line Voltage	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	160 kW (215 HP)
Normal Duty Power (ND)	200 kW (270 HP)
Rated Output Current (HD)	304 A
Rated Output Current (ND)	377 A
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Enclosure Rating	IP20

Built-in System Protections & Hardware

External Braking Unit Requirements: This 160 kW unit requires an external braking system module; it can utilize dual parallel units (e.g., MDBUN-90-5T x2 or MDBUN-200-5T x2) for high-inertia regeneration.
Harmonic Distortions Protection: Includes an integrated built-in internal DC reactor to guarantee line stability.
Chemical/Dust Defense: Coated with 3C3 and 3S2 level conformal coating on all internal PCBs.
Safety Integration: Standard dual-channel Safe Torque Off (STO) certified to SIL3 PL e functional engineering rules. [1, 2, 3, 4, 5]
