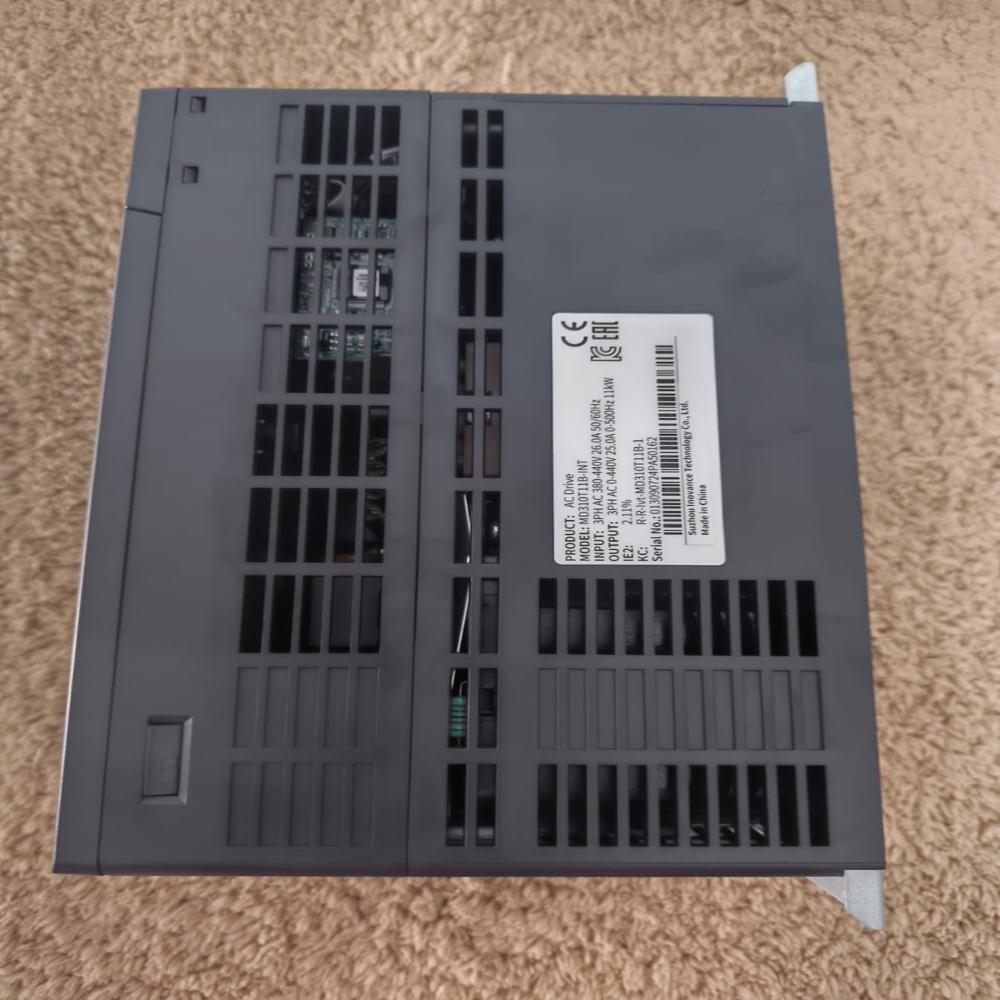

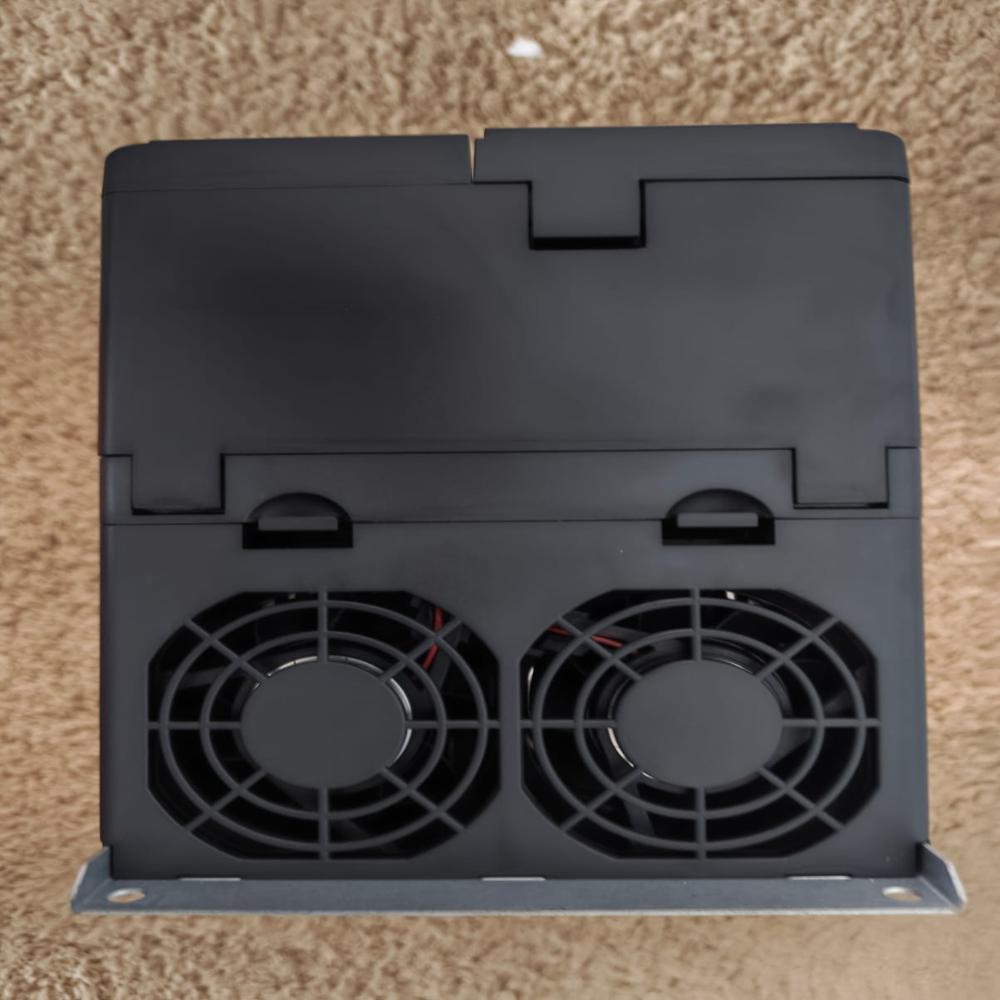

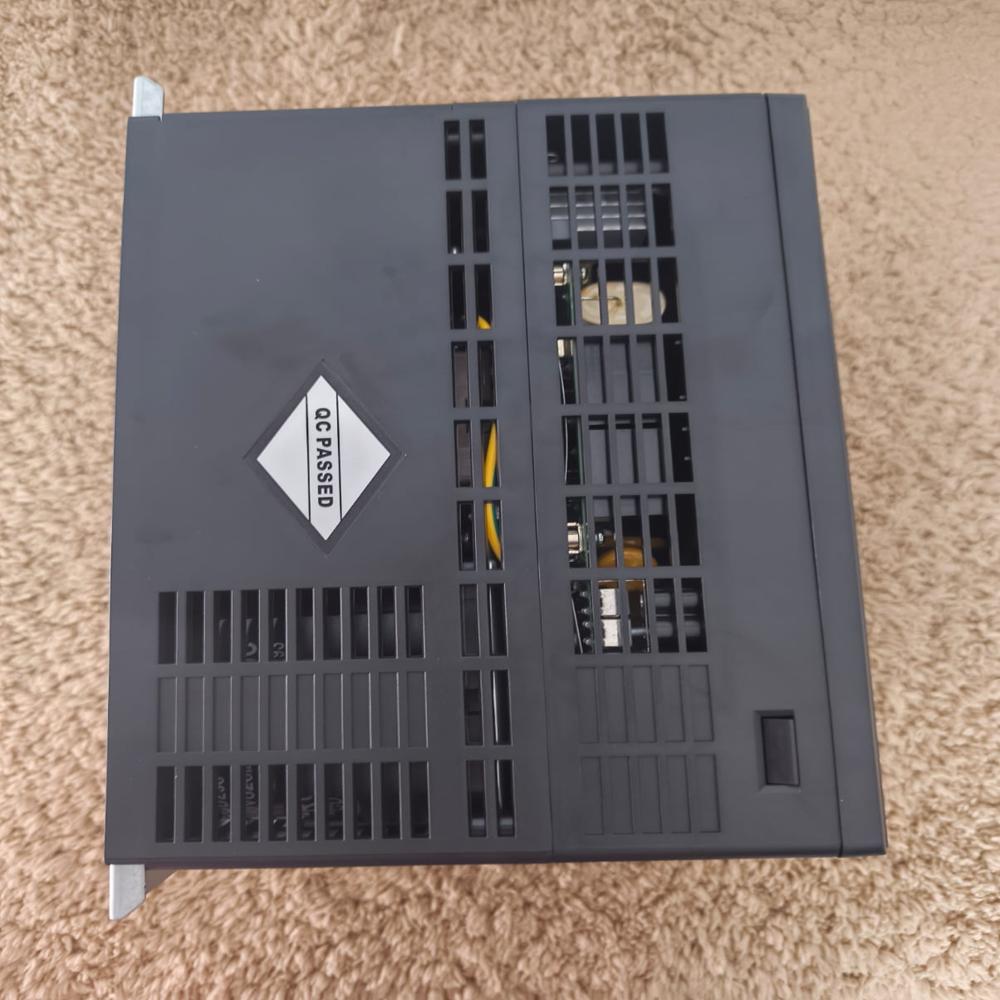

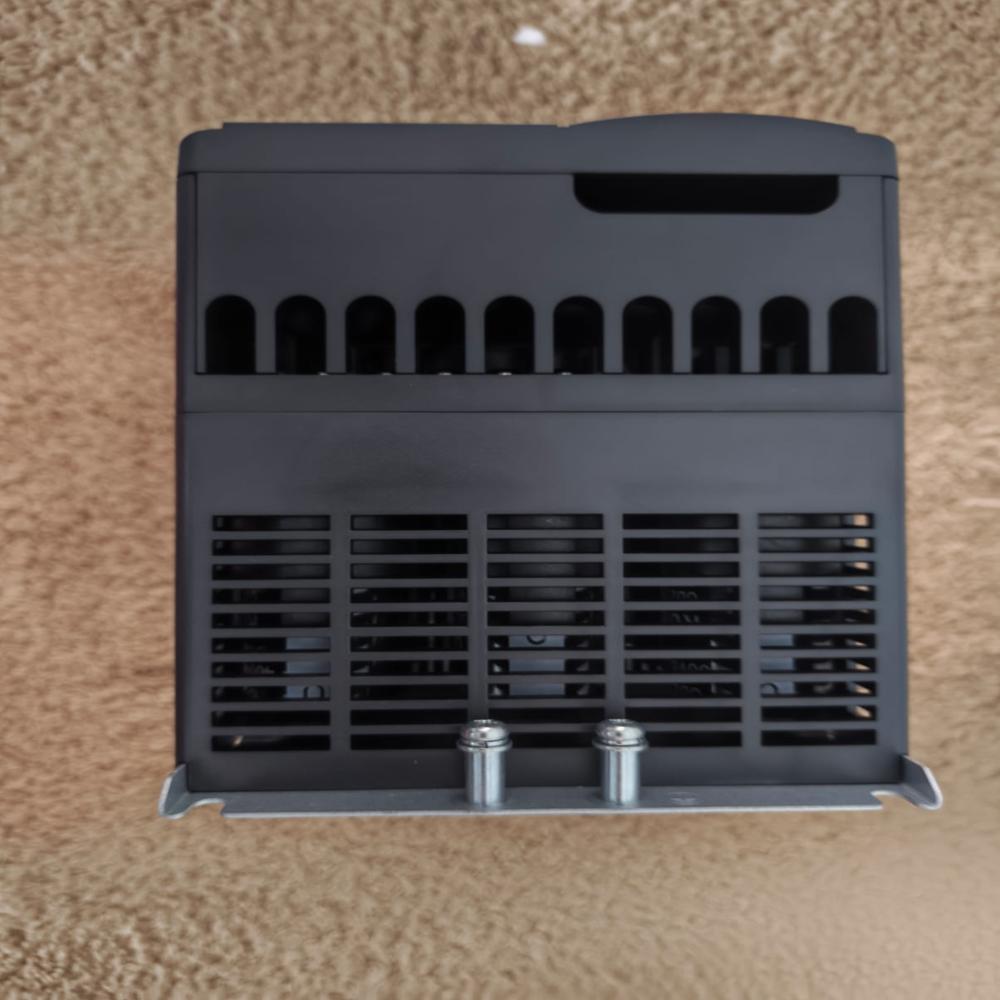

MD5204T18.5BS-INT AC Drive, Three Phase, 380V to 480V,18.5kw - Inovance Ac Drive

Price 37400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T18.5BS-INT AC Drive, Three Phase, 380V to 480V,18.5kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
9.1 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T18.5BS-INT AC Drive, Three Phase, 380V to 480V,18.5kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T18.5BS-INT AC Drive, Three Phase, 380V to 480V,18.5kw - Inovance Ac Drive

The Inovance MD520 18.5 kW AC Drive (Model: MD5204T18.5BS-INT) is a high-performance variable frequency drive (VFD). While sharing the exact electrical capacity, T5 frame size, and STO safety options as the standard 18.5S variant, the specific "B" designation confirms an integrated, factory-fitted internal braking chopper unit built right into the chassis.

Device Measurements (T5 Frame Size)

The physical footprint dimensions and total mass converted to imperial units are:

Height (Total Length): 13.78 inches (\(350\text{ mm}\))
Width: 8.27 inches (\(210\text{ mm}\))
Depth (Thickness): 7.56 inches (\(192\text{ mm}\))
Net Weight: 20.06 lbs (\(9.1\text{ kg}\))

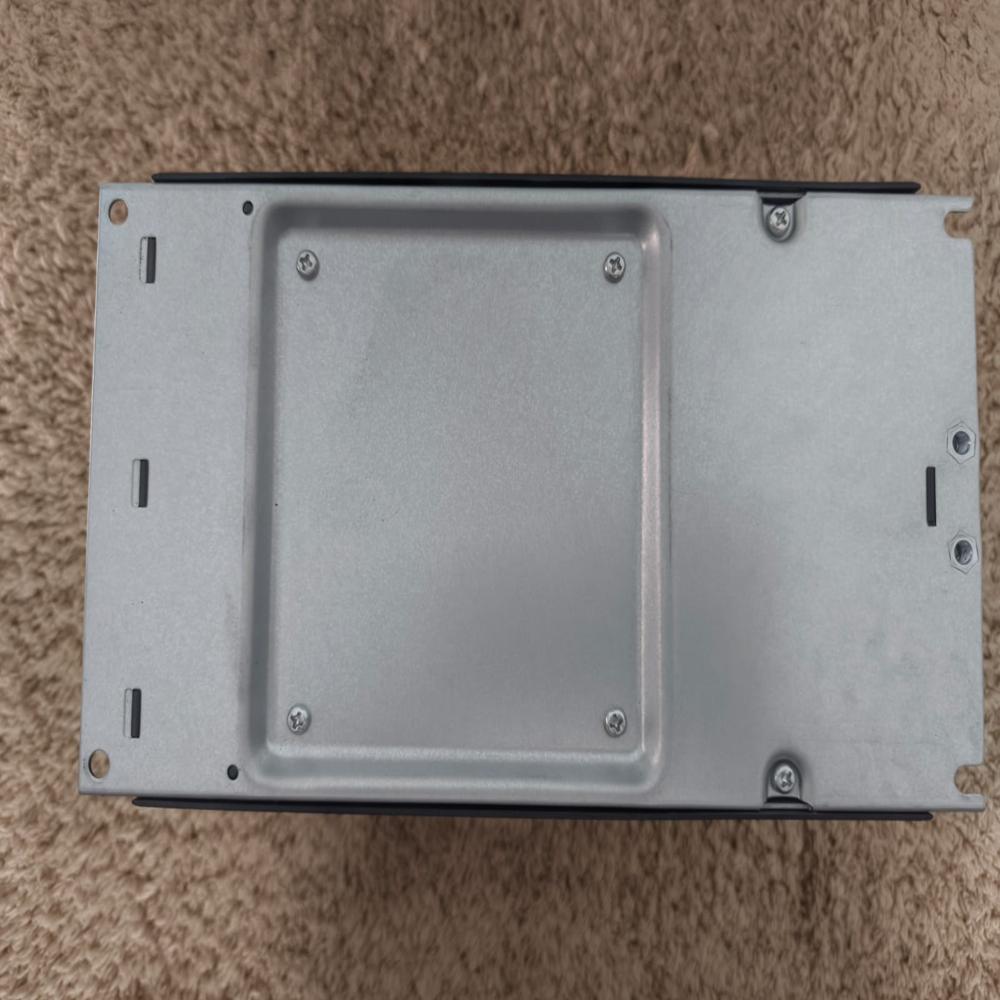

Cabinet Backplate Mounting Layout

If you are mapping out internal subpanels or machining cabinet backplates, use these centerline spacing parameters:

Horizontal Pitch Spacing (Hole Width): 7.68 inches (\(195\text{ mm}\))
Vertical Pitch Spacing (Hole Height): 13.19 inches (\(335\text{ mm}\))
Mounting Fixing Bolt Hole Diameter: 0.24 inches (Designed for standard M5 fixing bolts)

Electrical & Operational Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Line Input Supply	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	18.5 kW (25 HP)
Normal Duty Power (ND)	22 kW (30 HP)
Rated Output Current (HD)	37.0 A
Rated Output Current (ND)	45.0 A
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Braking Unit Hardware	Built-in internal chopper circuit (Requires an external resistor only)
Enclosure Protection	IP20

System Integration & Environment

Unified Control Algorithms: Supports high-accuracy open-loop V/F, Sensorless Vector Control (SVC), and closed-loop Flight Vector Control (FVC) via encoder options. [1, 2]
Atmospheric Resilience: Built with standard 3C3 and 3S2 level conformal board coatings to insulate complex circuitry against conductive factory dust, humidity, and corrosive chemical vapors.
Functional Safety Integration: Includes Safe Torque Off (STO) hardware circuits certified to SIL3 PL e requirements. [1]
Harmonic Mitigation: Features an integrated internal DC reactor to guarantee line stability.
