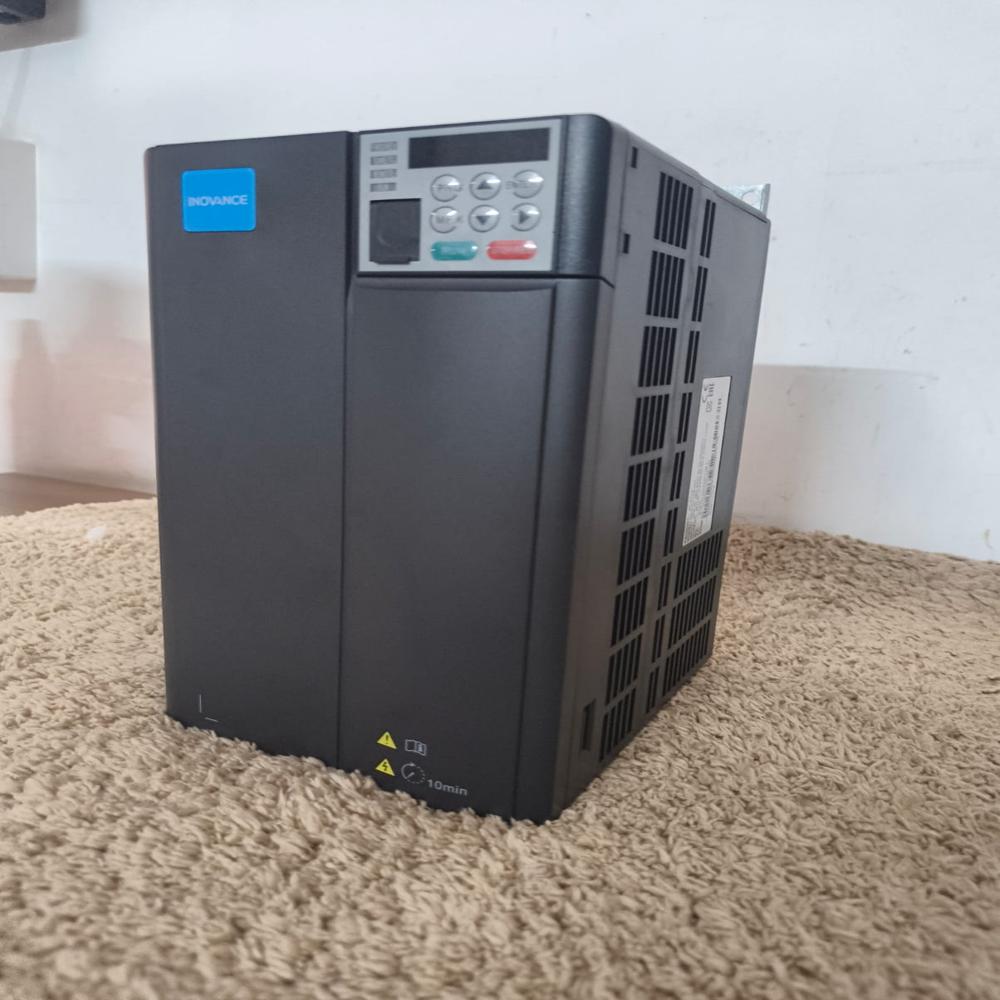

MD5204T30S-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive

Name: MD5204T30S-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 55300.0 INR
Availability: InStock

Price 55300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T30S-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
17.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T30S-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T30S-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive

The Inovance MD520-4T30S-INT uses a larger, high-capacity T6 physical frame size housing to manage the thermal and electrical performance demands of high-kilowatt motors. [1, 2]

Physical Dimensions & Weight (Inches & Pounds)

Height: 15.75 inches (400 mm)
Width: 9.84 inches (250 mm)
Depth (Length): 8.66 inches (220 mm)
Weight: 38.58 lbs (17.5 kg) [1]

Electrical Performance Capacity

The Inovance MD520 engineering ratings detail the dual operating currents for this 30 kW layout: [1]

Parameter [1, 3, 4]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	30.0 kW (40.0 HP)	37.0 kW (50.0 HP)
Rated Output Current	60.0 Amps	75.0 Amps
Rated Input Current	57.0 Amps	69.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Input Operating Line Voltage: Three-phase, 380 V to 480 V AC, 50/60 Hz line frequency.
Output Speed Tracking: 0 Hz to 599 Hz.

Integrated System Hardware

Dynamic Braking Unit: Built-in standard external braking chopper logic. Requires an external resistor with a minimum resistance of 19.2 \(\Omega \).
DC Reactor Integration: Features a pre-installed internal DC link reactor as standard for harmonic reduction and power factor correction.
Functional Safety Loop (S): Integrated dual-channel Safe Torque Off (STO) circuit matching SIL 3 PL e industrial risk metrics.
EMC Attenuation (-INT): Built-in internal Category C3 noise filter to curb radio frequency interference. [1, 3]
