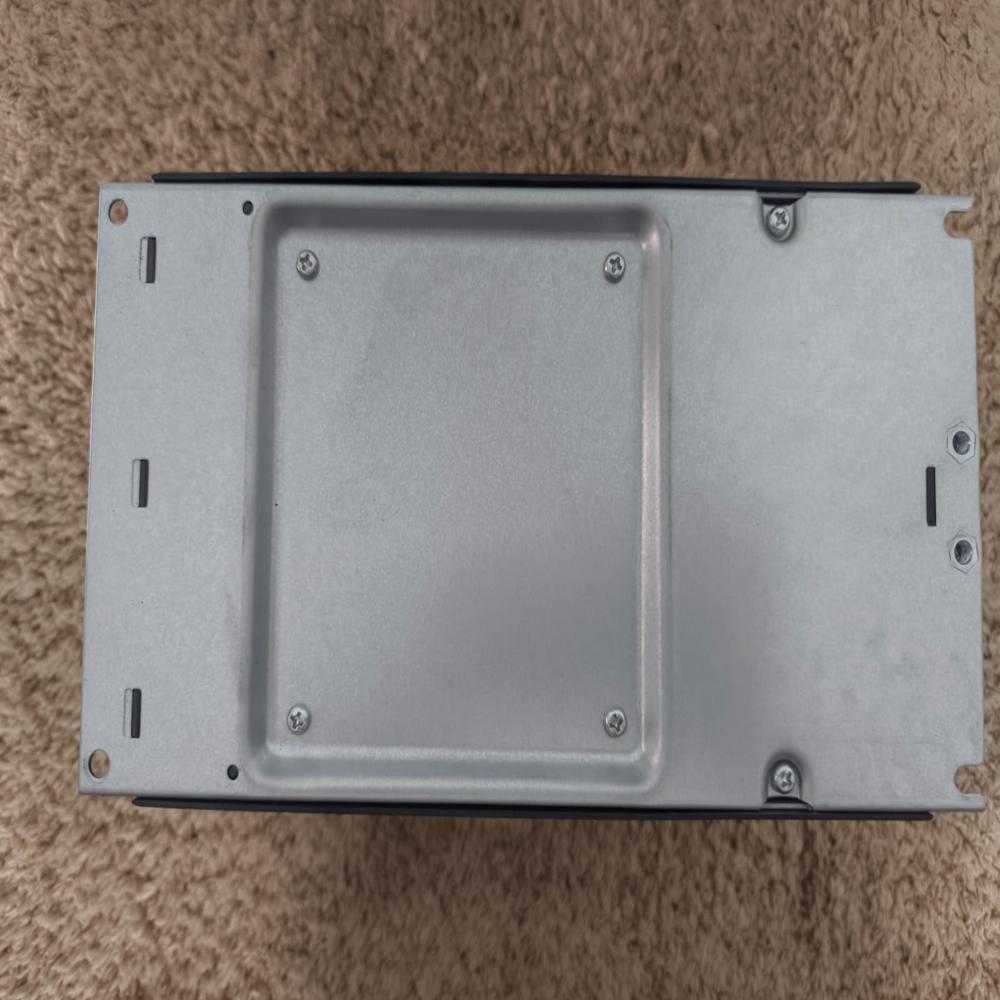

MD5204T55S-INT AC Drive, Three Phase, 380V to 480V,55kw - Inovance Ac Drive

Name: MD5204T55S-INT AC Drive, Three Phase, 380V to 480V,55kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 129500.0 INR
Availability: InStock

Price 129500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T55S-INT AC Drive, Three Phase, 380V to 480V,55kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
35 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T55S-INT AC Drive, Three Phase, 380V to 480V,55kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T55S-INT AC Drive, Three Phase, 380V to 480V,55kw - Inovance Ac Drive

Power & Amperage Ratings

Voltage System: Three-phase 380 V to 480 V AC line input.
Voltage Tolerance: Fluctuations between -15% to +10% line limit.
Input Frequency: 50/60 Hz ($\pm$5% variation boundary).
Heavy Duty (HD) Capacity: 55.0 kW (75.0 HP) | 112 Amps continuous output | 150% overload for 60 seconds.
Normal Duty (ND) Capacity: 75.0 kW (100.0 HP) | 150 Amps continuous output | 110% overload for 60 seconds. [1]

Dimensions and Weight (Inches & Pounds)

The 55 kW variant utilizes the T7 physical frame size housing, matching the footprint of the 45 kW model:

Height: 21.34 inches (542 mm)
Width: 11.81 inches (300 mm)
Depth (Length): 10.83 inches (275 mm)
Weight: 77.16 lbs (35.0 kg) [, 2]

Electrical Performance Capacity

This architecture features a high-capacity dual-rating matrix to adapt to heavy or light industrial startup demands:

Parameter	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	55.0 kW (75.0 HP)	75.0 kW (100.0 HP)
Rated Output Current	112.0 Amps	150.0 Amps
Rated Input Current	106.0 Amps	138.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Line Voltage System: Three-phase, 380 V to 480 V AC, 50/60 Hz supply.
Speed Control Frequency: Fully adjustable from 0 Hz up to 599 Hz. [1, 2]

Integrated System Hardware

DC Link Reactor: Factory-installed internal DC reactor minimizes line harmonics and improves overall system power factor.
Functional Safety Circuit (S): Dual-channel Safe Torque Off (STO) certified up to SIL 3 PL e.
EMC Attenuation (-INT): Pre-installed Category C3 internal noise filter to handle radio frequency interference.
