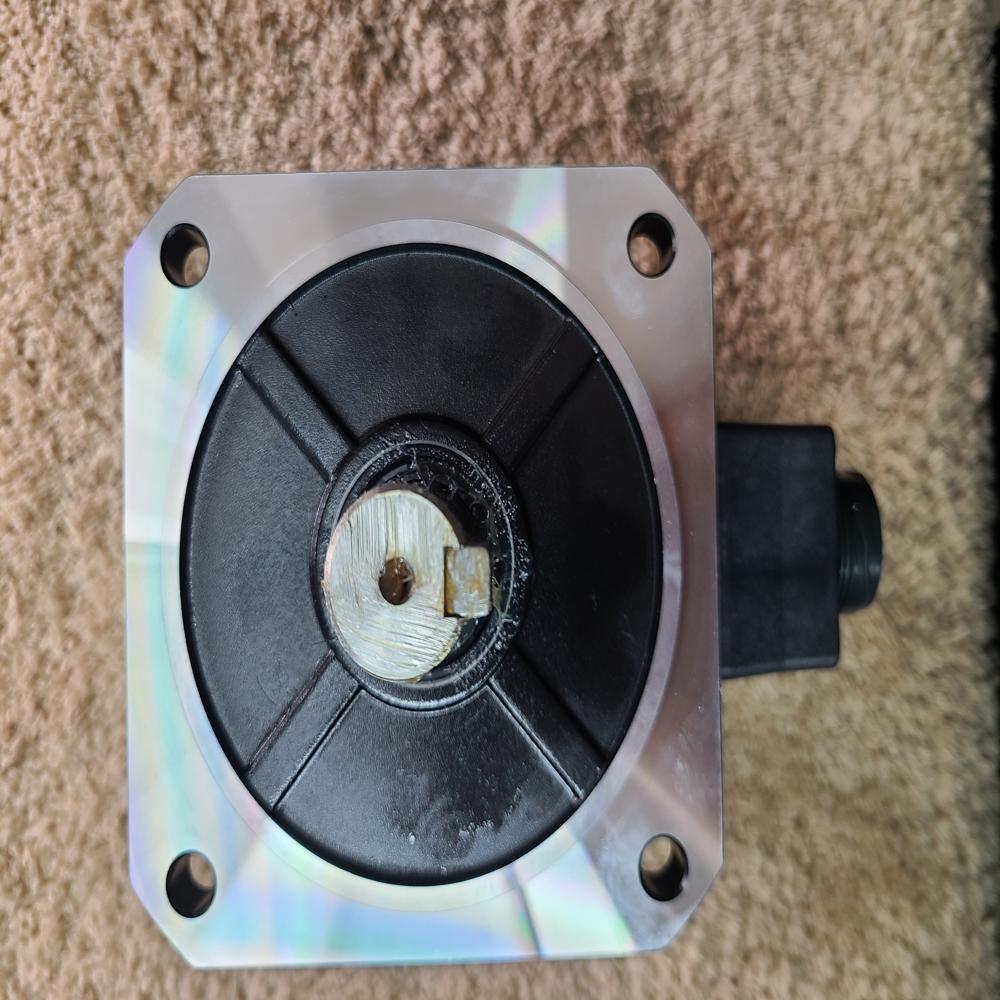

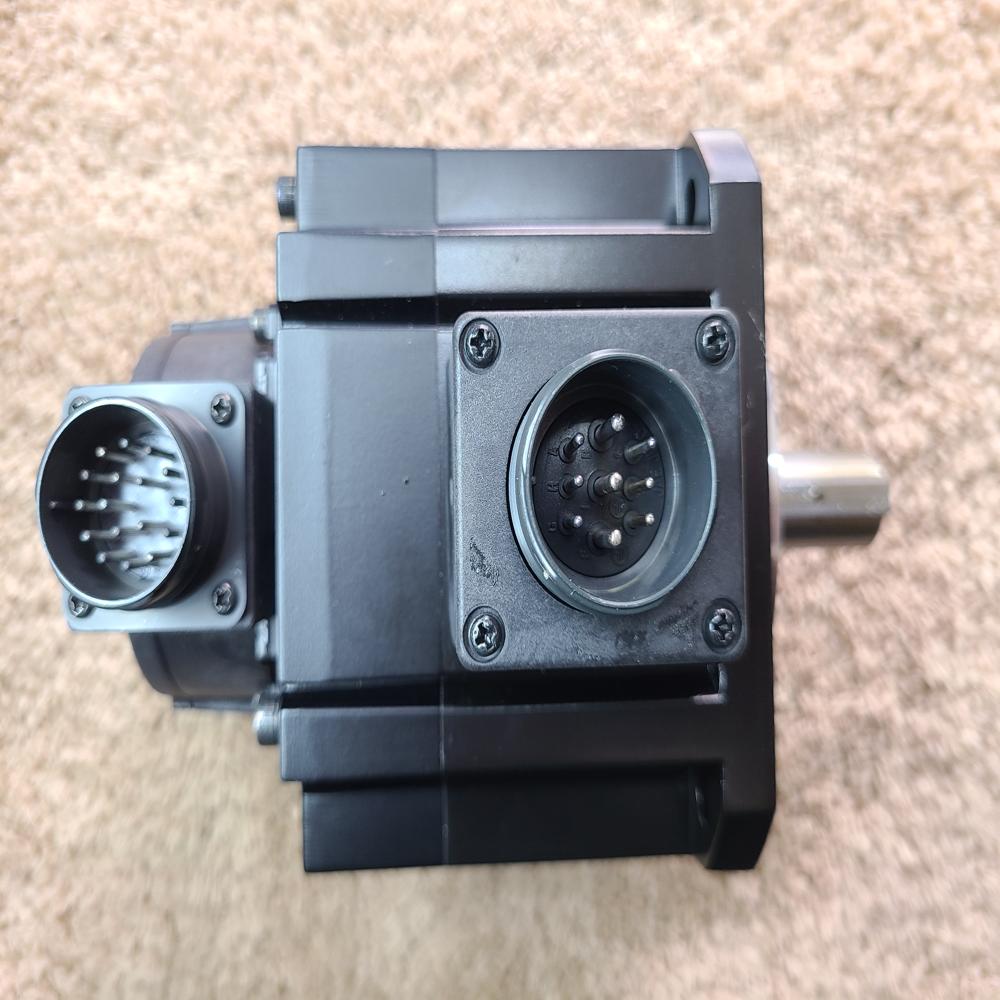

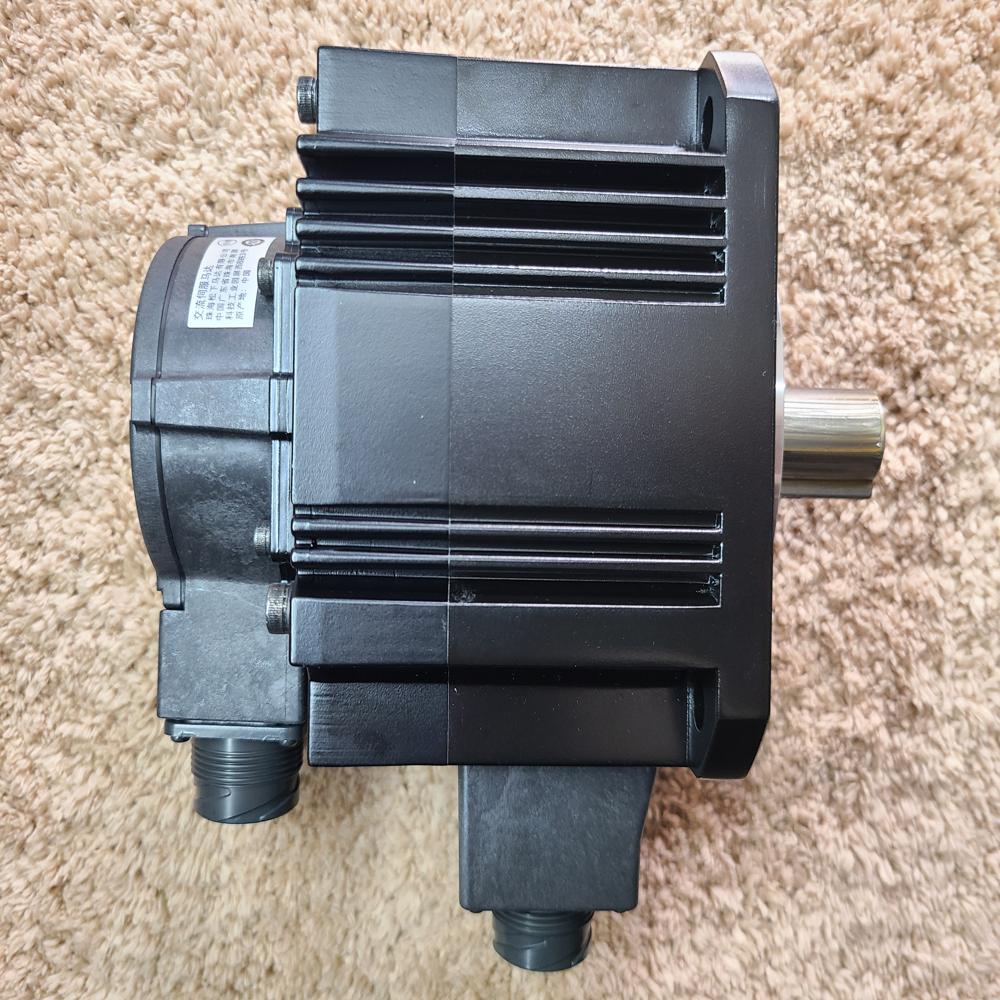

MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000
MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000

MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000

Price 80900.0 INR/ Number

MOQ : 1 Number

MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Power Rating
  • Color
  • Black and Silver
  • Usage & Applications
  • Industrial Machinery
  • Weight
  • 9.1 Kilograms (kg)
  • Phase
  • Three Phase
  • Warranty
  • 1 Year
  • Material
  • Aluminum


MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About MHMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 7.16, RPM - 2000

The Panasonic MHMF152L1H6M is a 1500W (1.5 kW) High-Inertia AC servo motor from the MINAS A6 family, featuring an integrated electromagnetic holding brake. [1]
Function
  • High-Inertia Stability: Primarily designed to handle very large mechanical loads or high load-inertia ratios. Its heavier internal rotor prevents vibration and provides smooth control for massive machinery like large gantries or high-load robotics.
  • Safety Holding (Brake): The built-in electromagnetic brake automatically locks the motor shaft when power is removed. This is a critical safety feature for preventing vertical loads from falling due to gravity during power failures or emergency stops.
  • Extreme Precision: Uses a 23-bit absolute/incremental encoder (8.38 million pulses per revolution) to provide micro-degree positioning and high-speed responsiveness (3.2 kHz frequency response). [1, 2, 3, 4]
Technical Specifications
According to official technical data from Panasonic Industry and retailers like Industrybuying, the core specs are:
Feature [1, 2, 3, 4] Specification
Rated Output 1500 W (1.5 kW)
Rated Torque 7.16 Nm
Peak Torque 21.5 Nm
Rated Speed 2000 RPM
Max Speed 3000 RPM
Voltage 200 V AC
Brake Torque 13.7 Nm or more (Static friction)
IP Rating IP67 (Dust-tight and water-resistant)
Physical Dimensions & Weight (Converted to Inches)
The MHMF152L1H6M is the heaviest in the 1500W class due to its high-inertia rotor and the integrated brake assembly. [1]
  • Weight: Approximately 20.06 lbs (9.1 kg).
  • Flange Width & Height: 5.12 inches (130 mm square).
  • Total Body Length: Approximately 8.01 inches (203.5 mm) [Based on A6 Series dimensions].
  • Shaft Diameter: 0.866 inches (22 mm). [1, 2, 3, 4]
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Panasonic Servo Motor Category

MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000

MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000

Price 86500.0 INR / Number

Minimum Order Quantity : 1 Number

Material : Aluminum

Sealed Type : Packing seal

Usage & Applications : Industrial Machinery

MHMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

MHMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

Price 38500.0 INR / Number

Minimum Order Quantity : 1 Number

Material : Aluminum

Sealed Type : Packing seal

Usage & Applications : Industrial Machinerry

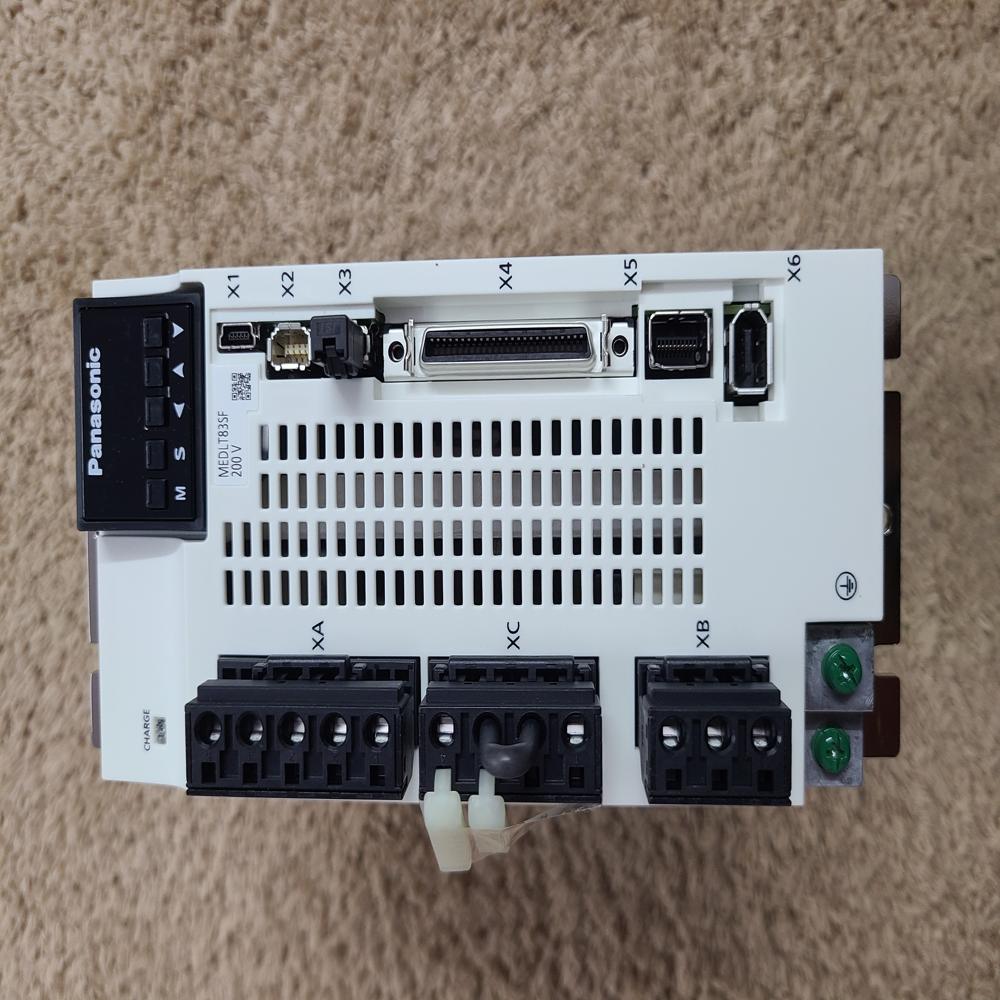

MEDLT83SF   -  A6SF Panasonic A6 2500W Driver
