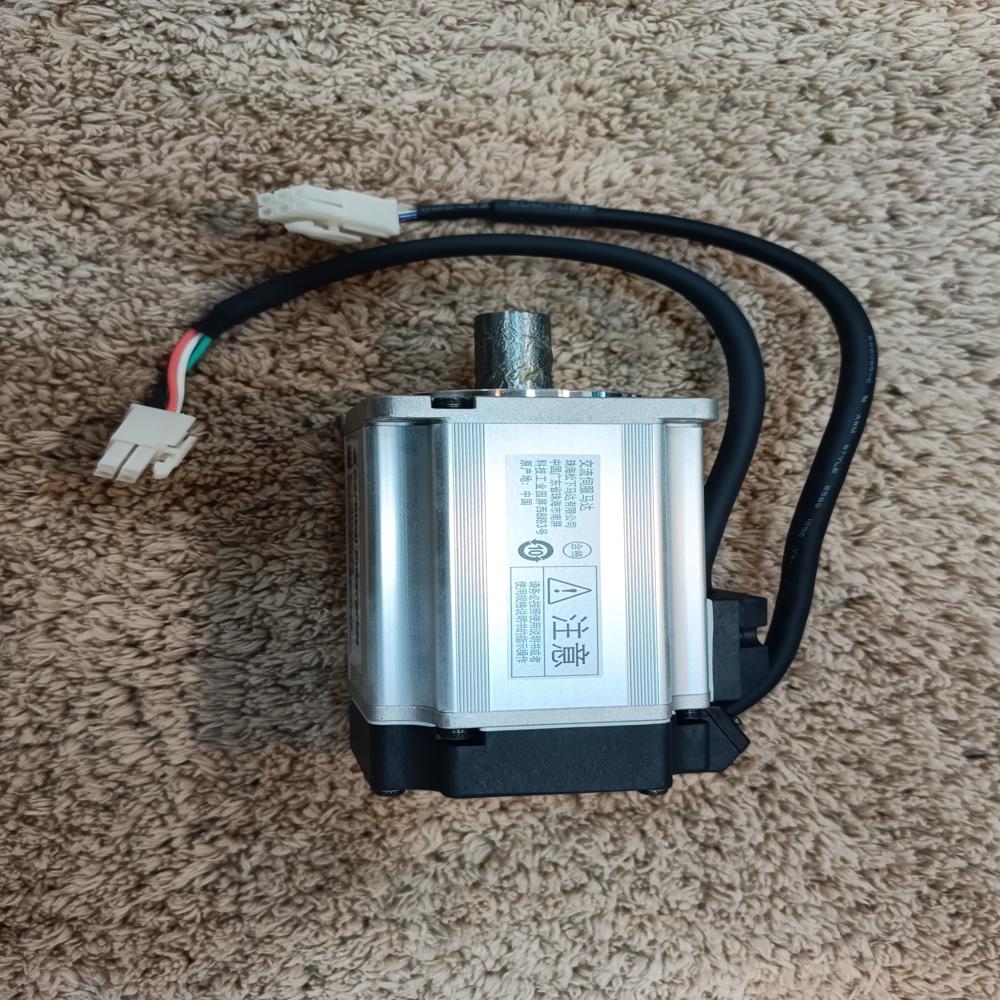

MHMD042G1U - Panasonic A5 Servo Motor

Name: MHMD042G1U - Panasonic A5 Servo Motor
Brand: Corbital Enterprise
Price: 14740.0 INR
Availability: InStock

Price 14740.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MHMD042G1U - Panasonic A5 Servo Motor Specification

Bearing Type
Ball Bearing

Poles Number
8

Sealed Type
Totally Enclosed

Rated Frequency
50/60 Hz

Standard
CE, UL, RoHS

Horse Power
0.53 HP

Noise Level
Low

Cooling Method
Natural Cooling

Efficacy
IE3 Standard

Starting Type
Direct Start

Torque
1.27 Nm (Rated)

Motor Type
AC Servo Motor

Voltage
200 V AC

Ambient Temperature
0 ~ 40C

Pressure
Atmospheric

Power Rating
400 W

Features
High Precision, Dynamic Response, Compact Design

Current Type
AC

Rated Voltage
200 V AC

Product Type
A5 Servo Motor

Output Power
400 W

Protect Feature
Overload, Overheat, Overcurrent, Overvoltage

Phase
Single/Three Phase

Speed
3000 rpm (Rated), 5000 rpm (Max)

Power
400 W

Color
Black / Silver

Dimension (L*W*H)
Approx 110 mm 80 mm 80 mm

Weight
Approx 1.3 kg

Shaft Diameter
14 mm

Mounting Type
Flange Mount

IP Rating
IP65

Encoder Type
20-bit Incremental Encoder

Maximum Instantaneous Torque
3.82 Nm

Vibration
Below 2.5 mm/s

Shaft Type
Keyed Shaft

Permissible Axial Load
98 N

Efficiency
High

Brake
Optional (Available in Some Models)

Permissible Radial Load
196 N (at center of shaft)

Insulation Class
Class F

MHMD042G1U - Panasonic A5 Servo Motor Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MHMD042G1U - Panasonic A5 Servo Motor

The

MHMD042G1U

is a 400-watt AC Servo Motor from the high-performance Panasonic MINAS A5 Family. It is a "High Inertia" lead-wire type motor designed for applications requiring stability under heavy loads.

Panasonic minas A5 series servos provide high performance and function for systems where precision, smart control, safety, and easy configuration are needed.

Core Specifications

Feature	Specification
Power Output	400 Watts (0.4 kW)
Rated Speed	3000 RPM (Max 5000 RPM)
Rated Torque	1.3 Nm (Peak 3.8 Nm)
Encoder Type	20-bit Incremental (1,048,576 pulses/rev)
Frame Size	60 mm Square (2.36")
Mass (Weight)	3.08 lbs (1.4 kg)
Protection	IP65 (Dust and water-jet proof)

Dimensions in Inches

Height/Width: 2.362" x 2.362" (60 mm sq.).
Length: Approximately 3.54" (90 mm) body length.
Shaft: Features a key-way and center tap.

Key Improvements over MHMD022J1A

Higher Precision: Uses a 20-bit encoder (over 1 million pulses/rev) compared to the 2500 pulses/rev of the LIQI series.
Increased Torque: Delivers 1.3 Nm, roughly double the torque of the 200W model.
High Inertia: Better suited for driving loads with large mechanical inertia without losing stability.

The

MHMD042G1U

functions as a high-precision, high-inertia AC servo motor that provides exact control over position, speed, and torque.

Key Functional Roles

High-Resolution Positioning: With its 20-bit incremental encoder, it tracks over 1 million pulses per revolution. This allows it to perform extremely fine movements, making it ideal for CNC machinery and high-end robotics.
High-Inertia Stability: The "High Inertia" design is its most critical function. It is specifically built to drive heavy or unbalanced loads smoothly, where a standard motor might vibrate or lose accuracy during rapid stops and starts.
Dynamic Response: It features a frequency response of 2.3 kHz, meaning it can process commands and adjust its movement almost 2.5 times faster than the LIQI series (1 kHz).

Advanced Control Modes

When used with a compatible driver (like the MBDHT2510), this motor can operate in four distinct modes:

Position Control: Moves to a precise coordinate (used in 3D printing or CNC).
Velocity (Speed) Control: Maintains a constant RPM even if the load changes.
Torque Control: Maintains a specific amount of force (used in tensioning or pressing).
Full-Closed Control: Uses an external scale to ensure the final mechanical part reaches the target, bypassing any errors caused by mechanical belts or gears.

Common Use Cases

Industrial Robotics: Precision arm movements and Automated Guided Vehicles (AGVs).
High-Speed Packaging: Rapid sorting and sealing lines where timing is critical.
Semiconductor Handling: Safe and precise movement of delicate electronic components.

Superior Precision and Reliability

Engineered with a high-resolution 20-bit incremental encoder, the MHMD042G1U achieves exceptional motion control accuracy. Its ball bearing design and keyed shaft enhance mechanical stability, while the totally enclosed construction and IP65 rating protect against environmental factors, making it dependable for varied applications.

Efficient, Powerful, and Versatile

Delivering 400 W of output power, the servo motor combines high torque and low noise operation. It supports both single and three-phase 200 V AC inputs, and adheres to international safety and efficiency standards including CE, UL, and RoHS. Its compact size and flange-mount design allow seamless integration into different machinery setups.

FAQ's of MHMD042G1U - Panasonic A5 Servo Motor:

Q: How can the Panasonic MHMD042G1U servo motor be integrated into industrial applications?

A: The MHMD042G1U can be easily incorporated into industrial automation systems using its flange mount and keyed shaft. Its compact dimensions and high dynamic response make it suitable for precise tasks such as conveyor control, robotic arms, and packaging machinery.

Q: What protection features are included in the MHMD042G1U, and how do they benefit operation?

A: The motor offers comprehensive protection against overload, overheat, overcurrent, and overvoltage. These features help prevent damage, reduce downtime, and extend the motor's service life in various industrial environments.

Q: When is it advisable to select the optional brake feature for this servo motor?

A: The optional brake should be chosen if the application requires holding torque during power loss or when stopping and holding positions is critical, such as in vertical lifts or precise positioning systems.

Q: Where does the MHMD042G1U's high efficiency and low noise make the most impact?

A: Its high efficiency (IE3 Standard) and low noise make it ideal for environments where energy savings and minimal acoustic disturbance are required, such as electronics manufacturing and automated laboratories.

Q: What process is used for cooling the MHMD042G1U servo motor?

A: The motor uses natural cooling, meaning it relies on ambient airflow rather than built-in fans or liquid cooling, increasing reliability and reducing maintenance needs.

Q: How does the 20-bit incremental encoder enhance the motor's performance?

A: The 20-bit incremental encoder allows for extremely precise feedback on the motor's position and speed, resulting in improved accuracy and smoother control during operation.
