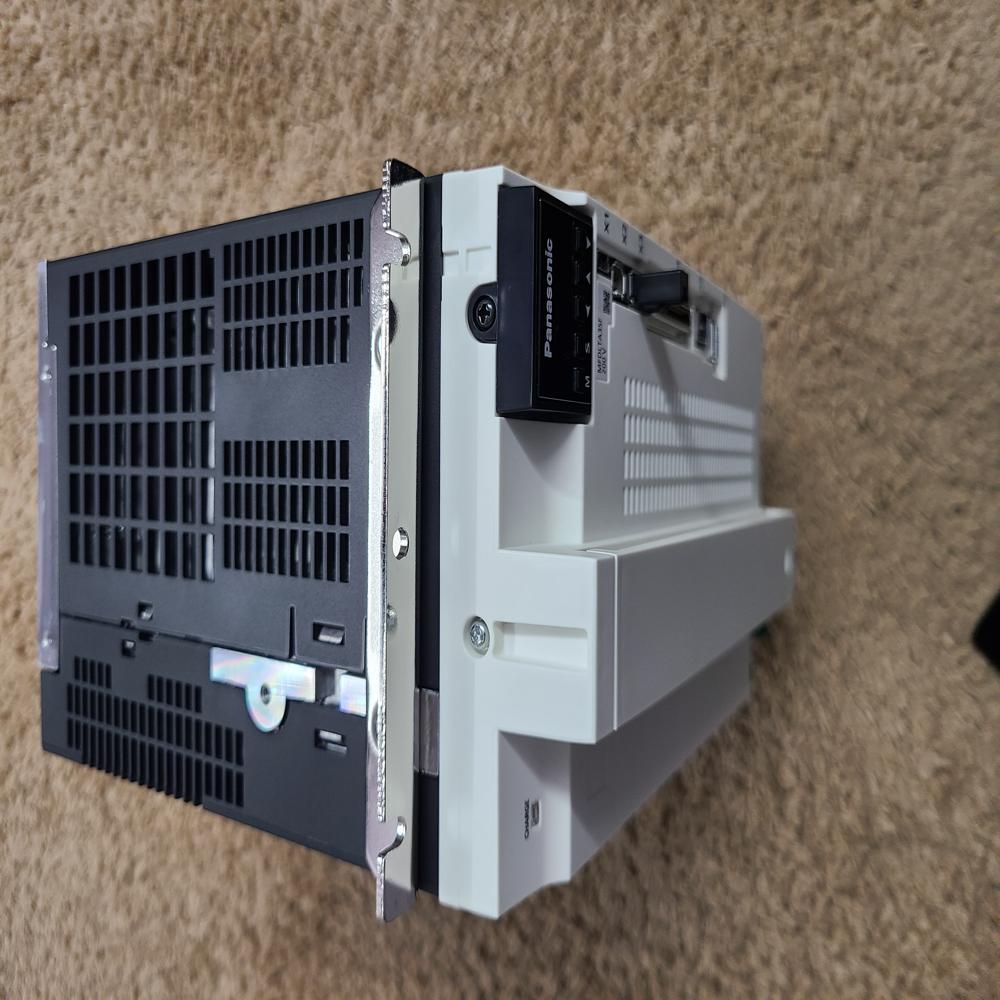

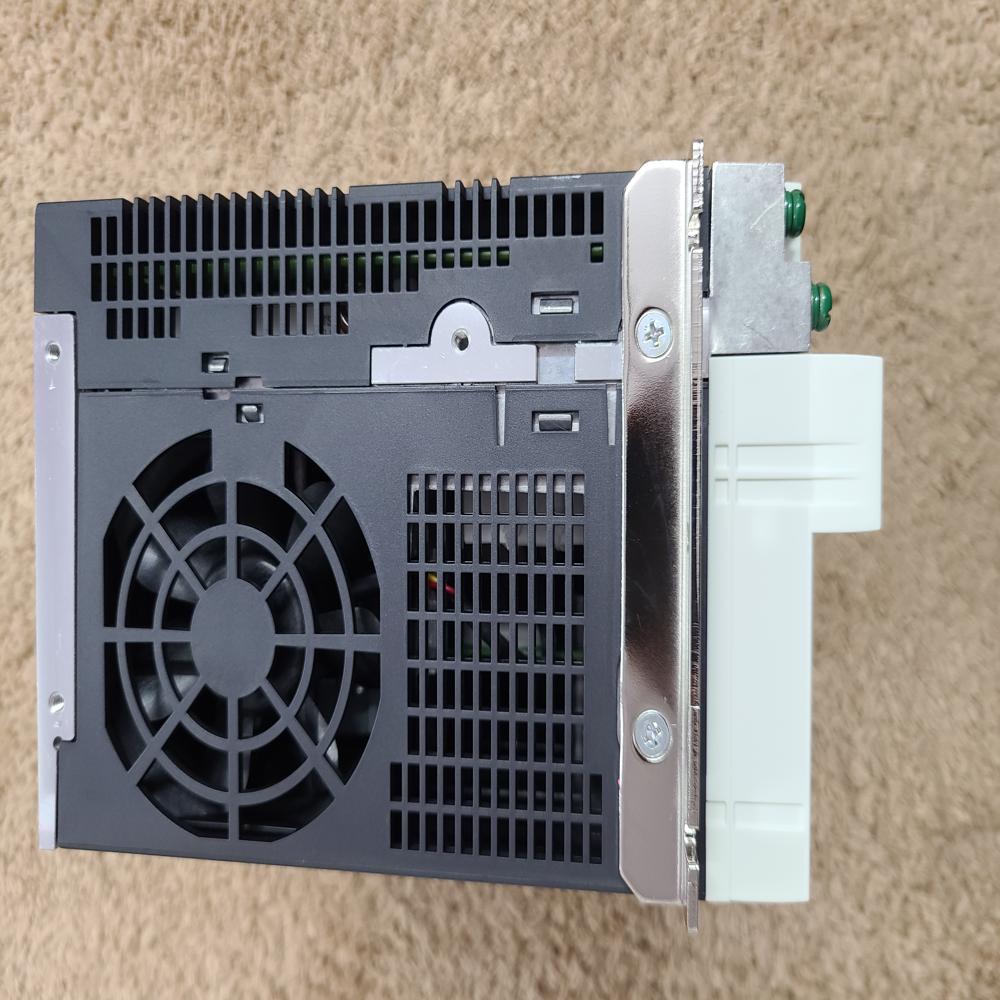

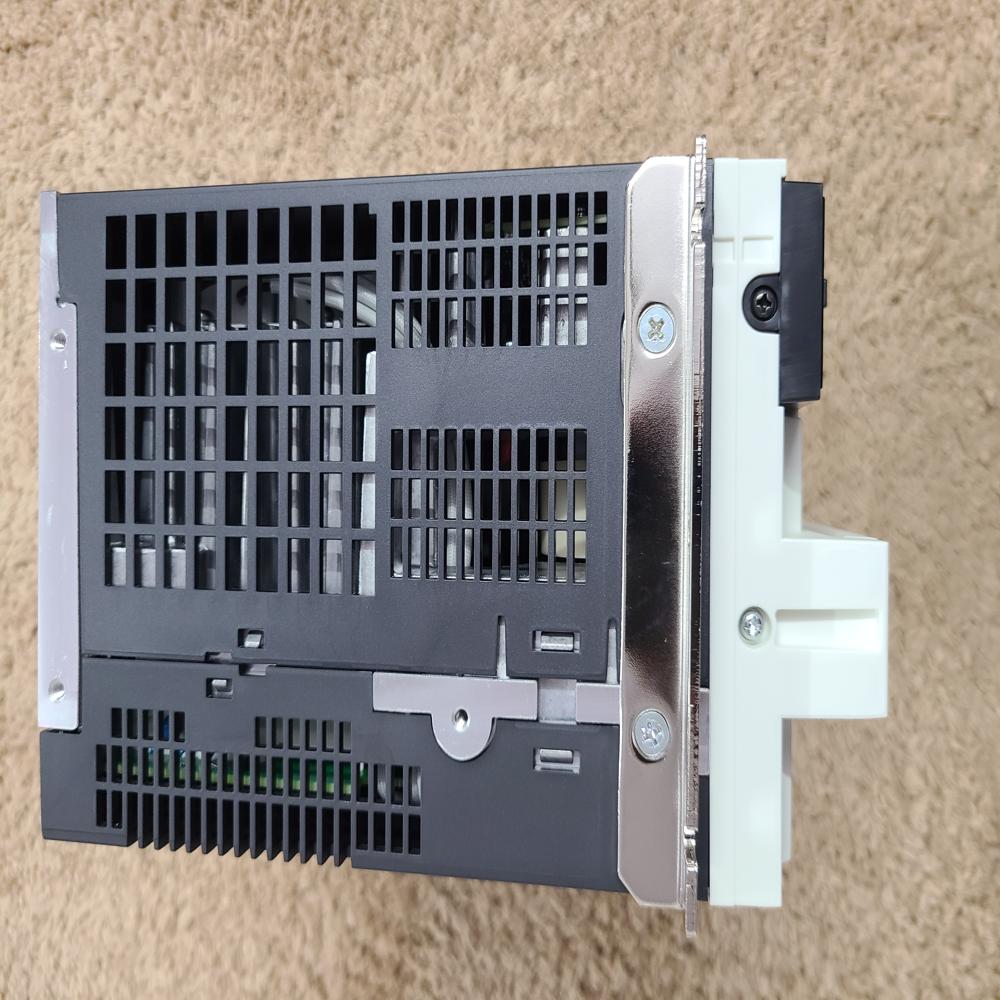

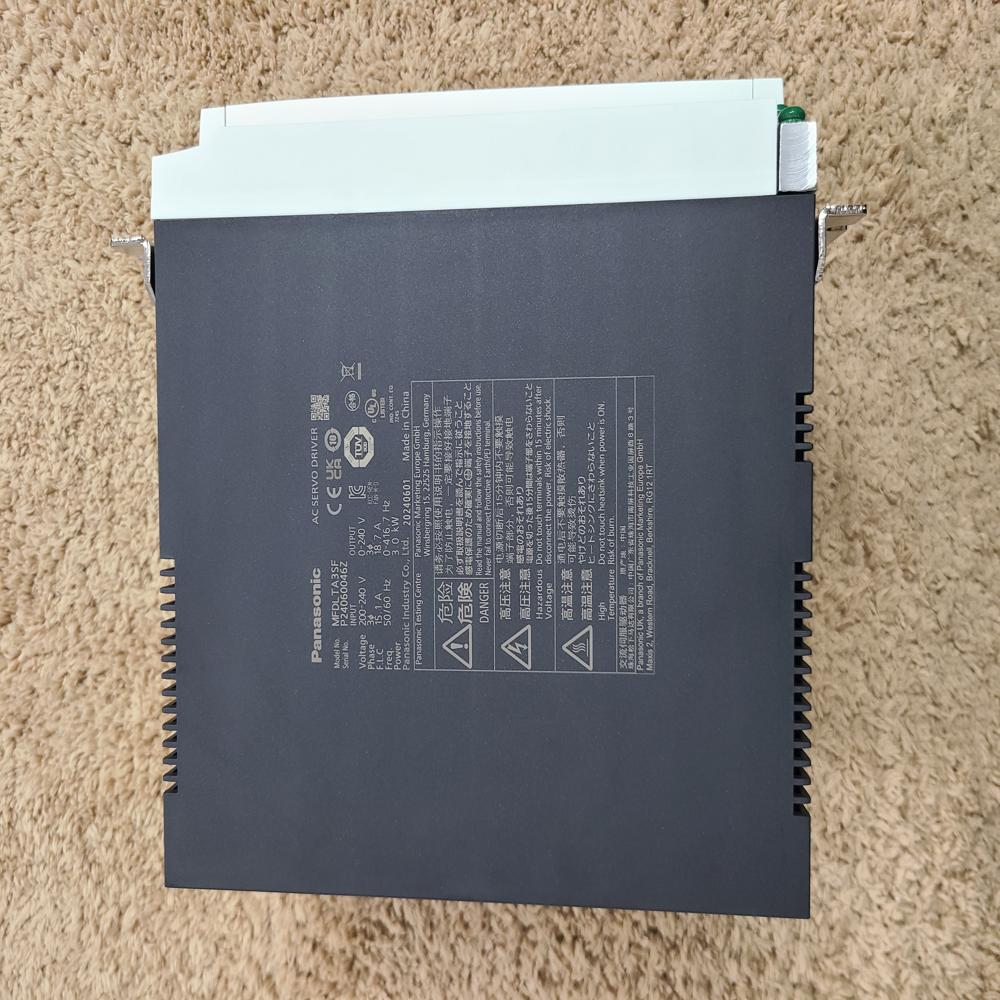

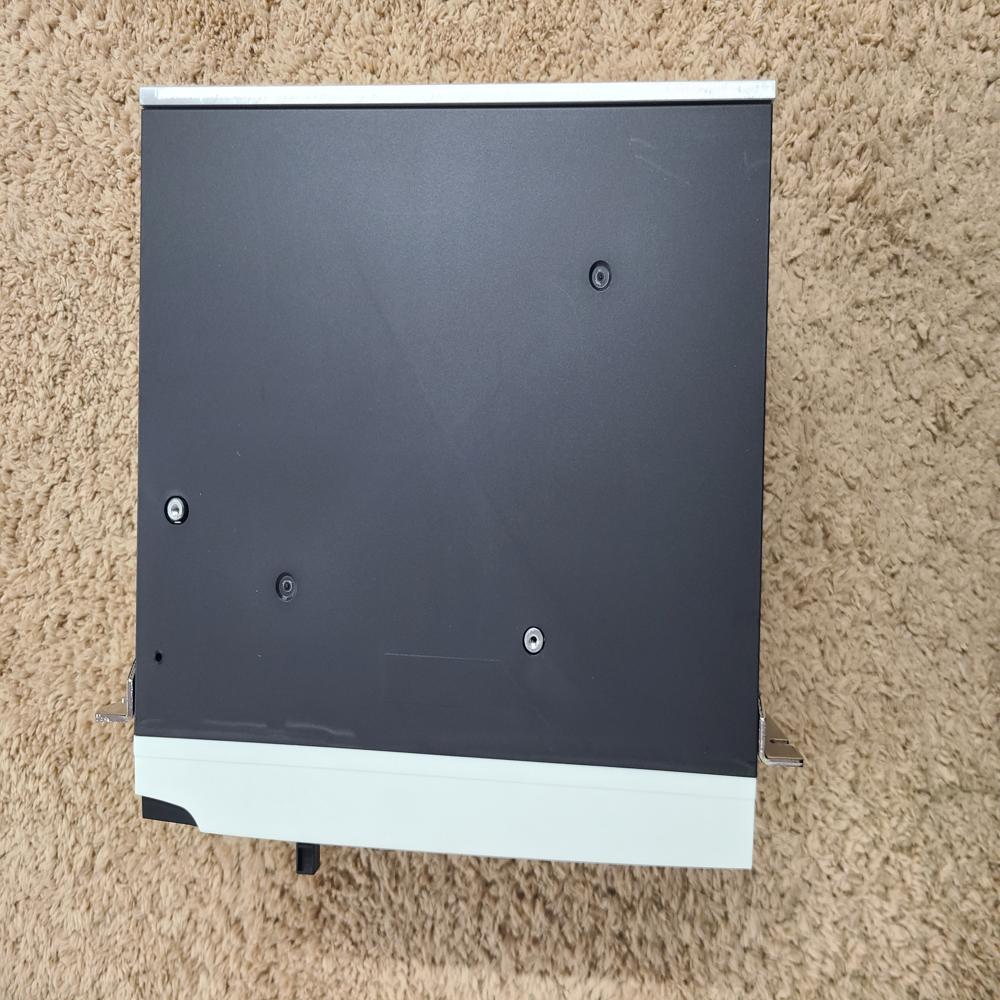

MFDLNA3SG - A6SG Panasonic A6 3000W Driver

Name: MFDLNA3SG - A6SG Panasonic A6 3000W Driver
Brand: Corbital Enterprise
Price: 97900.0 INR
Availability: InStock

Price 97900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLNA3SG - A6SG Panasonic A6 3000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
5.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MFDLNA3SG - A6SG Panasonic A6 3000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLNA3SG - A6SG Panasonic A6 3000W Driver

The Panasonic MFDLNA3SG (A6SG series) is a 3.0 kW "F-Frame" AC servo driver optimized for network communication via RS485 or RS232. It is the designated communication-type driver for the 3.0 kW motor range. [1, 2]

Function

Network Command Hub: Its primary role is to allow control through Modbus-RTU (RS485/RS232). This allows a single PLC or industrial PC to control up to 31 axes using digital data commands rather than bulky pulse wiring.
Simplified Positioning: It supports "Block Operation," where you can pre-program up to 256 position points or speeds directly into the driver and trigger them via the network.
Active Vibration Suppression: It functions as an "auto-pilot" for heavy loads, using a 3.2 kHz response frequency to detect and cancel out machine resonance and shaking in real-time.
Dynamic Auto-Tuning: It automatically measures the inertia of the connected machine parts and adjusts its power output to ensure the smoothest movement without manual fine-tuning.

Technical Specifications

Based on official Panasonic Industry data:

Feature [1, 2, 3]	Specification
Series	MINAS A6SG (Communication Type)
Rated Output	3000 W (3.0 kW)
Frame Size	F-Frame
Input Voltage	3-Phase 200 V to 240 V AC
Interface	RS485, RS232, Modbus-RTU, and Pulse/Analog
Encoder Feedback	23-bit absolute system (8.38 million pulses/rev)
Safety Function	None (Standard SG models do not include STO)

Physical Dimensions & Weight

Converted to imperial units for the heavy-duty F-Frame chassis:

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm).

Key Difference

Unlike the "Multifunction" (SF) model, the A6SG is focused on serial communication. It is ideal for multi-axis production lines where saving on wiring and using digital data for diagnostics is a priority.

The primary function of the Panasonic MFDLNA3SG is to act as a high-power communication hub for 3.0 kW motors. It is the "networked brain" of the F-Frame lineup, designed to handle multi-axis coordination via digital data commands.

1. Multi-Axis Network Control (Modbus)

The "SG" series is specifically built for RS485/RS232 (Modbus-RTU) communication.

Centralised Commands: It allows a single PLC or industrial PC to control a long line of drivers (up to 31 units) using a simple daisy-chain communication cable.
Reduced Wiring: Instead of running dozens of individual pulse wires for every motor, you send digital data packets, which simplifies the control cabinet and reduces the chance of electrical noise interference.

2. Digital Position & Indexing (Block Operation)

The driver functions as an independent positioning unit:

Pre-Programmed Moves: You can store up to 256 different position points or speeds directly in the drivers internal memory.
Simple Triggering: The master controller just sends a small digital command (e.g., "Execute Move #5"), and the driver handles the entire acceleration, travel, and deceleration profile on its own.

3. Active Load Stabilization (3.2 kHz Response)

Moving 3.0 kW worth of heavy machinery (often several hundred kilograms) creates massive momentum. The driver functions as an "electronic stabilizer":

Instant Correction: It monitors the motors position 3,200 times per second. If the load tries to "overshoot" or vibrate, the driver instantly adjusts the power output to cancel out that movement.
Real-Time Auto-Tuning: It automatically senses changes in the machine's weight (e.g., if a robot picks up a heavy part) and adjusts its internal math to keep the motion perfectly smooth.

4. Mechanical Protection (Resonance Suppression)

At this power level, mechanical vibration can destroy bearings and gears. The MFDLNA3SG functions as a digital shock absorber:

Adaptive Notch Filters: It automatically identifies the specific frequency at which your machine frame shakes (the "hum") and electronically blocks that frequency. This allows you to run the machine at much higher speeds without noise or mechanical wear.

5. High-Resolution Feedback Bridge

It serves as the translator for the motor's 23-bit encoder. It processes the 8.38 million pulses per turn from the motor and converts them into high-speed digital data so the master controller always knows the exact micron-level location of the machine.
