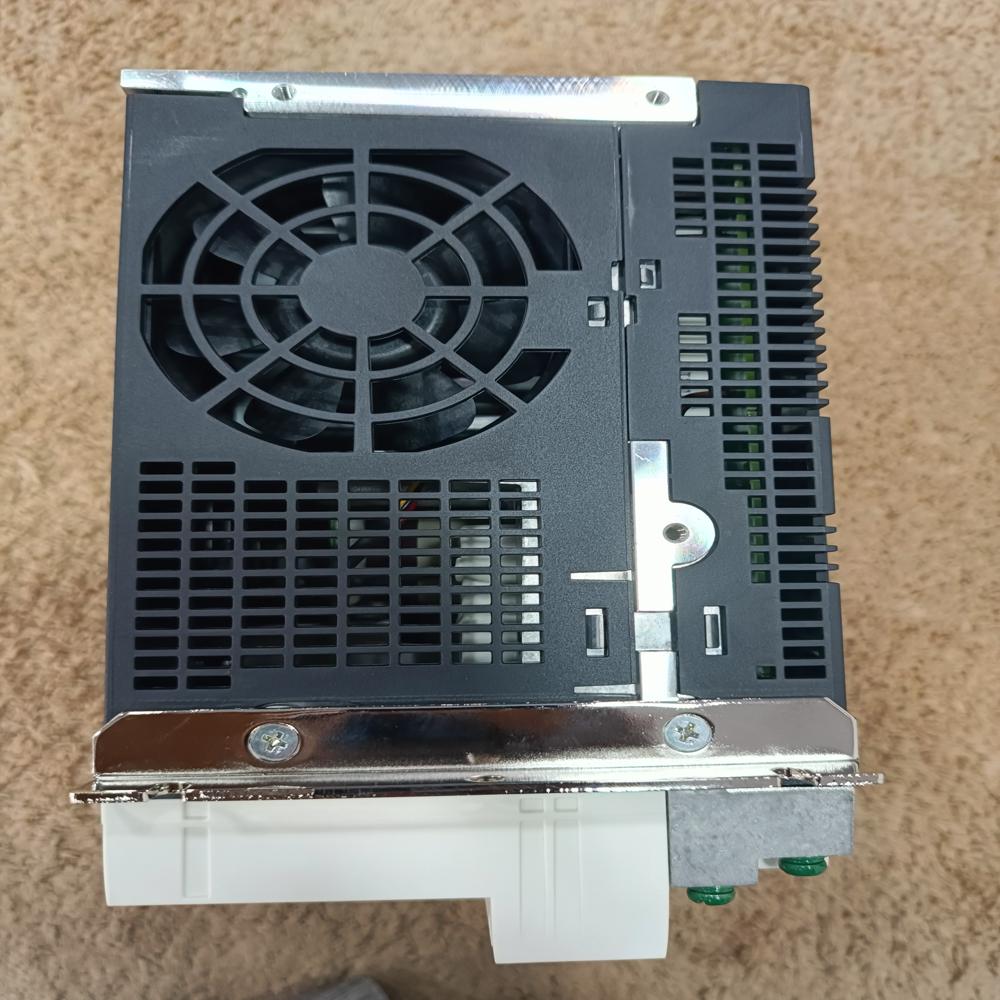

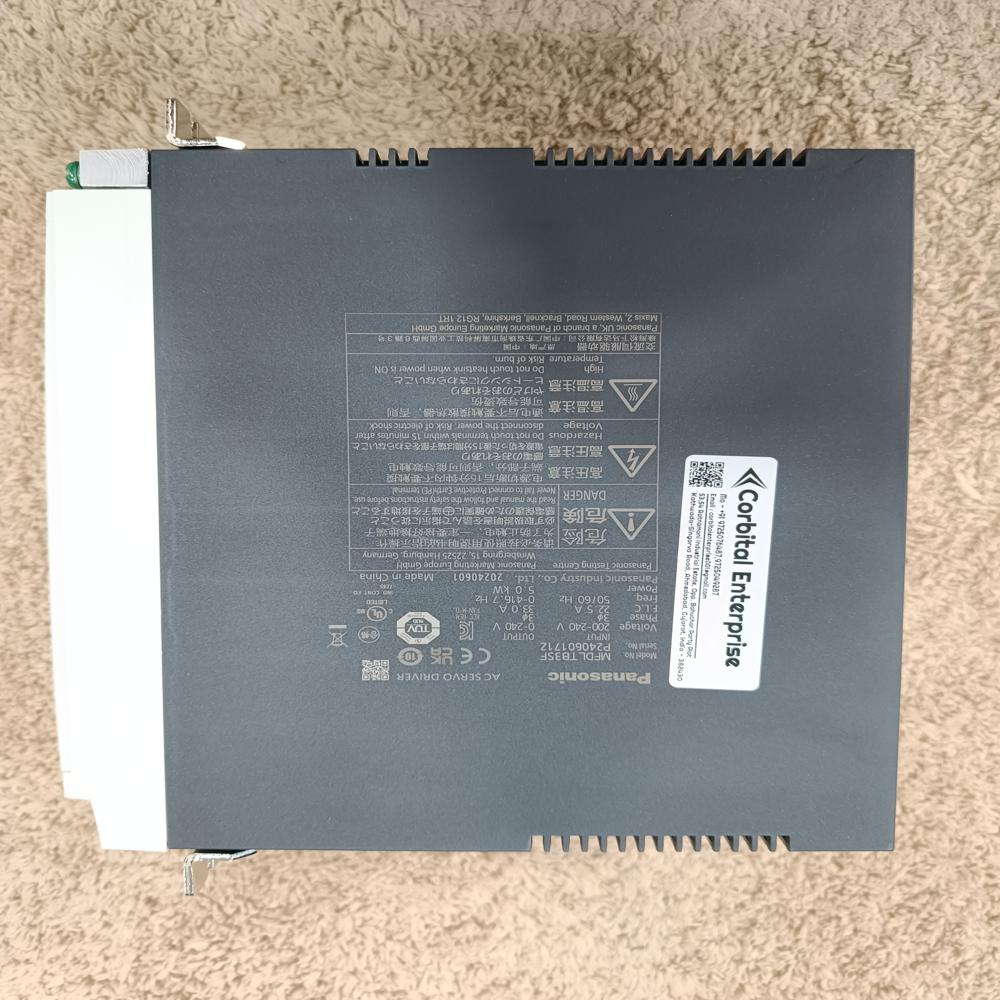

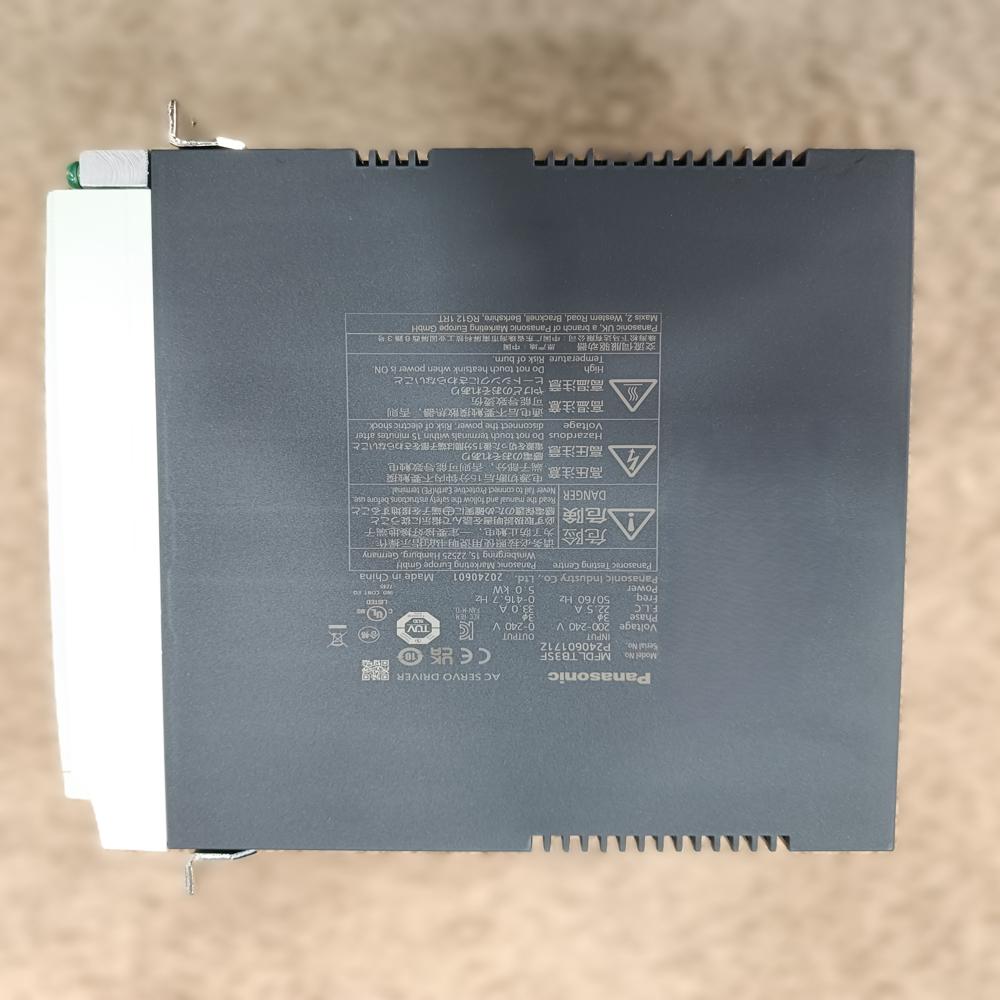

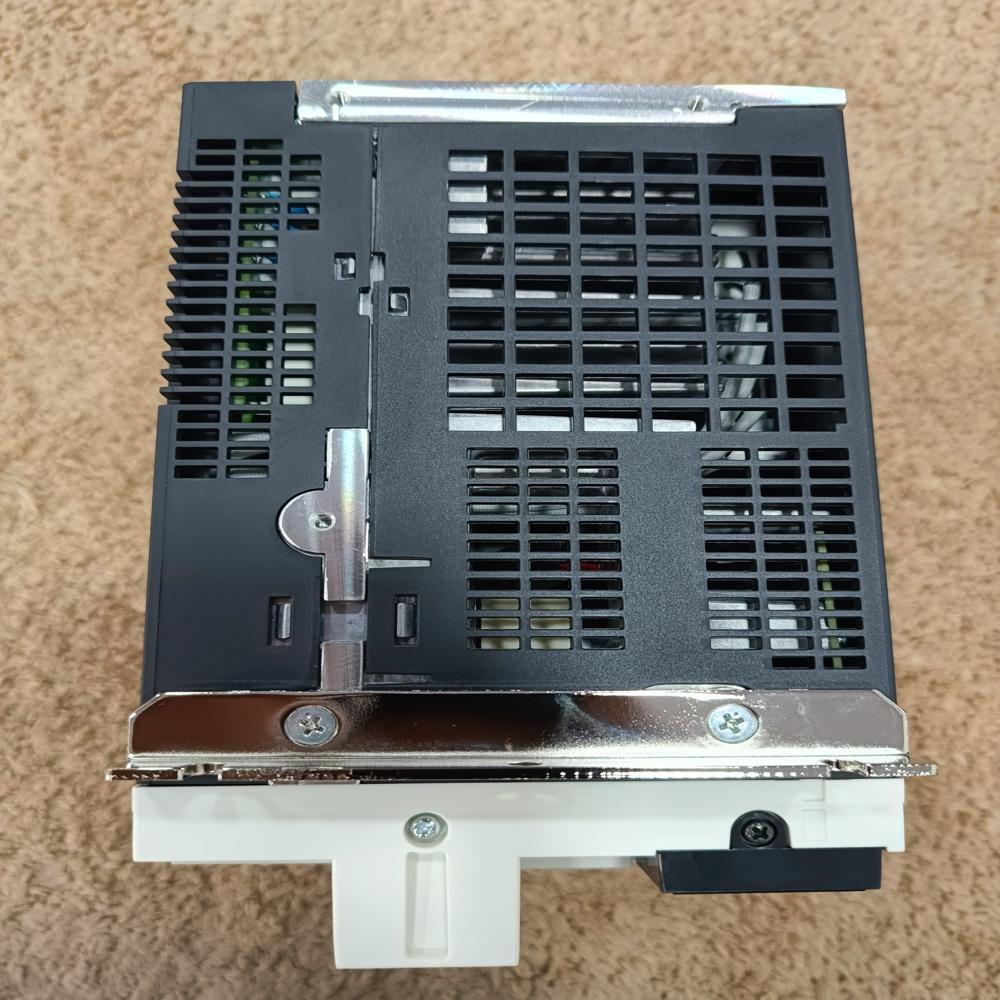

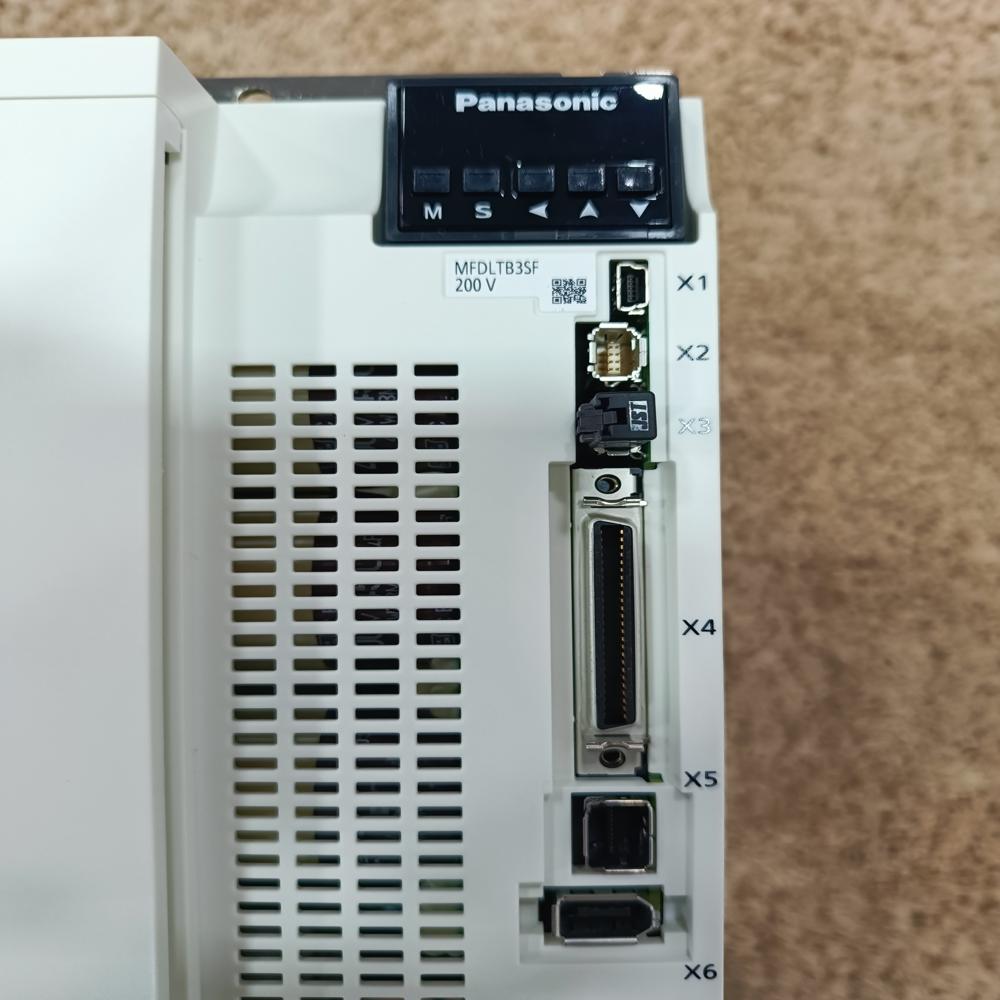

MFDLNB3NE - A6N Panasonic A6 5000W Driver

Price 141000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLNB3NE - A6N Panasonic A6 5000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.12 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MFDLNB3NE - A6N Panasonic A6 5000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLNB3NE - A6N Panasonic A6 5000W Driver

The Panasonic MFDLNB3NE (A6N series) is a 5000W (5.0 kW) "F-Frame" AC servo driver designed for high-speed, multi-axis synchronization using the RTEX (Realtime Express) network protocol.

Function

Synchronised Network Hub: Its primary role is to act as a node in an RTEX network (100 Mbps). It allows for ultra-fast cycle times (down to 0.0625 ms), making it perfect for complex machines where many 5.0 kW axes must move in perfect unison.
Safety Integration (STO): Unlike the basic SE/SG models, the NE series includes a built-in Safety Torque Off (STO) function. This allows the driver to safely cut power to the motor at a hardware level during emergencies while maintaining communication with the PLC.
Full-Feature Control: Supports Position, Velocity, and Torque control modes, providing the versatility needed for high-end CNC, robotics, and industrial printing.
Active Vibration Suppression: Uses a 3.2 kHz response frequency and digital notch filters to cancel out the mechanical "shaking" and humming typical when moving massive 5.0 kW loads. [1, 2]

Technical Specifications

Feature [1, 2]	Specification
Rated Output	5000 W (5.0 kW)
Interface	RTEX (Realtime Express)
Input Voltage	3-Phase 200 V to 240 V AC
Max Current	119 A (Instantaneous)
Safety Function	STO (Safe Torque Off) Standard
Encoder Support	23-bit absolute system (8.38 million pulses/rev)

Physical Dimensions & Weight (Inches & Lbs)

This driver uses the standardized heavy-duty F-Frame chassis:

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm).

Key Difference

The A6N (NE) is the "top-tier" network choice for 5.0 kW systems using Panasonic motion controllers. It offers significantly better synchronization and integrated safety compared to the pulse-driven (SE) or Modbus-driven (SG) model

The Panasonic MFDLNB3NE is a 5000 W (5.0 kW) F-Frame AC servo driver from the MINAS A6N series. It is an ultra-high-speed network driver utilizing the RTEX (Realtime Express) protocol, specifically designed for synchronized multi-axis systems.

Core Performance Specifications

Rated Power Output: 5000 W (5.0 kW)
Input Voltage: 3-Phase 200 V to 240 V AC (+10% -15%)
Maximum Instantaneous Current: 119 A (o-p)
Velocity Response Frequency: 3.2 kHz
Control Method: RTEX Network (Cyclic Synchronous Position, Velocity, and Torque)
Cycle Time: Supports communication cycles as fast as 0.0625 ms

Network & Interface Specs

Protocol: RTEX (Realtime Express) Panasonics proprietary high-speed motion network.
Communication Speed: 100 Mbps (Full duplex)
Safety Function: STO (Safe Torque Off) Integrated hardware safety (SIL3/PLe compatible).
Encoder Feedback: 23-bit (8,388,608 pulses/rev) Absolute/Incremental.
External Scale Interface: Supports A/B phase and serial scale for full-closed loop control.
