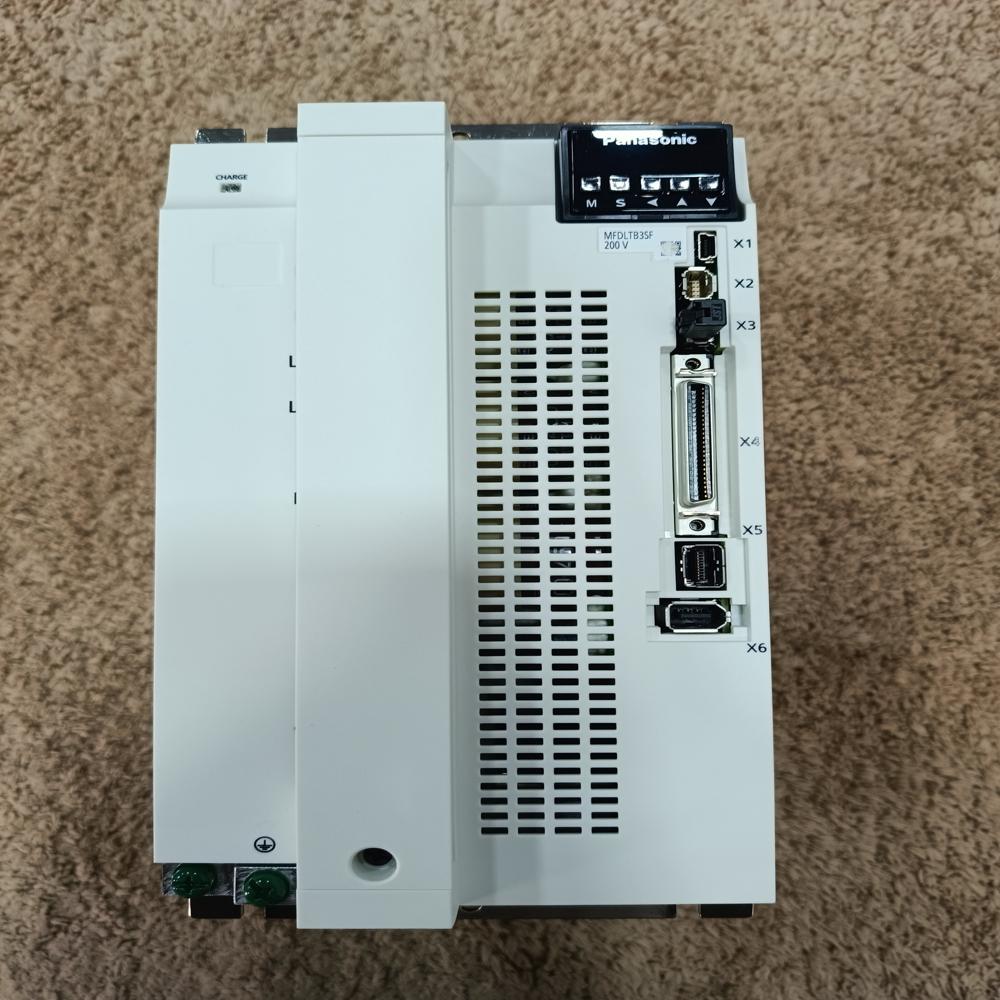

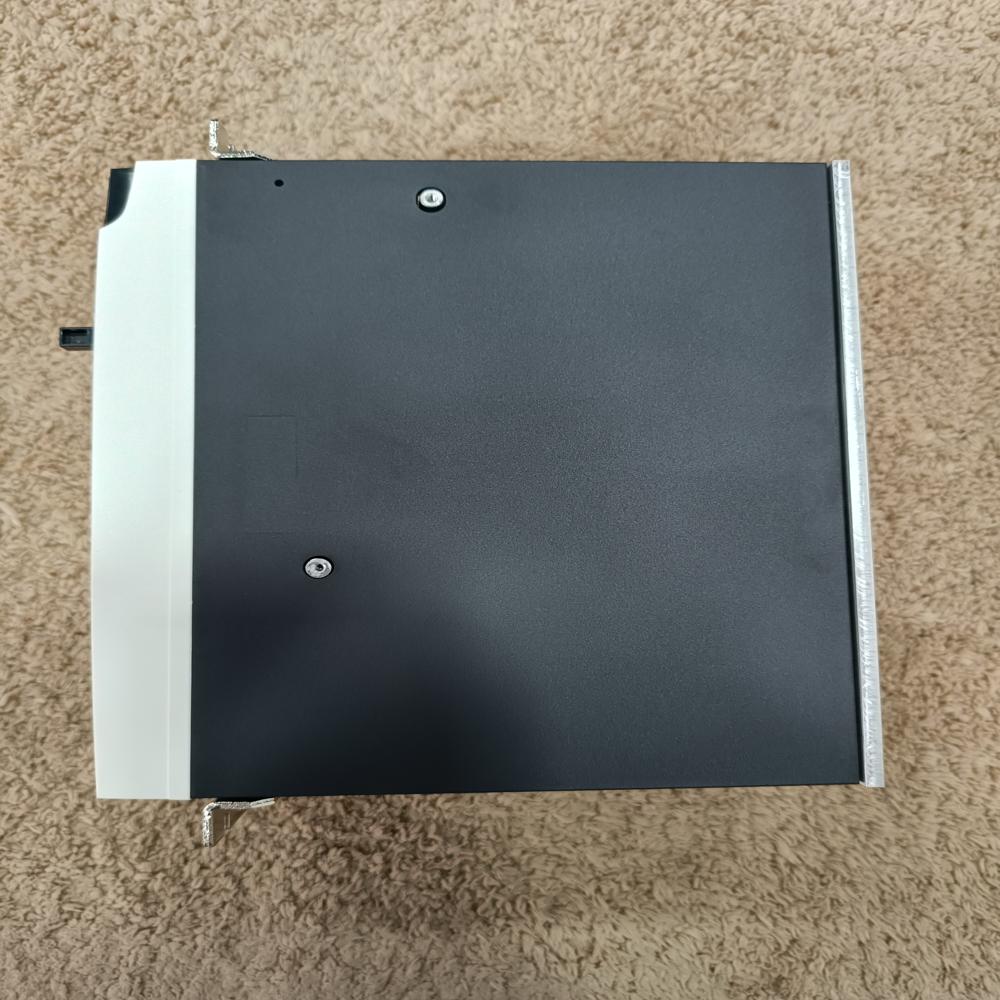

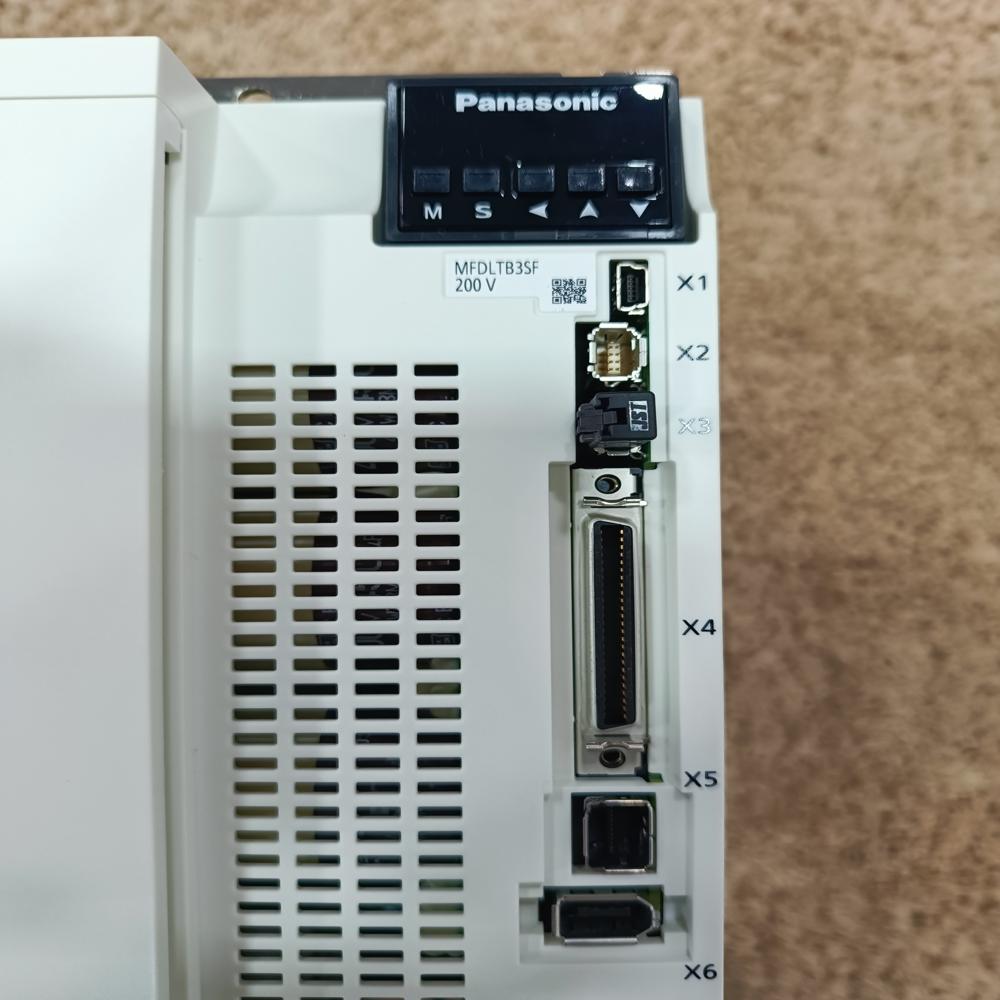

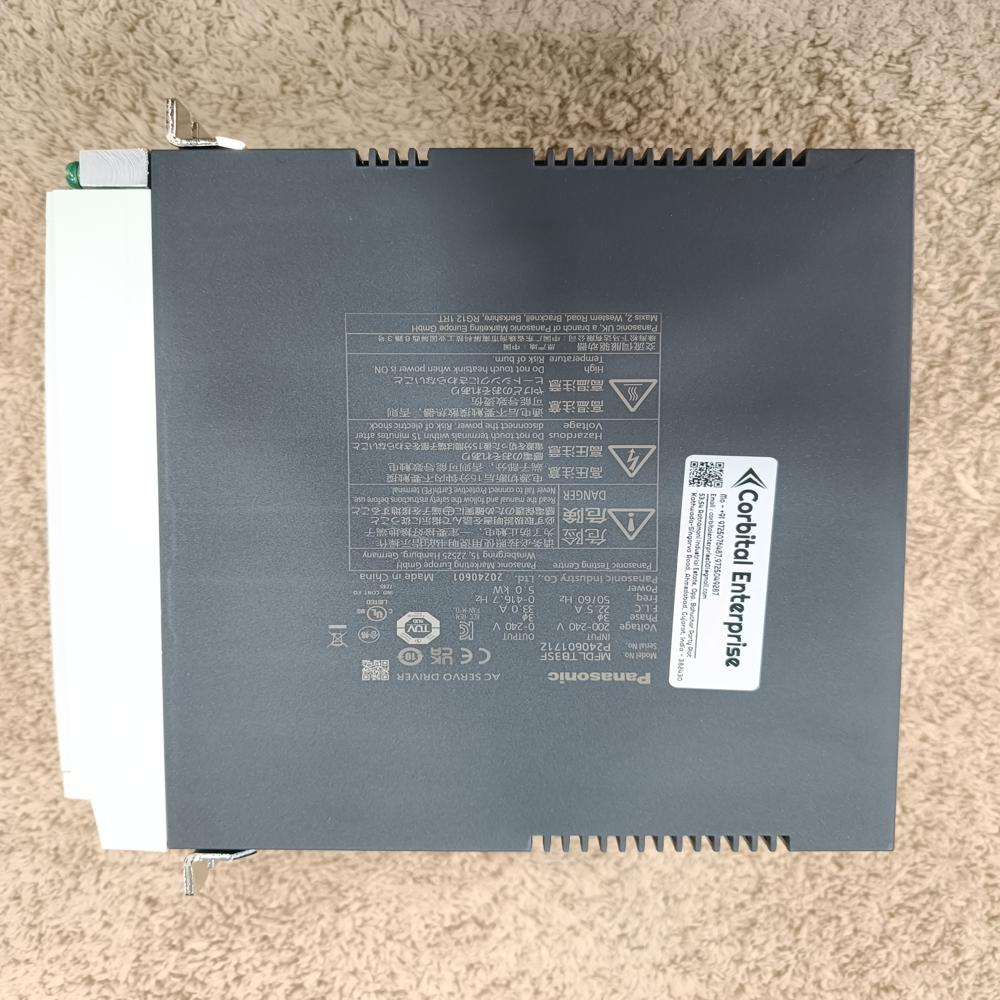

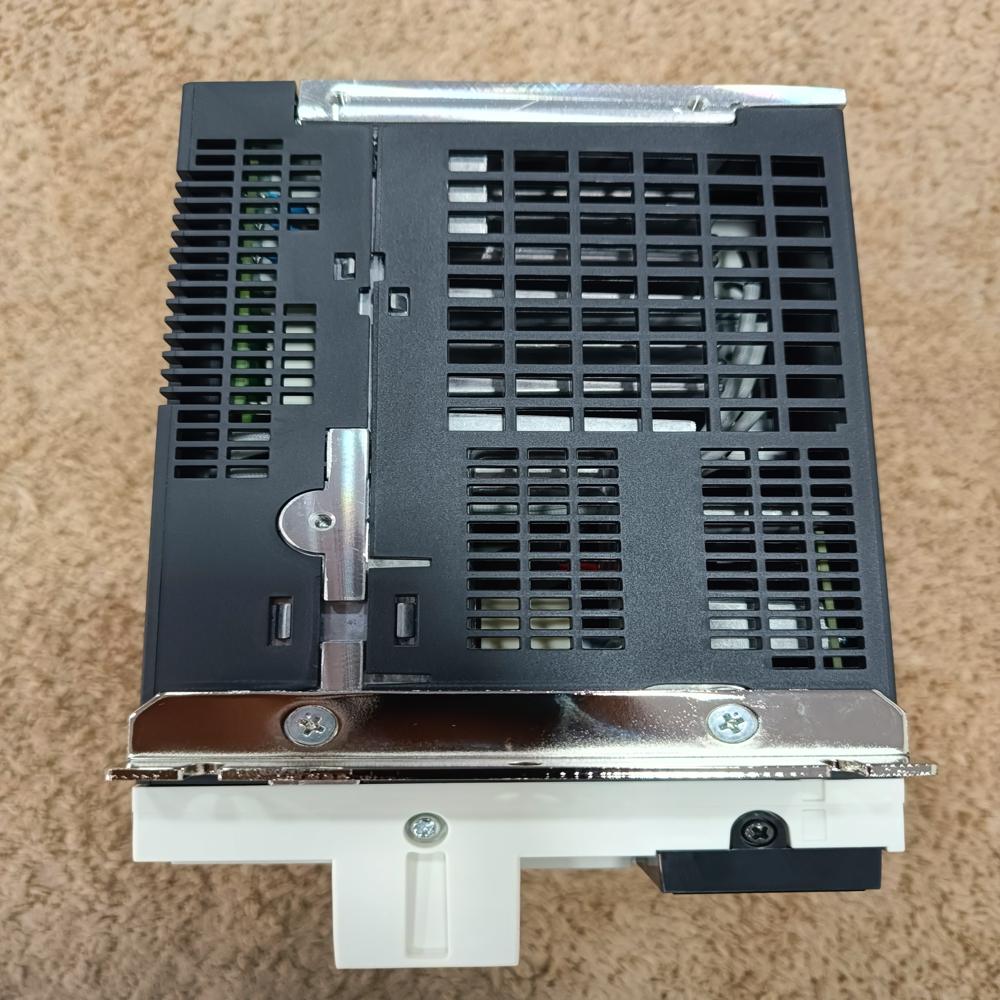

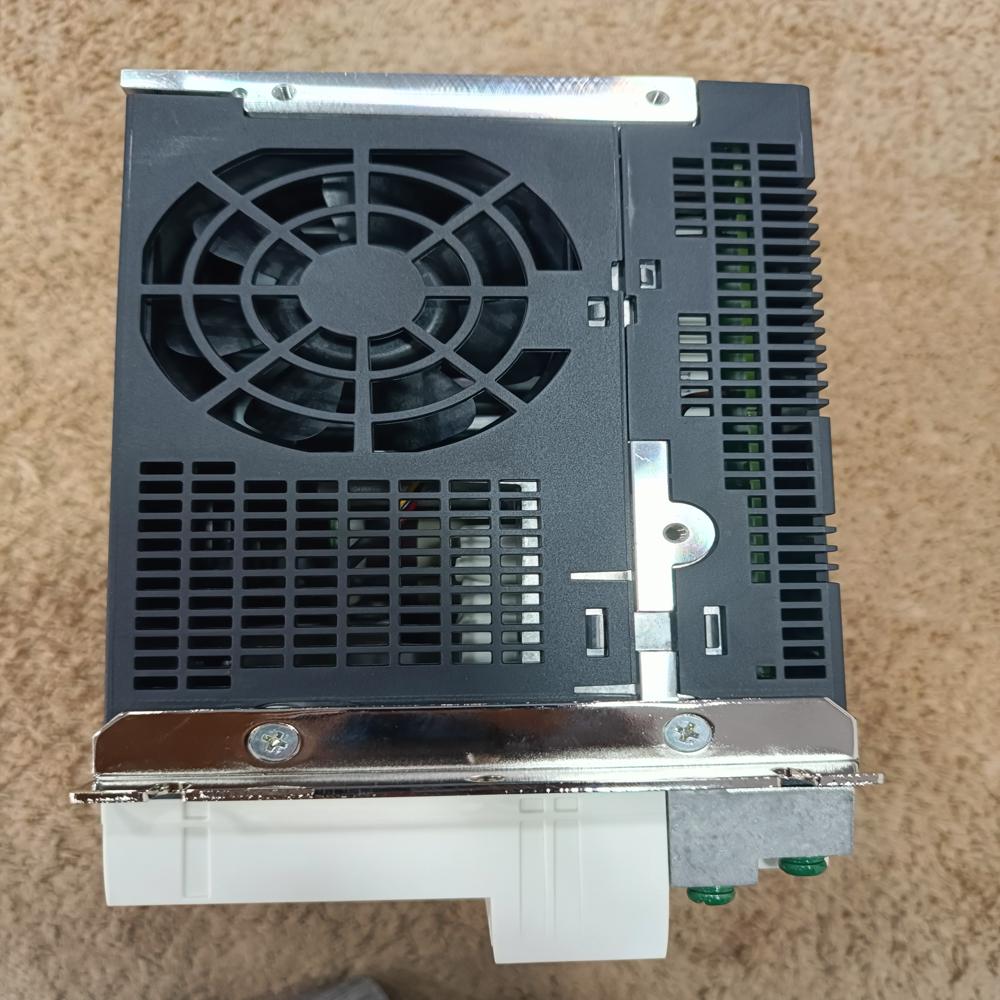

MFDLNB3SG - A6SG Panasonic A6 5000W Driver

Price 112000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLNB3SG - A6SG Panasonic A6 5000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
5.2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MFDLNB3SG - A6SG Panasonic A6 5000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLNB3SG - A6SG Panasonic A6 5000W Driver

The Panasonic MFDLNB3SG (A6SG series) is a 5.0 kW F-Frame AC servo driver designed for Network Communication (RS485/RS232). It is the specialized model for systems where multiple high-power axes must be controlled through a serial interface.

Function

Network Command Hub: Its primary role is to allow control through Modbus-RTU (RS485/RS232). This allows a single PLC or PC to manage up to 31 drivers using a simple daisy-chain cable, drastically reducing wiring complexity.
Internal Positioning (Block Operation): It can store up to 256 position points or speeds in its internal memory. The master controller only needs to send a simple digital trigger to execute a complex move.
Dynamic Load Balancing: It uses 3.2 kHz response frequency to instantly adjust to the high-mass loads typically moved by 5kW motors, ensuring the machine doesn't shake or vibrate during rapid moves.
Vibration Suppression: Equipped with advanced notch filters that automatically detect and "cancel out" the resonance frequency of your machine frame, allowing for faster and quieter operation.

Technical Specifications

Feature	Specification
Series	MINAS A6SG (Communication Type)
Rated Output	5000 W (5.0 kW)
Input Voltage	3-Phase 200 V to 240 V AC
Control Method	Position Control (Network/Pulse) / Internal Velocity
Interface	RS485, RS232, Modbus-RTU, USB, Pulse/Analog
Encoder Support	23-bit absolute system (8.38 million pulses/rev)
Safety Function	None (Standard SG models do not include STO)

Physical Dimensions & Weight (Inches & Lbs)

Converted from the standard heavy-duty F-Frame chassis:

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm).

Key Difference

Unlike the "Multifunction" (SF) model, the A6SG focuses on digital network communication. It is ideal for cost-effective multi-axis lines where Safety Torque Off (STO) is handled by external contactors rather than the driver itself.

Function

The primary function of the Panasonic MFDLNB3SG is to serve as a networked positioning hub for 5.0 kW motors. It is designed for multi-axis systems where high-power motors need to be coordinated via digital serial commands rather than traditional individual wiring.

1. Multi-Axis Network Control (Modbus)

The "SG" series is specifically built for RS485/RS232 (Modbus-RTU) communication.

Centralised Management: It allows a single PLC or industrial PC to control up to 31 drivers on a single network loop.
Wiring Efficiency: Instead of hundreds of individual pulse wires, you use a single shielded communication cable. This simplifies the control cabinet and significantly reduces electrical noise issues common in 5kW systems.

2. Intelligent Indexing (Block Operation)

The driver functions as an independent "smart" controller:

Stored Profiles: You can store up to 256 pre-programmed moves (position, speed, and acceleration) directly in the drivers internal memory.
Simple Execution: The master PLC only needs to send a small digital packet (e.g., "Run Move #10"). The driver handles the entire motion profile itself, freeing up the PLC's processing power.

3. High-Power Stabilization (3.2 kHz Response)

Moving the massive mechanical loads associated with 5.0 kW motors requires intense control. The driver functions as an "active electronic shock absorber":

Micro-Adjustments: It monitors the motor 3,200 times per second. If a heavy load tries to vibrate or "overshoot," the driver instantly corrects the current to stop the motion dead on the target.
Auto-Tuning: It automatically measures the machine's weight and adjusts its internal "stiffness" (gain) so the machine moves smoothly even if the load changes.

4. Resonance Suppression (Notch Filters)

At 5.0 kW, mechanical resonance (high-pitched humming or shaking) can damage machine bearings.

Digital Filtering: The driver automatically identifies the frequency that makes your machine frame shake and electronically "filters" it out. This allows the machine to run at maximum speed without the risk of mechanical fatigue.

5. High-Resolution Feedback Hub

It serves as the translator for the motor's 23-bit encoder. It converts the 8.38 million pulses per turn from the motor into digital data packets, giving the main controller perfect transparency of where the machine is at all times.
