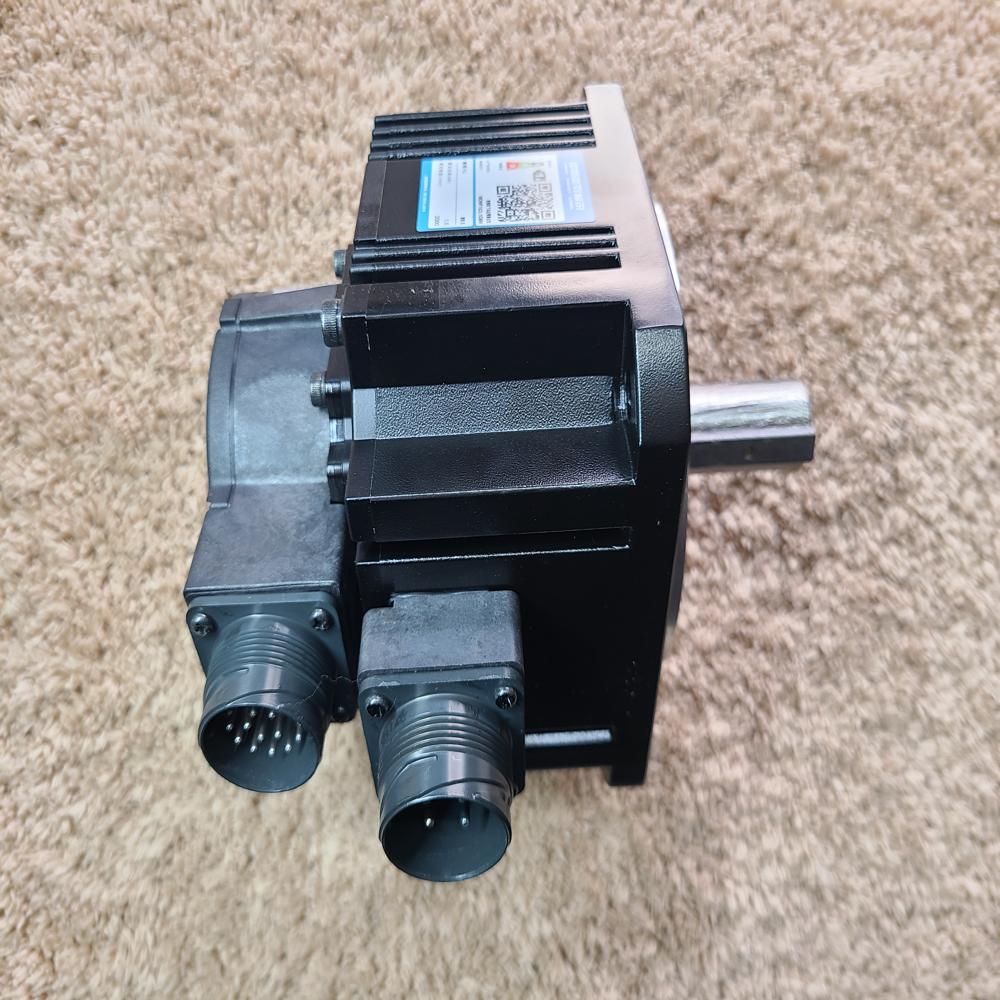

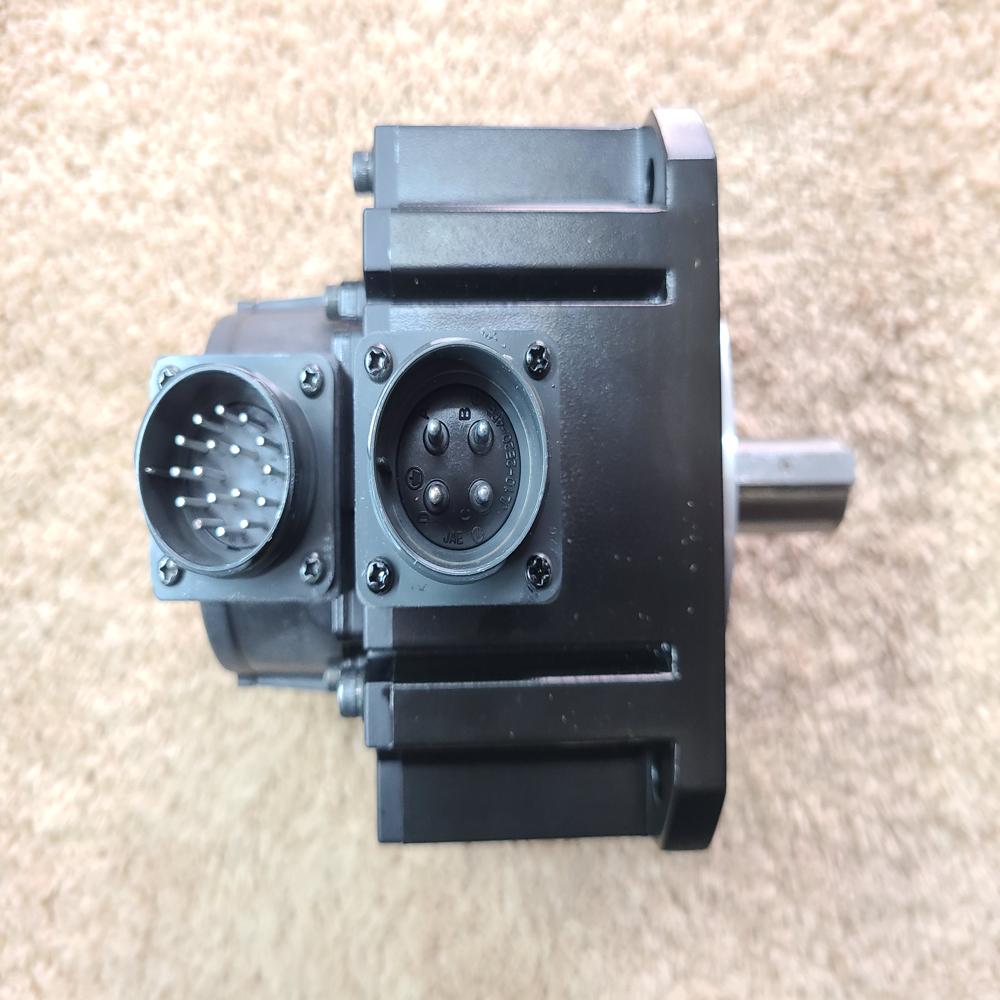

About MHMF092L1U2M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000

Function (What it does)

The MHMF092L1U2M (A6 series motor) is the mechanical output unit of the servo system:

Core Functions

• Converts electrical energy precise rotational motion
• Works with servo drive (A6SE / SG / SF / NE / EtherCAT)
• Provides:
  • Accurate position control
  • Constant speed rotation
  • Controlled torque output
• Uses 23-bit encoder feedback for ultra-precision control

Simple meaning:
Drive gives command motor rotates exactly as required

Key Specifications

• Power: 1000 W (1 kW)
• Rated Torque: 3.18 Nm
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Peak Torque: 11.1 Nm
• Encoder: 23-bit absolute (high precision)
• Frame Size: 80 mm flange
• Protection: IP65 (dust & oil resistant)
• Type: High inertia motor
•


• ---

  Dimensions (in inches)

  Exact drawing varies slightly, but standard for this model:

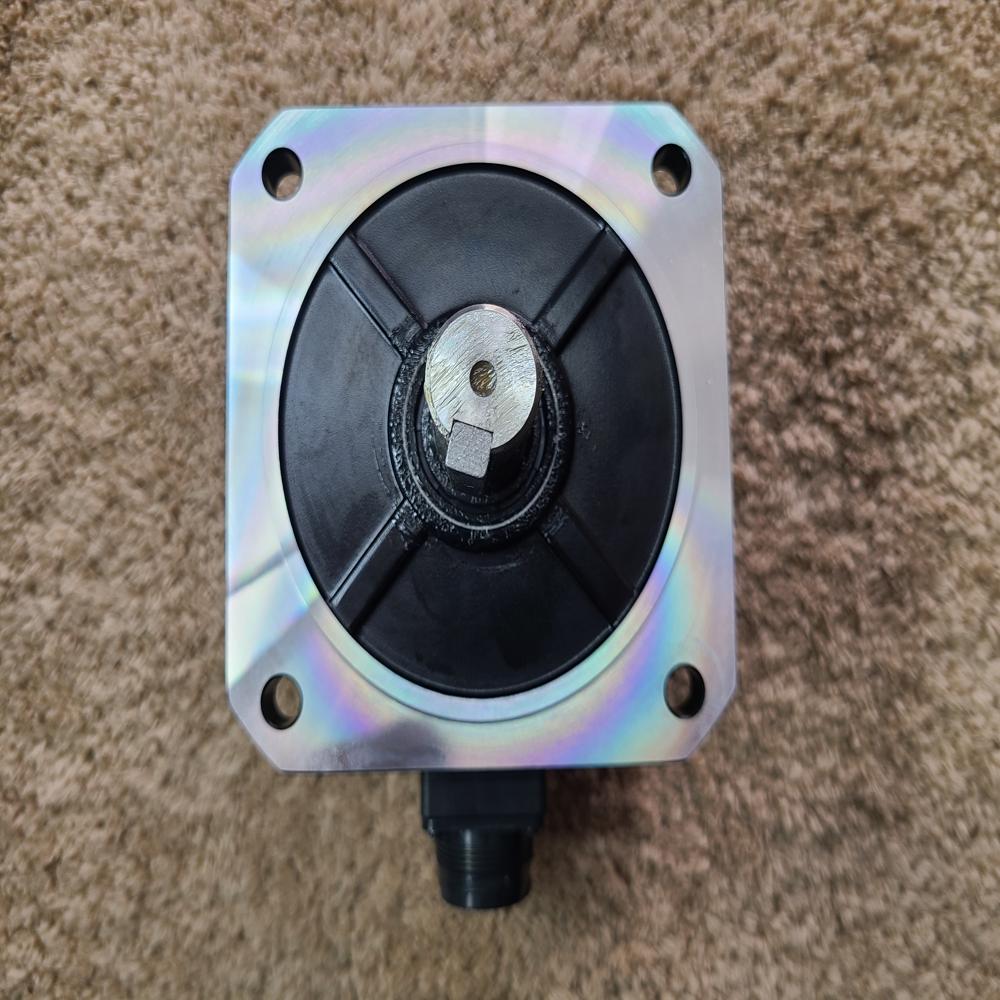

  • Flange (Width & Height):
    80 mm 80 mm 3.15 3.15 inches
  • Length (Motor body):
    130150 mm 5.1 5.9 inches (typical for 1 kW A6 motor)




• Weight

  • 2.8 kg approx. 6.17 lbs




• Quick Summary Table

  Parameter	Value
  Type	High inertia servo motor
  Power	1 kW
  Torque	3.18 Nm
  Speed	3000 RPM
  Max Speed	6000 RPM
  Width	3.15 inch
  Height	3.15 inch
  Length	~5.1 5.9 inch
  Weight	~6.17 lbs

  ---
