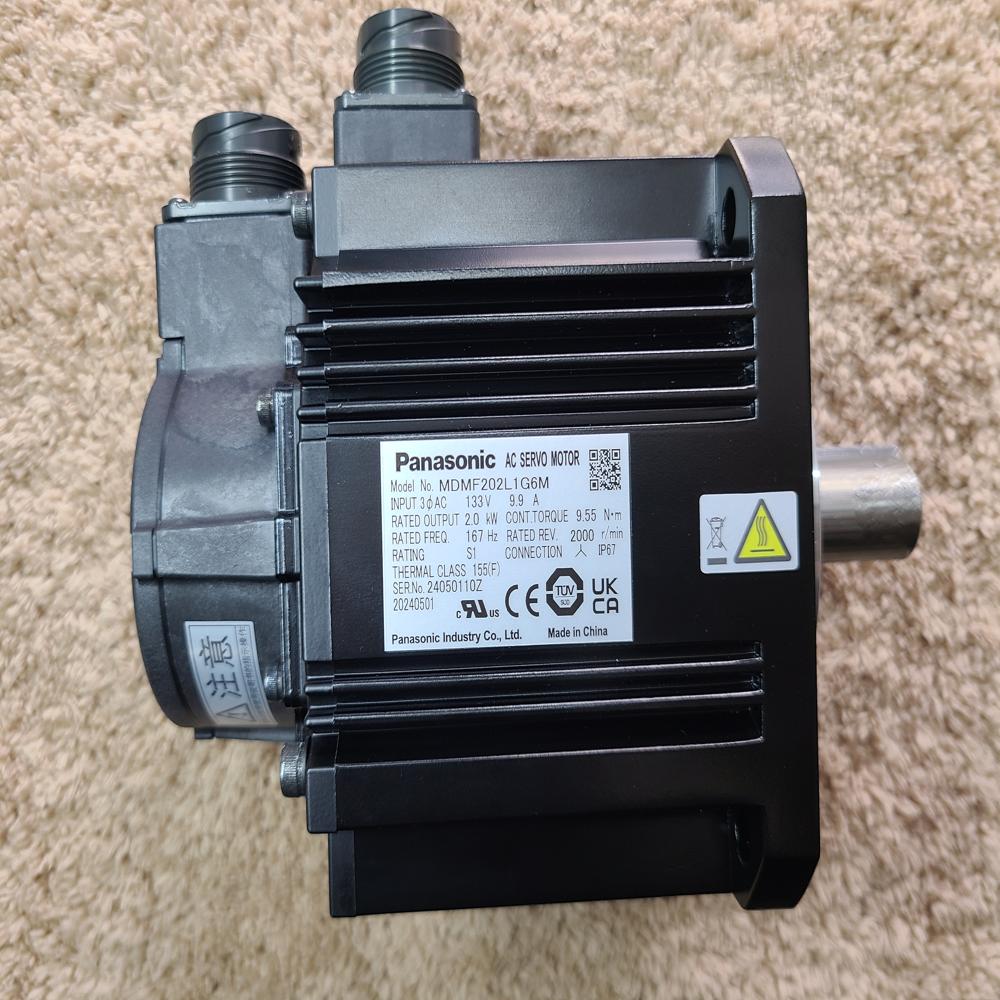

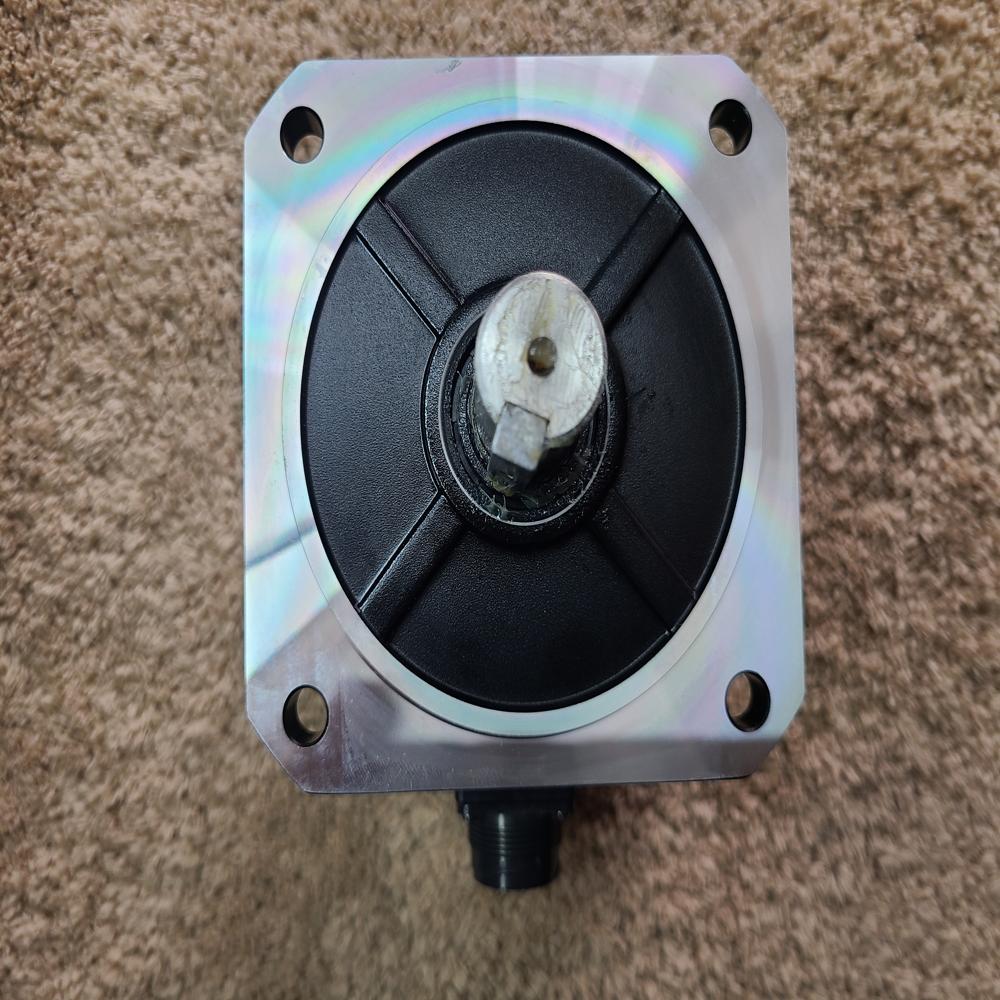

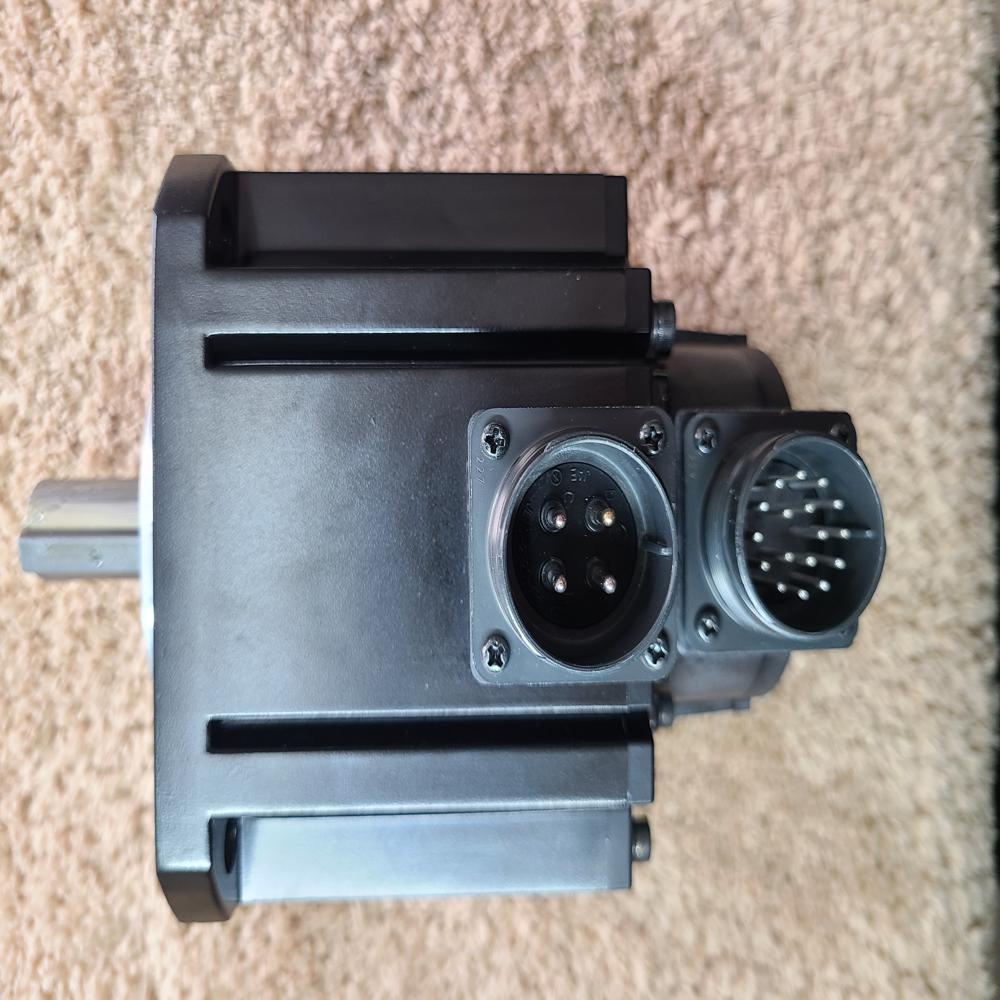

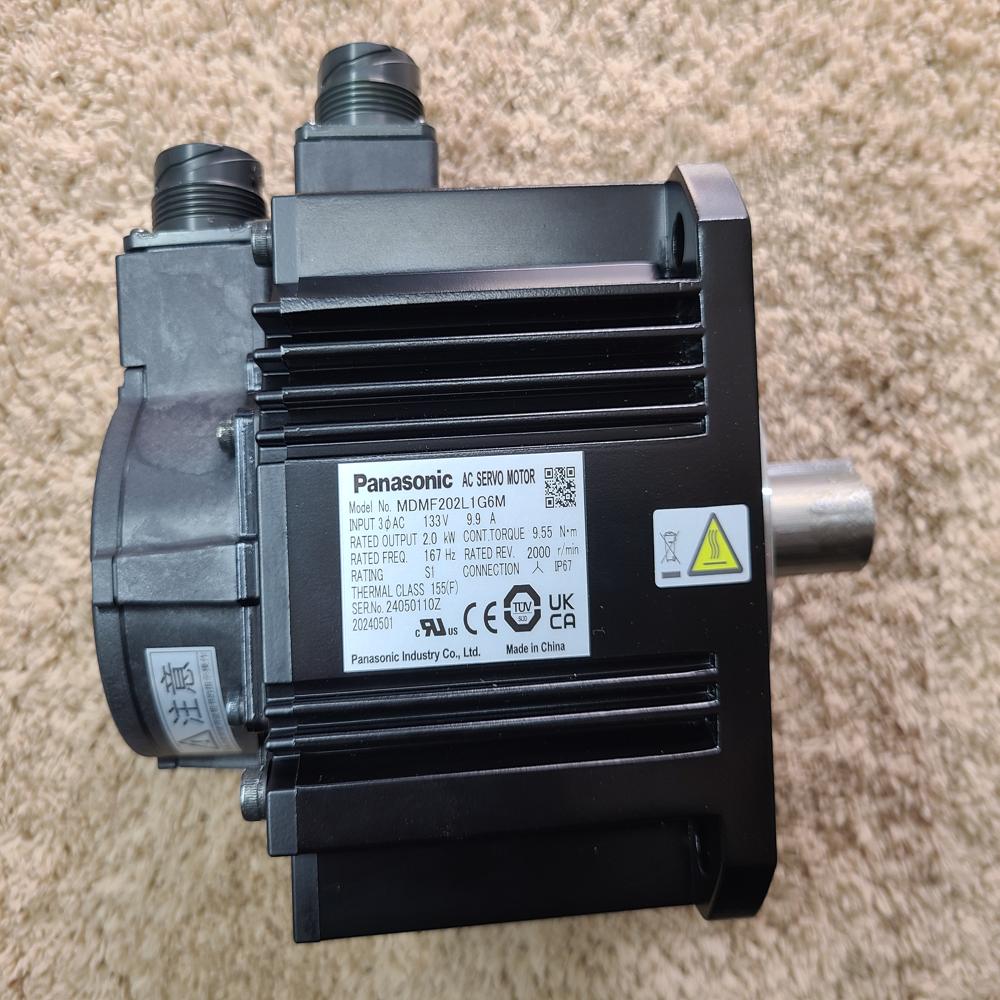

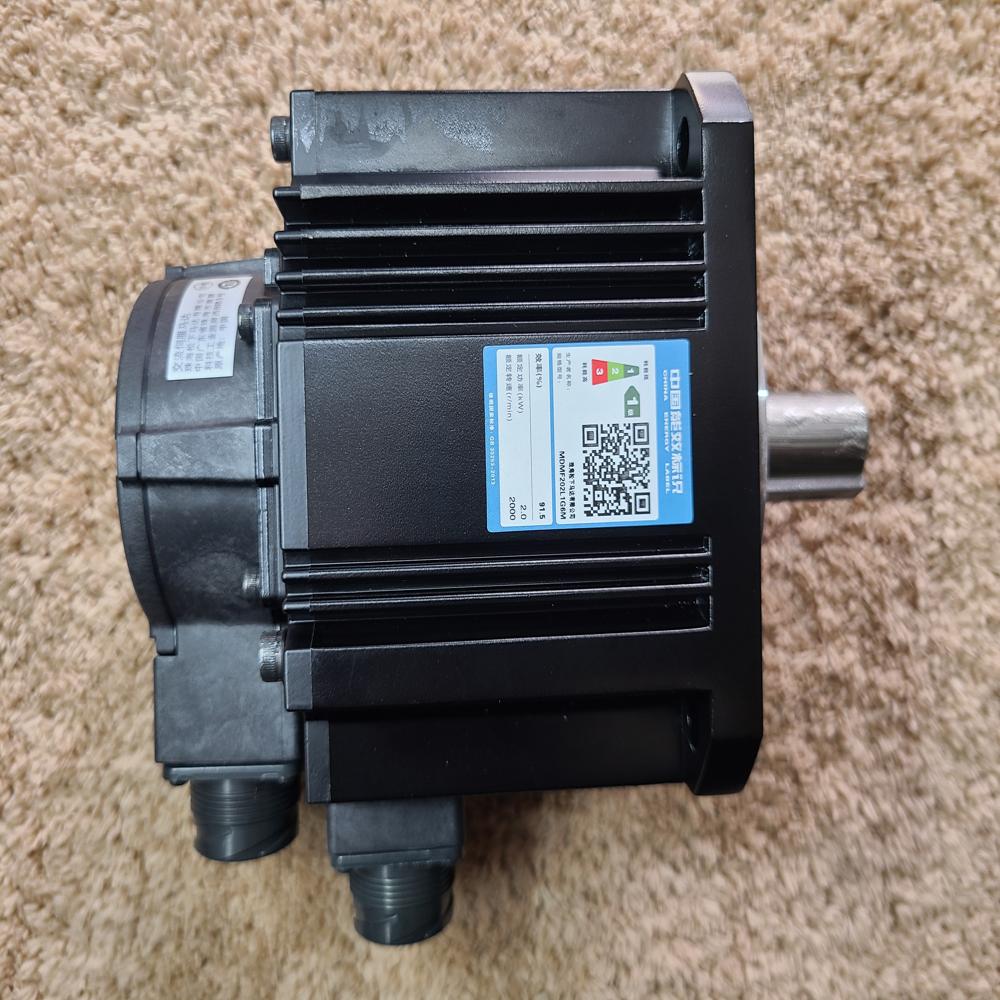

MHMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 9.55, RPM - 2000

Name: MHMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 9.55, RPM - 2000
Brand: Corbital Enterprise
Price: 99000.0 INR
Availability: InStock

Price 99000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MHMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 9.55, RPM - 2000 Specification

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
13.7 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MHMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 9.55, RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 9.55, RPM - 2000

The Panasonic MHMF202L1H6M is the 2.0 kW High-Inertia AC servo motor equipped with an integrated holding brake. It is the largest and most stable motor in the 2000W A6 category, designed for massive loads and vertical safety.

Function

Vertical Load Safety (Brake): The "H" model features a built-in electromagnetic brake. Its primary function is to lock the shaft when power is cut, preventing heavy vertical axes or robotic arms from falling due to gravity.
Maximum Load Stability: As a High-Inertia motor, it has a heavy internal rotor. This provides the best "inertia matching" for very large mechanical loads, eliminating the vibration and "shaking" that occurs with lighter motors.
Heavy-Duty Precision: It combines a massive 9.55 Nm of torque with 23-bit encoder precision (8.38 million pulses/rev) for surgical accuracy on heavy machinery.

Technical Specifications

Based on official Panasonic Industry data:

Feature	Specification
Rated Output	2000 W (2.0 kW)
Rated Torque	9.55 Nm (Peak: 28.6 Nm)
Rated / Max Speed	2000 RPM / 3000 RPM
Brake Torque	13.7 Nm or more (Static friction)
Brake Voltage	24 V DC (Power-off engaged)
IP Rating	IP67 (Dust-tight and waterproof)

Physical Dimensions & Weight (Inches & Lbs)

Because this motor combines a high-inertia rotor, a 2kW stator, and a brake assembly, it is significantly larger than the MSMF or MDMF models.

Weight: Approximately 30.20 lbs (13.7 kg).
Width & Height (Flange): 6.93 inches (176 mm square).
Length (Total Body): Approximately 8.82 inches (224 mm).
Shaft Diameter: 0.866 inches (22 mm).

Compatible Drivers

This motor requires the 2.0 kW "E-Frame" drivers:

Multifunction: MEDLT83SF
Basic / Position: MEDLN83SE

The primary function of the Panasonic MHMF202L1H6M is to provide maximum mechanical stability and fail-safe positioning for the heaviest vertical loads in the 2kW class.

1. Fail-Safe Vertical Security (Holding Brake)

The "H" designation identifies the integrated electromagnetic brake.

Gravity Lock: Its critical function is to prevent heavy machine axes (like a 50kg robotic head or a vertical CNC pillar) from crashing down when power is lost or the Emergency Stop is pressed.
Static Holding: It provides 13.7 Nm of holding torquenearly 1.5x the motor's running torqueensuring the load remains "frozen" in place indefinitely without consuming motor power.

2. Maximum Vibration Dampening (High-Inertia)

The "MHMF" series features the heaviest internal rotor in the 2000W lineup.

Inertia Matching: In physics, moving a massive object with a tiny motor causes shaking. This motor's high-inertia rotor acts as a mechanical stabilizer, allowing it to control massive loads (like large gantry systems) with zero vibration.
Smooth Motion: It is the primary choice for heavy-duty applications where "smoothness" and "steady force" are more important than raw acceleration.

3. High-Torque Sustained Power

While high-speed motors (MSMF) are built for agility, this motor is built for sustained force.

Steady Push: It maintains a constant 9.55 Nm of torque even at its rated 2000 RPM, making it ideal for driving large-diameter ball screws or heavy material-handling conveyors.
Peak Capability: It can surge to 28.6 Nm of torque to overcome the initial friction of moving a stationary heavy load.

4. Precision Feedback in Harsh Conditions

Surgical Accuracy: Despite the brute force, the 23-bit encoder allows the motor to know its position within 8,388,608 increments per turn, enabling micron-level precision on massive machines.
IP67 Environmental Shield: It is functionally sealed against dust and high-pressure water/oil spray, allowing it to live on the "front lines" of heavy manufacturing floors.
