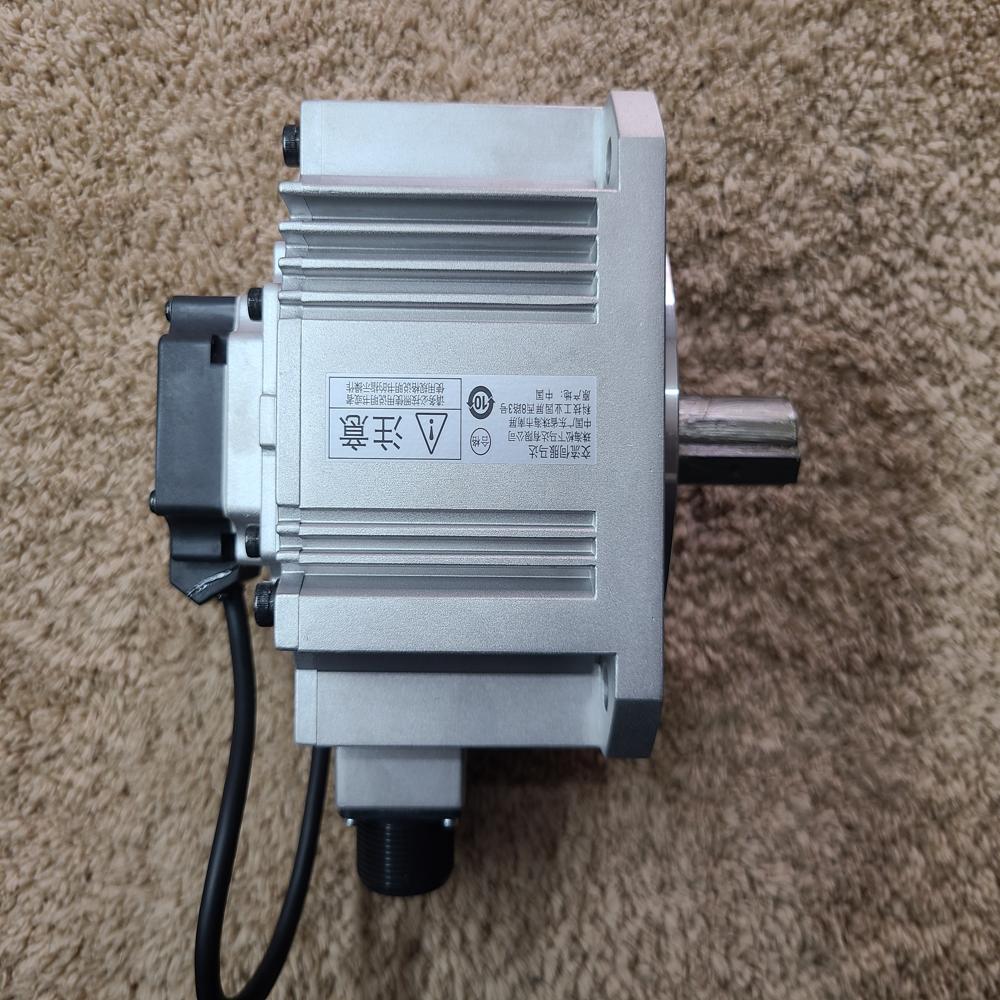

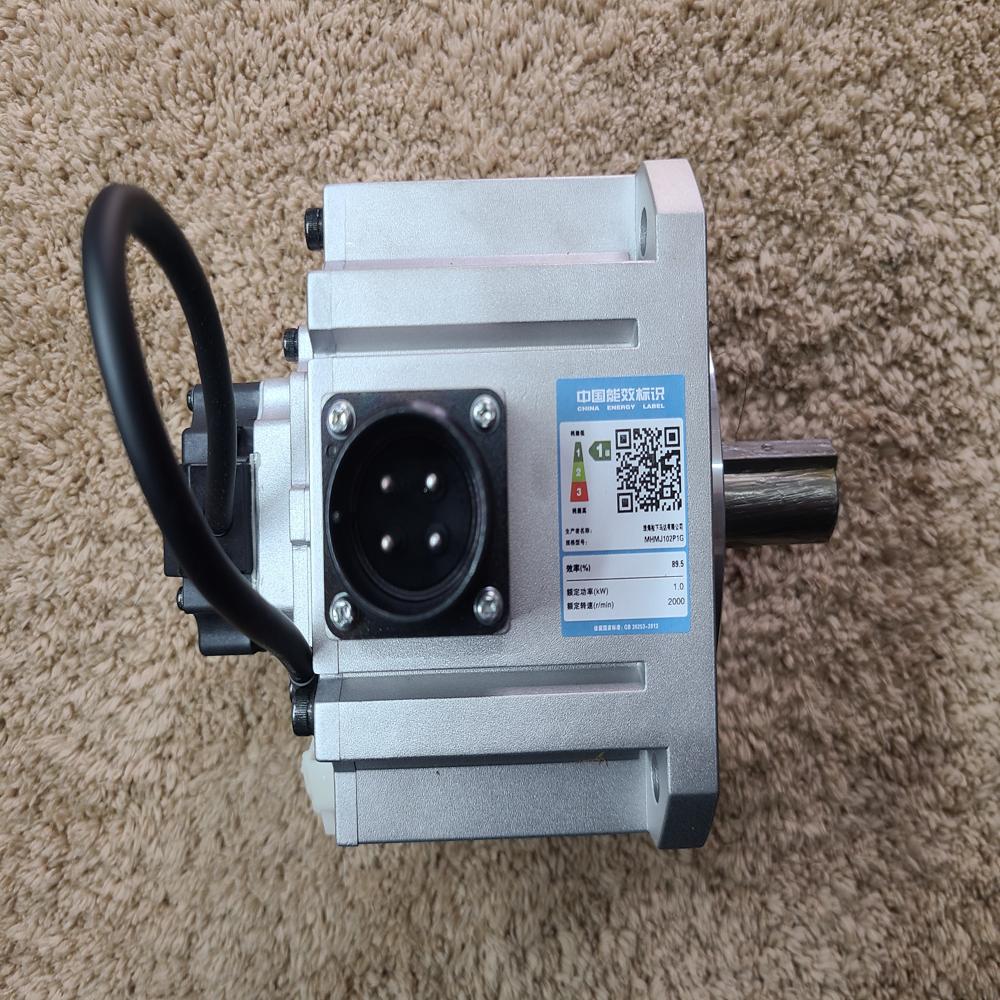

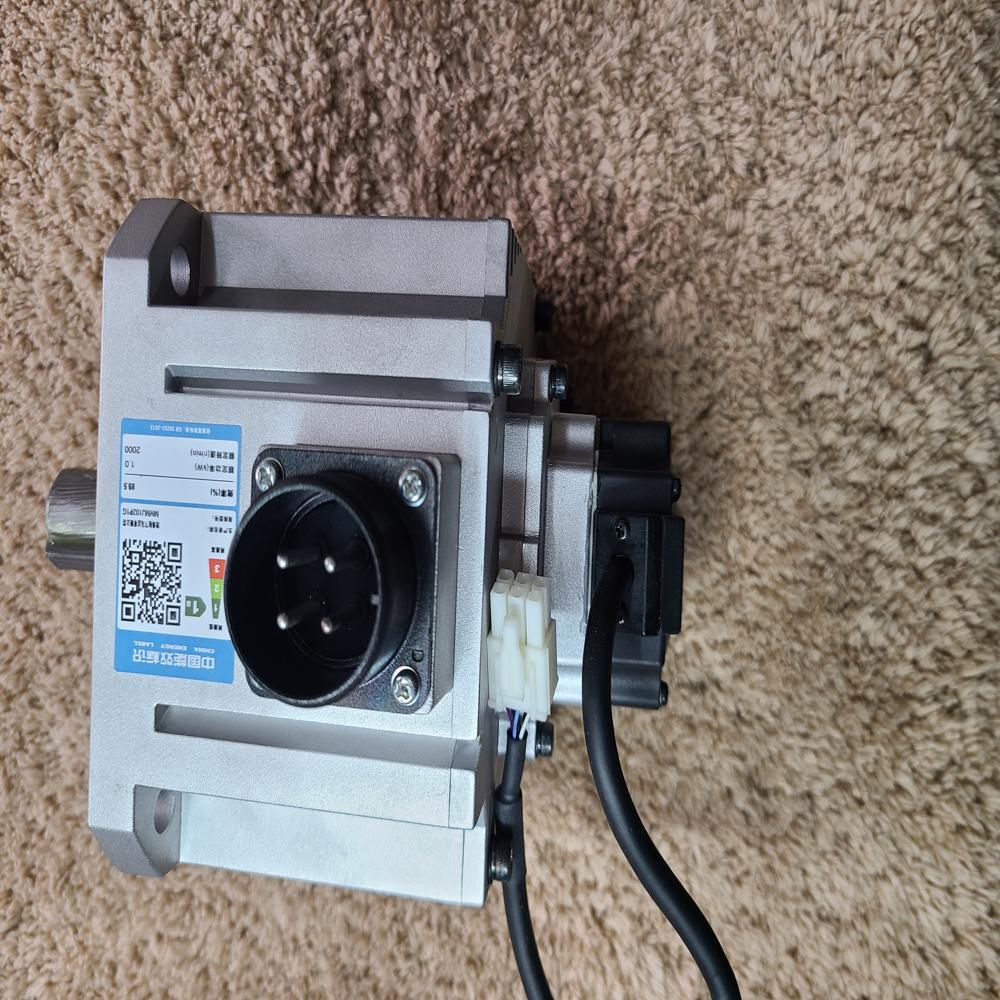

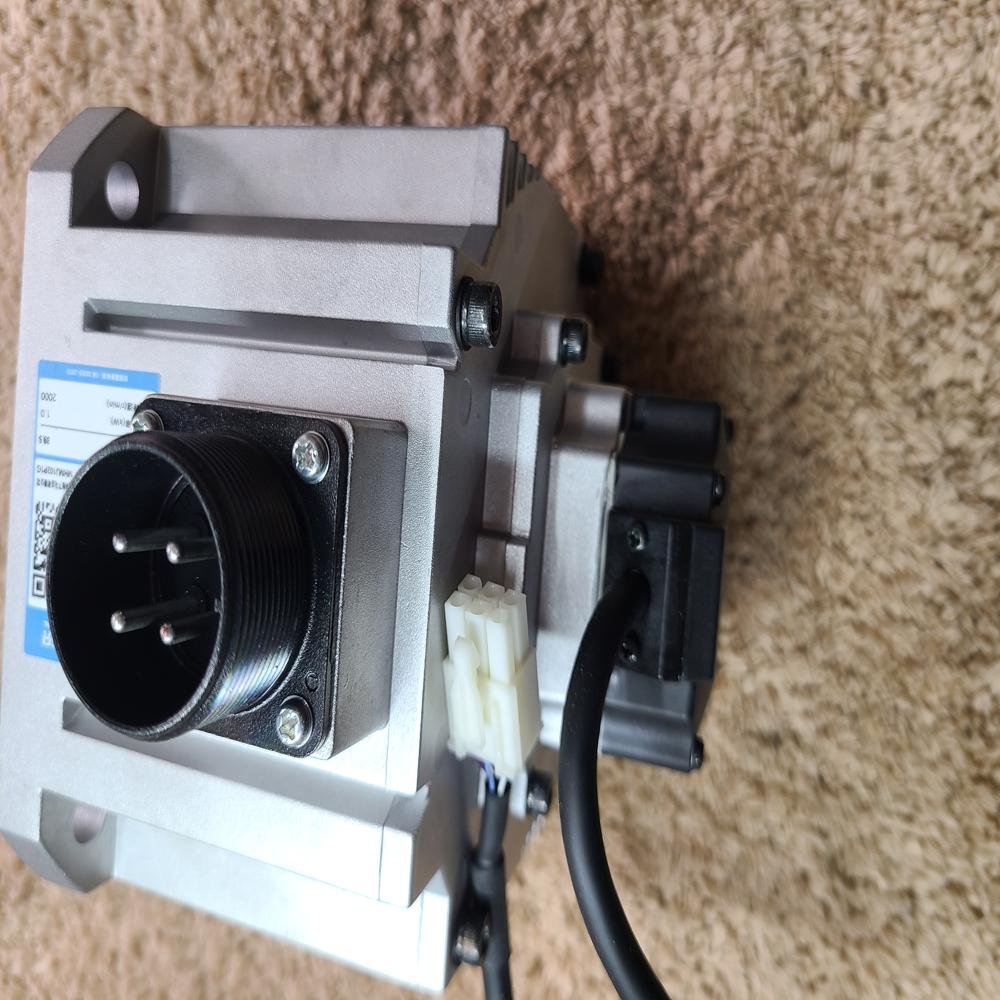

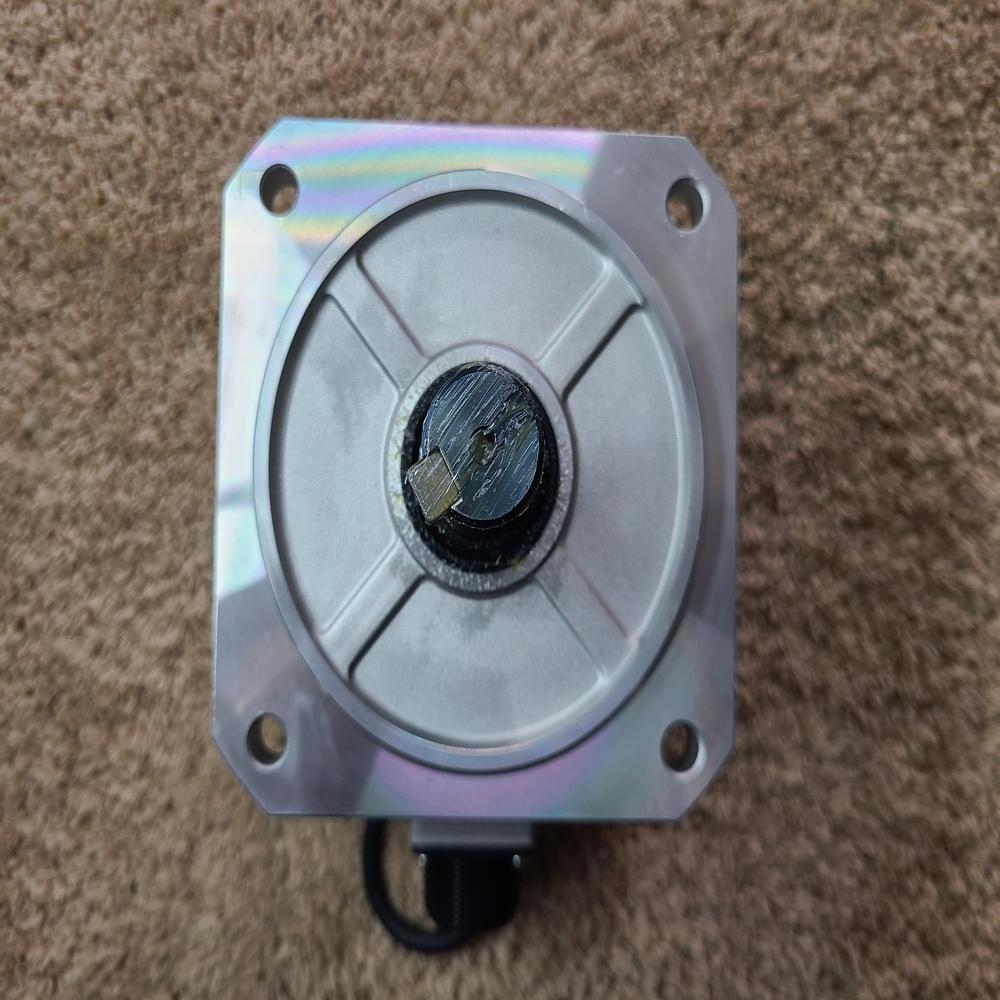

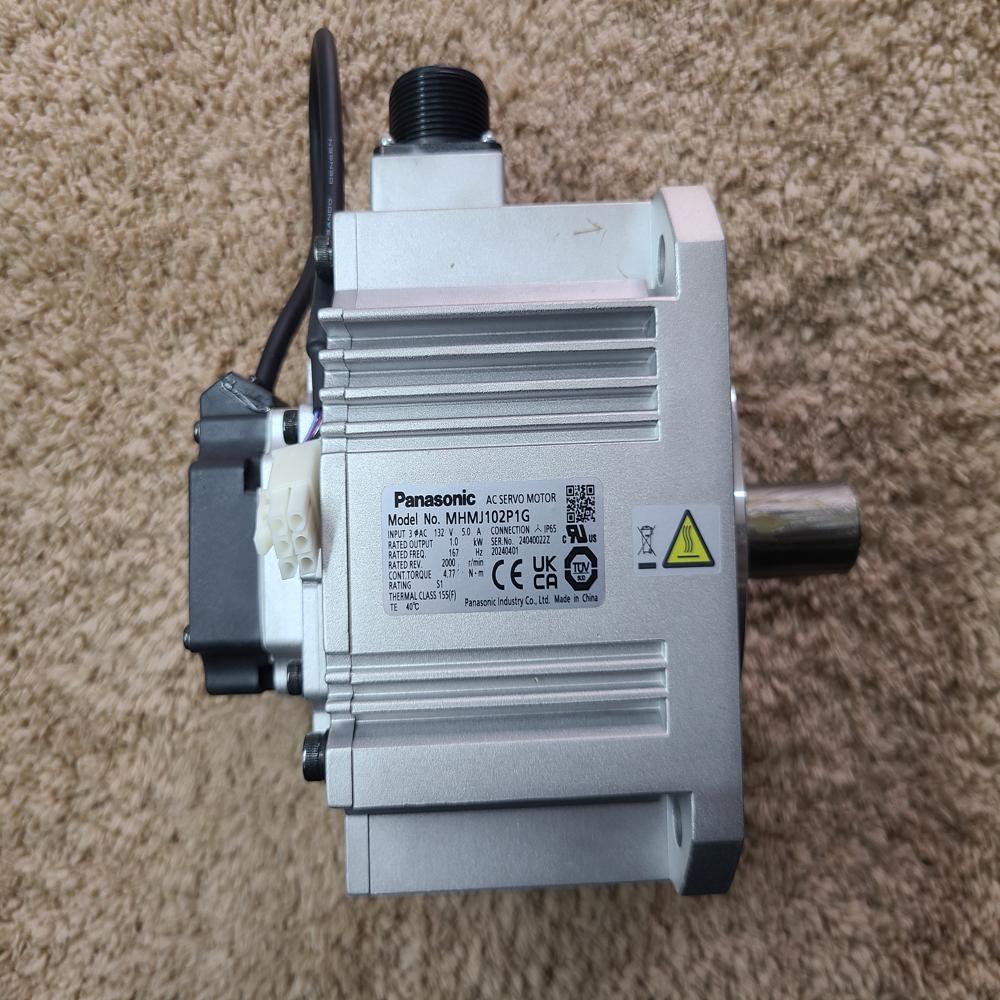

MHMJ102P1G Panasonic Liqi 1KW Motor

Price 32560.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MHMJ102P1G Panasonic Liqi 1KW Motor Specification

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
6.9 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MHMJ102P1G Panasonic Liqi 1KW Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHMJ102P1G Panasonic Liqi 1KW Motor

The

Panasonic MHMJ102P1G

is a 1 kW (1000 W) AC servo motor from the MINAS LIQI series. Unlike the high-performance A5 series previously discussed, the LIQI series is designed as a simple and cost-effective entry-level solution for basic positioning applications.

Core Functions

This motor is optimized for reliability and straightforward automation tasks:

Cost-Effective Positioning: Designed for machines requiring a technological upgrade over stepper motors or standard induction motors.
High Inertia Handling: Its high-inertia design allows for stable control of loads with high mass, making it ideal for packaging and printing machines.
Simple Integration: It uses a pulse train interface (up to 500 kpps) for position control, making it easy to pair with PLCs like the Panasonic FP series.

Technical Specifications

Feature	Specification
Rated Output	1000 W (1 kW)
Rated Torque	4.77 Nm (up to 4.8 Nm listed by some sources)
Rated Speed	2000 RPM
Max Speed	3000 RPM
Encoder Resolution	2500 pulses/rev (10000 ppr incremental)
Inertia Type	High Inertia
Brake Status	Without Holding Brake
Protection Class	IP65
Frame Size	130 mm sq.

Physical Dimensions (Imperial)

Weight: ~15.21 lbs (6.9 kg) to 19.62 lbs (8.9 kg) depending on exact configuration.
Length (Excluding Shaft): ~6.30 inches (160 mm).
Total Length (Including Shaft): ~7.68 inches (195 mm).
Width/Height: ~5.12 inches (130 mm).
The Panasonic MHMJ102P1G is part of the MINAS LIQI series, which is Panasonic's "Simple & Cost-Effective" line. It is a high-inertia 1 kW motor built for applications that need stability over extreme acceleration.

The Panasonic MHMJ102P1G is part of the MINAS LIQI series, which is Panasonic's "Simple & Cost-Effective" line. It is a high-inertia 1 kW motor built for applications that need stability over extreme acceleration.

Core Functions

High-Inertia Control: Unlike the A5 series, this motor is designed with more mass in the rotor. This makes it much more stable when moving large, heavy mechanical loads (like heavy conveyor belts or large lead screws) without vibrating.
Simple Position Control: It is designed to work via pulse-train commands, making it very easy to set up with basic PLCs for simple "Point A to Point B" movements.
Incremental Feedback: Uses a 2500 p/r incremental encoder (10,000 counts per revolution after 4x multiplication), providing high accuracy for general industrial tasks.

Physical Profile

Frame Size: 130 mm (approx. 5.12 inches) square.
Shaft Type: Key-way shaft for secure mechanical coupling.
Weight: ~15.2 lbs (6.9 kg).
Brake: This specific "P1G" model does not include a built-in electromagnetic brake.
