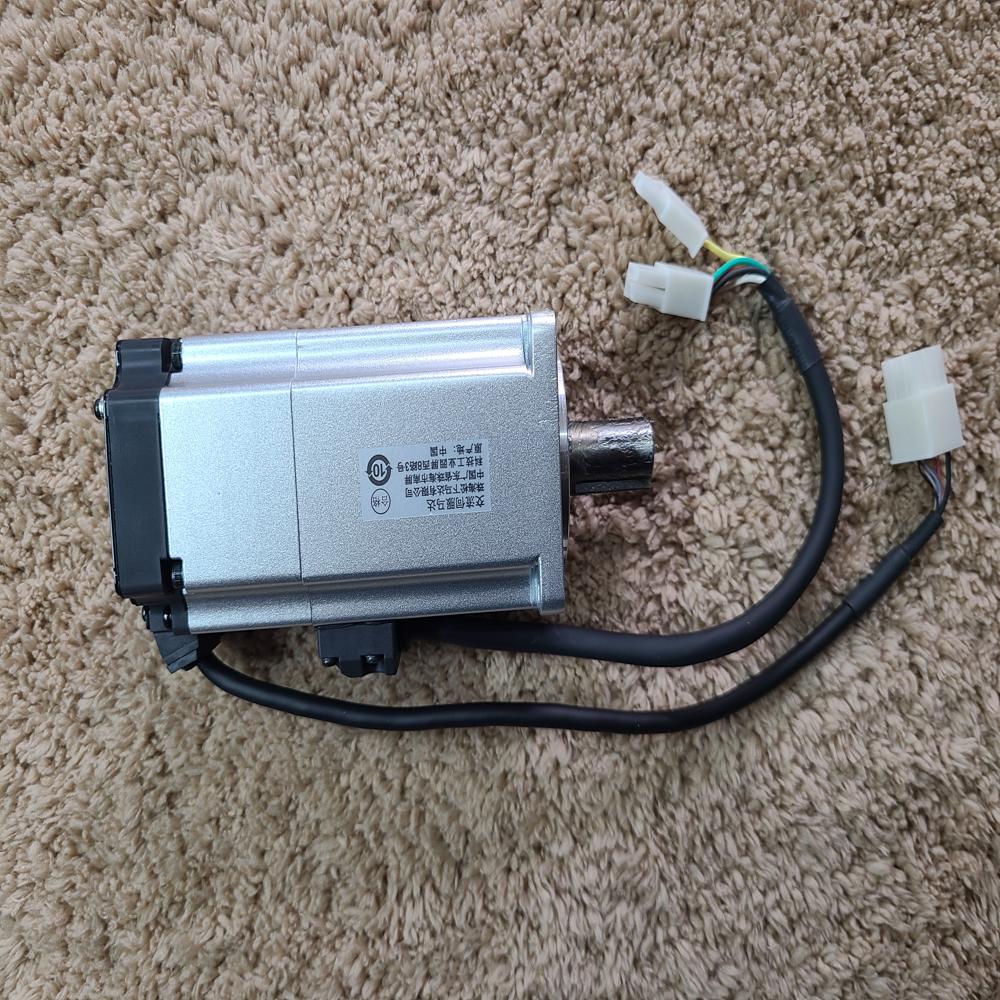

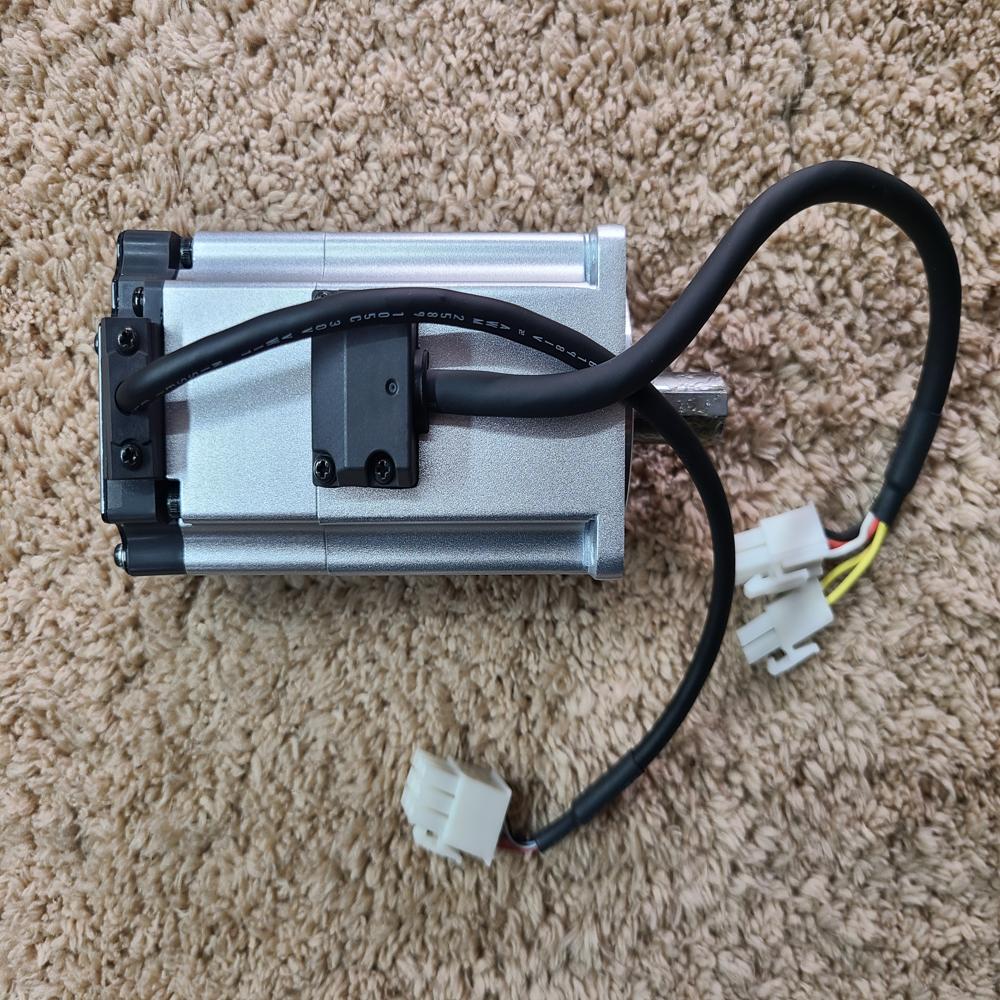

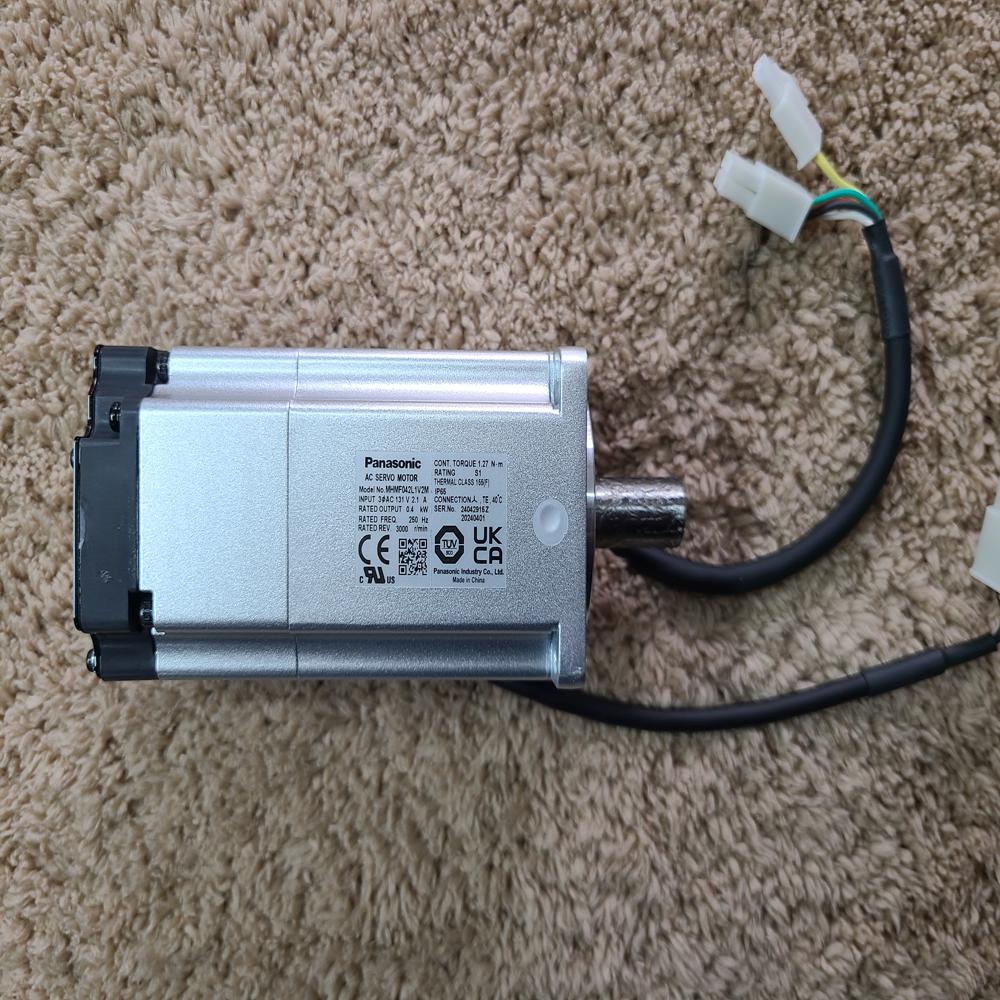

About MQMF042L1U2M Panasonic A6 400W Motor, Torque Nm -1.27, RPM - 3000

Panasonic MINAS A6 Servo Motor

MQMF042L1U2M (400W)

Electrical Specifications

• Rated Output Power: 400 W
• Rated Torque: 1.27 Nm
• Peak Torque: ~4.46 Nm
• Rated Speed: 3000 rpm
• Max Speed: 6500 rpm
• Rated Current: ~2.1 A (rms)
• Supply Voltage: 200 V class

Mechanical Dimensions

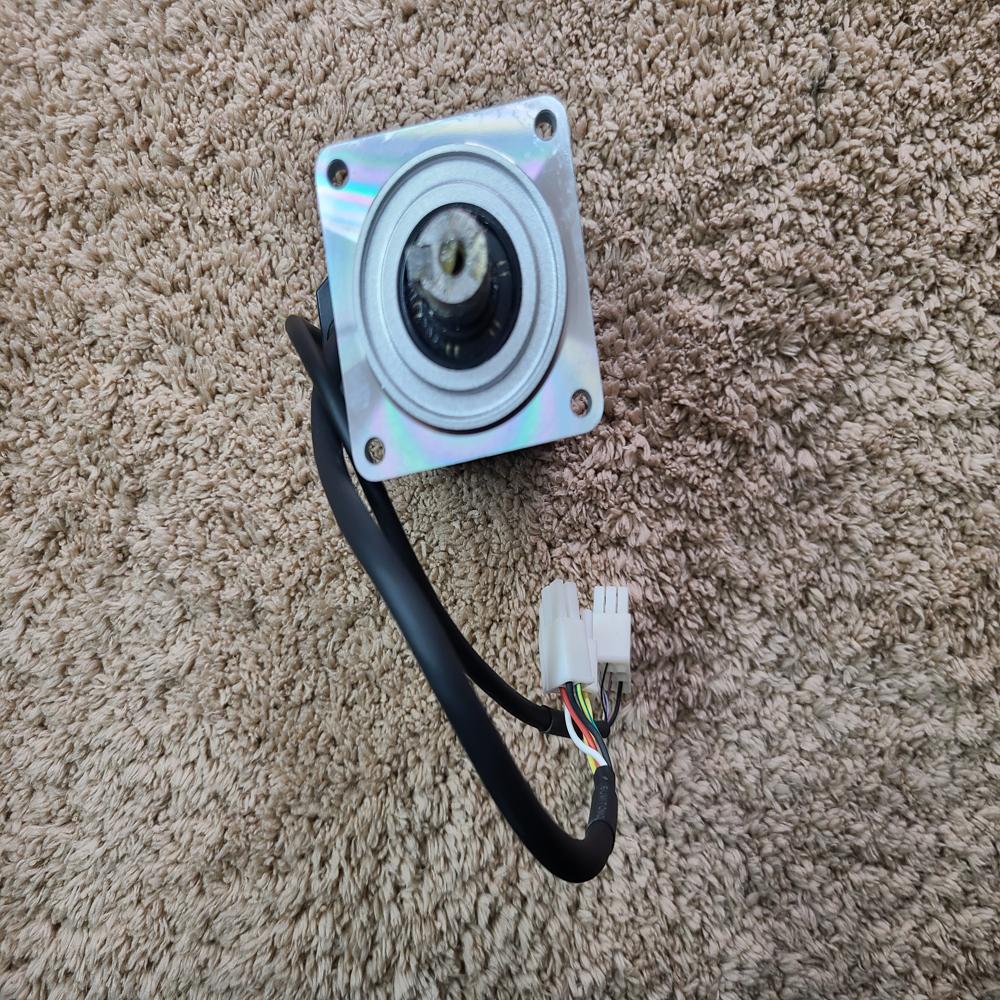

• Frame Size (Flange): 80 mm 80 mm
  3.15 in 3.15 in
• Mounting Hole Pitch: 90 mm
  3.54 in
• Shaft Diameter: 14.6 mm
  0.575 in
• Shaft Length: ~30 mm
  1.18 in
• Total Motor Length: ~200 mm
  ~7.9 in

Weight

• Mass: 1.6 kg
  3.5 lb approx.

Performance & Control

• Encoder: 23-bit absolute ( 8.3 million counts/rev)
• Response frequency: 3.2 kHz
• Inertia: 0.98 10 kgm
• Inertia ratio recommendation: 20 load
• Protection: IP65
• Brake: Not included (U2 version)

Mechanical Load Limits

• Radial load: up to 392 N (mounting)
• Operation radial load: 245 N
• Thrust load: 98196 N range

Simple Summary

This motor is:

• Medium-frame industrial servo (80 mm class)
• High precision (23-bit encoder)
• Designed for CNC, robotics, automation
• Balanced between torque (1.27 Nm) and high speed (3000 rpm continuous)

  Physical Dimensions (MQMF042L1U2M)

  • Flange size (Width Height):
    80 mm 80 mm 3.15 in 3.15 in
  • Motor body length (approx.):
    ~200 mm ~7.9 in (varies slightly with connector version)
  • Shaft diameter:
    14.6 mm 0.575 in
  • Shaft projection length:
    ~30 mm 1.18 in
  • Mounting hole spacing:
    90 mm pitch 3.54 in

  ---

  Weight

  • Approx. mass: 1.6 kg 3.5 lb

  ---

  Final Summary (Easy View)

  • Width Height: 3.15 in 3.15 in
  • Length: ~7.9 in
  • Shaft length: ~1.18 in
  • Weight: ~3.5 lb
