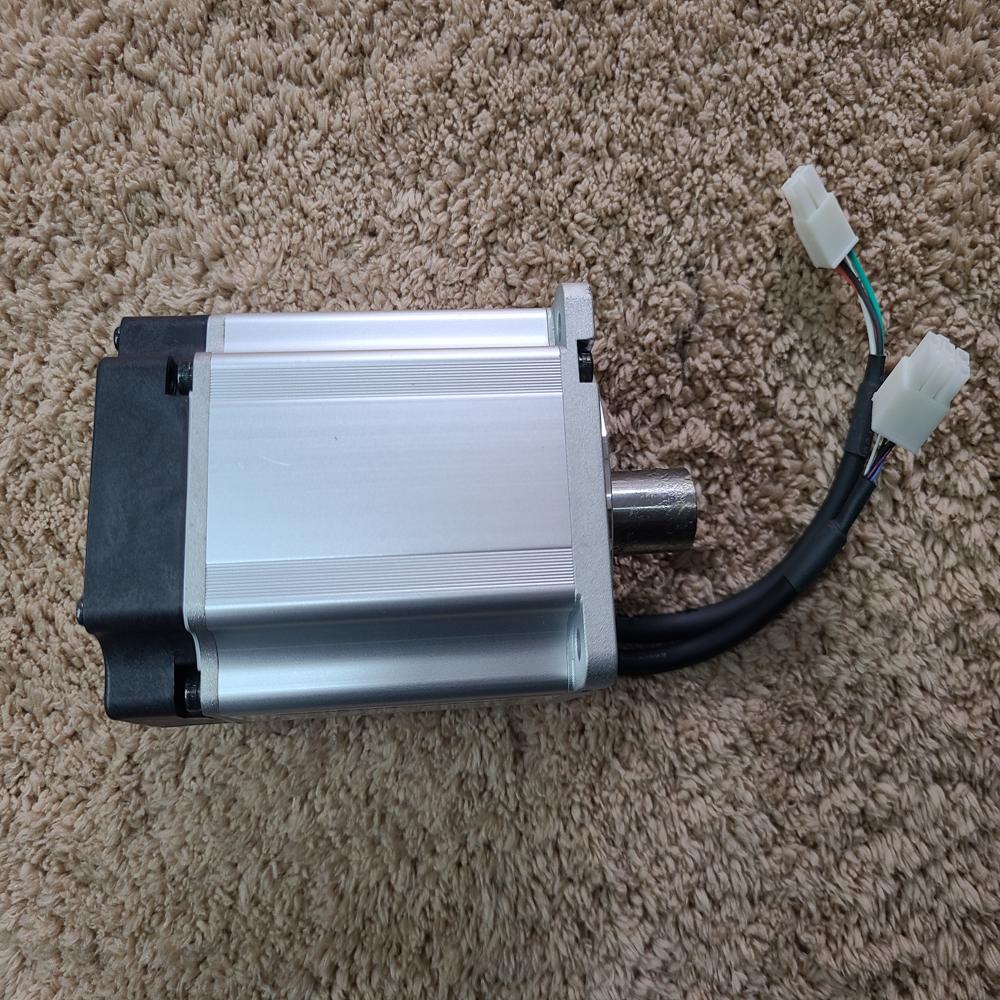

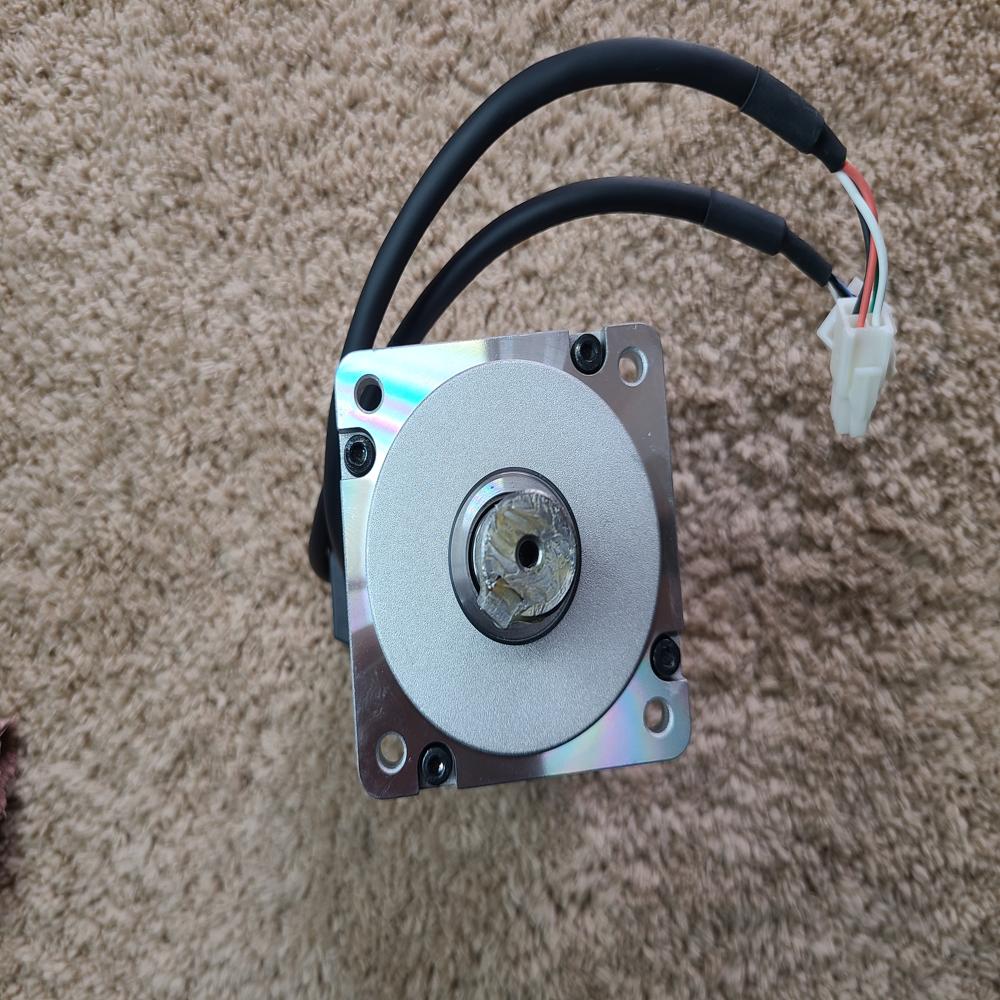

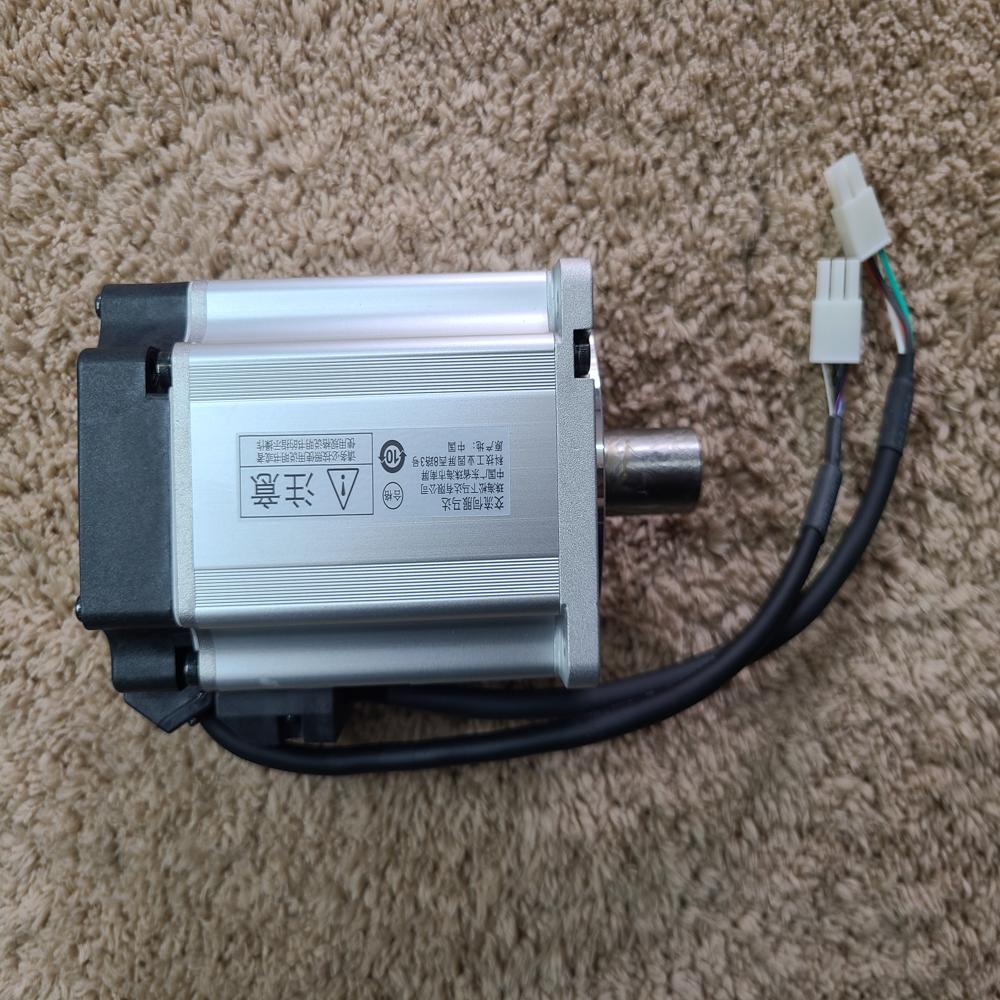

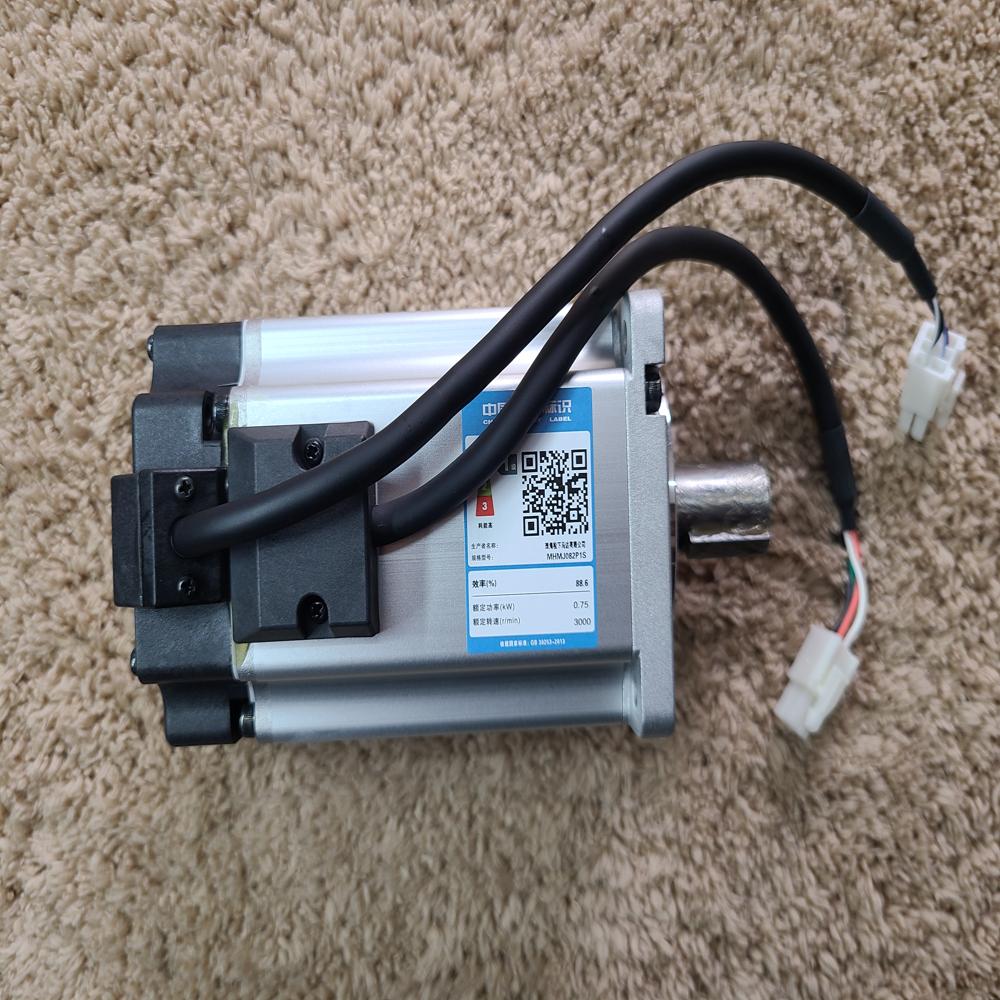

MUMA022P1T Panasonic MUMA 200W Motor

Price 47000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MUMA022P1T Panasonic MUMA 200W Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
1.36 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MUMA022P1T Panasonic MUMA 200W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MUMA022P1T Panasonic MUMA 200W Motor

The Panasonic MUMA022P1T is a 200W AC servomotor from the MINAS E-series. It is an ultra-low inertia model designed specifically for high-speed, precision positioning. [1, 2, 3, 4, 5]

The key difference between this model and the MUMA022P1S you asked about previously is that the P1T version includes a built-in holding brake, making it heavier and longer. [1, 2]

Physical Dimensions (Inches)

Based on technical specifications from Panasonic Industry and DigiKey, the dimensions for this model are:

Width & Height (Flange): 2.362" x 2.362" (60 mm x 60 mm).
Body Length: 5.08" (129 mm).
Total Length (Including Shaft): 6.26" (approximately 159 mm, based on a 30 mm shaft).
Shaft Diameter: 0.433" (11 mm).
Mounting Hole Spacing: 2.756" (70 mm). [1, 2, 3, 4]

Weight

Net Weight: 3.00 lbs (1.36 kg).
- Note: This is significantly heavier than the 2.12 lbs (0.96 kg) MUMA022P1S because of the added brake assembly. [1, 2, 3, 4, 5]

Functions

Holding Brake: Features a built-in electromagnetic brake that holds the shaft in position when power is removed, which is critical for vertical axes to prevent the load from falling.
High-Speed Response: Rated for 3000 RPM (Max 5000 RPM) with a 2500 P/r incremental encoder (10,000 resolution) for precise feedback.
Vibration Suppression: Equipped with a notch filter to suppress mechanical resonance and an adaptive filter to detect and eliminate vibration during high-speed moves.
Real-Time Auto-Gain Tuning: Automatically adjusts settings based on load stiffness for easier setup.
