MLDET2310P Panasonic MUMA 400W Driver

Name: MLDET2310P Panasonic MUMA 400W Driver
Brand: Corbital Enterprise
Price: 27400.0 INR
Availability: InStock

Price 27400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MLDET2310P Panasonic MUMA 400W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
0.40 Grams (g)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MLDET2310P Panasonic MUMA 400W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MLDET2310P Panasonic MUMA 400W Driver

The Panasonic MLDET2310P is an ultra-compact L-Frame AC servo driver from the MINAS E-series, specifically engineered to control the MUMA 400W motor. Like other models in this series, it is now discontinued but remains a staple in industrial automation for high-speed position control. [1, 2, 3, 4, 5]

Physical Dimensions (Inches)

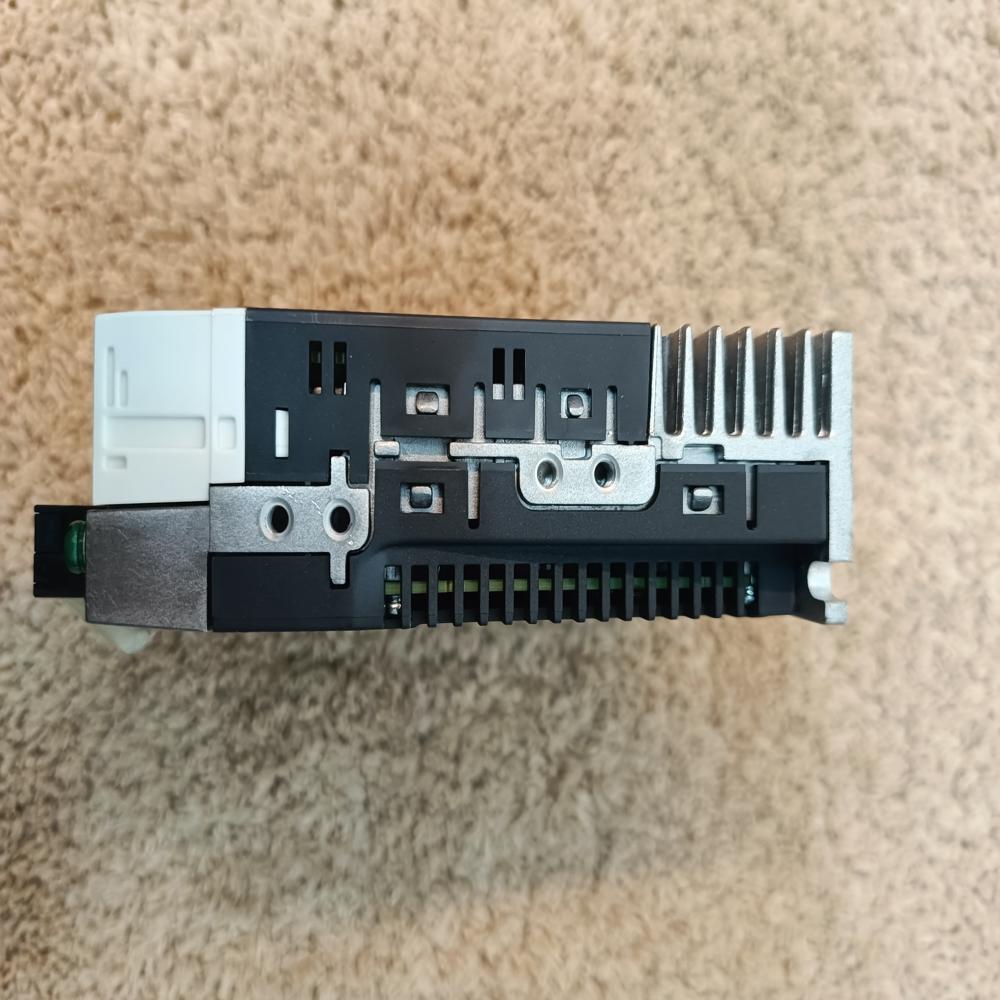

The unit features a slim, book-style design for side-by-side cabinet mounting. [1, 2]

Height: 5.51" (140 mm)
Width: 1.57" (40 mm)
Depth: 4.13" (105 mm) [1, 2]

Weight

Net Weight: 0.88 lbs (0.40 kg) [1, 2]

Core Functions

Ultra-Compact Position Control: Specifically optimized for space-saving installations while providing precise motion control for 400W motor systems.
Multiple Control Modes: Offers three selectable modes via parameters: High-speed position control, Internal velocity control, and High-functionality position control.
Resonance Suppression: Features a frequency response of 400 Hz and built-in filters to eliminate mechanical vibration during rapid movement.
Feedback Integration: Designed to work with a 2500 P/r incremental encoder (10,000 resolution), providing high-accuracy motion feedback.
External Regeneration Support: It does not have a built-in regenerative resistor; for high-inertia loads or vertical operations, an external resistor is required. [1, 2, 4, 5, 6]

The Panasonic MLDET2310P functions as the high-speed Servo Driver (controller) specifically for 400W MINAS E-series motors. Its main job is to take low-power commands from a PLC and convert them into high-power electrical pulses to move the motor shaft.

Key Functions

High-Speed Positioning: It is optimized for "exclusive positioning control." It can handle command pulses up to 500 kpps (kilo-pulses per second), allowing for extremely fast and accurate movements.
Advanced Vibration Suppression:
- Notch Filters: It detects the frequency at which your machine shakes (resonance) and creates a "notch" in the power output to skip that frequency, stopping the vibration.
- Adaptive Filters: These filters automatically adjust in real-time if the machine's vibration changes as it moves.
Real-Time Auto-Gain Tuning: It automatically calculates the weight (inertia) of the load you are moving and adjusts its power output to ensure the motor doesn't "overshoot" its target.
Multiple Control Modes:
- Position Mode: Most common; used for moving to exact coordinates.
- Internal Velocity Mode: Used for controlling the speed of the motor directly.
Fault Monitoring: It tracks various safety parameters and will trigger an Alarm (displayed on the front panel) if it detects over-voltage, over-current, or encoder communication errors.

Component Role

In a standard setup, this driver connects:

Main Power: 200V AC input.
Control Signal: Receives "Pulse" and "Direction" signals from a controller.
Motor Power: Sends 3-phase power to the MUMA motor.
Feedback: Reads the incremental encoder pulses (2500 P/r) from the motor to confirm it reached the correct spot.
