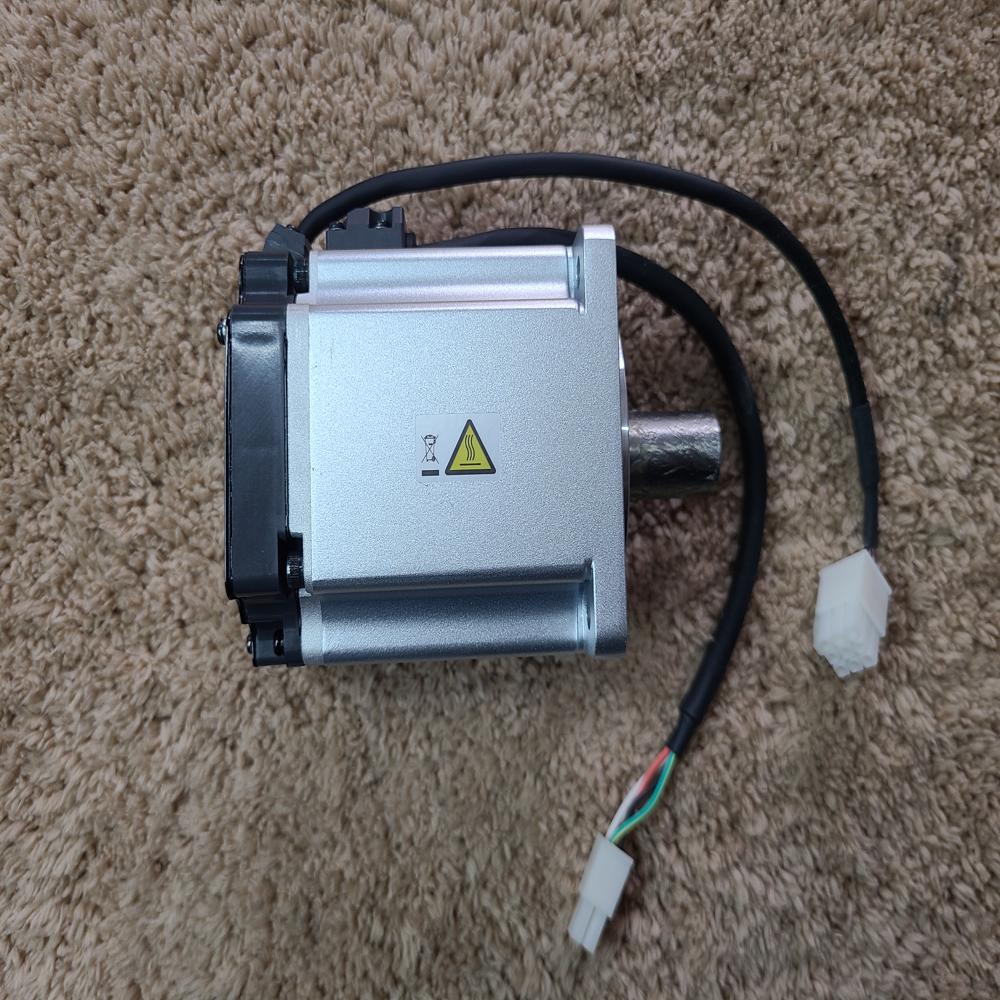

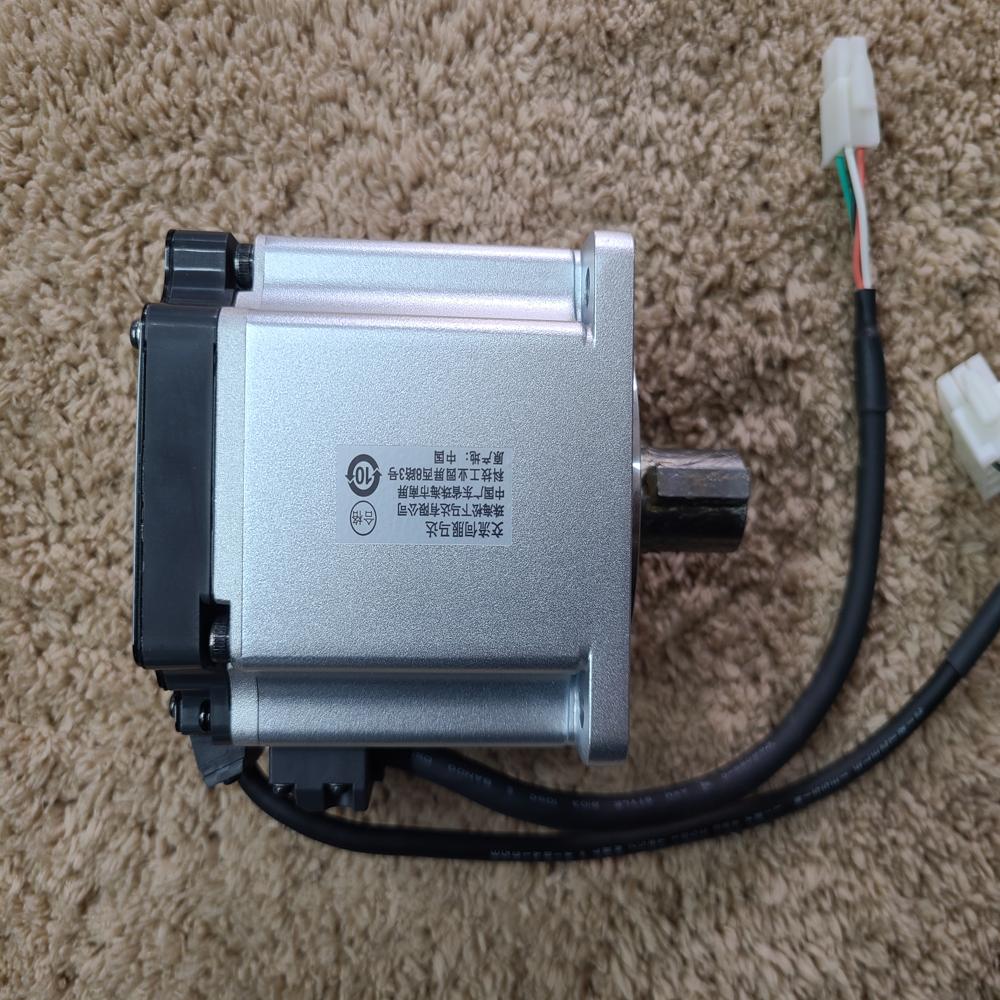

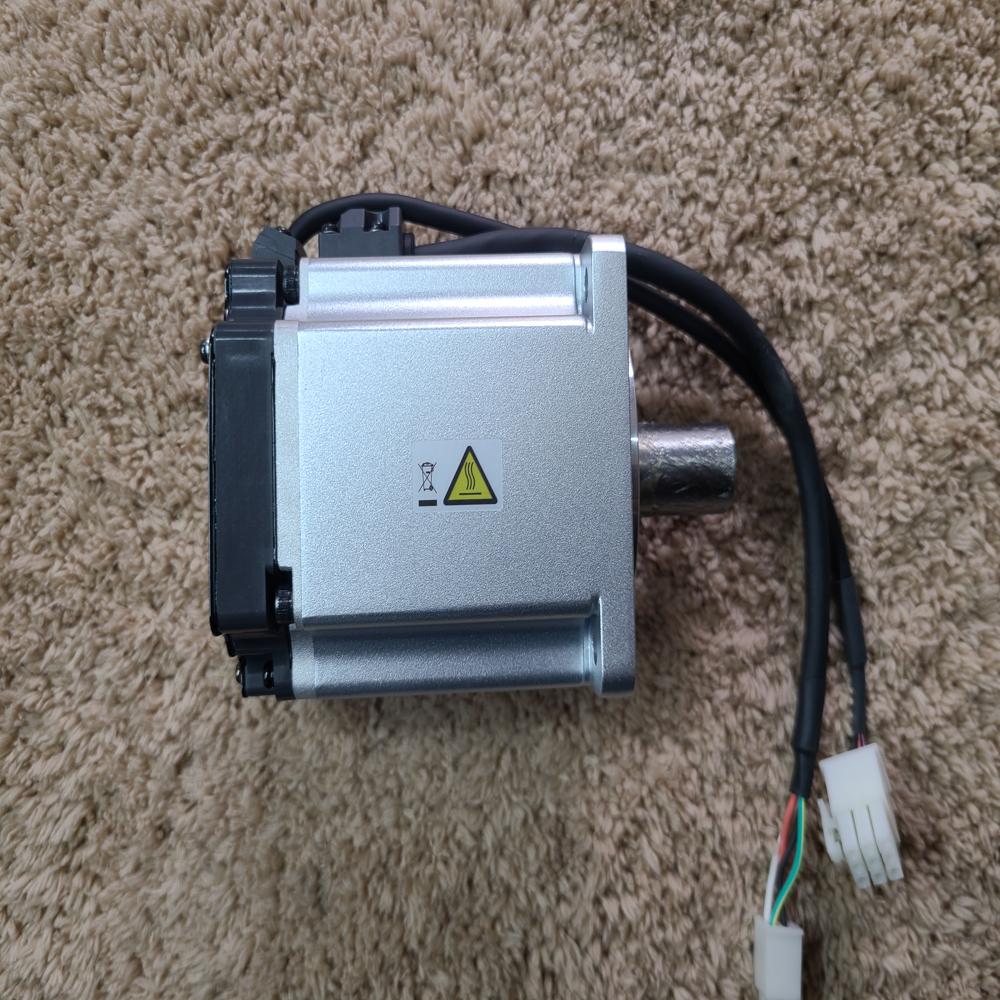

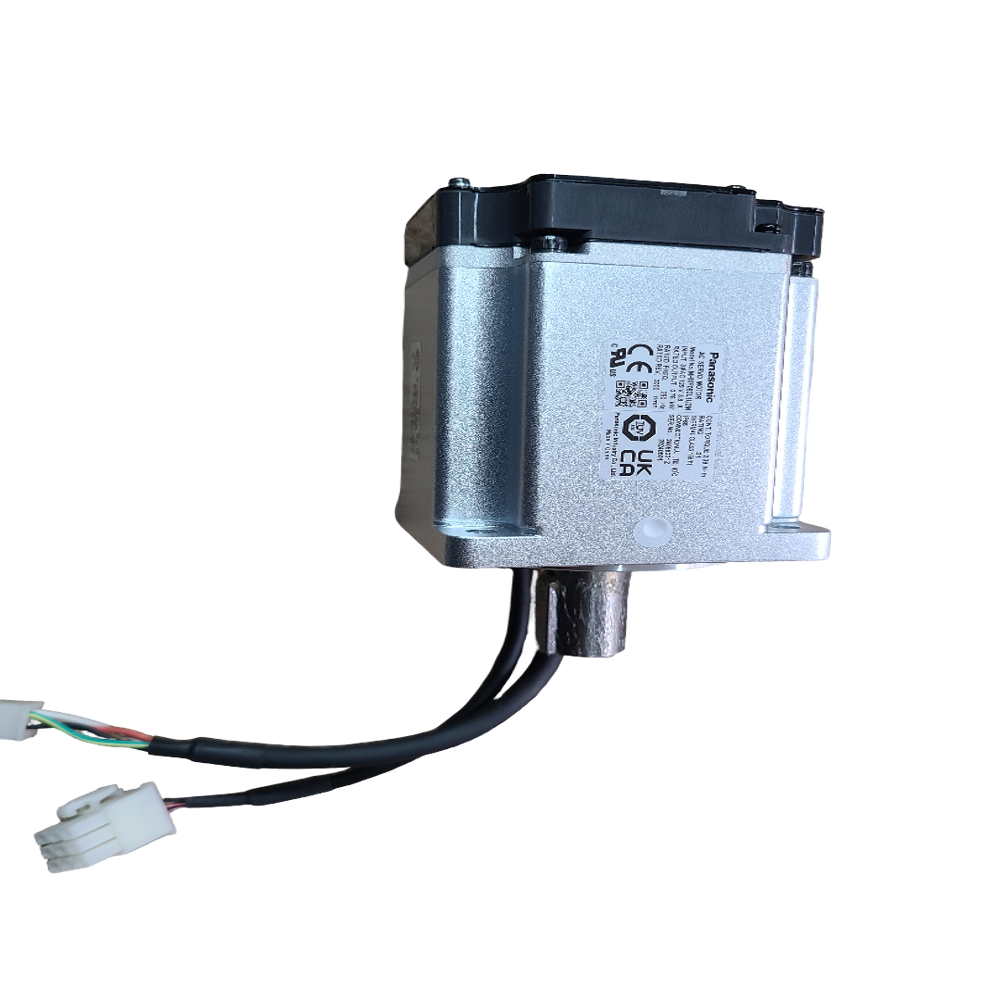

MSMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

About MSMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

Electrical Specifications

• Rated Power: 200 W (0.2 kW)
• Rated Torque: 0.64 Nm
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Current: ~1.5 A (rms)
• Supply Voltage: 200 V AC

Mechanical Specifications

• Frame Size: 60 mm (square flange)
• Shaft Type: Keyway shaft
• Protection Class: IP65 (dust & oil resistant)
• Oil Seal: Yes
• Brake: Built-in holding brake
• Weight: 1.3 kg ( 2.87 lbs)

Encoder System

• Type: 23-bit absolute / incremental encoder
• Resolution: 8,388,608 pulses
• High precision feedback for accurate positioning

Performance Data

• Peak Torque: ~1.91 Nm
• Rotor Inertia: Very low (fast response type)
• Inertia Ratio: up to 30 load recommended

Key Functional Features

• High-speed low-inertia motor
• Built-in brake for holding position when power OFF
• High accuracy positioning (CNC / robotics grade)
• Smooth operation up to 3000 RPM continuous

Simple Understanding

• Small size (60 mm frame)
• Medium power (200W)
• High precision servo motor
• Brake version = holds load safely when stopped

  Main Function

  This motors main function is:

  To convert electrical signals from a servo driver into precise rotary motion (position, speed, and torque control), and to hold position securely using its built-in brake when power is OFF.

  ---

  Core Functions Explained

  1. Precise Position Control

  • Moves to exact angles based on driver commands
  • Used in CNC, robotics, indexing machines
  • Works with encoder feedback for accuracy

  ---

  2. Speed Control

  • Maintains controlled rotation speed (up to 3000 RPM rated)
  • Smooth acceleration and deceleration

  ---

  3. Torque Generation

  • Produces controlled force (0.64 Nm rated torque)
  • Can handle peak loads during motion

  ---

  4. Closed-Loop Feedback

  • Built-in 23-bit encoder continuously reports position
  • System corrects errors instantly
  • Ensures high precision movement

  ---

  5. Holding Brake Function (Key Feature)

  • When power is OFF:
    • Brake locks the shaft in position
  • Prevents unwanted movement or load drop
  • Used in vertical axes, robotic arms, Z-axis systems

  ---

  6. High-Speed Motion Control

  • Rated at 3000 RPM (up to 6000 RPM max)
  • Supports fast and smooth industrial motion
