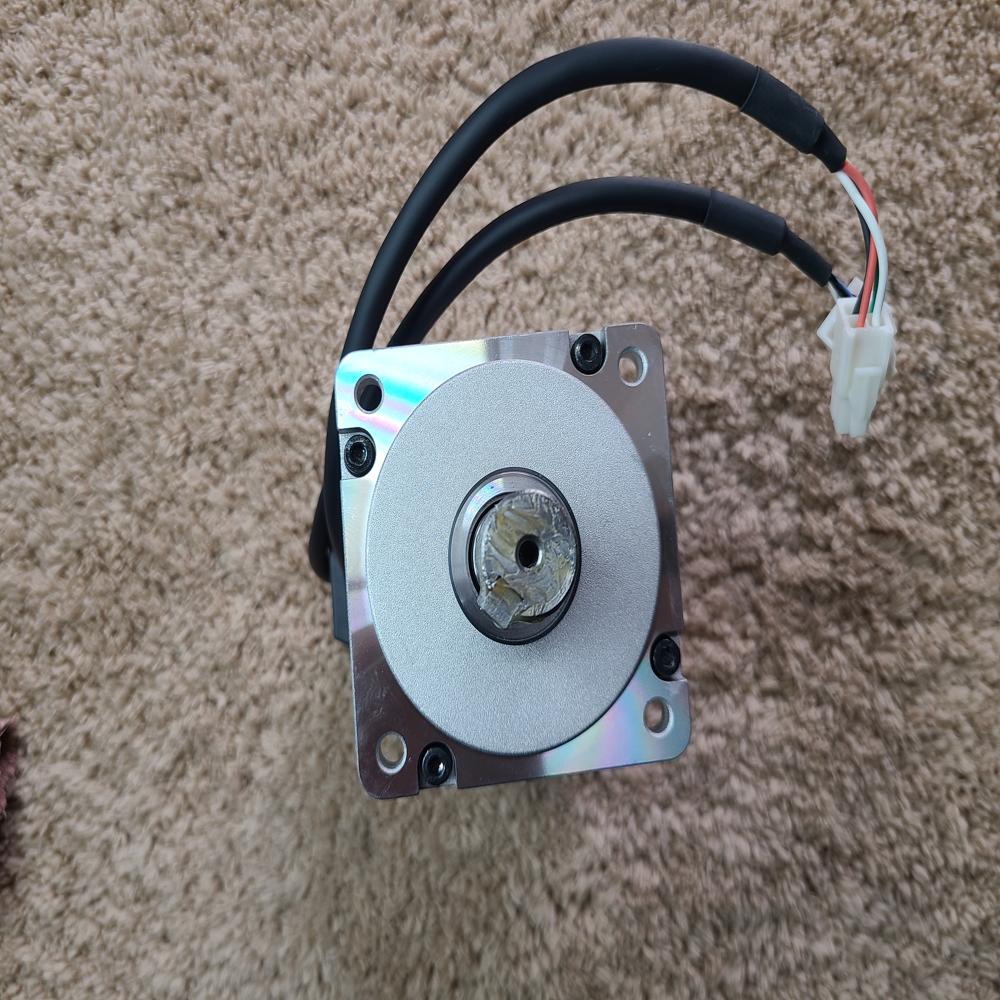

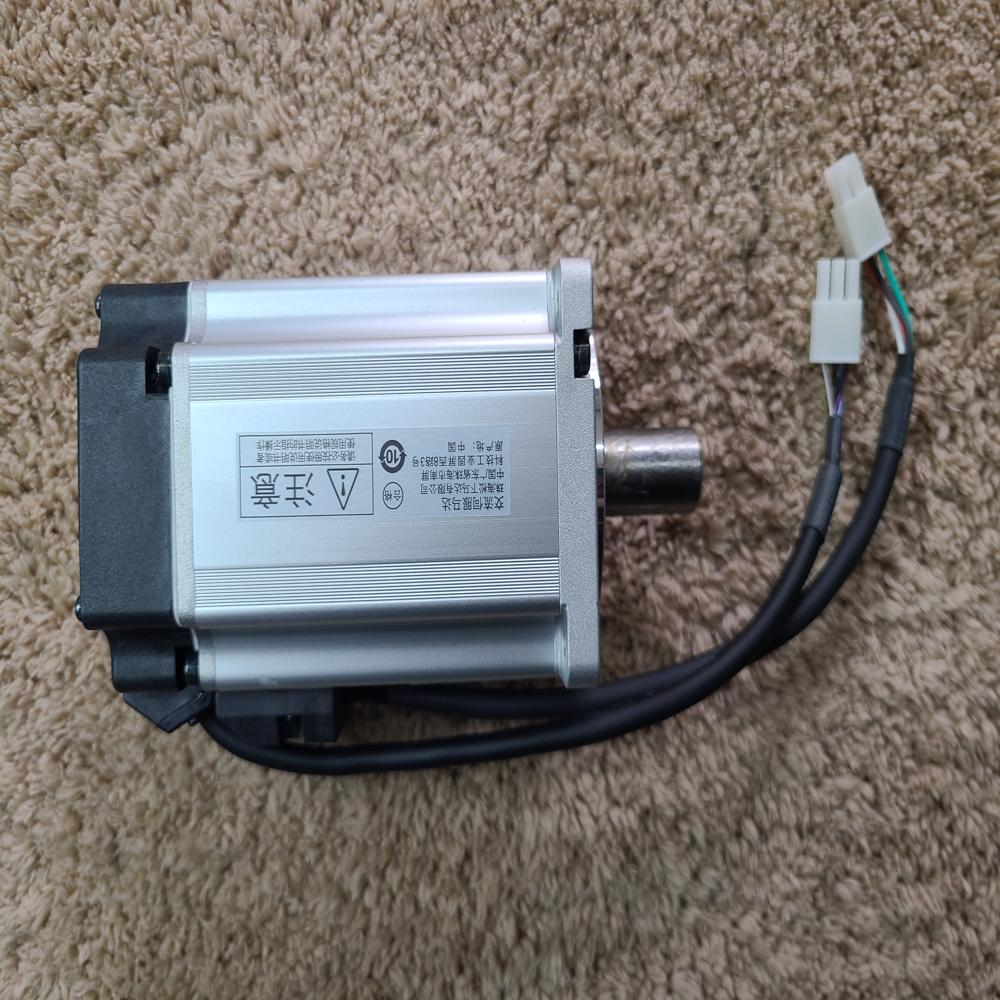

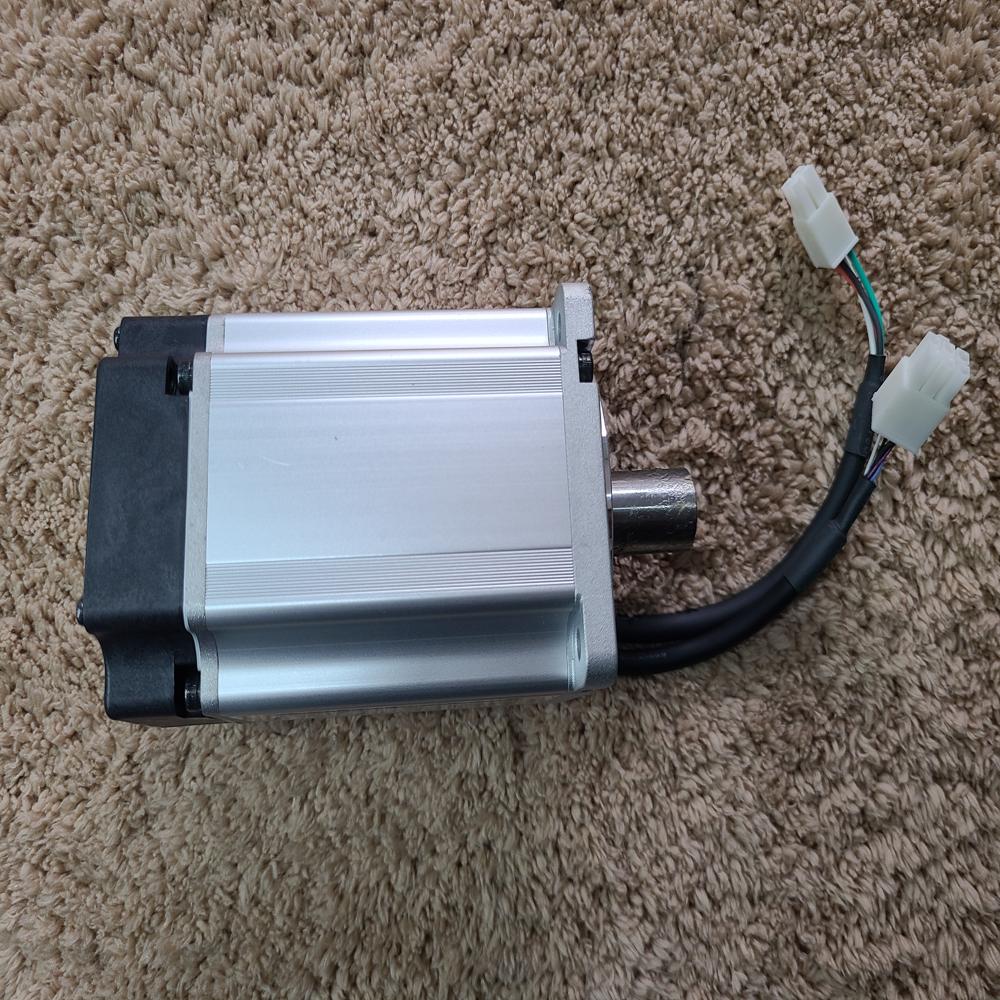

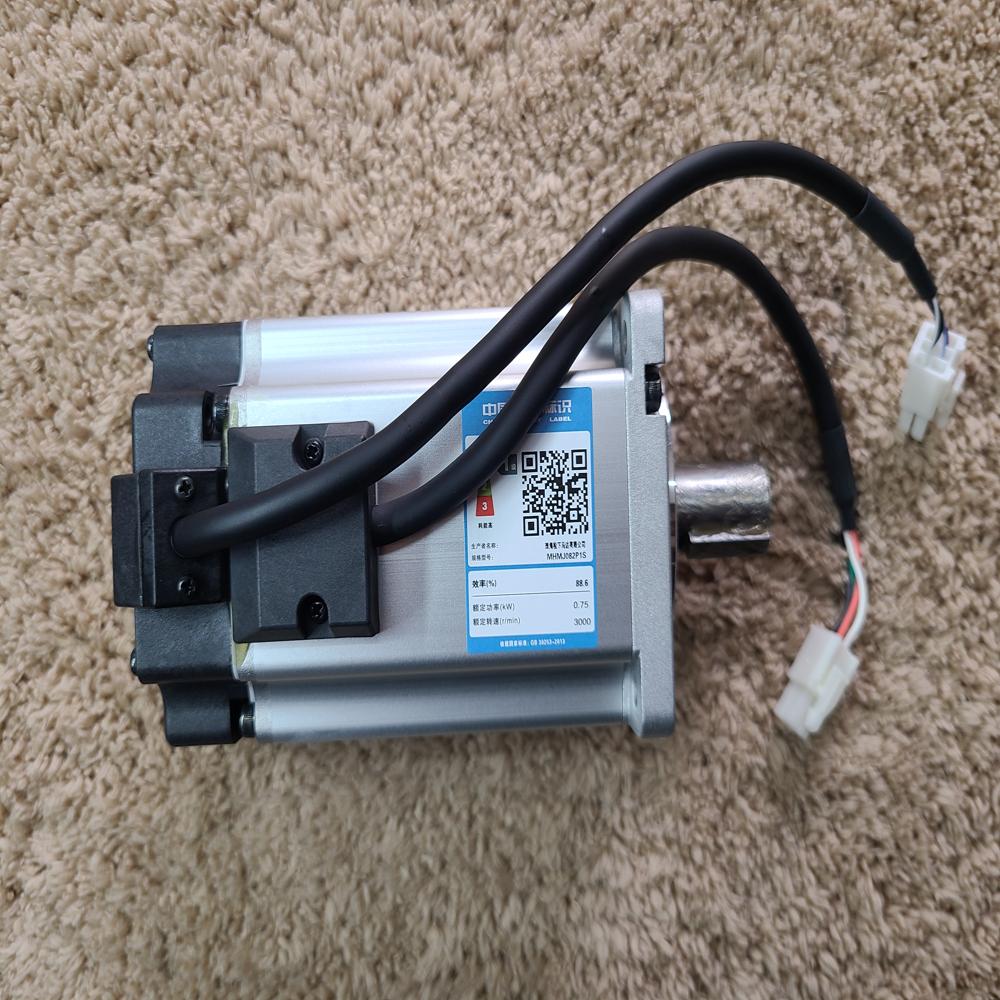

MUMA022P1S Panasonic MUMA 200W Motor

Name: MUMA022P1S Panasonic MUMA 200W Motor
Brand: Corbital Enterprise
Price: 23000.0 INR
Availability: InStock

Price 23000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MUMA022P1S Panasonic MUMA 200W Motor Specification

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
1 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MUMA022P1S Panasonic MUMA 200W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MUMA022P1S Panasonic MUMA 200W Motor

The Panasonic MUMA022P1S is a 200W AC servomotor from the MINAS E series. It is an ultra-low inertia model designed for high-speed, precision industrial automation, though it is currently listed as an obsolete/discontinued part. [1, 2, 3, 4, 5]

Physical Dimensions (Inches)

Based on technical specifications from DigiKey and Panasonic Industry, the dimensions are as follows:

Width & Height (Flange): 2.362" x 2.362" (60 mm x 60 mm)
Body Length: Approximately 3.80" (Calculated from 96.5 mm body length)
Shaft Length: 1.181" (30 mm)
Shaft Diameter: 0.433" (11 mm)
Mounting Hole Spacing: 2.756" (70 mm) [1, 2, 3, 4, 5]

Weight

Net Weight: 2.12 lbs (0.96 kg) note that some listings like DigiKey estimate shipping weight at roughly 2.3 lbs (1.0 kg). [1]

Core Functions

High-Speed Positioning: Operates at a rated speed of 3000 RPM with a 2500 P/r incremental encoder for precise feedback.
Ultra-Low Inertia: Optimized for extremely fast acceleration and deceleration, perfect for high-cycle assembly equipment.
Protection: Rated IP65 (except for the shaft), making it dust-tight and resistant to water jets.
Automatic Tuning: Supports Real-Time Auto-Gain Tuning for simplified setup and maintenance
