VSS23-9P5-20CNB - Crompton VFD - VSS23 - 2.2 kW / 3HP 1-Phase 220V

Name: VSS23-9P5-20CNB - Crompton VFD - VSS23 - 2.2 kW / 3HP 1-Phase 220V
Brand: Corbital Enterprise
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSS23-9P5-20CNB - Crompton VFD - VSS23 - 2.2 kW / 3HP 1-Phase 220V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSS23-9P5-20CNB - Crompton VFD - VSS23 - 2.2 kW / 3HP 1-Phase 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSS23-9P5-20CNB - Crompton VFD - VSS23 - 2.2 kW / 3HP 1-Phase 220V

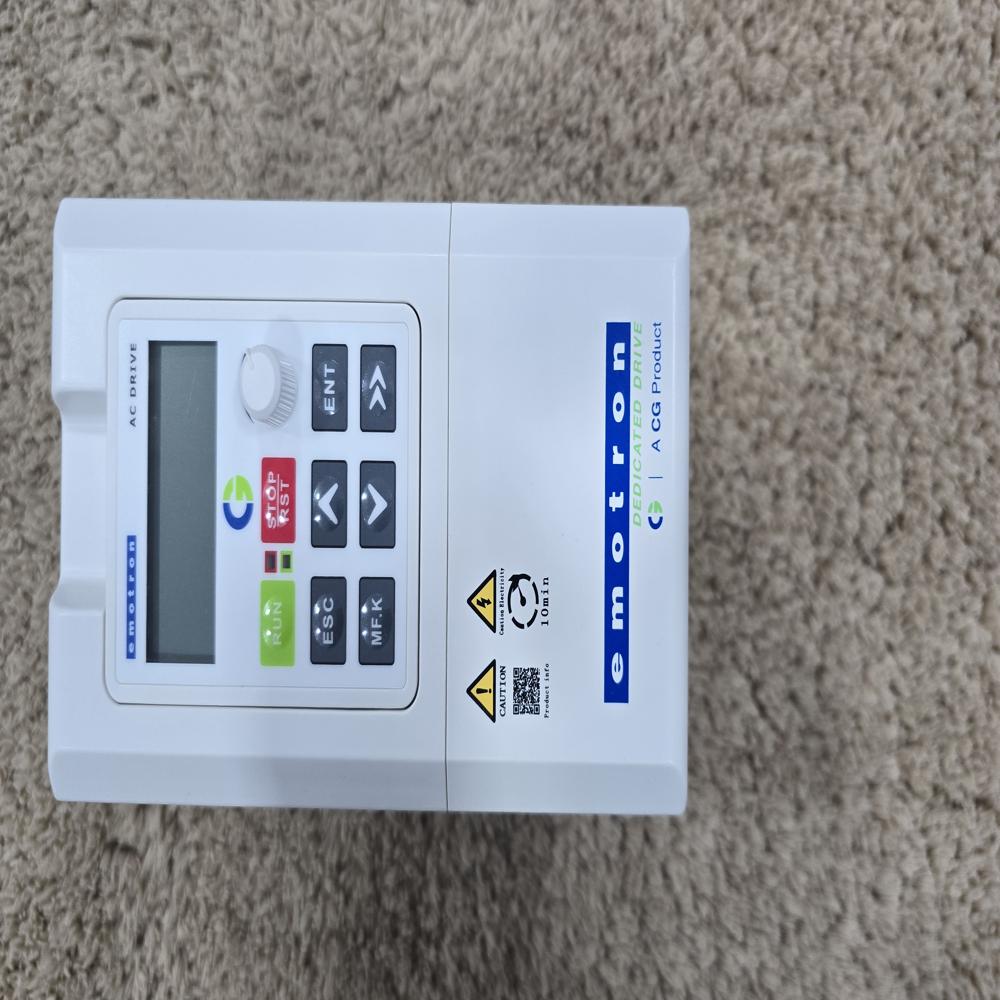

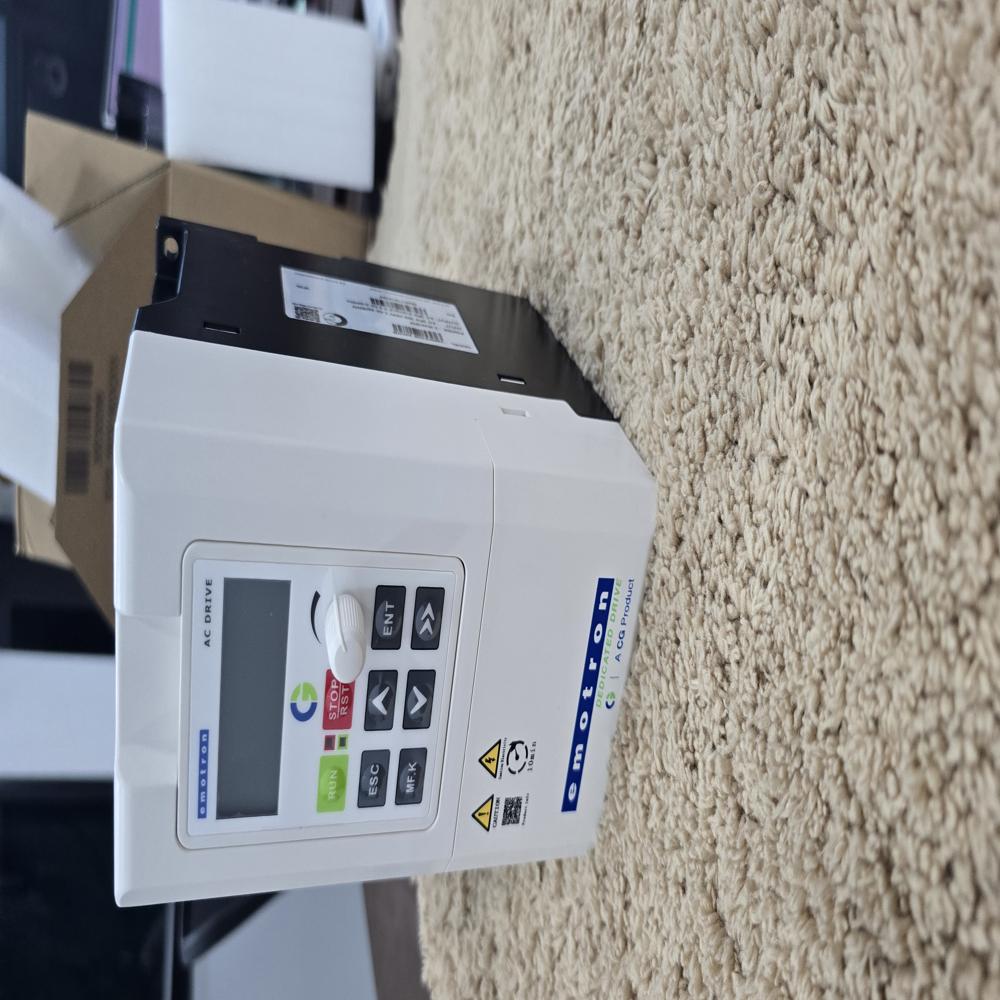

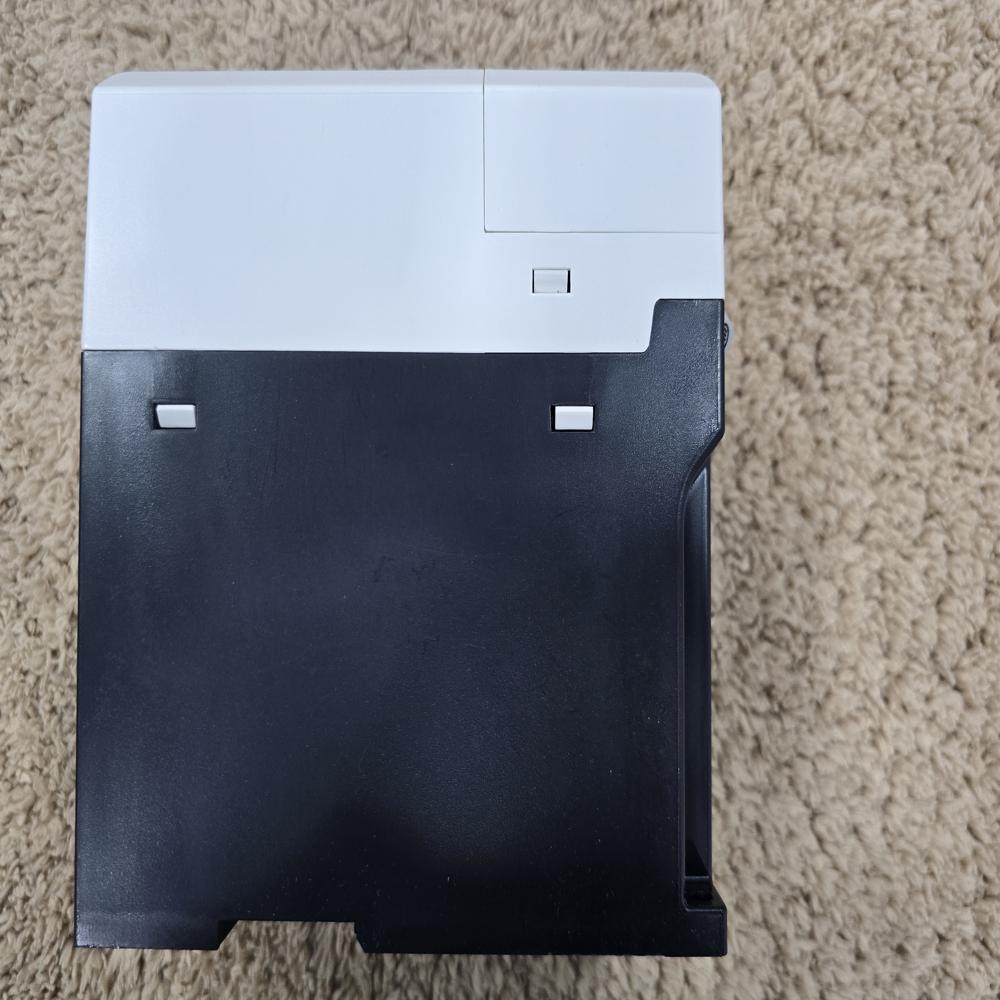

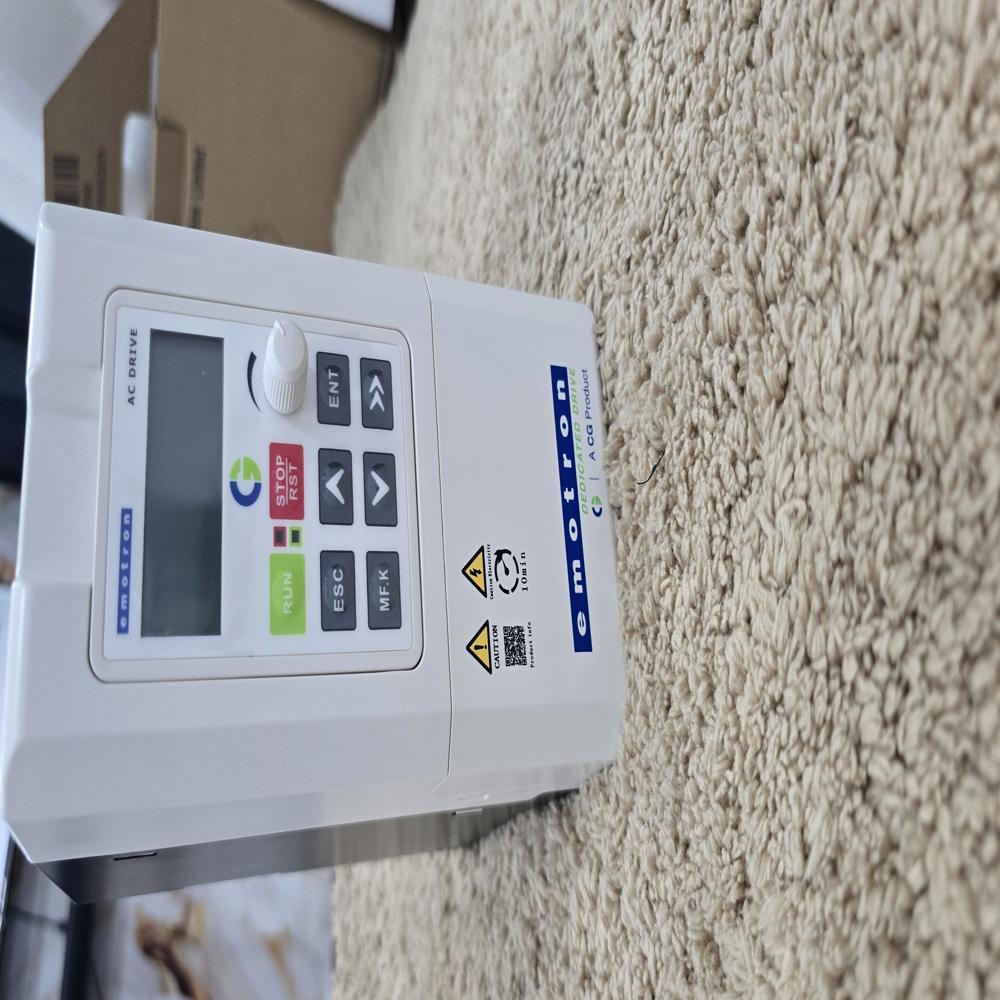

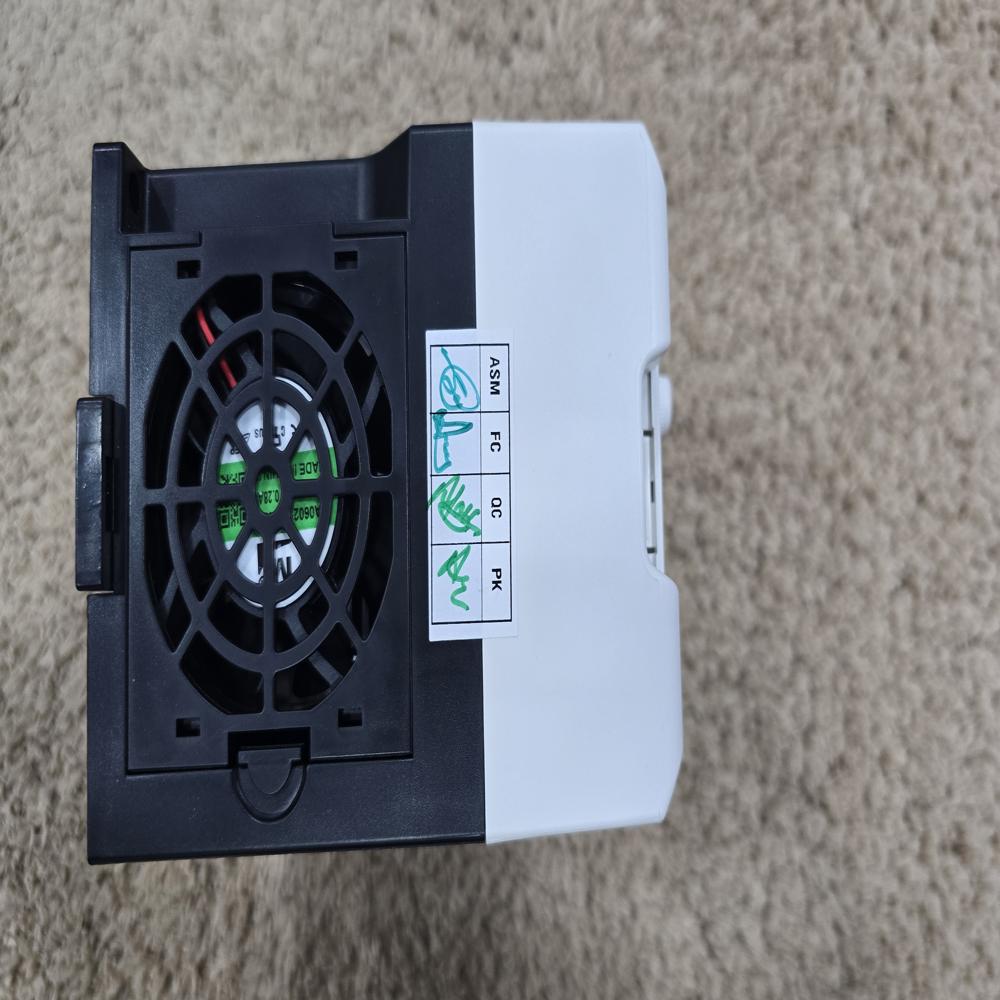

The Crompton Greaves Emotron VSS23-9P5-20CNB is a robust, line-powered 3 HP (2.2 kW) industrial Variable Frequency Drive (VFD). As the highest capacity model in the VSS23 series, it uses the VSS3 frame size to manage the thermal requirements of high-torque industrial loads while running on standard single-phase 220V grid electricity. It converts single-phase input to a three-phase output to drive standard 3-phase AC induction motors safely. [1, 2, 3, 4, 5]

Physical Dimensions (Inches & Pounds)

The official engineering specifications for this 3 HP industrial drive converted to imperial units are:

Weight: 3.31 lbs (1.5 kg)
Height: 6.81 inches (173 mm)
Width: 4.33 inches (110 mm)
Depth (Thickness): 5.31 inches (135 mm)

Mounting Dimensions

For structural panel mapping or drilling templates within electrical cabinets, use these specific spacing values:

Mounting Height (H1): 6.42 inches (163 mm)
Mounting Width (W1): 3.94 inches (100 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm)

Technical Specifications

The drive is calibrated for industrial environments requiring the following parameters:

Feature [, 2, 3, 4, 5]	Specification
Model Number	VSS23-9P5-20CNB / 20CEB
Motor Power Rating	2.2 kW / 3 HP
Input Supply Power	1-Phase 200V to 240V AC (20%), 50/60 Hz
Rated Input Current	24.0 Amps
Rated Output Current	9.5 Amps continuous
Overload Capacity	150% heavy-duty / 200% for 1 second
Protection Rating	IP20 (Requires clean, dust-free enclosure deployment)
Control Logic Interface	5 Digital Inputs (DI), 2 Analog Inputs (AI), 1 Relay Output
Brake Chopper	Integrated / Built-in
Communication Terminal	Built-in RS-485 Modbus protocol interface

Core Applications

This drive allows for precise control of 3-phase motors up to 3 HP in environments limited to single-phase utility hookups, such as:

Industrial Machining: Large conveyor systems, commercial food mixers, and chemical agitators.
Commercial Ventilation: Large commercial exhaust blowers, air curtains, and HVAC air-handling units.
Manufacturing: Packaging lines, textile machines, woodworking machinery, and CNC component feeders.
