VSR48-009 - Crompton VFD - 3.7 kW / 5HP 3-Phase 380V Solar

Name: VSR48-009 - Crompton VFD - 3.7 kW / 5HP 3-Phase 380V Solar
Brand: Corbital Enterprise
Price: 16200.0 INR
Availability: InStock

Price 16200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSR48-009 - Crompton VFD - 3.7 kW / 5HP 3-Phase 380V Solar Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSR48-009 - Crompton VFD - 3.7 kW / 5HP 3-Phase 380V Solar Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSR48-009 - Crompton VFD - 3.7 kW / 5HP 3-Phase 380V Solar

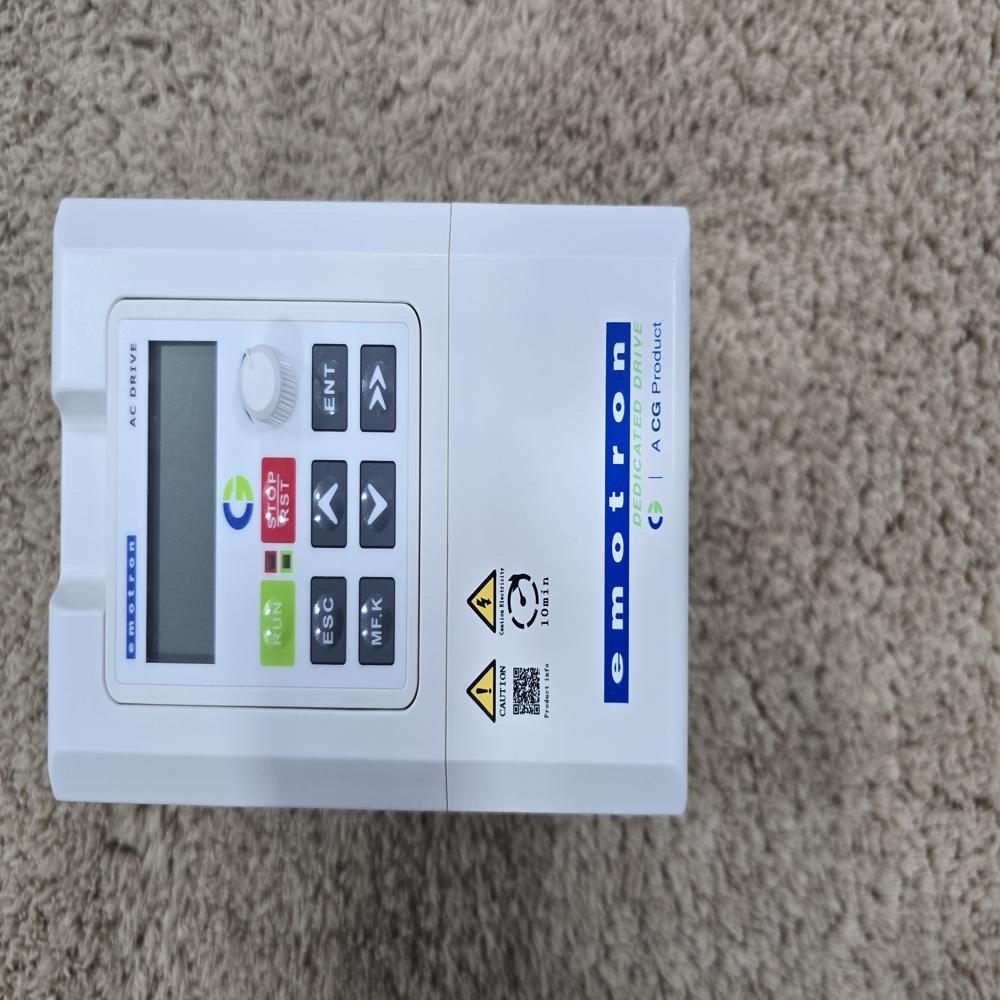

The Crompton Greaves Emotron VSR48-009 (often cataloged as VSRE48-009) is a 5 HP (3.7 kW) three-phase solar Variable Frequency Drive (VFD). It is identical in physical footprint and frame size to the 3 HP model (Frame Size VSR2), but it features upgraded internal power electronics to manage the higher electrical load. [1, 2, 3, 4]

Physical Dimensions

For enclosure layouts or cabinet integration, the physical parameters converted to imperial units are:

Weight: 3.31 lbs (1.5 kg)
Height: 6.81 inches (173 mm)
Width: 4.33 inches (110 mm)
Depth (Thickness): 5.31 inches (135 mm) [1]

Mounting Dimensions

Mounting Height (H1): 6.42 inches (163 mm)
Mounting Width (W1): 3.94 inches (100 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm) [1]

Technical Specifications

The electrical parameters for this 5 HP unit include:

Feature [, 2, 4, 5]	Specification
Model Number	VSR48-009 / VSRE48-009
Power Rating	3.7 kW / 5 HP
Output Configuration	3-Phase AC
Maximum Input DC Current	18 Amps
Rated Output Current	9.5 Amps
Recommended Solar Array	Up to 6.0 kWp
Optimal MPPT Voltage Range	450V to 600V DC
Maximum Input DC Voltage	800V DC
