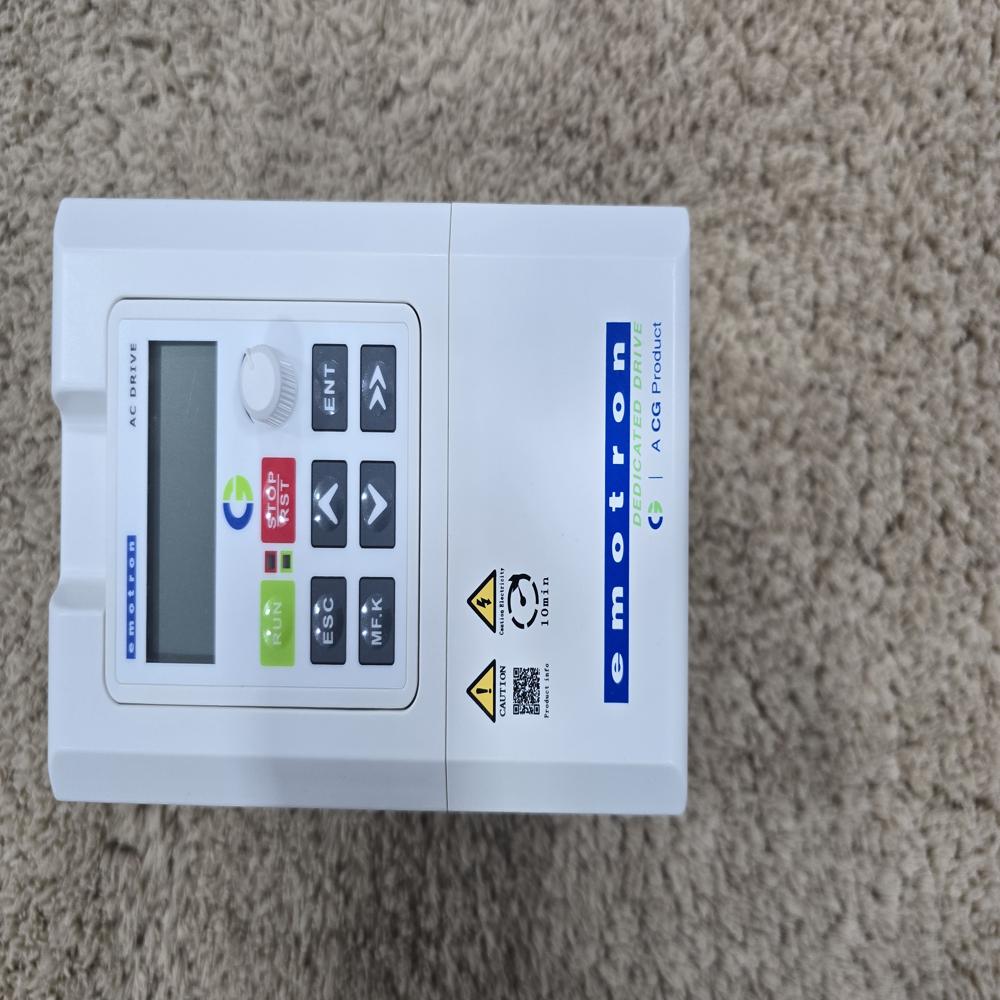

VSR48-032 - Crompton VFD - 15 kW / 20HP 3-Phase 380V Solar

Name: VSR48-032 - Crompton VFD - 15 kW / 20HP 3-Phase 380V Solar
Brand: Corbital Enterprise
Price: 26300.0 INR
Availability: InStock

Price 26300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSR48-032 - Crompton VFD - 15 kW / 20HP 3-Phase 380V Solar Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
6.2 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSR48-032 - Crompton VFD - 15 kW / 20HP 3-Phase 380V Solar Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSR48-032 - Crompton VFD - 15 kW / 20HP 3-Phase 380V Solar

The Crompton Greaves Emotron VSR48-032 is an industrial-grade 20 HP (15 kW) three-phase solar Variable Frequency Drive (VFD). This heavy-duty system is highly utilized for high-volume agricultural borewells, community water supply setups, and heavy motor-driven industrial machinery like large flour mills (Atta Chakki) and oil expellers. [1, 2, 3, 4]

Physical Dimensions (Inches & Pounds)

To support the enhanced heat dissipation and heavier power electronics required for a 20 HP motor, this model steps up to a significantly larger, dedicated chassis size: [1, 2]

Weight: 13.67 lbs (6.2 kg)
Height: 11.81 inches (300 mm)
Width: 7.80 inches (198 mm)
Depth (Thickness): 7.47 inches (189.7 mm) [1, 2, 3, 4]

Technical & Solar Array Specifications

The drive relies on a higher capacity photovoltaic arrangement to maintain its continuous 32 Amp output load: [1, 2]

Feature [1, 2, 3, 4, 5, 6]	Specification
Model Number	VSR48-032-20CEB / 20CNB
Power Rating	15 kW / 20 HP
Rated Output Current	32.0 Amps
Maximum Input DC Current	42.0 to 50.0 Amps
Recommended Solar Array Power	20.0 to 23.0 kWp
Recommended Voc Range	600V to 700V DC
Optimal MPPT Voltage Range	450V to 600V DC
Maximum Input DC Voltage	800V DC (1000V DC surge limit)
