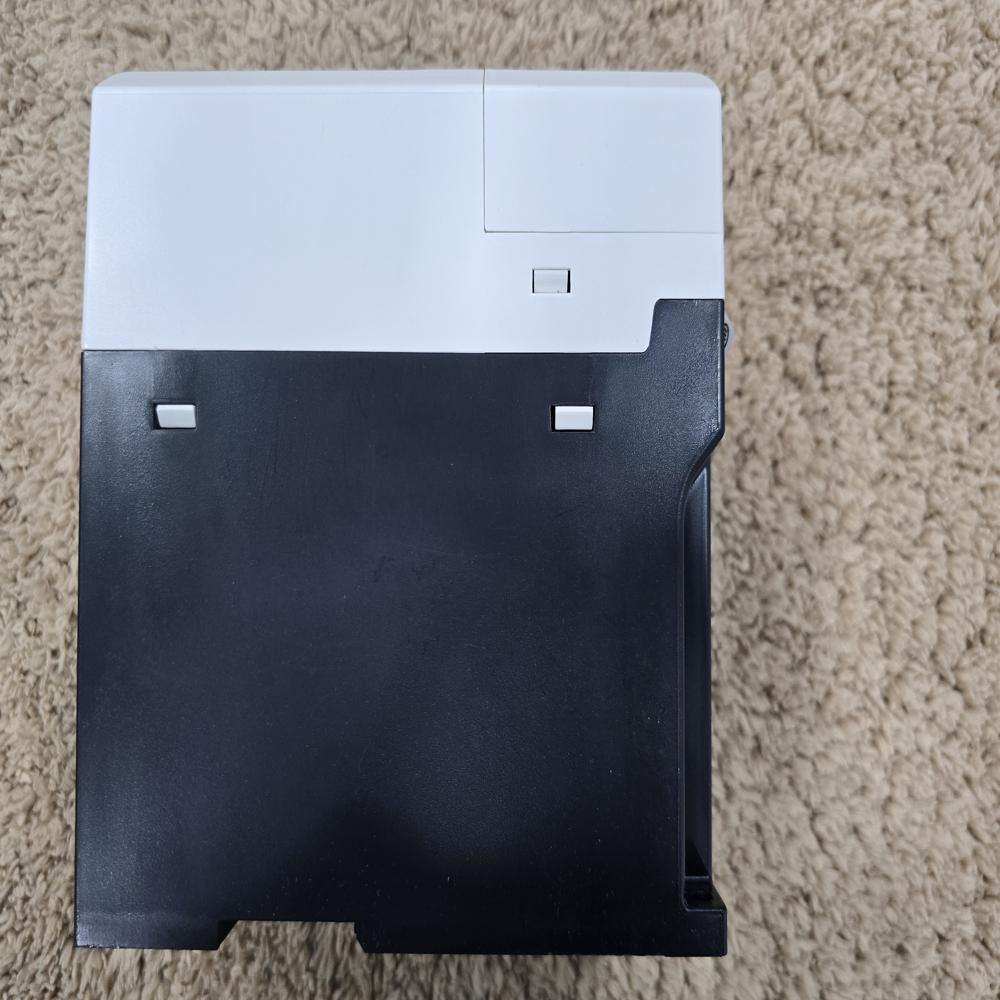

VFX48- 105-20 - Crompton VFD - 55kW / 75HP 3-Phase 380-480

Name: VFX48- 105-20 - Crompton VFD - 55kW / 75HP 3-Phase 380-480
Brand: Corbital Enterprise
Price: 97200.0 INR
Availability: InStock

Price 97200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VFX48- 105-20 - Crompton VFD - 55kW / 75HP 3-Phase 380-480 Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
30 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VFX48- 105-20 - Crompton VFD - 55kW / 75HP 3-Phase 380-480 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About VFX48- 105-20 - Crompton VFD - 55kW / 75HP 3-Phase 380-480

The CG Emotron VFX48-105-20 (frequently supplied via Crompton Greaves) is an industrial Variable Frequency Drive (VFD) designed for high-capacity motor speed and torque regulation. It shares the identical physical D2 Frame Size housing as the 072 and 088 models, allowing you to maximize output capacity up to 55 kW / 75 HP without needing to expand your panel space. [1, 2]

Core Technical Specifications

Parameter [1, 2, 3]	Specification Details
Model Number	VFX48-105-20
Input Voltage	3-Phase, 380V to 480V AC (10%), 50/60 Hz
Normal-Duty Power Rating	55 kW / 75 HP (Continuous \(I_{nom}\): 105A / Overload: 126A)
Heavy-Duty Power Rating	45 kW / 60 HP (Continuous \(I_{nom}\): 84A / Overload: 126A)
Rated Output Current	105 A (Nominal continuous)
Peak Max Current (60s)	132 A
Enclosure Rating	IP20 (Panel Mount)
Frame Size	D2

Physical Dimensions and Weight (Inches & Pounds)

Weight: 66.14 lbs (30 kg)
Length (Height): 23.23 in (590 mm)
Width: 8.66 in (220 mm)
Depth: 11.54 in (293 mm) [1]

Critical Power Infrastructure Requirements

Running at a continuous 105 Amps places significant demands on your electrical cabinet infrastructure: [1, 2]

Heat Dissipation: The internal cooling fan pushes air out rapidly through an independent air duct design. You must maintain a minimum 7.87-inch (200 mm) empty clearance space above and below the chassis inside your panel to prevent thermal faults.
Earthing Safety: Due to high high earth leakage currents (>3.5 mA) generated by the internal filtering, international regulations require your Protective Earth (PE) line to be secured by heavily reinforced grounding. [1, 2]
