VSX48-013-20CEB - Crompton VFD - VSX48 - 5.5 kW / 7.5HP 3-Phase 380-480V

Name: VSX48-013-20CEB - Crompton VFD - VSX48 - 5.5 kW / 7.5HP 3-Phase 380-480V
Brand: Corbital Enterprise
Price: 19200.0 INR
Availability: InStock

Price 19200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-013-20CEB - Crompton VFD - VSX48 - 5.5 kW / 7.5HP 3-Phase 380-480V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
2.5 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-013-20CEB - Crompton VFD - VSX48 - 5.5 kW / 7.5HP 3-Phase 380-480V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-013-20CEB - Crompton VFD - VSX48 - 5.5 kW / 7.5HP 3-Phase 380-480V

The Crompton Greaves Emotron VSX48-013-20CEB is a premium, high-performance 7.5 HP (5.5 kW) three-phase general-purpose Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2, 3, 4]

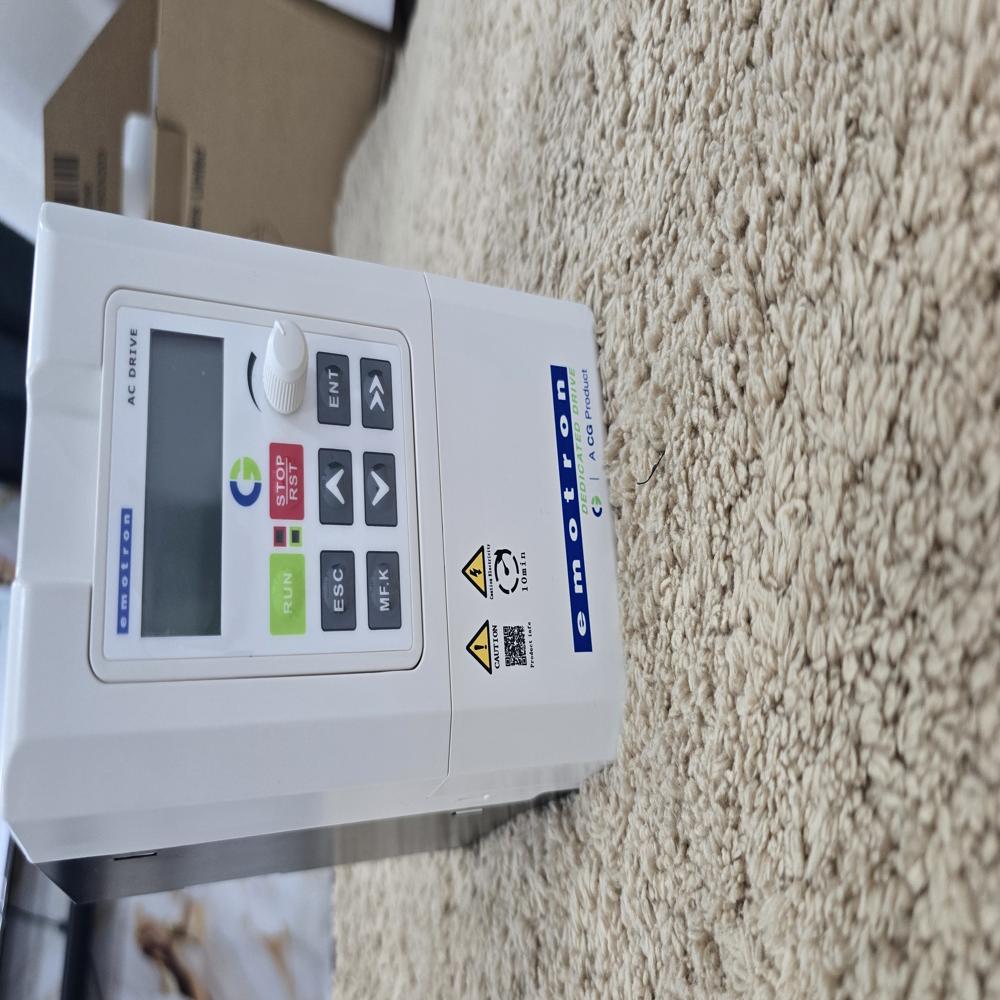

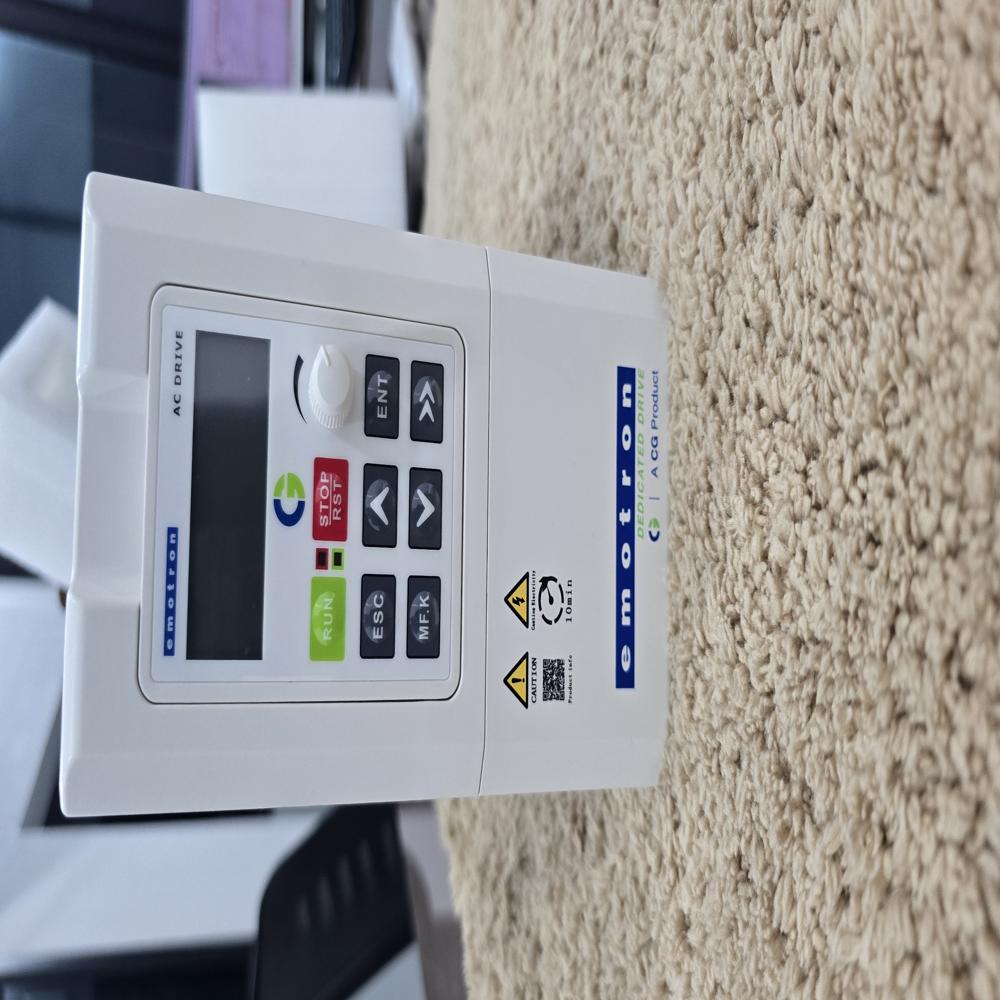

Designed for heavy-duty industrial environments, it operates on a 3-phase grid power supply (380V480V AC). It provides precise speed and torque regulation for both traditional AC induction motors and high-efficiency permanent magnet synchronous motors (PMSM) using advanced sensorless vector control. Like other premium models in this line, it features an integrated graphical LCD display with real-time oscilloscope tracking and built-in PLC logic capabilities. [, 2, 3, 4, 5]

Physical Dimensions (Inches & Pounds)

The VSX48-013 shares an expanded chassis layout with the 5 HP variant, converting to the following imperial metrics: [1]

Weight: 5.51 lbs (2.5 kg)
Height: 7.35 inches (186.6 mm)
Width: 4.59 inches (116.6 mm)
Depth (Thickness): 6.89 inches (175 mm) [1, 3, 4, 5]

Mounting Dimensions

For backplate drilling templates or integration into custom electric panel enclosures:

Mounting Height (H1): 6.95 inches (176.6 mm)
Mounting Width (W1): 4.20 inches (106.6 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm) [1]

Technical Specifications

The electrical parameters and continuous current limits for this 7.5 HP drive include:

Feature [, 2, 3, 5]	Specification
Model Number	VSX48-013-20CEB
Motor Power Rating	5.5 kW / 7.5 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity variance)
Rated Output Current	13.0 Amps continuous
Peak Overload Capacity	150% heavy-duty for 60s / 200% for 1 second
Enclosure Protection	IP20 (Requires clean, moisture-controlled cabinet placement)
Noise Suppression	Integrated C3 Class EMC Filter
Control Logic Interface	High-speed pulse input/output up to 100 kHz
Circuit Protection	Conformal-coated PCBs for dust and moisture resistance

Core Functionality & Applications

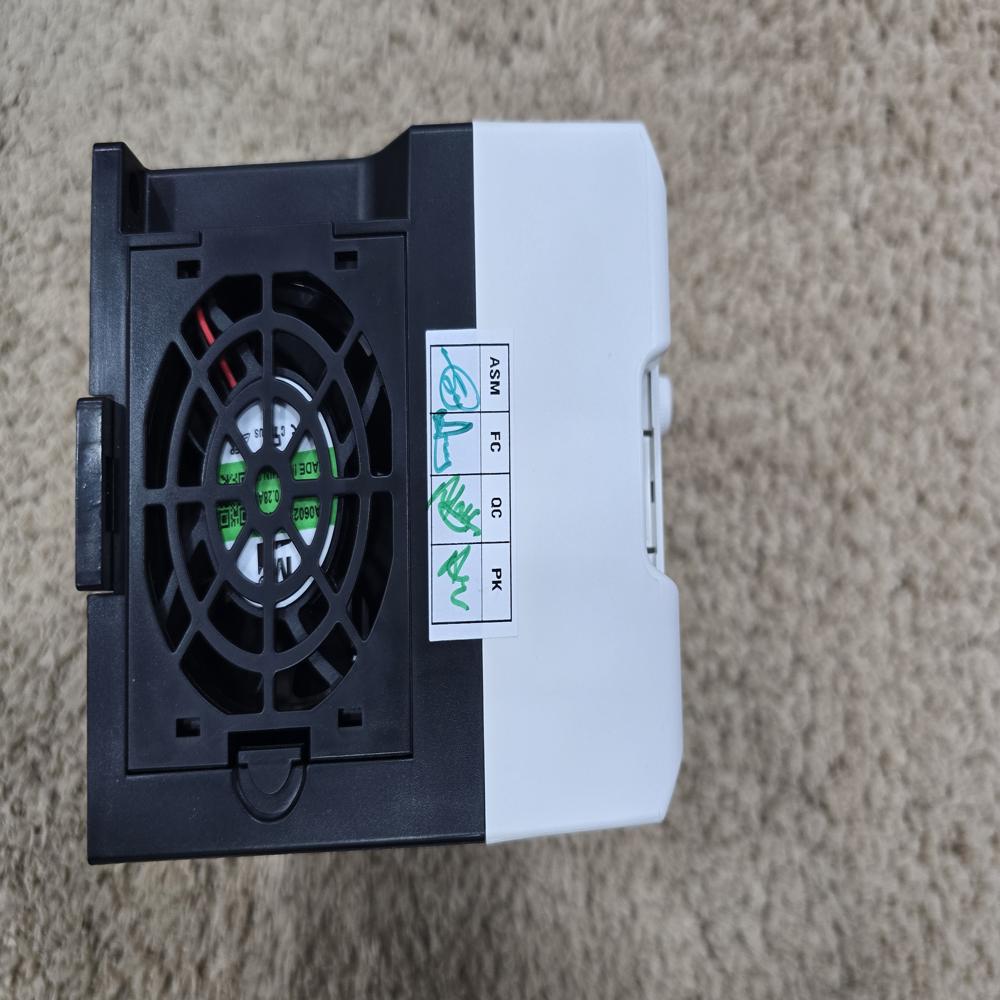

This premium drive utilizes a fully isolated internal air duct design to separate cooling air from sensitive electronic components, extending operational lifetime. It excels in high-torque, precise industrial environments: [, 2]

Heavy Industrial Machinery: High-torque crushers, material extruders, crane hoists, and heavy-duty product feeders.
Fluid & Air Processing: Multi-pump commercial water arrays, industrial cooling towers, high-volume exhaust fans, and localized blowers.
