VSX48-017-20CEB - Crompton VFD - VSX48 - 7.5 kW / 10HP 3-Phase 380-480V

Name: VSX48-017-20CEB - Crompton VFD - VSX48 - 7.5 kW / 10HP 3-Phase 380-480V
Brand: Corbital Enterprise
Price: 23100.0 INR
Availability: InStock

Price 23100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-017-20CEB - Crompton VFD - VSX48 - 7.5 kW / 10HP 3-Phase 380-480V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
3.4 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-017-20CEB - Crompton VFD - VSX48 - 7.5 kW / 10HP 3-Phase 380-480V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-017-20CEB - Crompton VFD - VSX48 - 7.5 kW / 10HP 3-Phase 380-480V

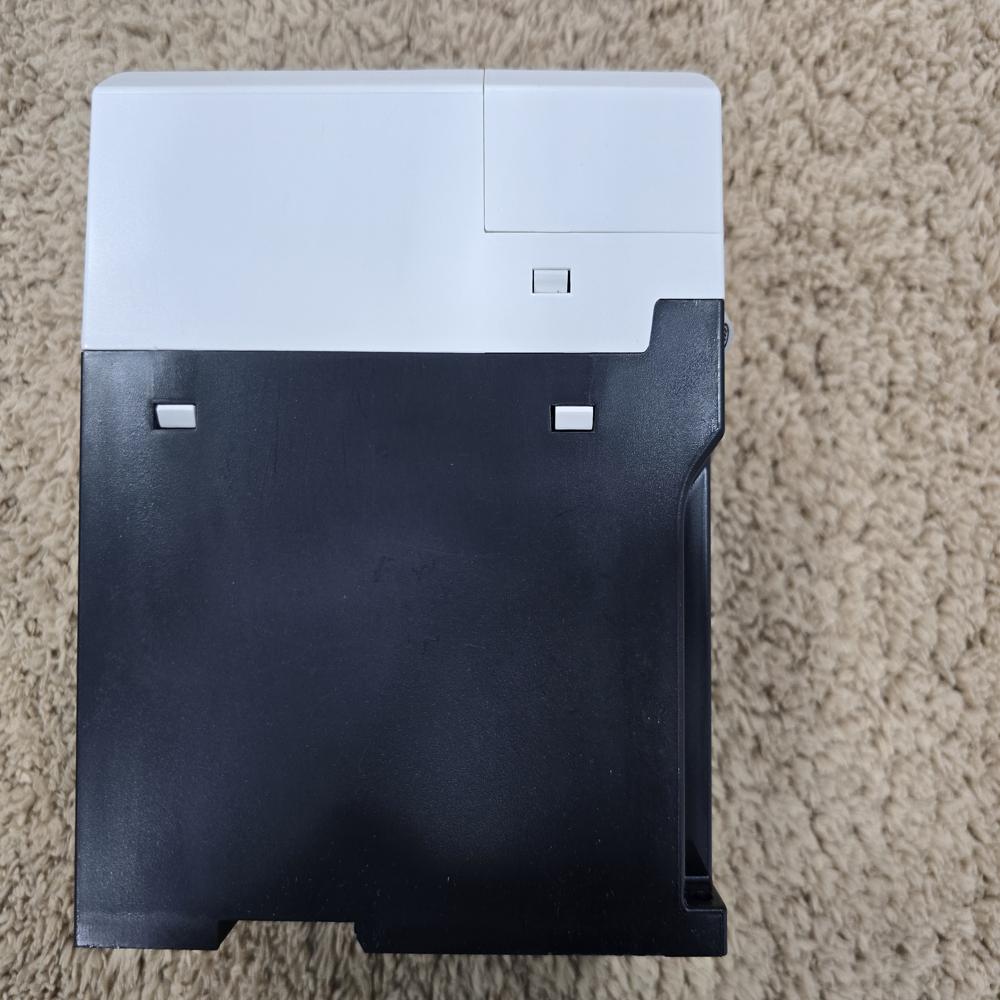

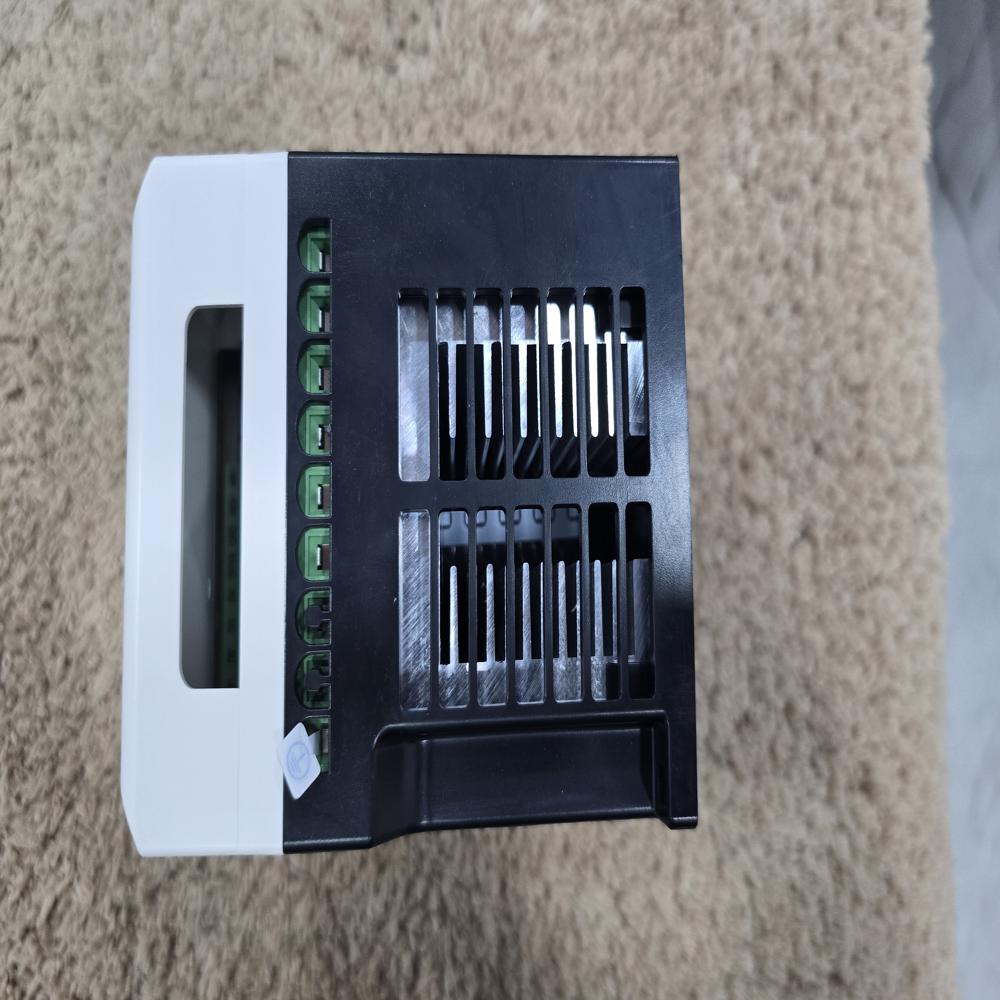

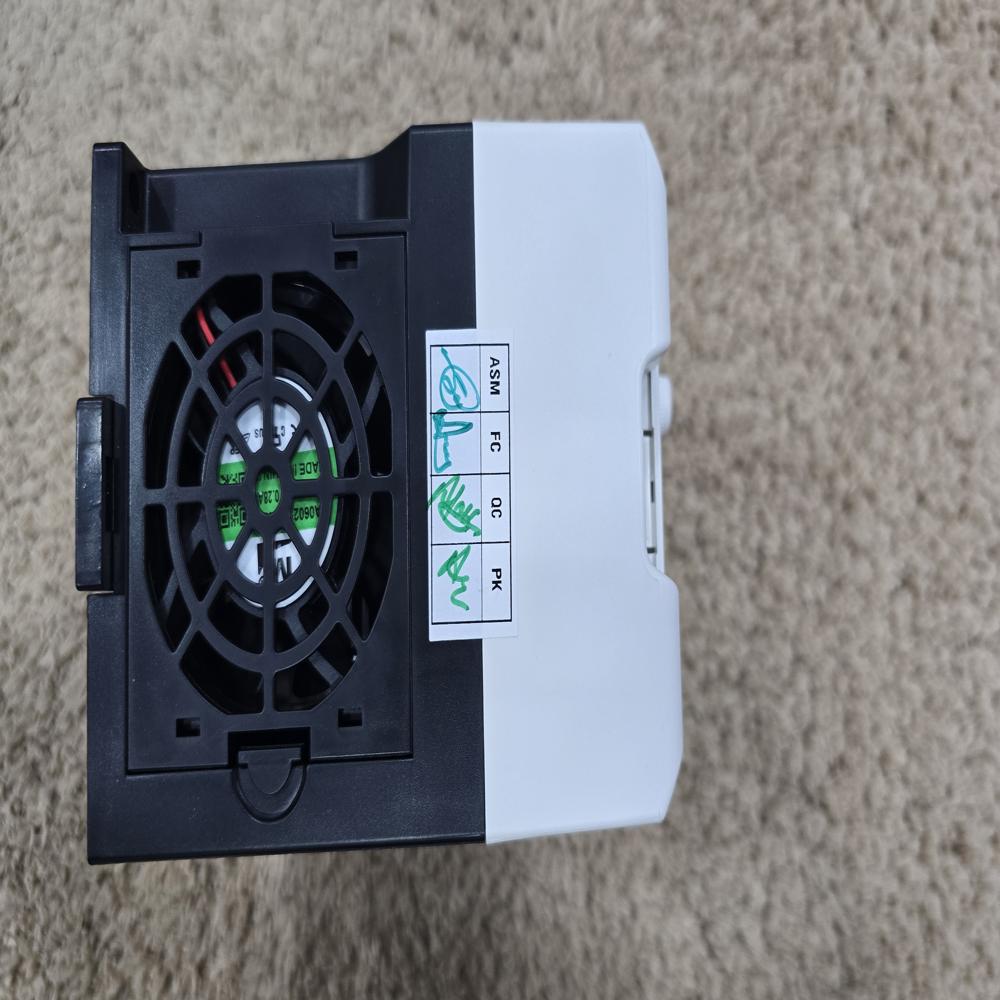

The Crompton Greaves Emotron VSX48-017-20CEB is a premium, high-performance 10 HP (7.5 kW) three-phase Variable Frequency Drive (VFD) from the advanced Emotron VSX series. Engineered for demanding industrial environments, this drive operates on a 3-phase grid or generator power supply (380V480V AC). [1, 2, 3, 4, 5]

It utilizes advanced sensorless vector control to provide precise speed and torque regulation for AC induction motors and permanent magnet synchronous motors (PMSM). A key differentiator for the VSX series is its integrated graphical LCD display with real-time oscilloscope tracking and built-in PLC capabilities. [, 2, 3, 4]

Physical Dimensions (Inches & Pounds)

The physical structural dimensions and weight metrics converted to imperial units for enclosure layout optimization are:

Weight: 7.50 lbs (3.4 kg)
Height: 9.80 inches (249 mm)
Width: 5.75 inches (146 mm)
Depth (Thickness): 7.15 inches (181.7 mm) [1]

Mounting Dimensions

For structural panel mapping or drilling templates within electrical cabinets, use these specific spacing values:

Mounting Height (H1): 9.29 inches (236 mm)
Mounting Width (W1): 5.16 inches (131 mm)
Installation Aperture (Screw Hole Diameter): 0.22 inches (5.5 mm) [1]

Technical Specifications

The electrical parameters and continuous current limits for this 10 HP drive include:

Feature [1, 2, 3, 4, 5]	Specification
Model Number	VSX48-017-20CEB
Motor Power Rating	7.5 kW / 10 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity variance)
Rated Output Current	17.0 Amps continuous
Peak Overload Capacity	150% heavy-duty for 60s / 200% for 1 second
Enclosure Protection	IP20 (Requires clean, moisture-controlled cabinet placement)
Noise Suppression	Integrated C3 Class EMC Filter
Control Logic Interface	Conformal-coated PCBs for dust and moisture resistance

Core Functionality & Applications

This premium series is engineered for high-torque industrial environments, featuring conformal-coated circuit boards and a fully separated air duct design to protect internal electronics from heat, dust, and manufacturing debris. Typical deployments include:

High-Torque Machinery: Crushers, material extruders, crane hoists, and heavy-duty product feeders.
Fluid & Air Processing: Multi-pump commercial water arrays, industrial cooling towers, high-volume exhaust fans, and localized blowers.
