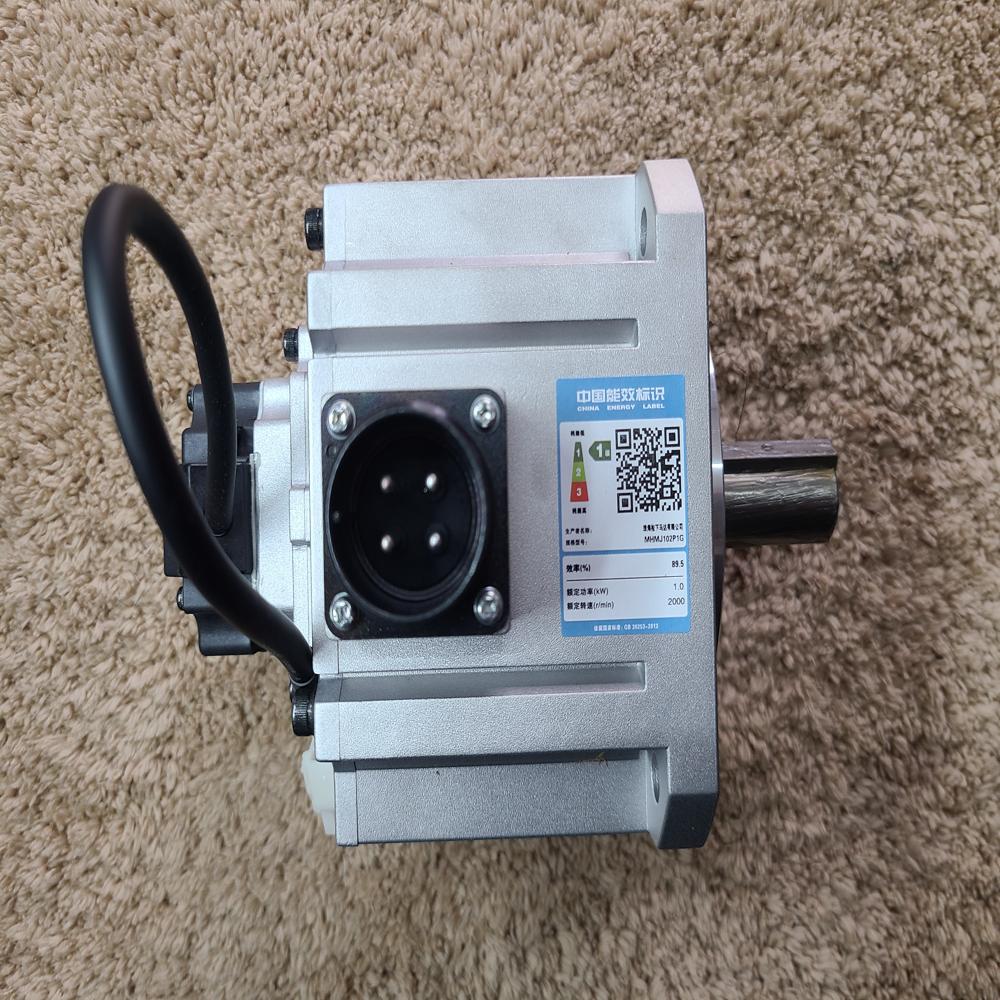

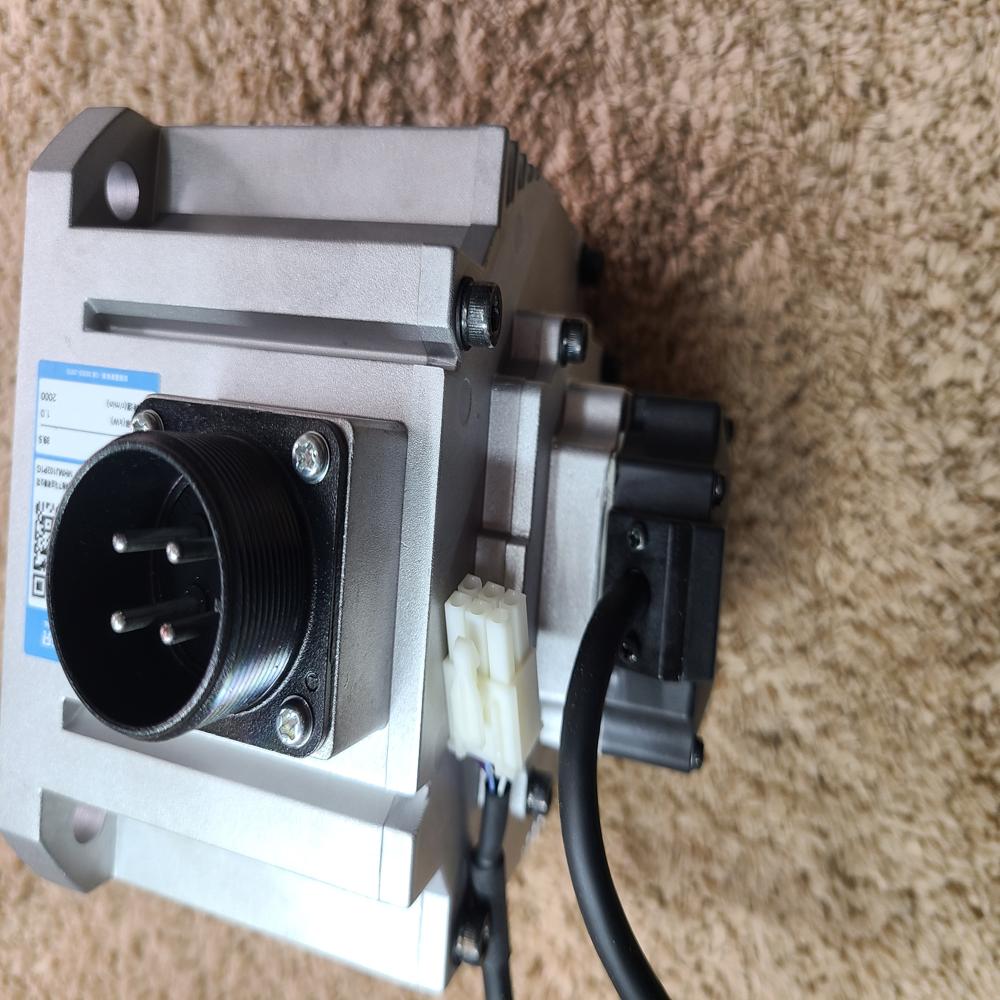

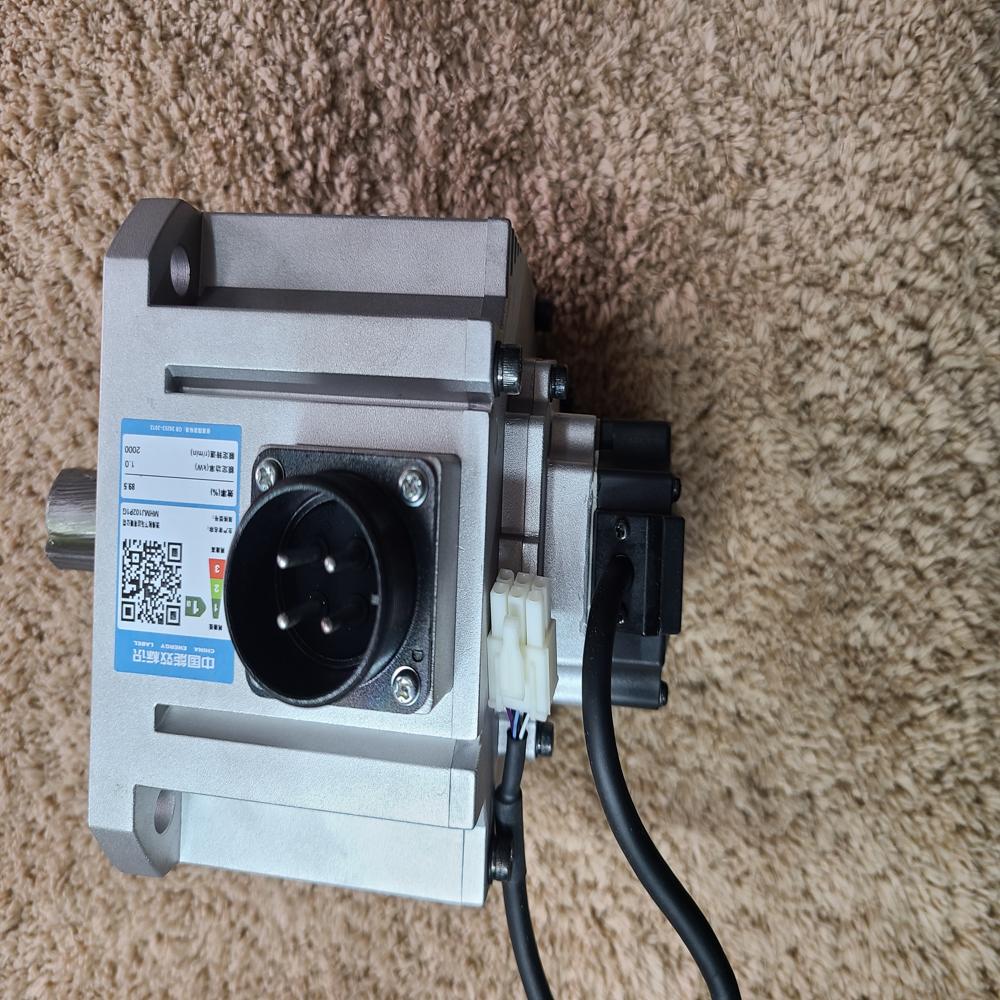

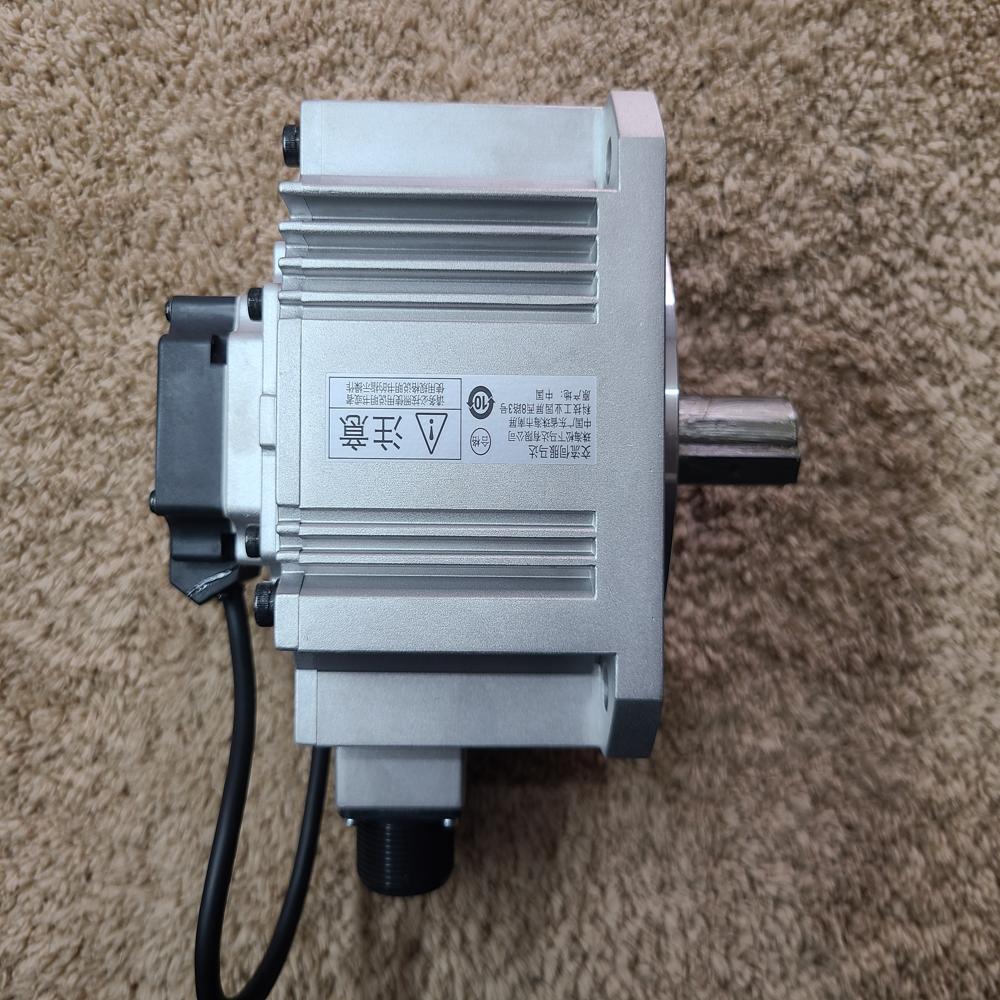

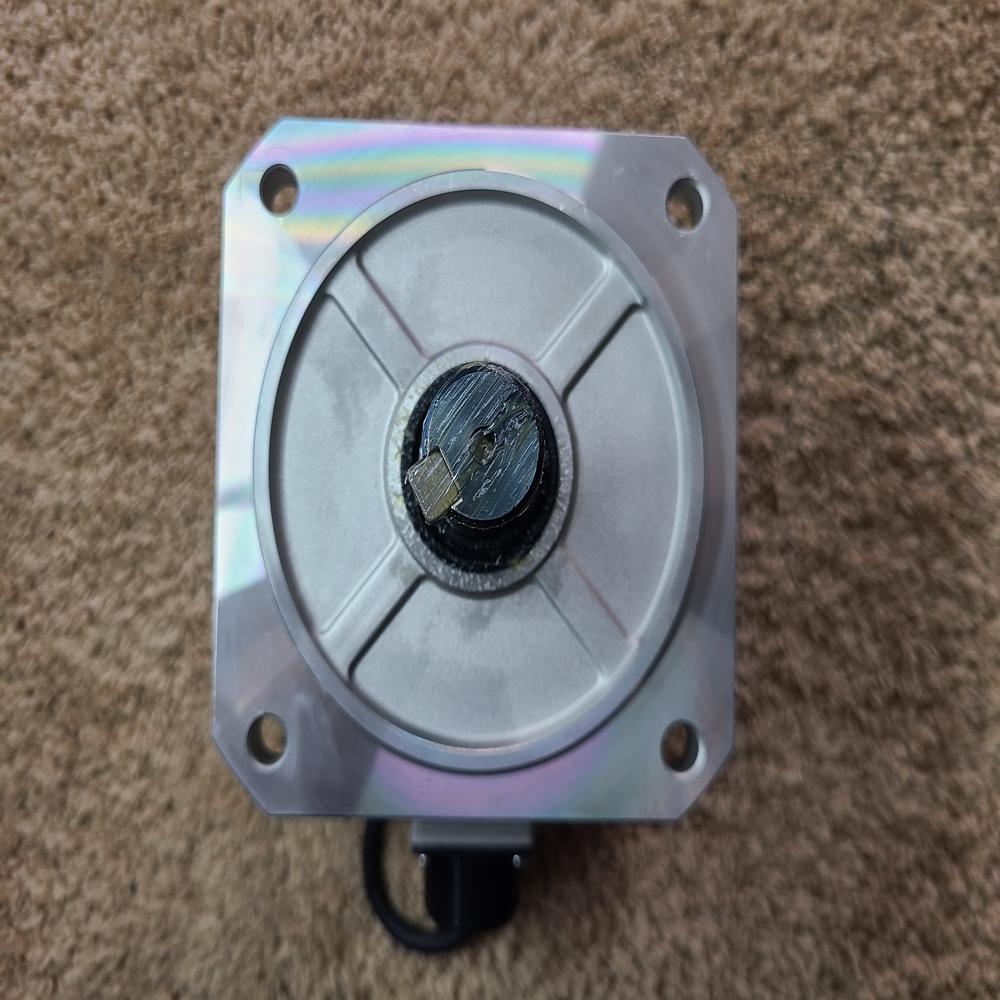

MDME102GCGM Panasonic A5 1KW Motor

Price 27500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDME102GCGM Panasonic A5 1KW Motor Specification

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Black and Silver

MDME102GCGM Panasonic A5 1KW Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDME102GCGM Panasonic A5 1KW Motor

The

Panasonic MDME102GCGM

is a 1 kW (1000 W) AC servo motor from the MINAS A5 series, specifically categorized as a middle-inertia motor. It is designed for high-performance industrial automation, offering a balance between acceleration capability and load handling.

Technical Specifications

Power Output: 1000 W (1 kW)
Rated Torque: 4.77 Nm
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Voltage: 200 V (1-Phase/3-Phase)
Encoder: 20-bit Incremental (1,048,576 pulses/rev)
Brake Status: Without Holding Brake
Protection Class: IP65 (dust-tight and water-jet resistant)

MGME092GCGM Panasonic A5 900W Motor

The

Panasonic MGME092GCGM

is a 900W AC servo motor from the MINAS A5 series, designed for precision position control in industrial automation. It is a middle-inertia motor that offers a balance between torque and speed for small-to-medium drive systems.

Key Specifications

According to the manufacturer's data provided by IndustryBuying and IndiaMart:

Power Output: 900 W
Rated Torque: 8.59 Nm
Rated Speed: 1000 RPM
Maximum Speed: 2000 RPM
Input Voltage: 200 V (1-Phase/3-Phase)
Inertia Type: Middle Inertia
Brake Status: Without Brake (Standard for this specific model number)
Protection Class: IP65
Frame Size: 130 mm

Performance Features

Auto-Gain Tuning: Features real-time auto-gain tuning for adjustment-free operation, allowing it to handle varied load conditions automatically.
Vibration Suppression: Includes built-in notch and adaptive filters to detect and suppress machine resonance and vibration.
Compact Design: This series evolved to be roughly 47% smaller than previous generations like the MUDS series, saving significant cabinet space.

Purchase Options

The motor is currently available through several industrial retailers:

Panasonic MGME092GCGM A5 Series Servo Motor
: Available at IndustryBuying for ~~47,199~~ 46,999 with coupon code NEW100.
Panasonic MGME092GCGM A5/LIQI Series Servo Motor

Dimensions and Weight (Imperial)

The motor utilizes a standard 130 mm frame size. The following values are converted from metric specifications:

Weight: ~11.77 lbs (5.34 kg)
Length (Excluding Shaft): ~5.71 inches (145 mm)
Width (Frame Size): ~5.12 inches (130 mm)
Height (Frame Size): ~5.12 inches (130 mm)
Shaft Diameter: ~0.87 inches (22 mm)

Core Functions

This motor serves as a primary drive component in systems where high torque-to-inertia ratios are critical:

Dynamic Response: Its middle-inertia design allows for smoother control of larger loads without losing the ability to accelerate or decelerate quickly.
High-Resolution Monitoring: Equipped with a 20-bit incremental encoder, it provides 1,048,576 pulses per revolution for pinpoint accuracy in positioning.
Environmental Protection: With an IP65 rating, it is protected against dust and low-pressure water jets, making it suitable for harsh factory environments.
Notch & Adaptive Filtering: When used with an A5 series driver, it can automatically detect and suppress mechanical resonance and vibrations during operation.

Technical Specifications

Detailed specifications from IndustryBuying and Panasonic Industry:

Feature	Specification
Rated Output	1000 W (1 kW)
Rated Torque	4.77 Nm
Rated Rotational Speed	2000 RPM
Max Rotational Speed	3000 RPM
Input Voltage	200 V (1-Phase/3-Phase)
Rated Current (rms)	5.7 A
Moment of Inertia	4.60 kgm
Shaft Type	Key-way
Brake Status	Without Holding Brake
Flange Size	130 mm sq.
Mass (Weight)	~11.46 lbs (5.2 kg)
