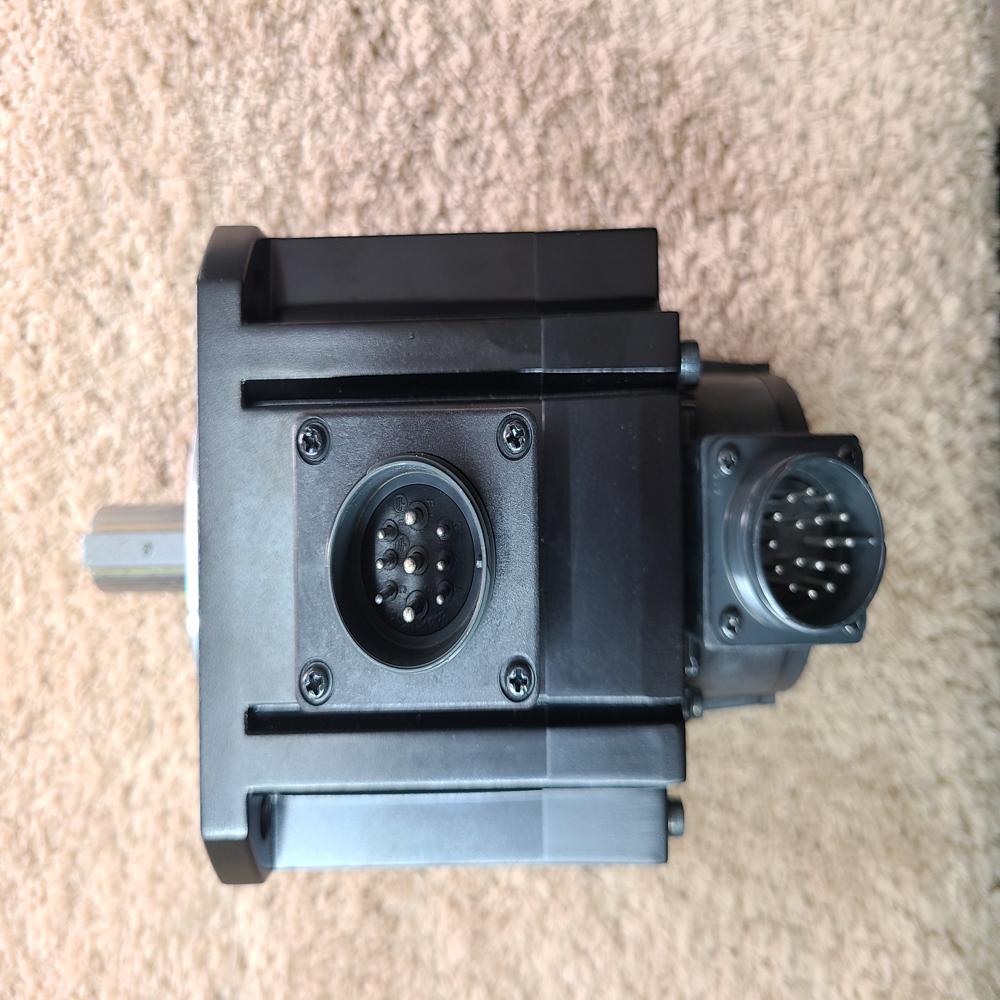

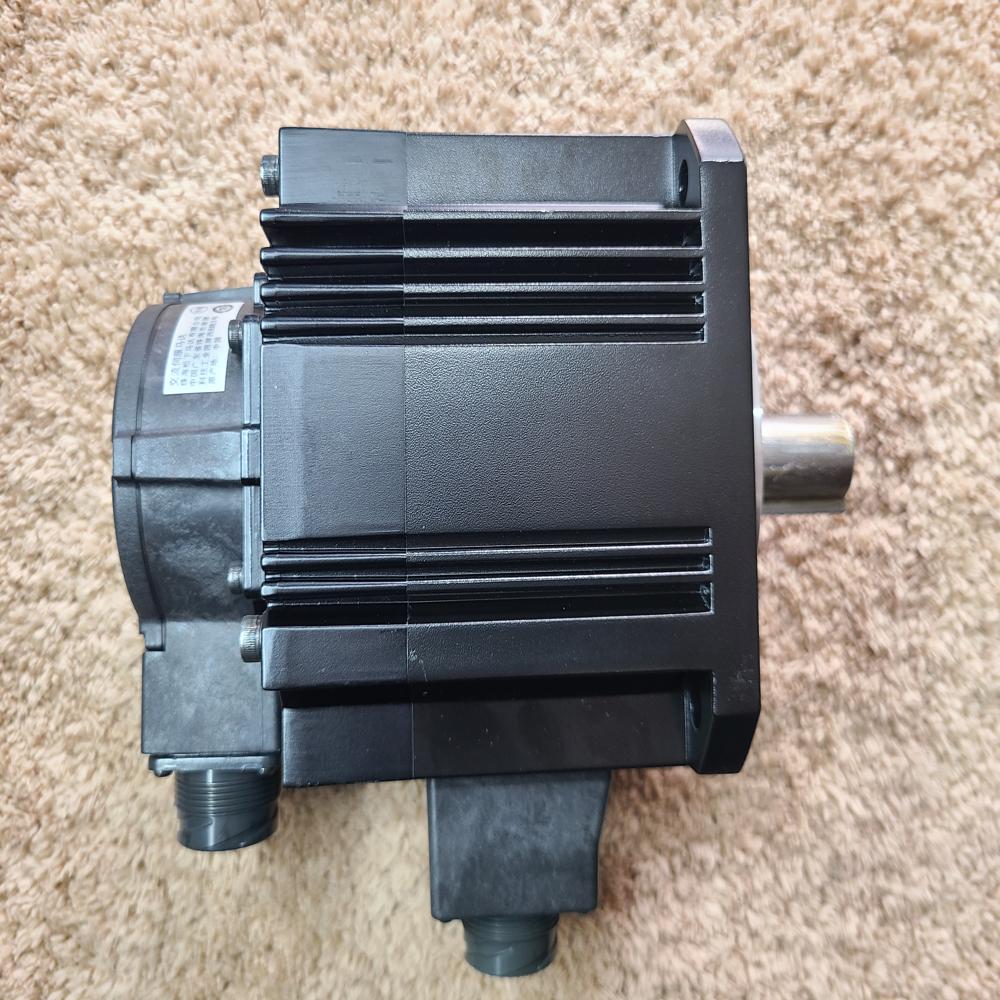

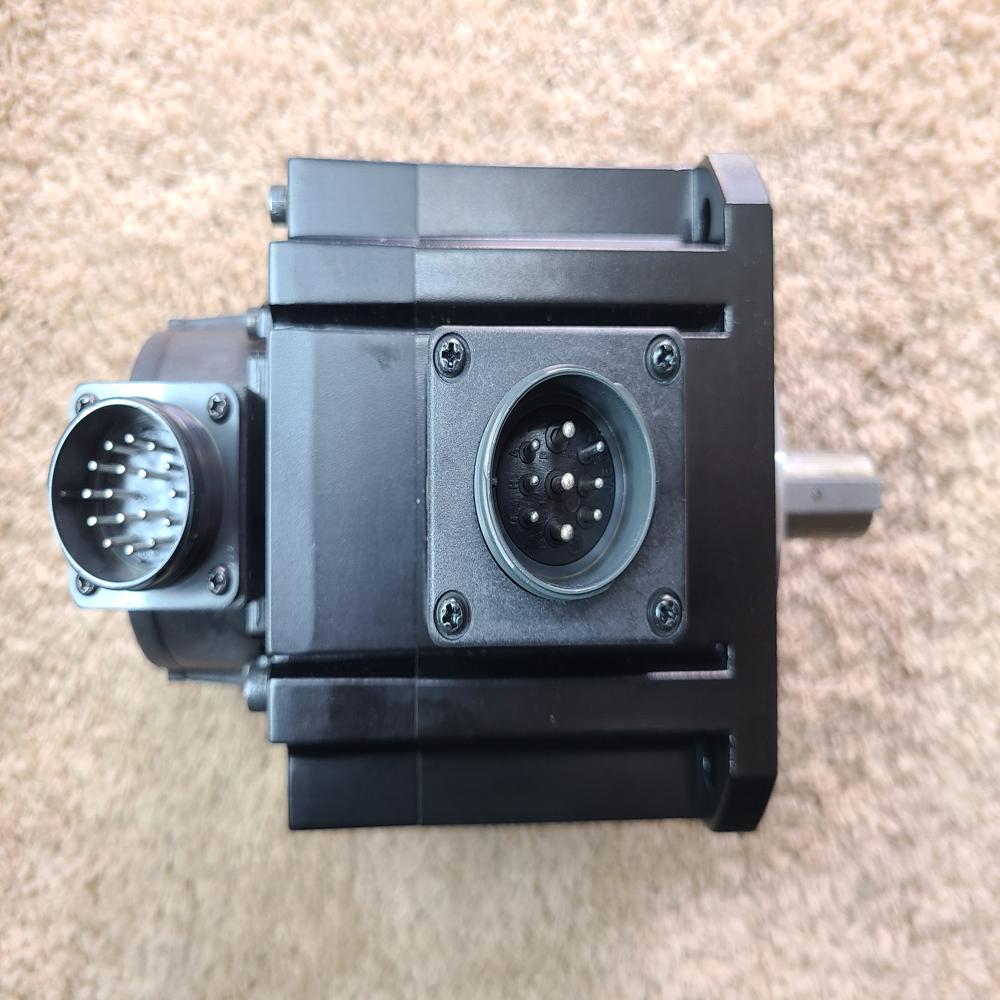

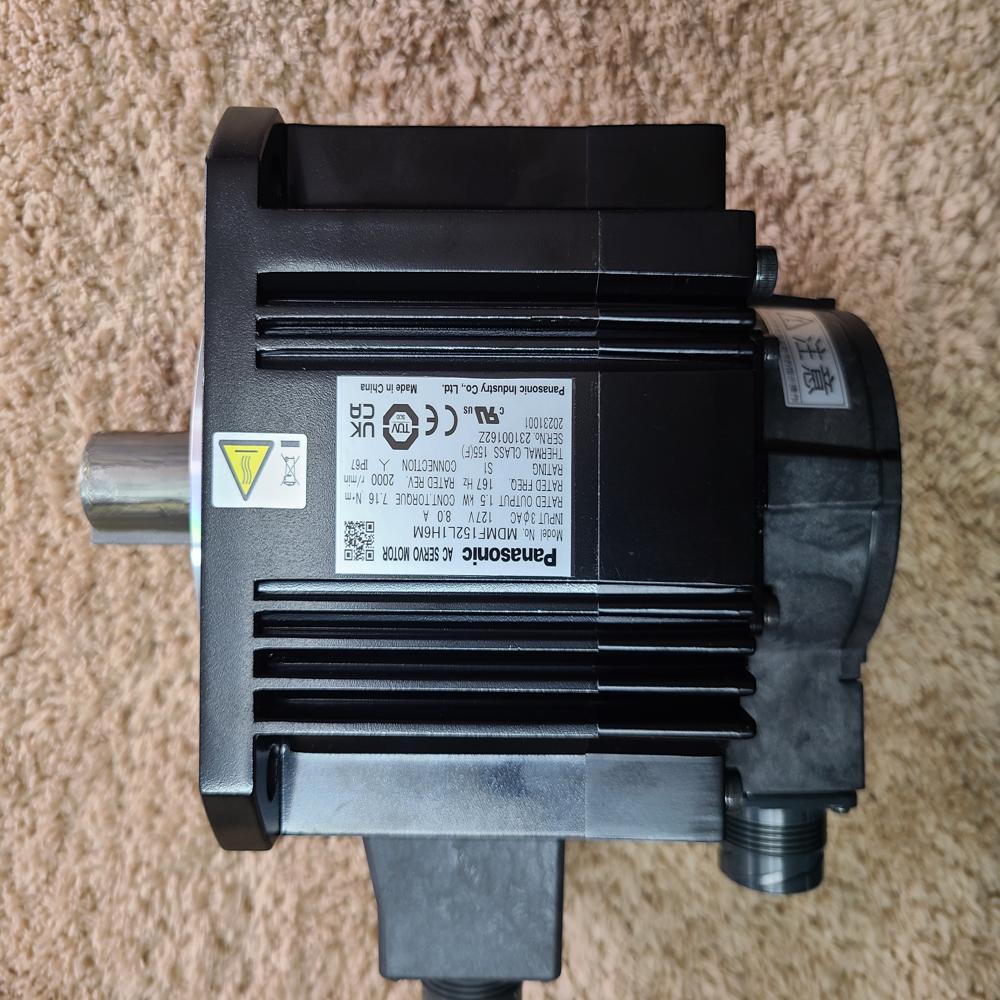

MGMF292L1H6M Torque Nm - 18.5, Fram Size- 176mm , RPM - 3000 + BRK

Price 91000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MGMF292L1H6M Torque Nm - 18.5, Fram Size- 176mm , RPM - 3000 + BRK Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MGMF292L1H6M Torque Nm - 18.5, Fram Size- 176mm , RPM - 3000 + BRK Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MGMF292L1H6M Torque Nm - 18.5, Fram Size- 176mm , RPM - 3000 + BRK

The Panasonic MINAS A6 MGMF292L1H6M is a high-torque 2.9 kW (2900 W) middle inertia AC servo motor. It is the most powerful model in the 176 mm frame size family, providing massive torque and high speed with an integrated safety brake.

Core Technical Specifications

Rated Output: 2900 W (2.9 kW).
Rated Torque: 18.5 Nm.
Peak Torque: 55.5 Nm.
Rated Speed: 1500 r/min.
Maximum Speed: 3000 r/min.
Rated Current: 17.5 A (rms).
Voltage: 200 V AC.

Physical Dimensions & Weight (Imperial Units)

Weight: Approximately 45.4 lbs (20.6 kg).

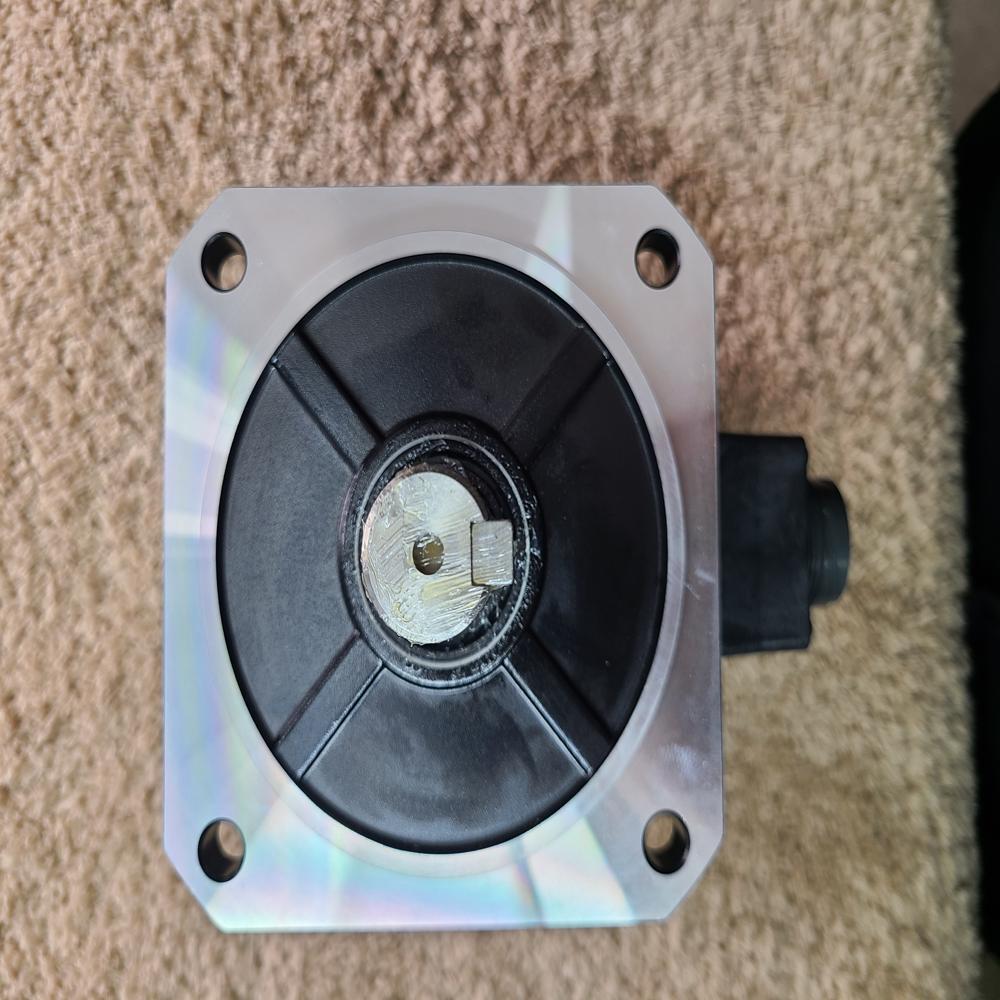

Width & Height (Flange): 6.93 inches (176 mm square).
Total Length:
- Body Length (with Brake): ~9.25 inches (235 mm).
- Total Length (Body + Shaft): ~12.36 inches (314 mm).
Shaft Diameter: 1.38 inches (35 mm).

Function & Features

Integrated Safety Brake: The built-in electromagnetic brake provides 24.5 Nm or higher of static friction torque. Its primary function is to hold the load in place during a power loss or emergency stop, which is critical for vertical (Z-axis) safety.
Middle Inertia Stabilization: The rotor design (63.3 x 10 kgm) acts as a mechanical damper, providing high stability and reducing vibration for heavy or fluctuating loads.
23-bit Absolute Encoder: Offers surgical precision with 8,388,608 pulses per revolution and remembers its position without a battery.
Environmental Protection: IP67 rated, making it completely dust-tight and resistant to high-pressure water/oil spray.

The Panasonic MGMF292L1H6M functions as an Ultra-High Power Safety Actuator. It is the "top-of-the-line" model for the 176 mm frame size, providing the maximum torque (18.5 Nm) available before moving to the massive 220 mm motors.

1. High-Load Mechanical Locking (The Brake)

The primary function of the "H" model is to act as a fail-safe.

Static Safety Lock: It provides a holding torque of 24.5 Nm. Because this is significantly higher than the motor's rated torque (18.5 Nm), it can easily hold the weight of a heavy machine gantry or a large robotic arm indefinitely without power.
Emergency Brake: On vertical (Z-axis) axes, it functions to instantly lock the shaft the moment power is cut, preventing a "free-fall" that could destroy expensive tooling or cause injury.

2. Maximum Torque in a Compact Frame

18.5 Nm Continuous Torque: It functions to move heavy mechanical assemblies at high speeds (up to 3000 RPM). It is designed for applications where you need the strength of a large motor but have limited space in the machine frame.
55.5 Nm Peak "Punch": It can provide a 3x torque burst for rapid accelerations, allowing a heavy machine to reach full speed almost instantly.

3. Precision Tracking & Position Memory

23-bit "Microscopic" Feedback: Despite its 45.4 lb weight, it functions with incredible precision, monitoring 8,388,608 unique points per revolution. This allows a 2.9 kW machine to perform cuts or placements with micron-level accuracy.
Absolute Tracking: It functions as a digital memory. It remembers exactly where the machine was when it was turned off, so you never have to "home" the machine at the start of a shift.

4. Stability for Shifting Loads (Middle Inertia)

Vibration Cancellation: Because it is a Middle Inertia type, the rotor has enough mass to act as a mechanical stabilizer. It functions to prevent the machine from "shaking" or becoming unstable when moving loads with high friction or varying weight.

5. Rugged Industrial Build

IP67 Sealing: It is designed to function in the "danger zones" of a factory. It is fully protected against metallic dust and can be sprayed with high-pressure oils or coolants without failing.
35mm Shaft: The shaft is extra thick to handle the 55.5 Nm peak torque without twisting or snapping under heavy stress.
