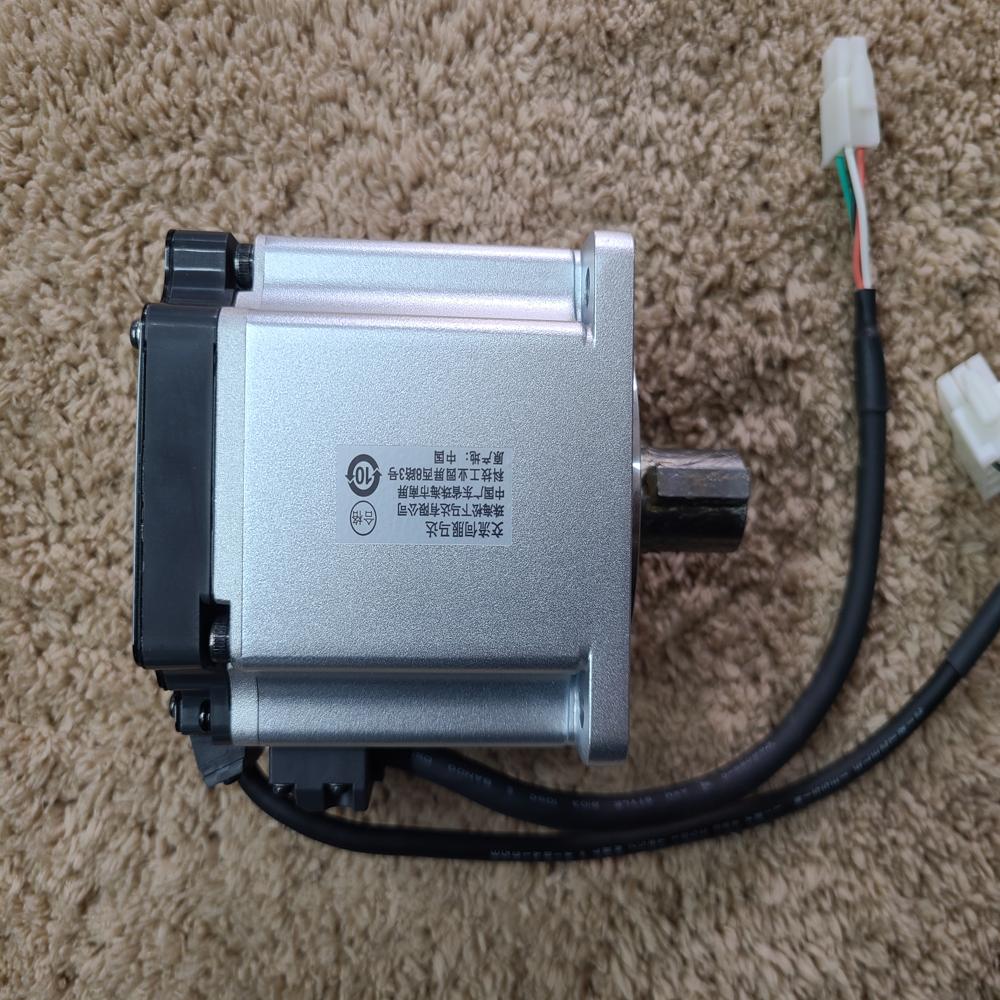

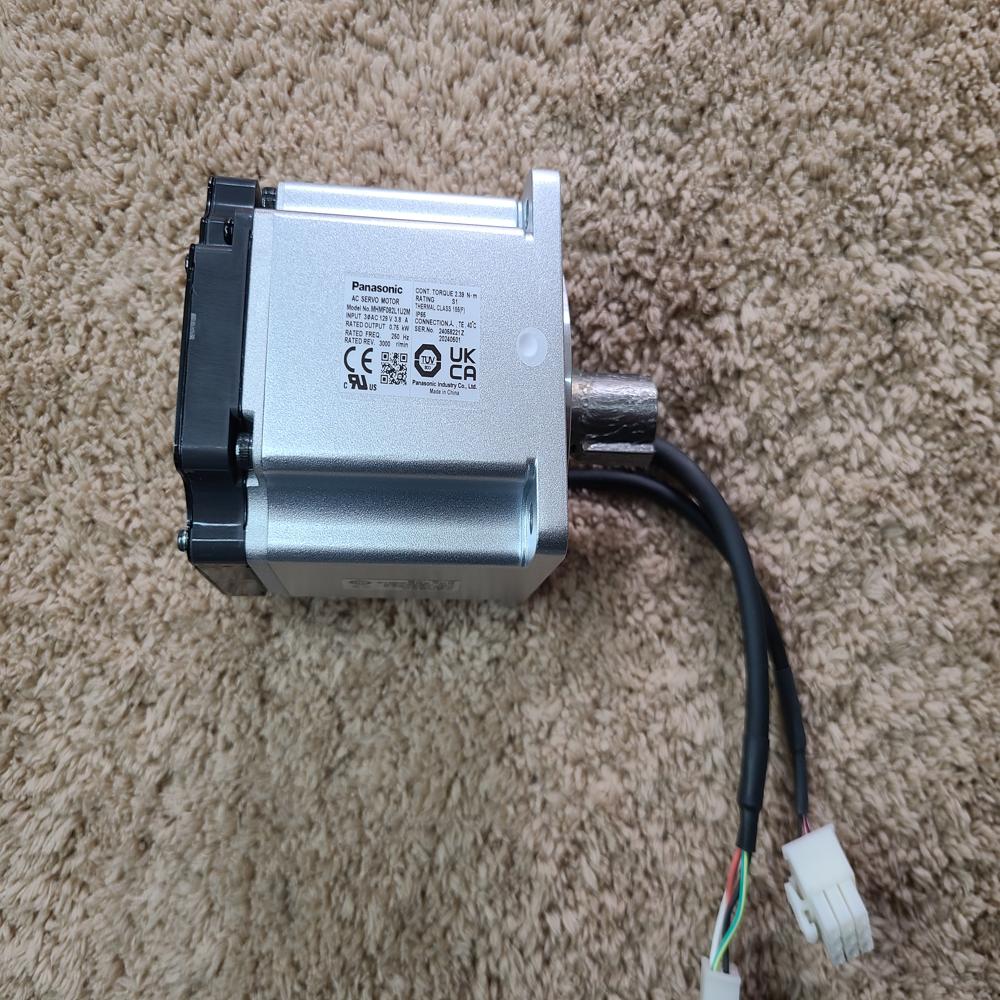

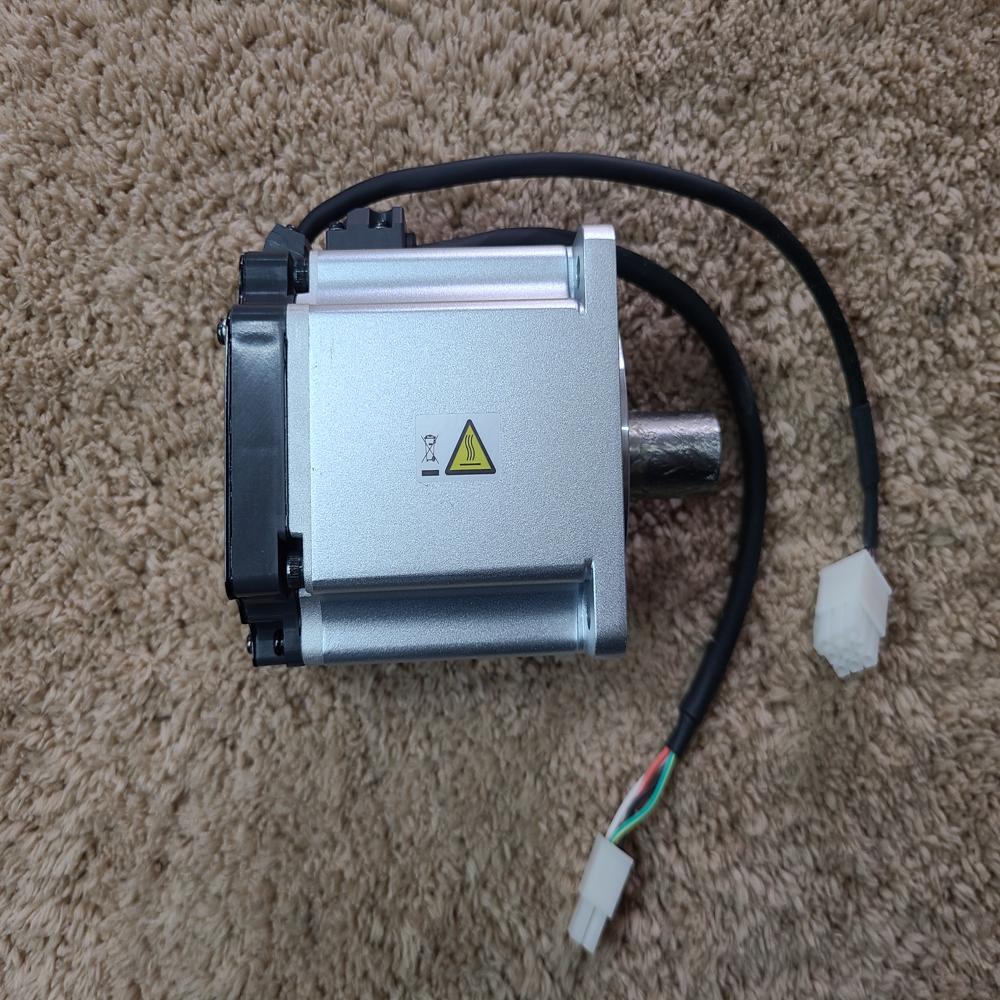

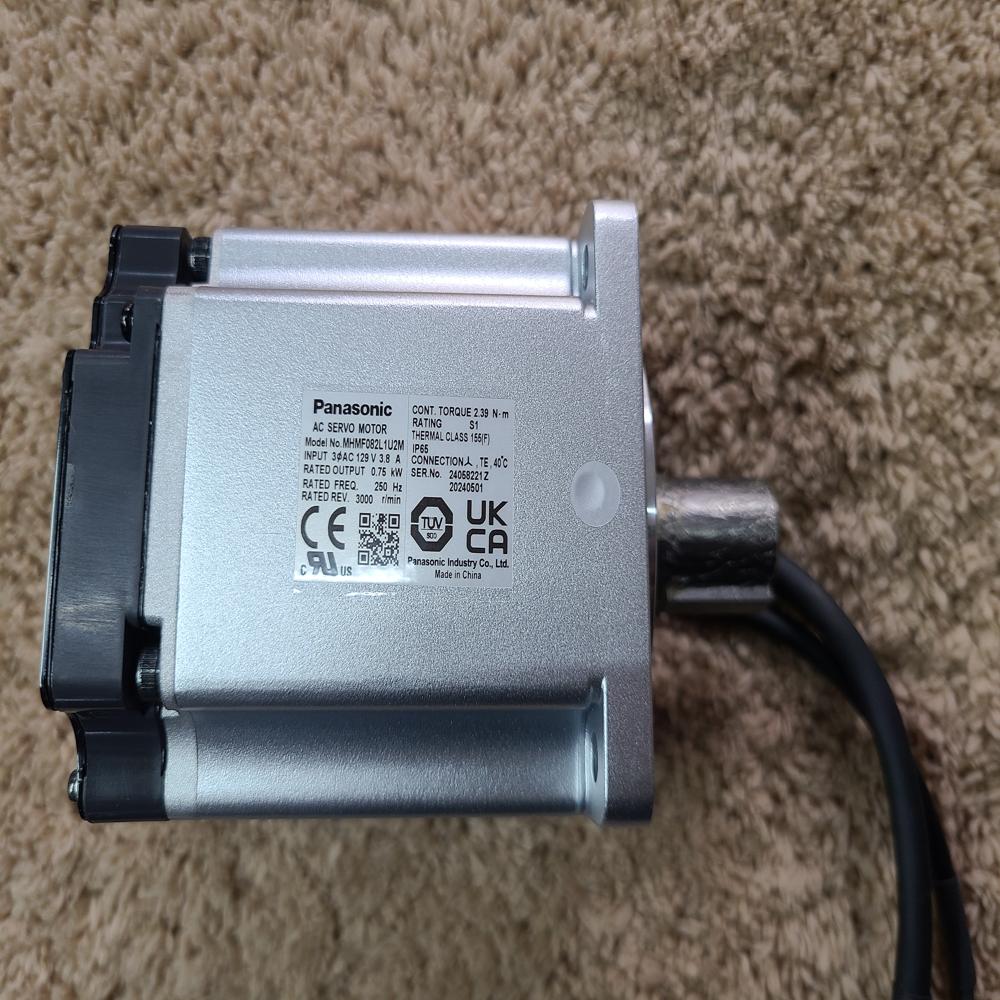

MHMD082G1V - Panasonic Servo A5 Break Motor

Name: MHMD082G1V - Panasonic Servo A5 Break Motor
Brand: Corbital Enterprise
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MHMD082G1V - Panasonic Servo A5 Break Motor Specification

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
3.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MHMD082G1V - Panasonic Servo A5 Break Motor Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MHMD082G1V - Panasonic Servo A5 Break Motor

The MHMD082G1V is a 750-watt, high-inertia AC Servo Motor from the Panasonic MINAS A5 family. It is identical in power and precision to the "G1U" model, but it includes a built-in electromagnetic holding brake, making it specifically designed for vertical axes or safety-critical movements.

Product Details:Permissible load ItemSpecifications

During assembly: Radial load P-direction (N)	686
During assembly: Thrust load A-direction (N)	294
During assembly: Thrust load B-direction (N)	392
During operation: Radial load P-direction (N)	392
During operation: Thrust load A, B-direction (N)	147

Part Number	MHMD082G1U
Product	Servo Motor
Product name	MINAS A5 Family Servo Motor
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Rated rotational Max. speed (r/min)	4500
Moment of inertia of rotor ( x10-4 kg m)	1.51
Recommended moment of inertia ratio of the load and the rotor	20 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576

Core Specifications

Feature	Specification
Power Output	750 Watts (0.75 kW)
Rated Speed	3000 RPM (Max 4500 RPM)
Rated Torque	2.39 Nm (Peak 7.16 Nm)
Encoder Type	20-bit Incremental (1,048,576 pulses/rev)
Frame Size	80 mm Square (C-Frame)
Brake	With electromagnetic holding brake

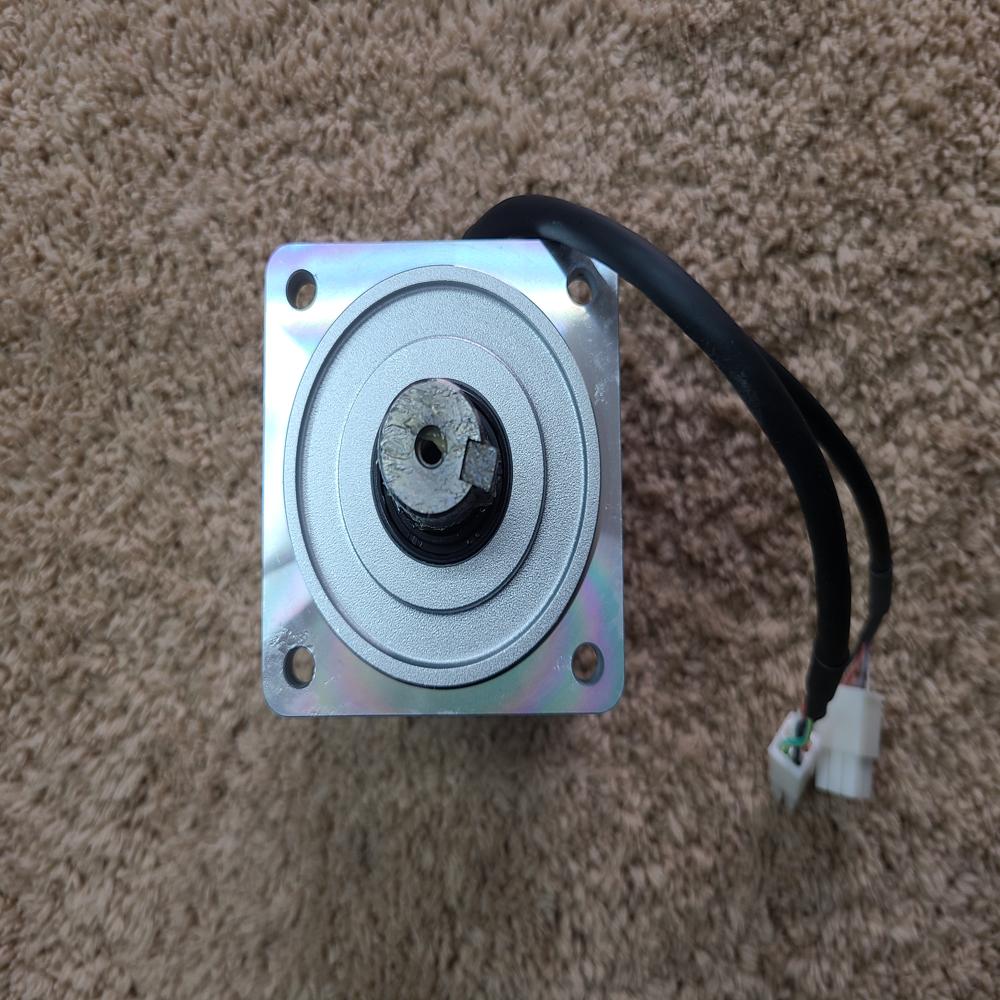

Shaft Design	19 mm diameter with Keyway and Oil Seal

Dimensions & Weight (in Inches)

Because of the added brake, this motor is significantly longer and heavier than the non-brake version.

Metric	Inches (approx.)	Millimeters
Height/Width (Frame)	3.15"	80 mm
Body Length	5.83"	148 mm
Shaft Diameter	0.748"	19 mm
Shaft Length	1.378"	35 mm
Net Weight	7.72 lbs	3.5 kg

Primary Function

Fail-Safe Locking: The internal brake is a "power-off" type; it automatically locks the shaft when the 24V power is removed. This prevents Z-axis (vertical) tools or robotic arms from falling due to gravity during a power failure or emergency stop.
High-Inertia Load Management: Built to drive large mechanical loads (such as heavy CNC tables or large lead screws) with high stability and zero "shaking" during rapid stops.
Advanced Precision: The 20-bit encoder provides over 1 million points of resolution per turn, ensuring microscopic accuracy in high-end industrial automation.

High-Performance in Industrial Applications

The Panasonic Servo A5 Break Motor is crafted to meet rigorous demands in industrial machinery. Its lightweight aluminum build and versatile functionalities ensure seamless integration and dependable results across various sectors.

Efficient and Durable Construction

Combining a robust aluminum material with a three-phase power setup, the MHMD082G1V promises long-lasting durability and operational stability. Its compact design helps save space while delivering optimal motor performance.

Comprehensive Warranty Support

Purchasing the MHMD082G1V comes with the peace of mind of a one-year warranty. Whether acquired through a supplier, trader, or wholesaler, buyers can trust in comprehensive after-sales support for hassle-free operation.

FAQ's of MHMD082G1V - Panasonic Servo A5 Break Motor:

Q: How is the MHMD082G1V Panasonic Servo A5 Break Motor most commonly used in industrial settings?

A: This servo motor is primarily used in industrial machinery where precision and reliability are paramount, such as in automation, packaging, and robotics, ensuring smooth and efficient operation.

Q: What benefits does the aluminum construction of the MHMD082G1V motor provide?

A: Aluminum construction offers the advantages of being lightweight yet durable, improving heat dissipation and corrosion resistance, which contributes to longer operational life and lower maintenance requirements.

Q: When should I consider replacing my current industrial motor with the Panasonic Servo A5 Break Motor?

A: Consider upgrading when your current motor fails to deliver consistent performance, exhibits frequent breakdowns, or lacks modern efficiency standards that the MHMD082G1V offers.

Q: Where can I purchase the MHMD082G1V Panasonic Servo A5 Break Motor?

A: This motor is available through authorized suppliers, traders, and wholesalers who specialize in industrial automation components. Ensure you are dealing with recognized distributors for genuine products.

Q: What is the process for claiming the 1-year warranty on the Panasonic Servo A5 Break Motor?

A: Should you need to claim the warranty, contact your supplier or wholesaler with proof of purchase and details of the issue. They will guide you through the assessment and replacement or repair process.

Q: How does the three-phase operation of the MHMD082G1V enhance its performance?

A: Three-phase operation allows for smoother, more efficient power delivery, leading to higher torque, reduced vibration, and longer motor life, which is critical in demanding industrial applications.

Q: What are the key usage and application advantages of installing the MHMD082G1V motor?

A: Besides reliability and durability, the MHMD082G1V enhances automation precision, reduces downtime, and is adaptable to numerous machinery types, providing significant operational flexibility for industrial environments.
