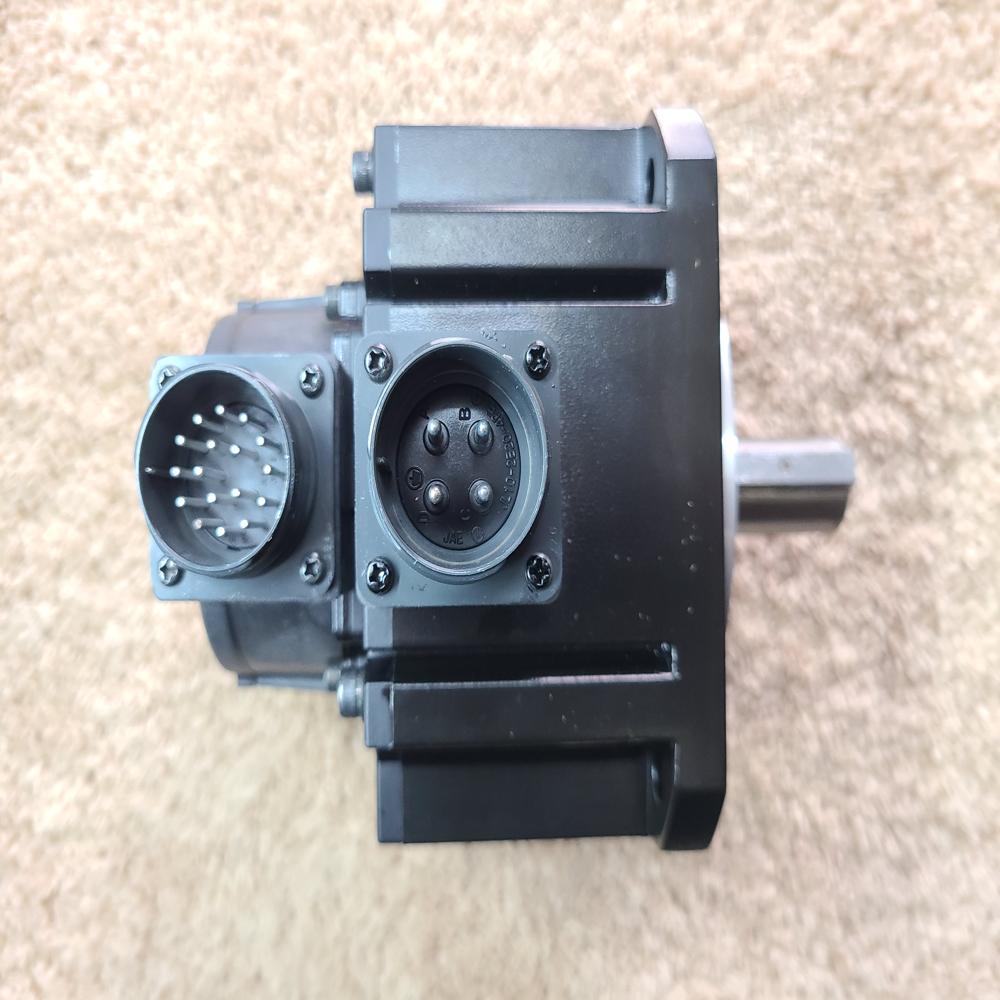

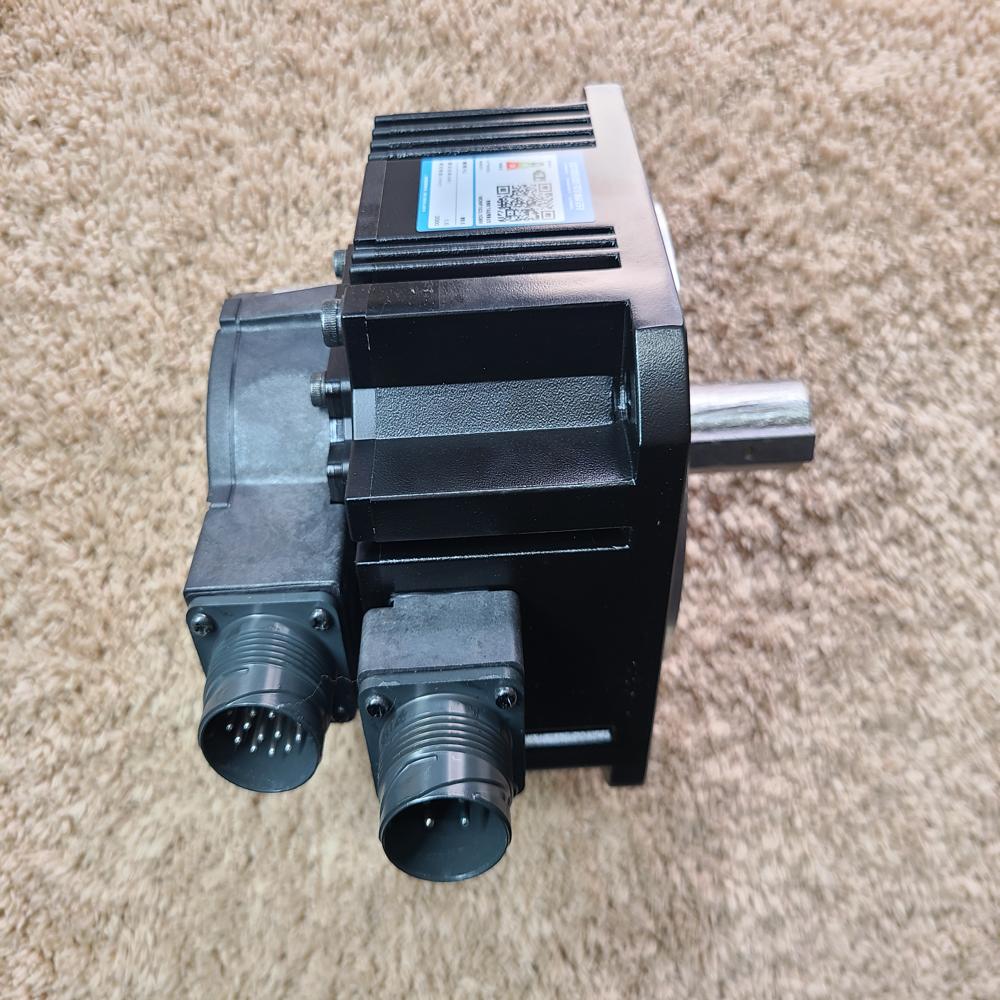

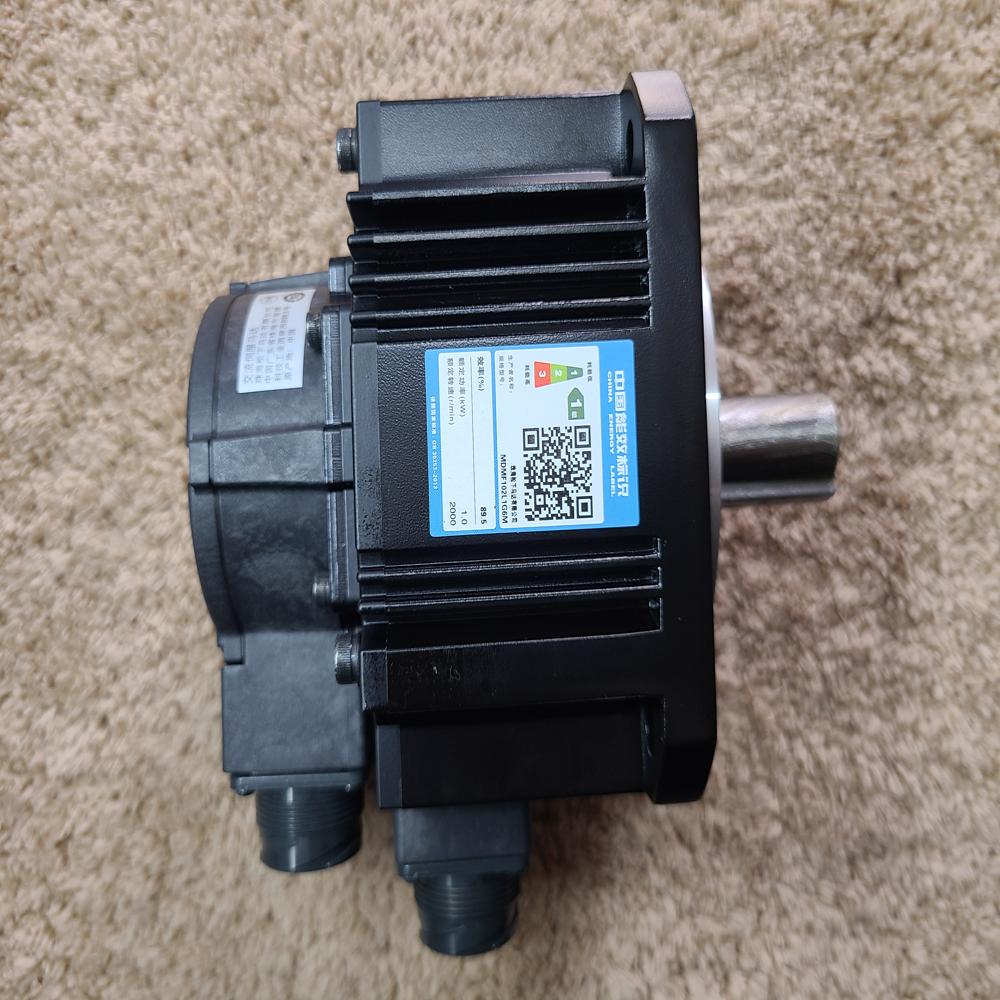

MSMF102L1G6M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000

Name: MSMF102L1G6M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000
Brand: Corbital Enterprise
Price: 49000.0 INR
Availability: InStock

Price 49000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF102L1G6M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
3 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MSMF102L1G6M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF102L1G6M Panasonic A6 1000W Motor , Torque Nm - 3.18, RPM - 3000

Technical Specifications

According to official technical data from Panasonic Industry and distributors like Industrybuying, the motor features the following specs:

Feature [1, 2, 3, 4, 5]	Specification
Model	MSMF102L1G6M
Rated Output	1000 W (1.0 kW)
Rated Torque	3.18 Nm
Peak Stall Torque	9.55 Nm
Rated Speed	3000 RPM
Max Speed	6500 RPM
Voltage	200 V
Inertia Type	Low Inertia
Encoder	23-bit (8,388,608 pulses/rev) Absolute/Incremental
Brake	Without holding brake
IP Rating	IP67 (dust-tight and water-immersion resistant)

Key Characteristics

High Precision: Equipped with a 23-bit high-resolution encoder as standard, allowing for extremely smooth motion and precise positioning.
Low Inertia: Specifically balanced for high-speed response and rapid acceleration/deceleration, making it ideal for packaging or pick-and-place machinery.
Compact Design: The A6 series is significantly smaller and lighter than previous generations, with this unit weighing approximately 3 kg. [1, 2, 3, 4, 5, 6]

The Panasonic MSMF102L1G6M is a high-performance AC servo motor designed for precise motion control in industrial machinery. Its primary function is to convert electrical energy into accurate mechanical rotation for applications requiring rapid acceleration and high-speed response, such as automated assembly lines, packaging machines, and semiconductor manufacturing equipment.

Physical Specifications

The motor has a compact "Low Inertia" design. While official technical data from Panasonic Industry is typically provided in metric units (mm and kg), the approximate converted dimensions in inches and pounds are as follows:

Weight: Approximately 6.61 lbs (3.0 kg).
Length: 6.89 inches (175 mm) from the flange face to the back of the motor, excluding the shaft.

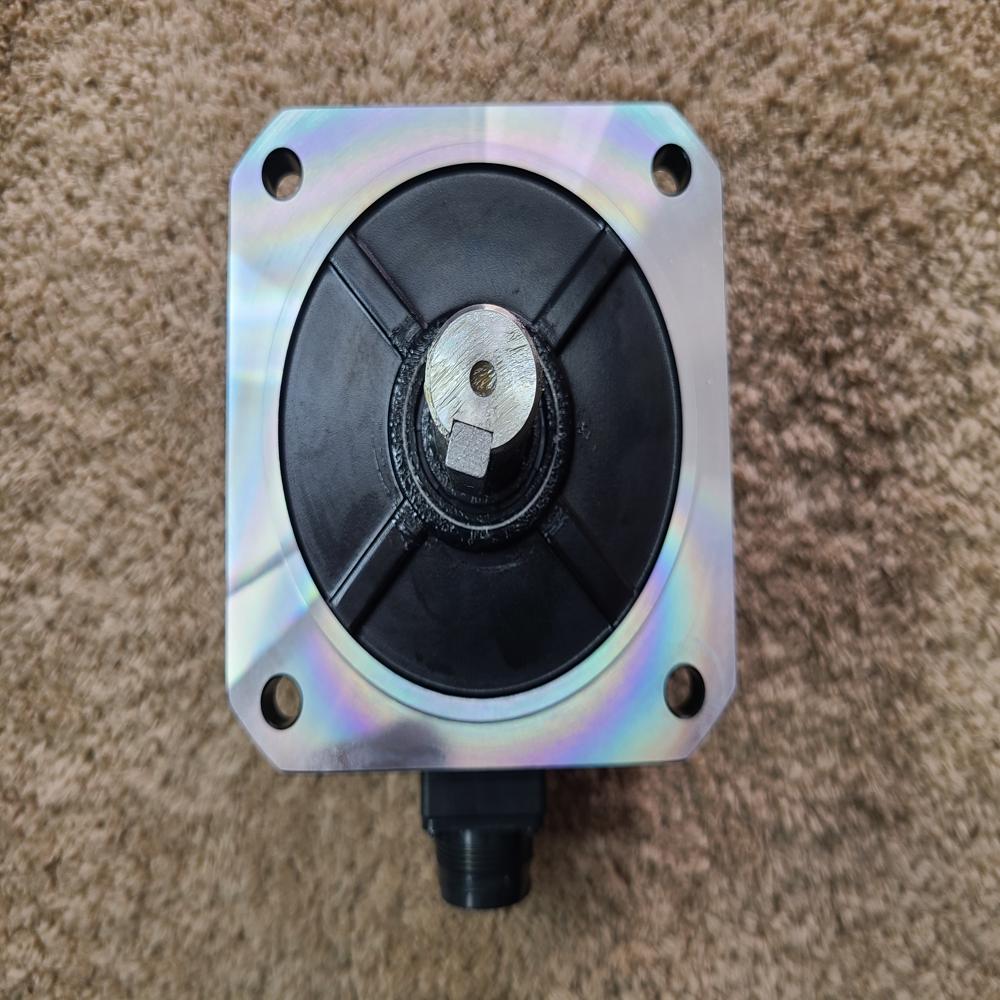

Width & Height: 3.15 inches (80 mm) based on the square flange size.
Shaft Diameter: 0.75 inches (19 mm).

Key Functional Features

23-bit Encoder: Provides high-resolution feedback (8.38 million pulses per revolution) for extreme positioning accuracy.
IP67 Rating: Fully protected against dust and water immersion, allowing it to function in harsh industrial environments.
High Speed: Capable of reaching a maximum speed of 6500 RPM for fast cycle times.
